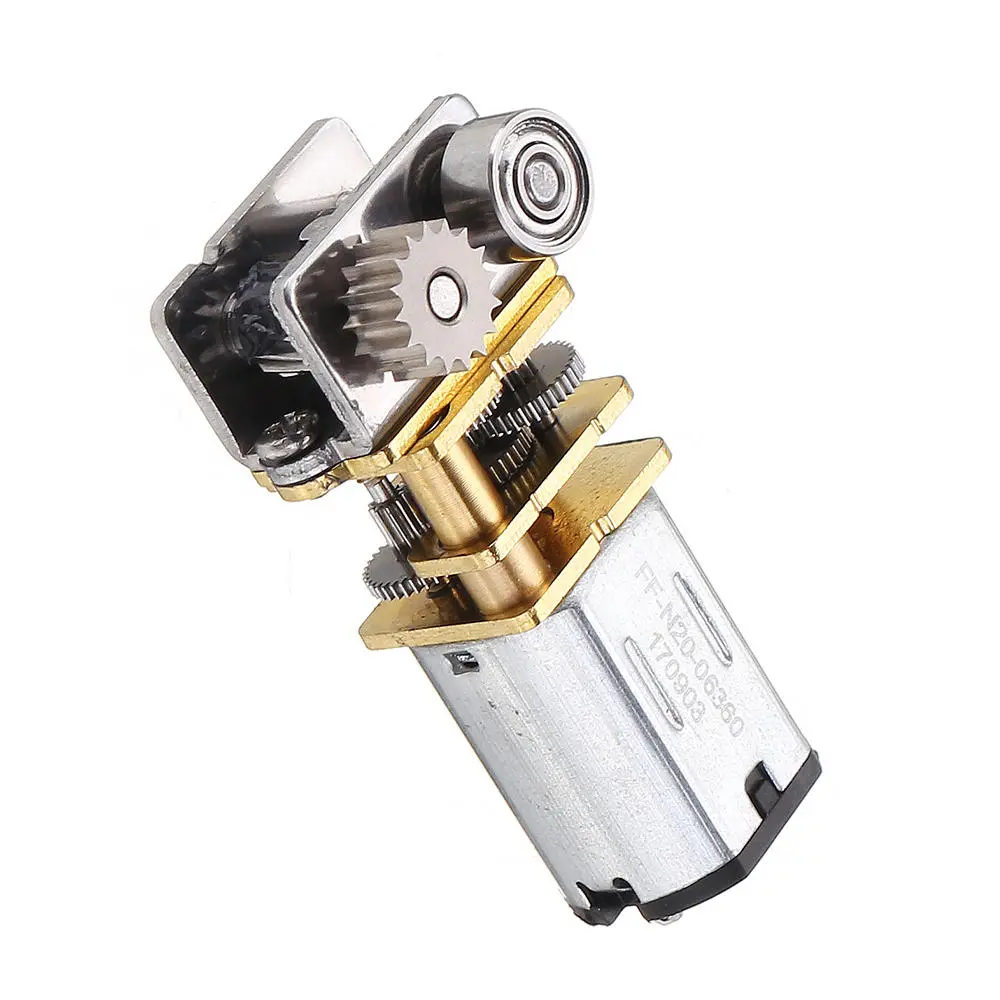

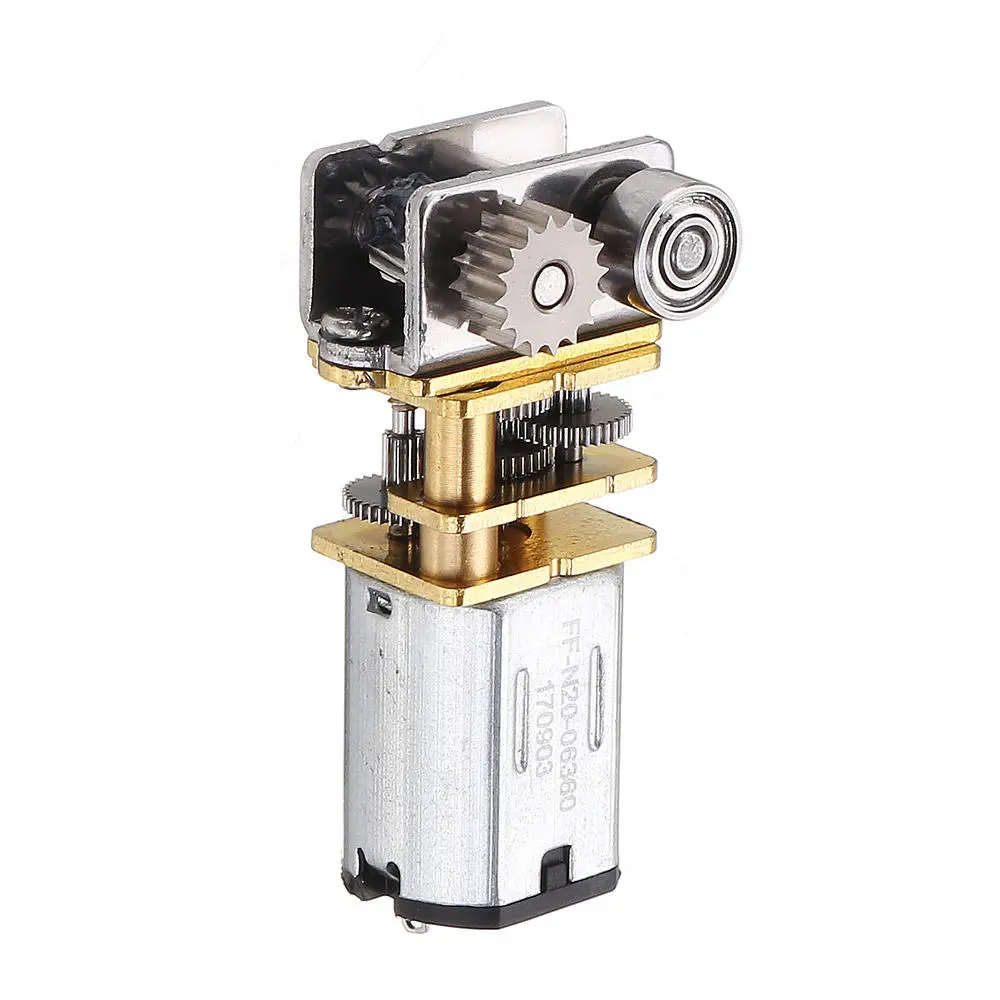

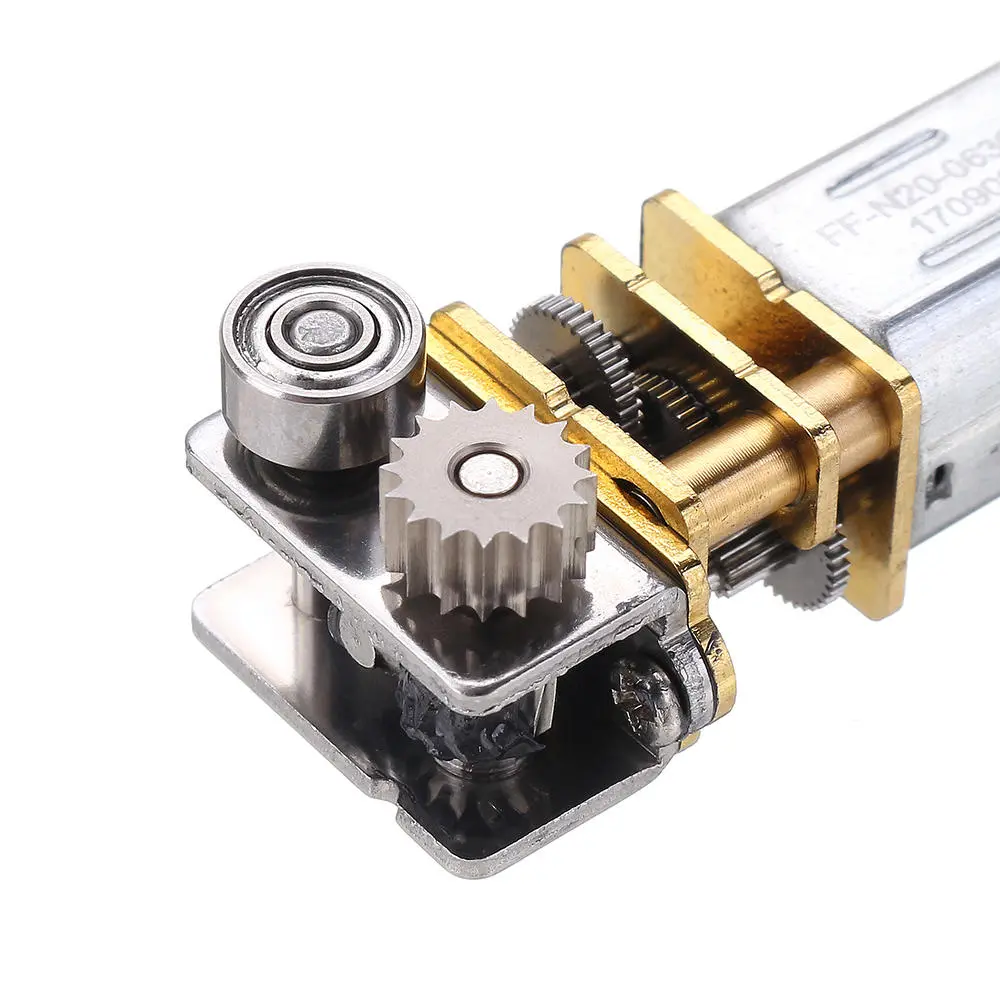

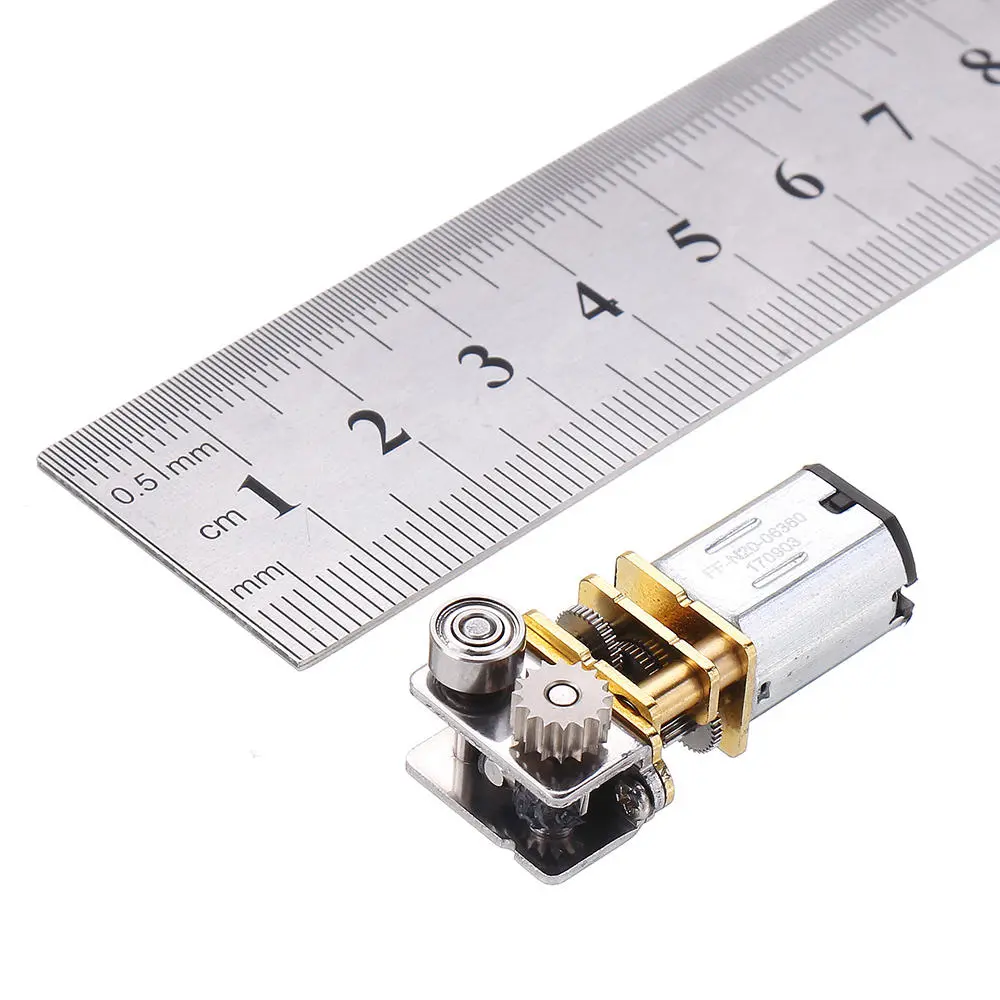

Machifit GM12YN20-3DP DC12V 11RPM Metal Gear Motor | Right Angle Output for 3D Pen

Product Description

Description:
Machifit GM12YN20-3DP DC12V 11RPM N20 right angle output metal gearbox, micro gear motor is for 3D drawing pen, landing gear, lifters, electronic toys, robotic arms.
Specification:

Model	N20
Voltage	12V
Speed ratio	298:1
No-load speed	11??10%rpm
No-load current	??40mA
Rated speed	9??10%rpm
Rated current	??120ma
Rated torque	1.0kg.cm
Locked torque	2.4kg.cm
Locked current	??420mA
Direction	CW
Weight	35g

Fectures:
The motor adopts micro-dc motor and turbine-worm reducer. The rotation of the motor can change the positive and negative direction of the motor connection (the reverse noise becomes larger).
1. The turbine component is a self-locking worm motor, that is, when the motor has no electric energy, the rotating output shaft does not move, that is, self-locking.
2. The direction of the output shaft of the gear and the motor shaft is arranged vertically. The direction of the motor body of the output shaft is relative to the average deceleration of the engine overspeed.
In the above performance aspect, turbine worm gear motor is widely used in window, door, small hoist and so on.
Package Included:
1 X Gear motor
