Machifit 775 DC 12V Lathe Press Motor | Mini Hand Drill Chuck & Mounting Bracket

Product Description

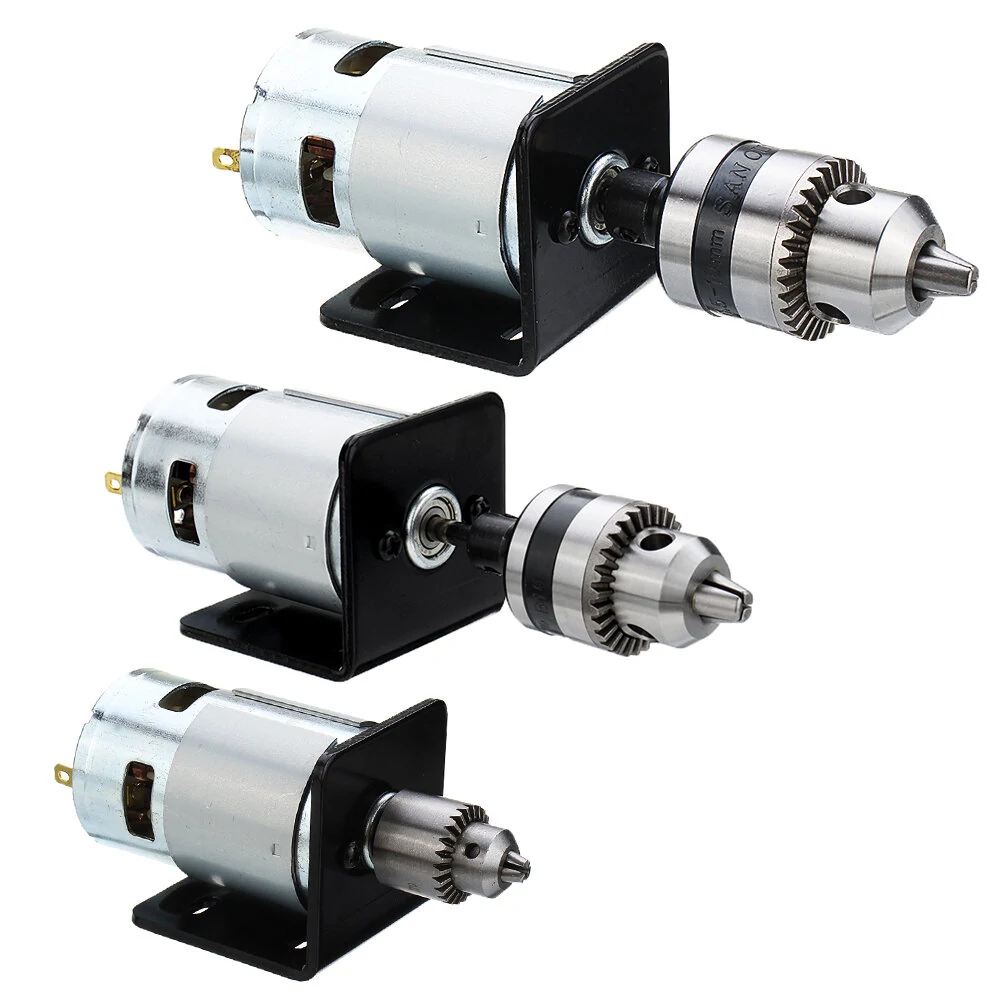

Description: DC 12V Lathe Press 775 Motor With Miniature Hand Drill Chuck 0.3-4mm/0.6-6mm/1.5-10mm and Mounting Bracket
Specification: Type: 775 Motor Material: Aluminum Alloy + Stainless Steel Rated Voltage: DC 12 V No-load Speed: 10000(rpm) Drill Chuck: (optional)

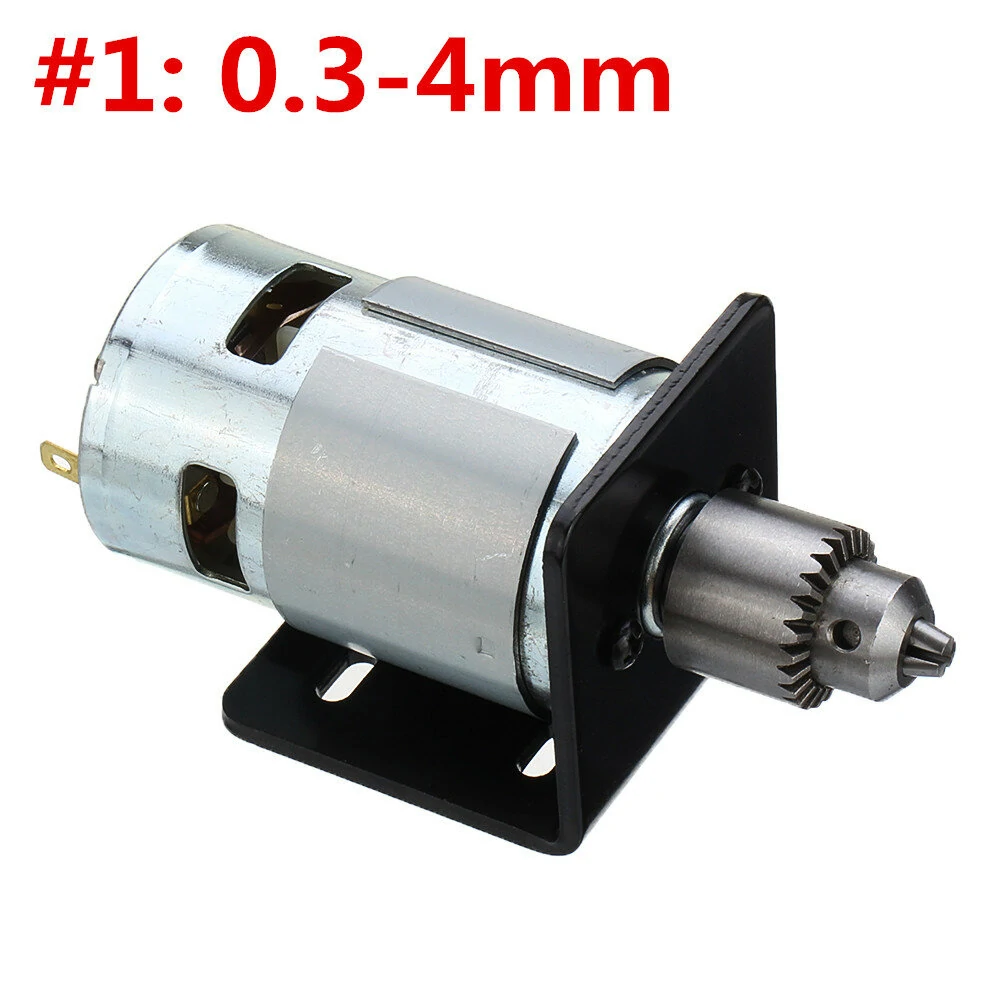

#1: 0.3-4mm

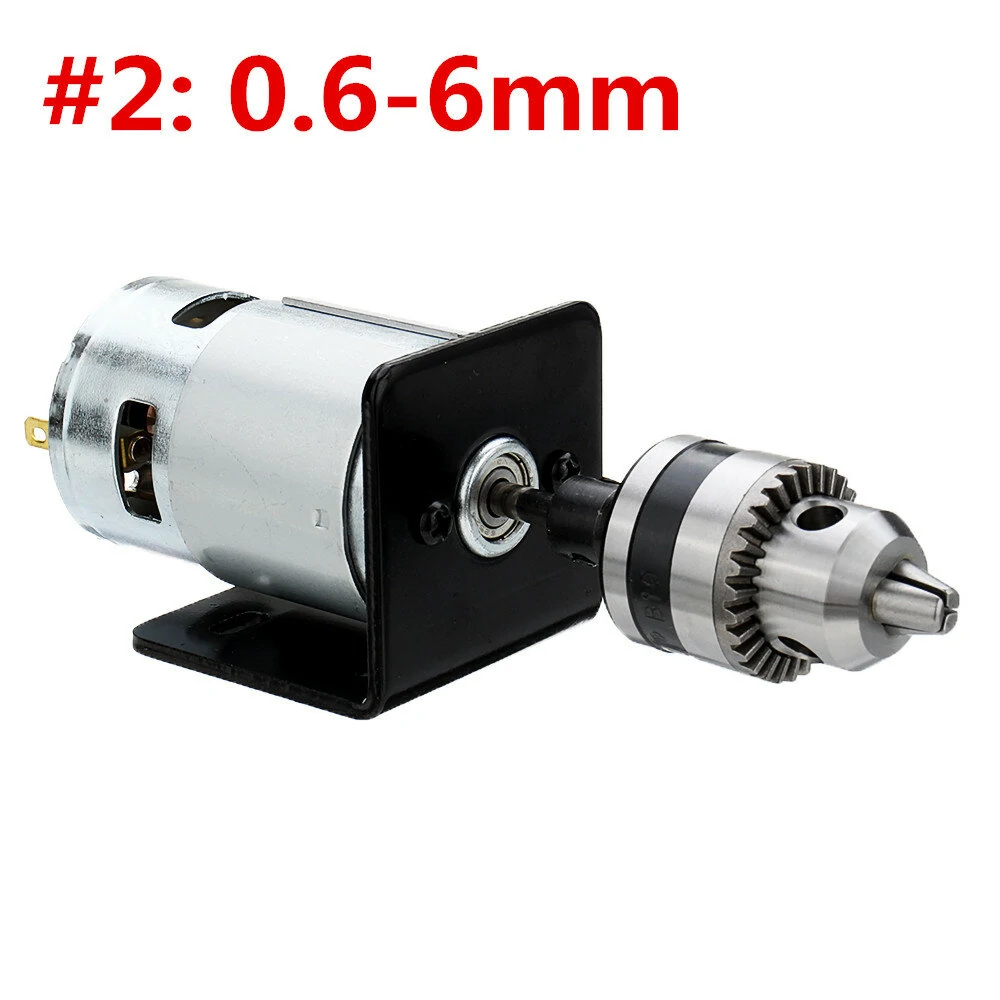

#2: 0.6-6mm

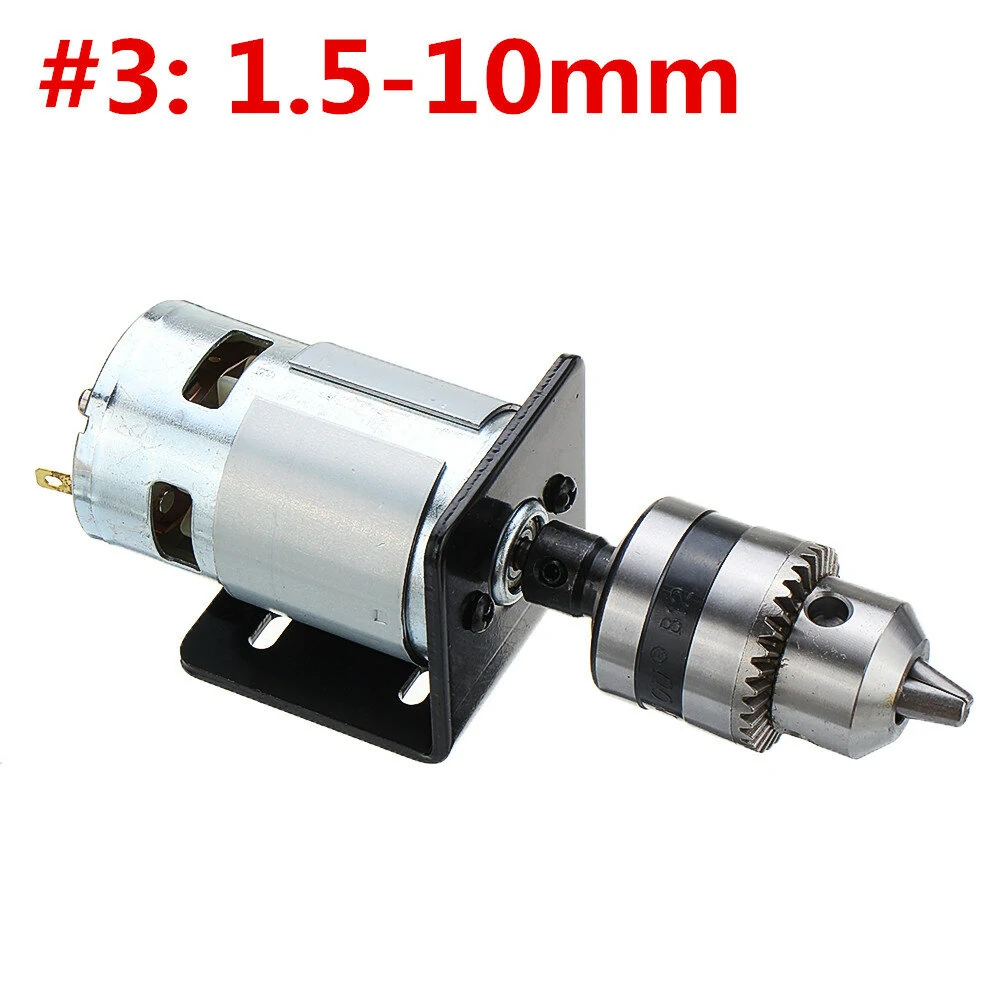

#3: 1.5-10mm

Model	775
Rated voltage	12V
Speed	12V 10000rpm
Torque	3kg.cm
Former high level	4.5mm
Front steps diameter	17.5mm
Body diameter	42mm
Shaft diameter	5mm
Body length	67mm
Length of output shaft at tail	6mm
Diagonal installation pitch	29mm
Mounting hole size	M4
Power	150W

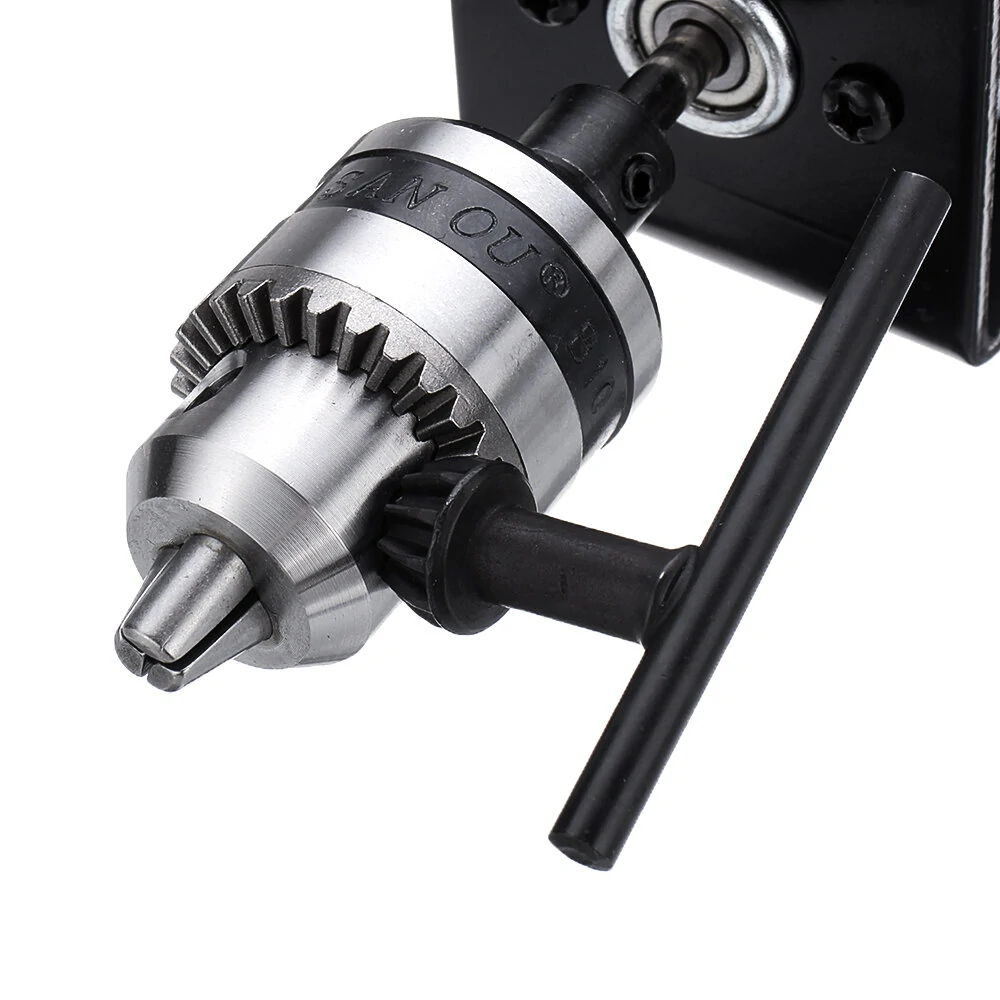

Features: * Tools are complete and convenient * DIY, play your hands ability * Application: Micro Hand Drill * For milling machine, lathe, drilling machine, wood working machine. * The shank with screw can be tight and flex for you. Package Included: 1 x 775 Motor 1 x Bracket 1 x Drill Chuck 1 x Chuck Key 1 x Connecting Link 2 x M3 screws More Details:
