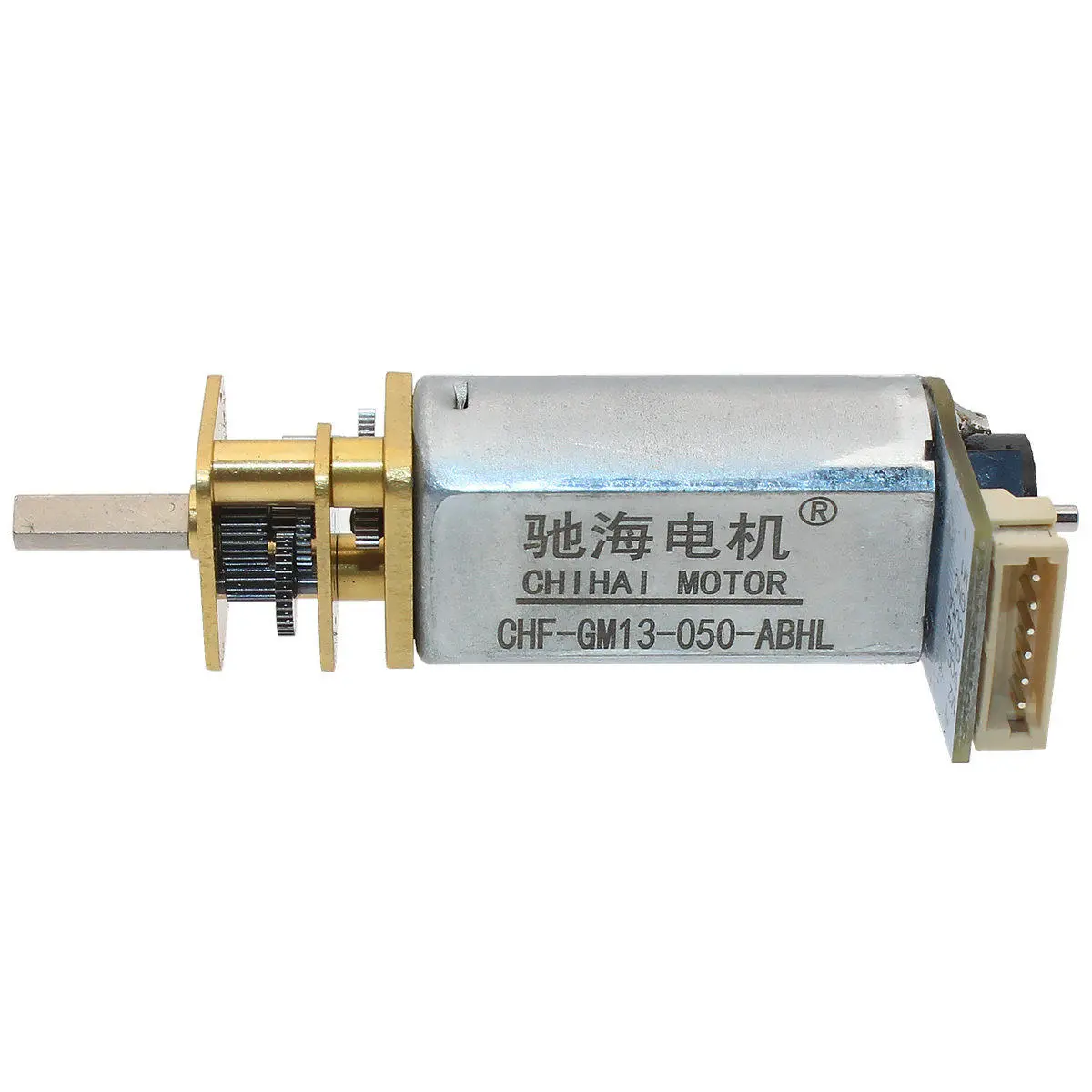

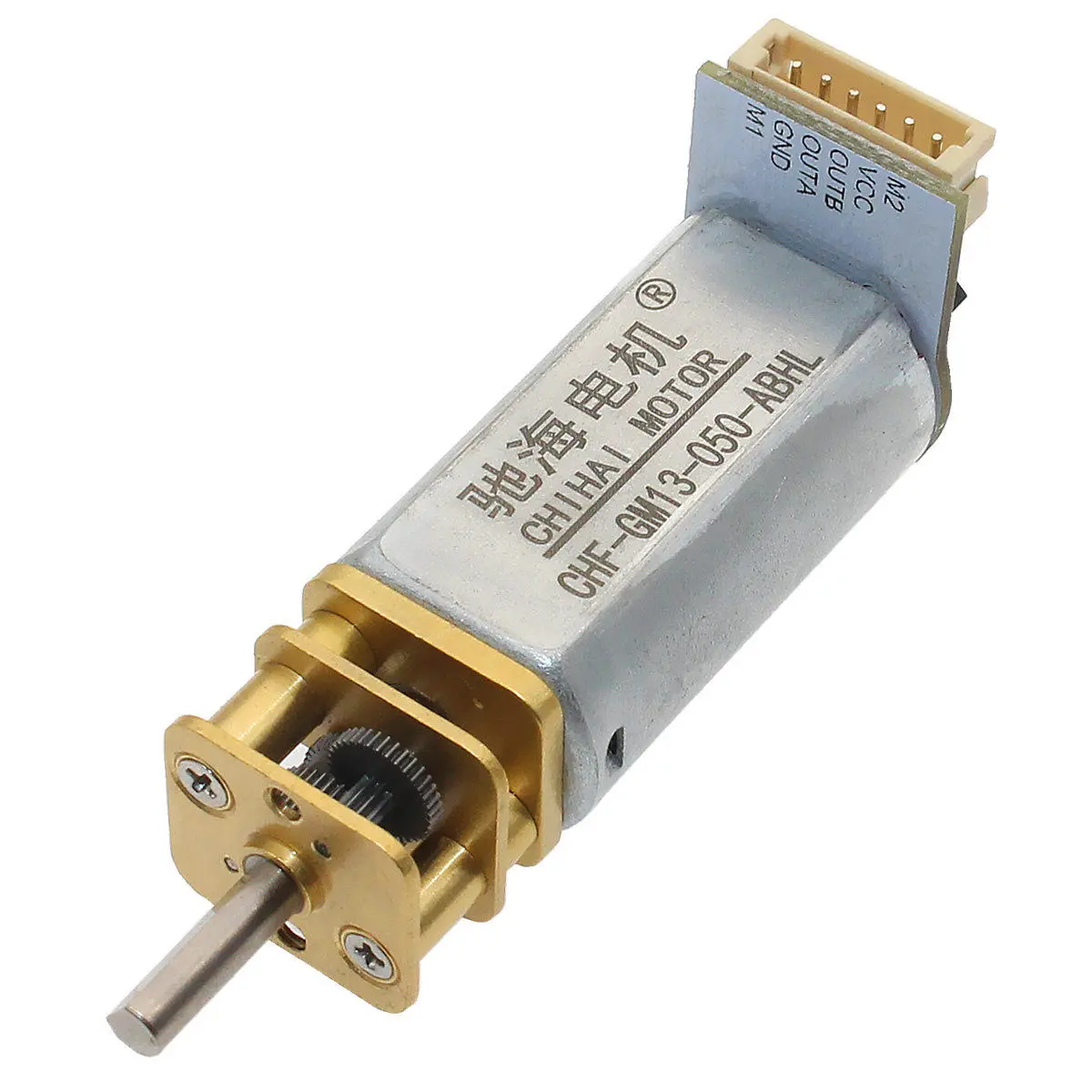

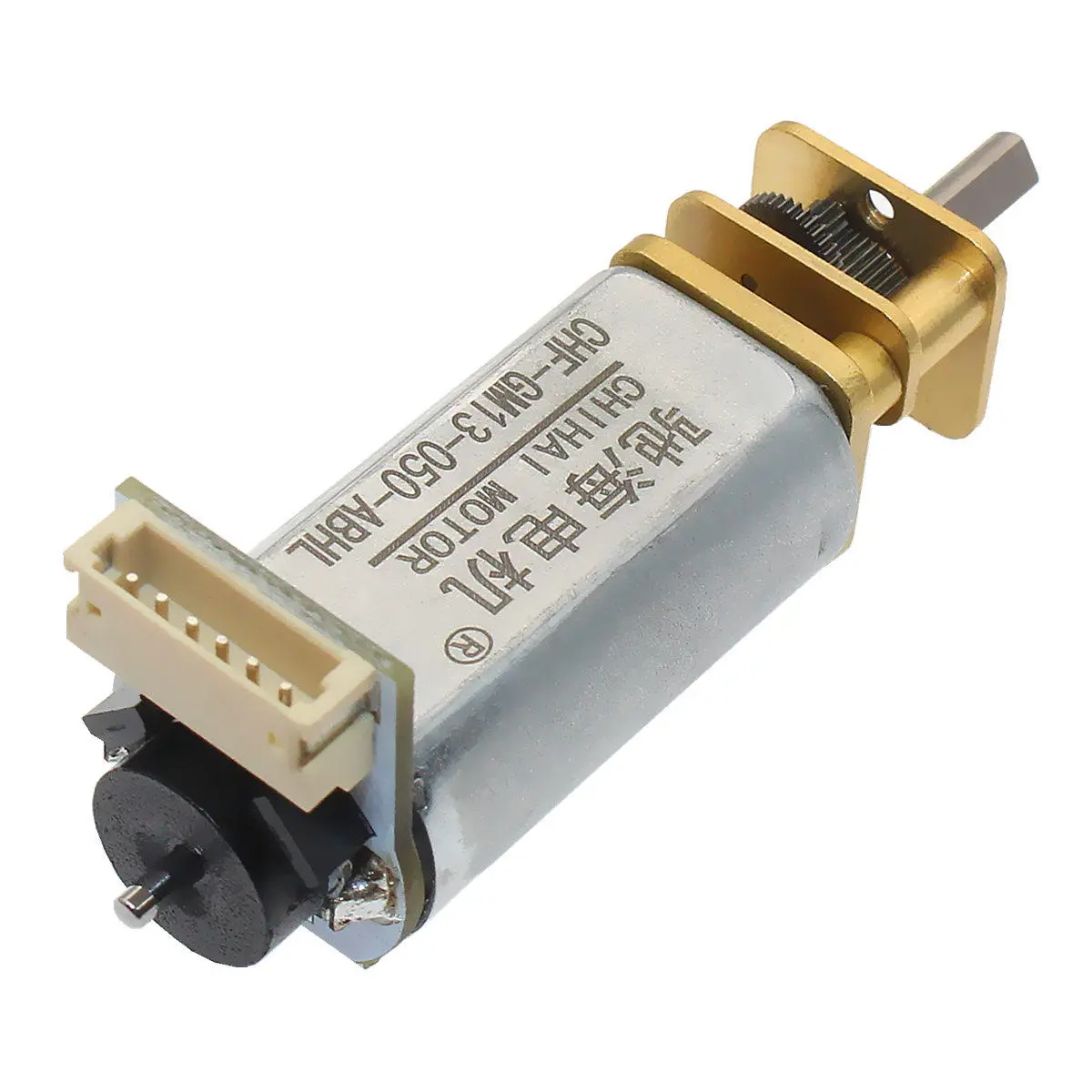

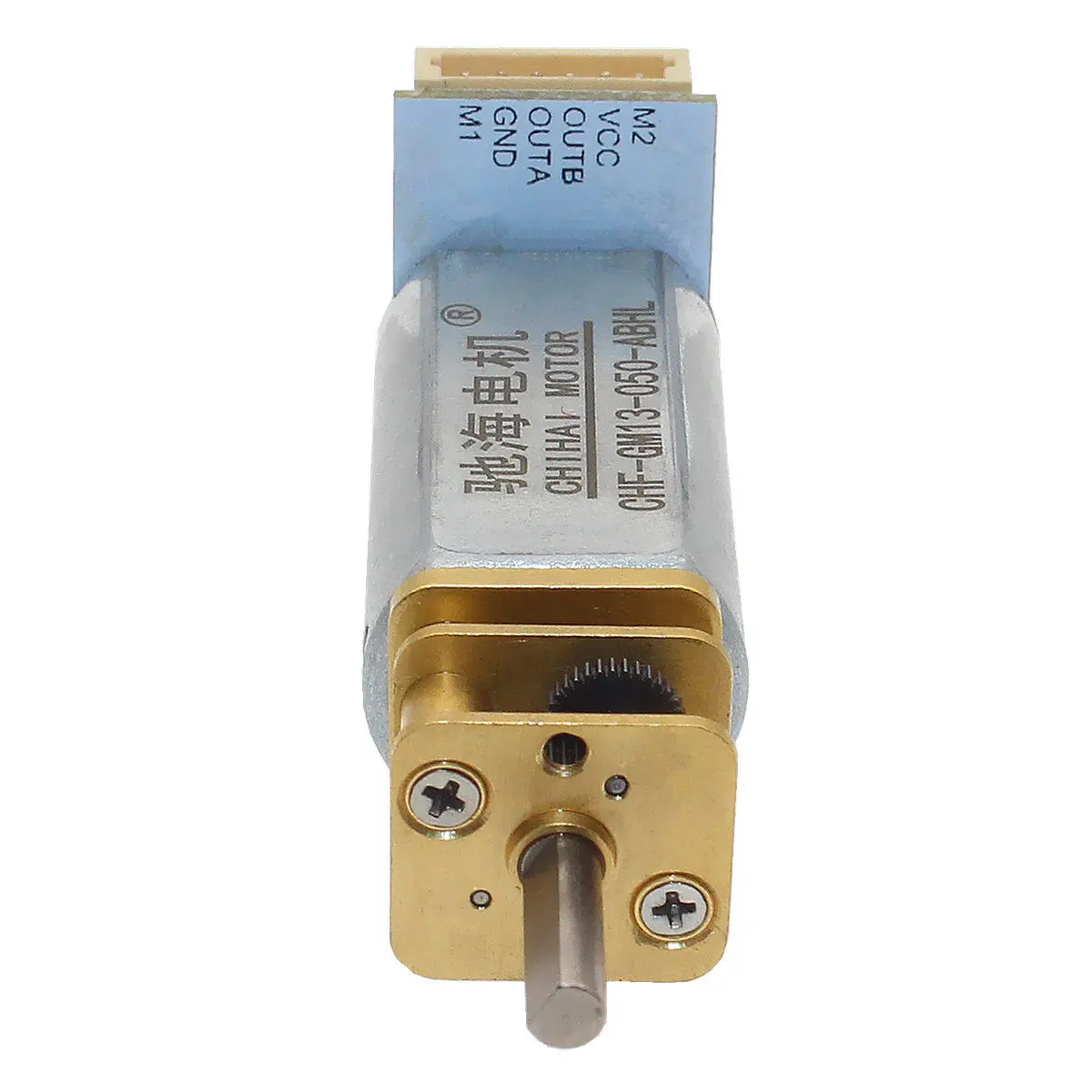

Chihai DC 6V Gear Motor with Hall Encoder | 70 RPM & 800 RPM Speeds

Product Description

Description:
Chihai DC 6V Gear Motor Hall Encoder Motor 70rpm 800rpm DC Motor
Specification:
Model: CHF-GM13-050SHV
Voltage: DC 6V
Quantity: 1pcs

Type	Ratio	Signal	No load speed (rpm/min)	No load current (mA)	Rated speed (rpm/min)	Rated current (A)	Rated torque (kg.cm)	Stall current (A)	Stall torque (kg.cm)
A	1:10	70	800	??60	620	??0.18	0.10	??0.8	??0.6
B	1:20	140	400	??60	310	??0.18	0.20	??0.8	??1.0
C	1: 35	245	230	??60	175	??0.18	0.4	??0.8	??1.8
D	1: 63	441	125	??60	100	??0.18	0.6	??0.8	??2.5
E	1: 86	602	92	??60	70	??0.18	0.9	??0.8	can't exceed 3.0kg.cm
F	1: 115	805	70	??60	55	??0.18	1.1	??0.8
G	1: 150	1050	52	??60	42	??0.18	1.5	??0.8
H	1: 250	1750	33	??60	27	??0.18	2.0	??0.8
I	1: 360	2520	22	??60	19	??0.18	2.5	??0.8

Features:
High strength and high efficiency. Small resistance and strong conductivity.
Durable and long service life.
Package Included:
1 x Encoder Motor
