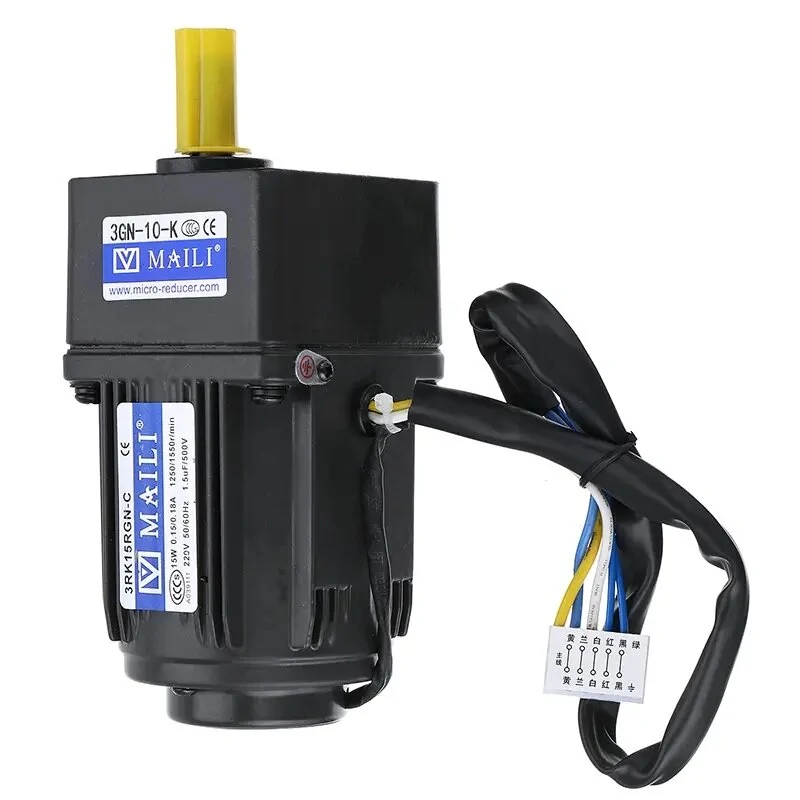

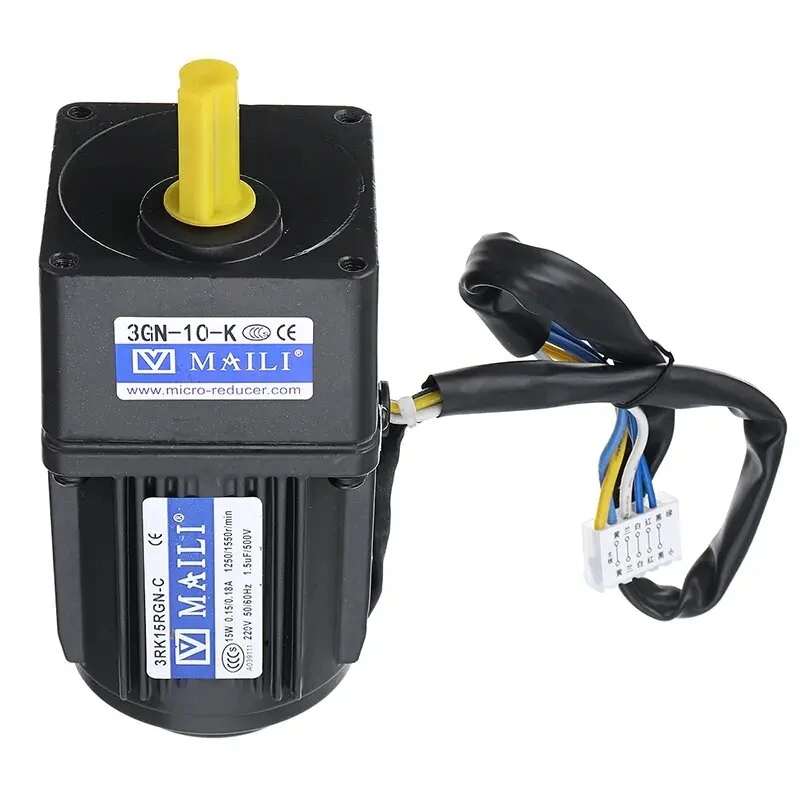

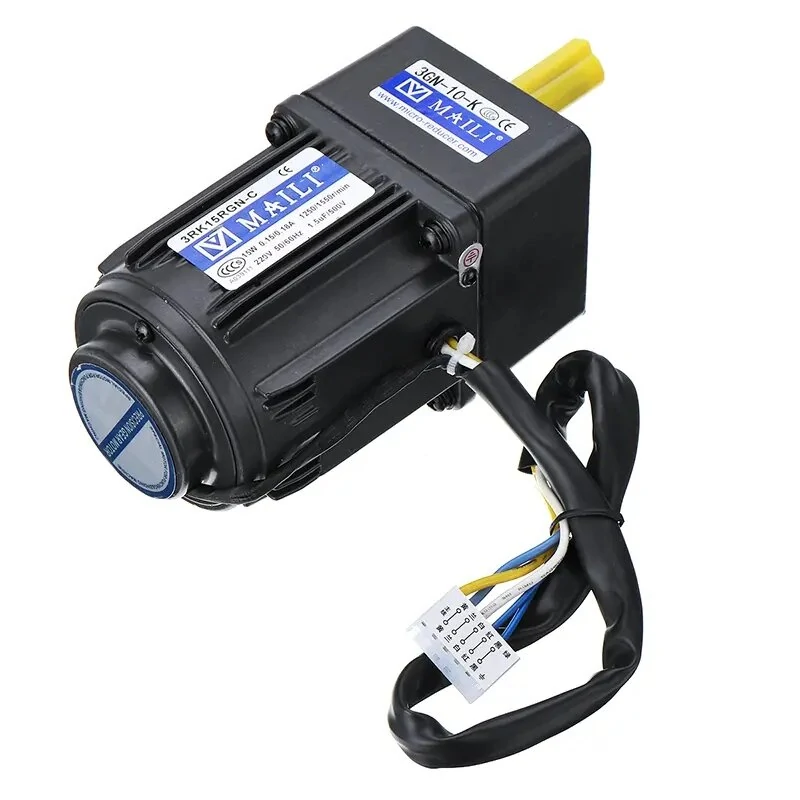

3RK15GN-C Gear Motor - 15W 220V AC Variable Speed Reversible - 6.9/125/415 RPM
Product Description
Description:
15W 220V AC Gear Reducer Motor 3RK15GN-C 6.9/125/415 RPM Variable Speed Motor Reversible Motor
Specifications:
| Product Name | Geared AC motor |
| Rated Voltage | AC 220 V |
| Rated Speed | 6.9/8.3/12.5/16/25/31/41/52/62/83/100/125/166/206/250/415RPM |
| Reduction Ratio | 1:10 |
| Power Phase | Single-phase motor |
| Motor Size | 70mm x 70mm x 134mm |
| Motor Axis | 10mm |
| Motor Axis Length | 30mm |
| Features | Adjustable speed / forward / reverse / reduction |
| Transmission Reduction Ratio | 1/3 / 5/6/7.5/10/12.5/15/20/25/30/40/50/75/100/150/180 |
| Motor Rotation Reverse | Support forward and reverse |
| Quantity | 1 Pc ?? Geared AC Motor 1 Pc x Variable Speed Controller |
Features:
- The motor and transmission shell are formed by high-strength alloy die-casting. The transmission shell and the bearing chamber are die-casted into an integrated form, and are integrally processed by a high-precision automatic CNC machine tool, which replaces the overtime pillar type of the transmission, and is more suitable for bearing high torque and Impact load.
- Wide range of applications, from household machines to production equipment automation.
- 15W gear motor output speed: 415 ~ 0 rpm, 250 ~ 0 rpm, 206-0 rpm, 166 ~ 0 rpm, 125 ~ 0 rpm, 100 ~ 0 rpm, 83 ~ 0 rpm, 62.5 ~ 0 rpm, 50 ~ 0 rpm , 41.6 ~ 0 rpm, 25 ~ 0 rpm, 16.6-0 rpm, 12.5-0 rpm, 6.9-0 rpm, fast 415 rpm, slow can be transferred to 0 rpm, the faster, the smaller the strength
Package Included:

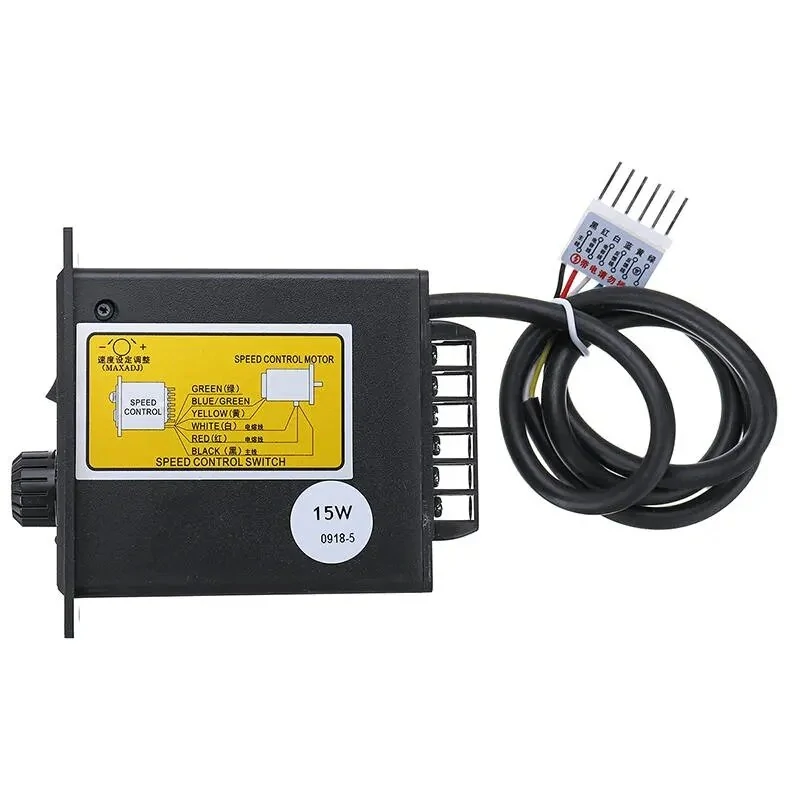

1 Pc x | Variable Speed Controller |
| 1 Pc x | Geared Motor |
