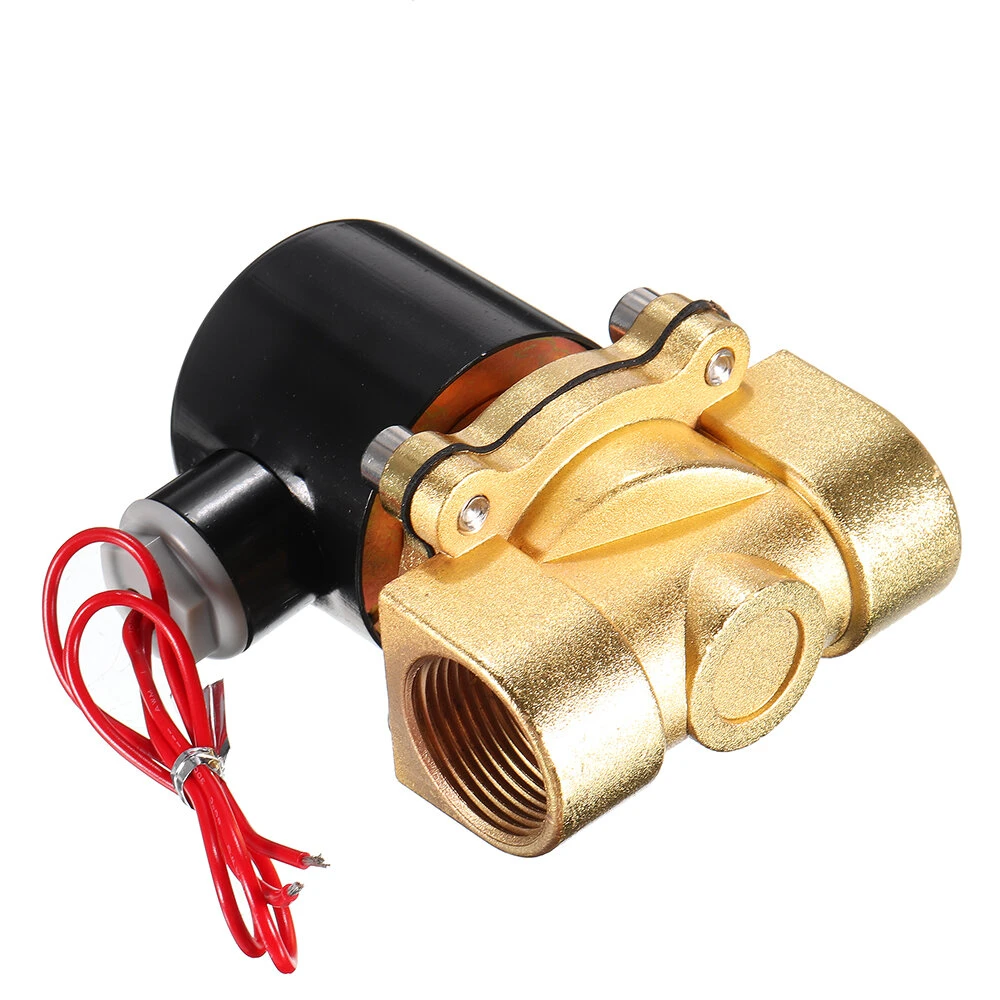

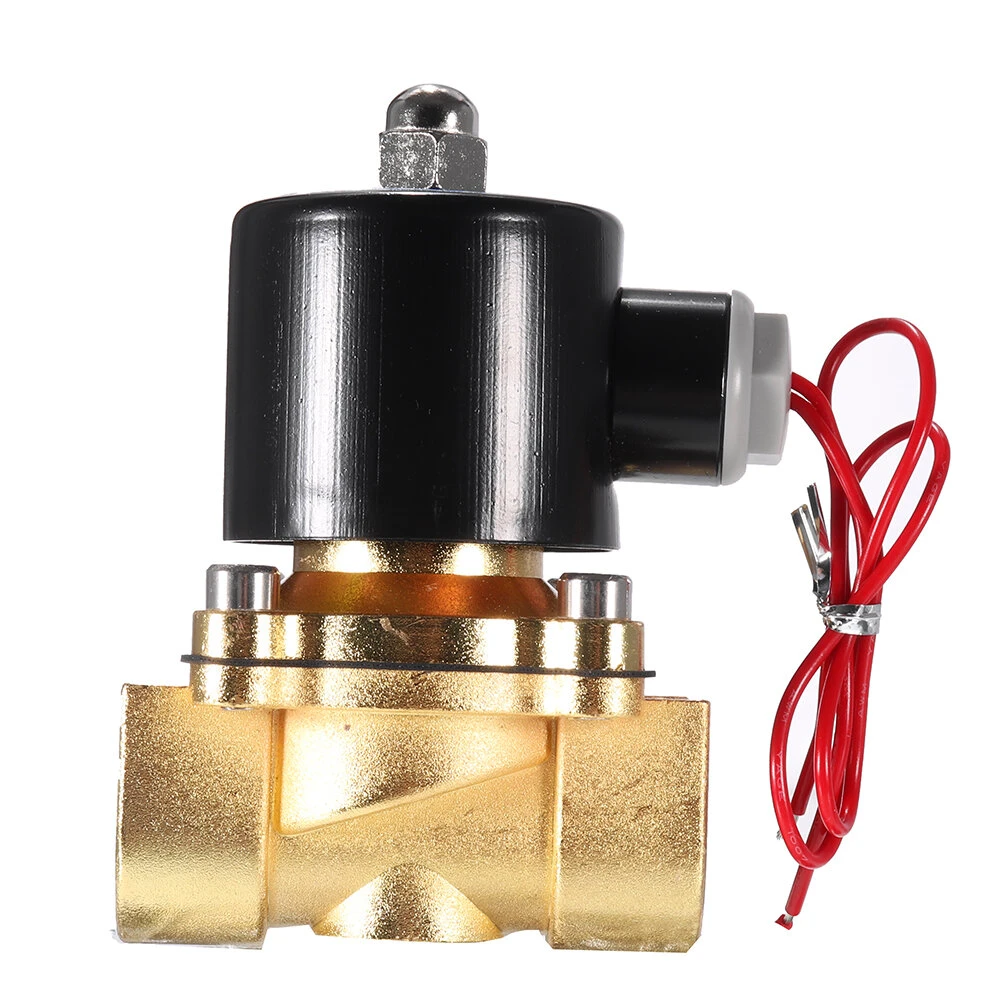

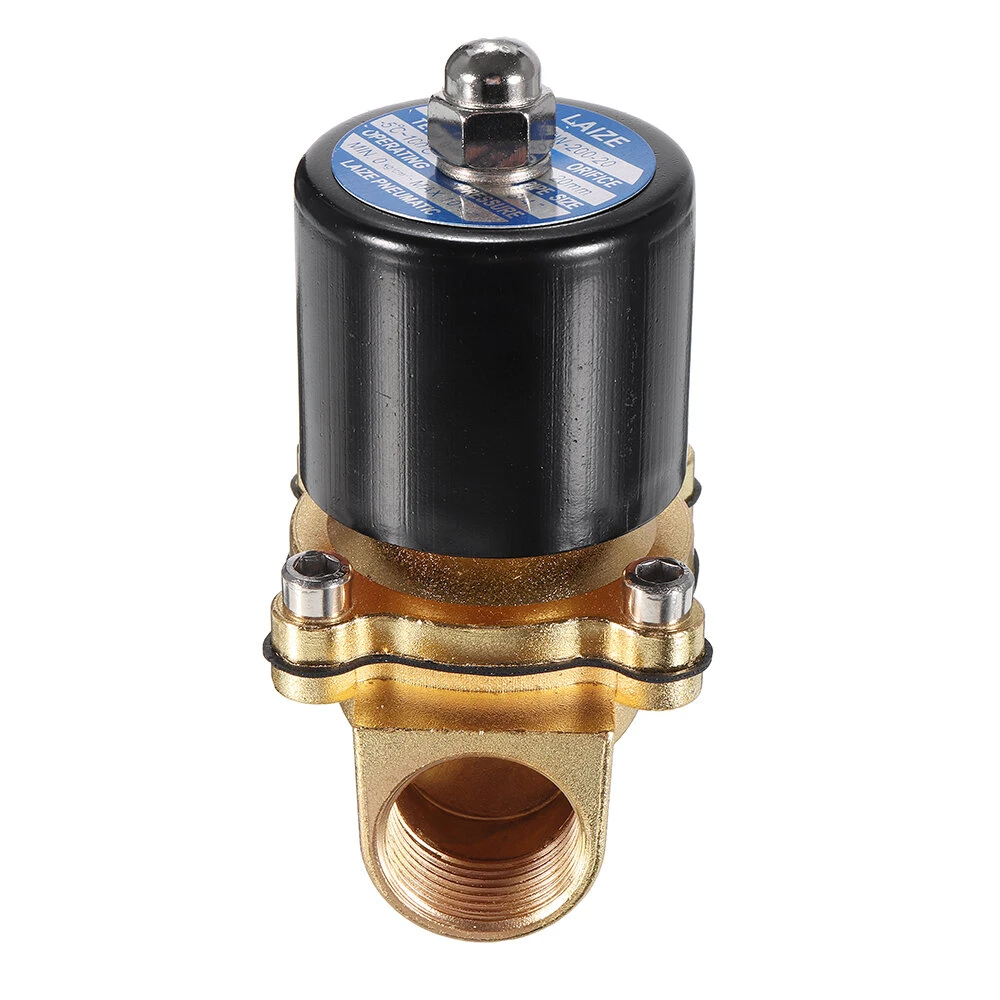

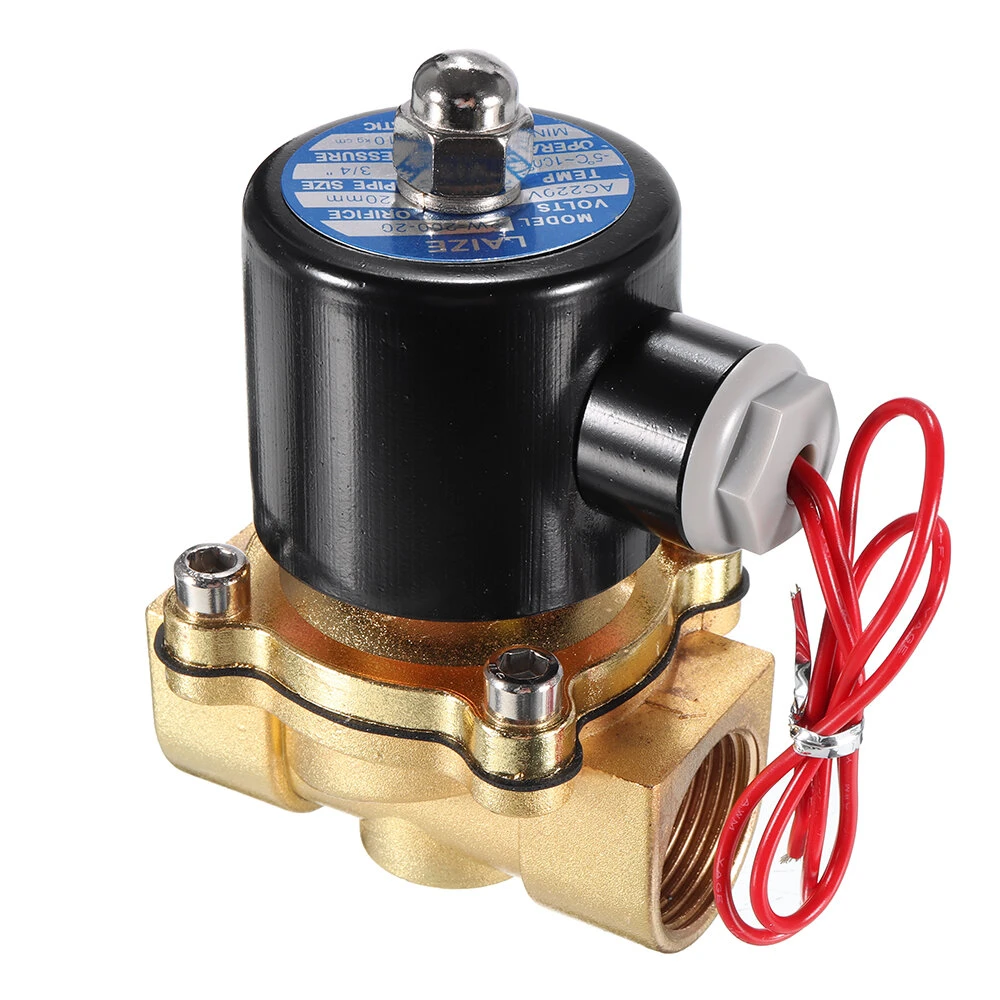

LAIZE DN20 3/4 NPT Brass Solenoid Valve - AC 220V/DC 12V/24V - Water Air Fuel
Product Description
LAIZE DN20 NPT 3/4 Brass Electric Solenoid Valve AC 220V/DC 12V/DC 24V Normally Closed Water Air Fuels Valve
Features:
1. [All copper coil]: The coil insulator grade is H grade, which can work continuously, and the max temperature can reach 99??. Brass casting structure is and reliable hard-wearing, anti-corrosion and precise, strong and durable.
2. [Thick pipe wall]: The pipe wall is thickened, with many internal threads, and has good compression and explosion-proof performance.
3. [High-quality valve body]: Floating spherical surface technology plus zinc alloy valve body, high hardness, not easy to deform, and is conducive to sucking and sealing, improve working stability.
4. [Application]: Applicable to multiple media, air, oil, water, etc. No power consumption, having direct stability of water adjust.
5. Normally closed control, power on and power off.
6. Available in three voltages: AC220V, DC12V, DC24V.
7. Easy to install.
Specificaions:
| Product name | Electric solenoid valve |
| Valve material | Valve body zinc alloy + coil all copper |
| Sealing material | NBR nitrile rubber |
| Working medium | Water/air/oil |
| Voltage (Option) | AC220V/DC12V/DC24V |
| Thread | DN20(3/4inch) |
| Flow diameter | 20mm |
| Control type | Normal closed(Turn on when power on, turn off when power off) |
| Type | Two-position two-way |
| Way of working | Direct acting |
| Fluid viscosity | Below 20CST |
| Guarantee pressure resistance | 1.0Mpa |
| Operating temperature | -50-80?? |
| Pressure range | Air(0-0.7Mpa), water(0-0.5Mpa), oil(0-0.5Mpa) |
| Installation method | The direction of water flow is indicated on the valve body, which will not be used in reverse, |
Package Included:
| 1x | Electric Solenoid Valve |
