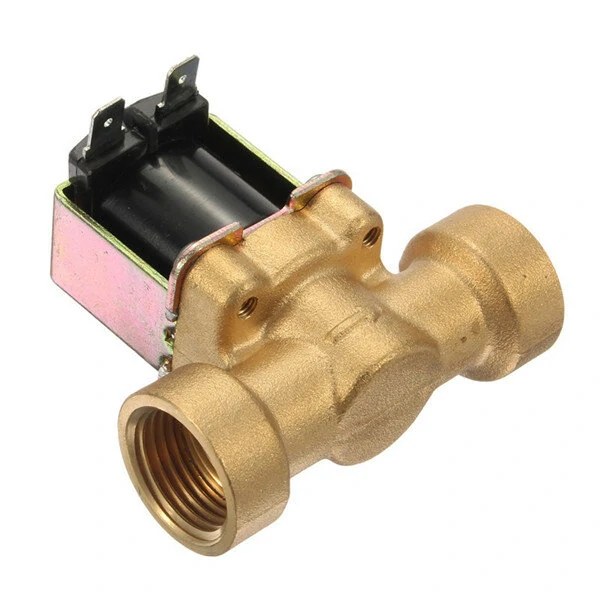

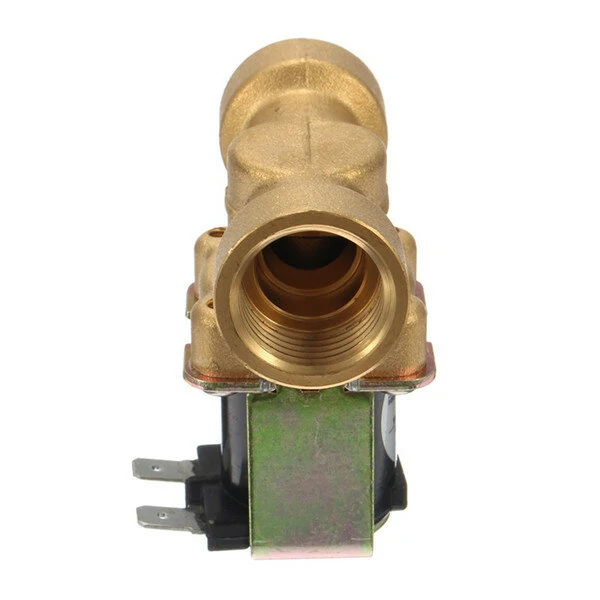

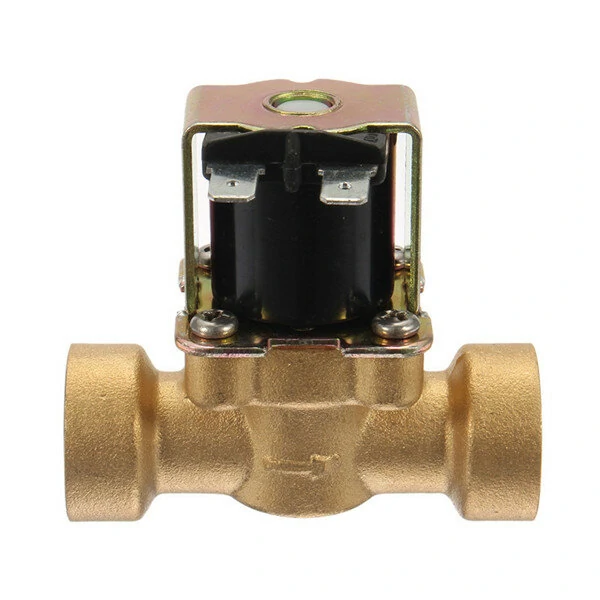

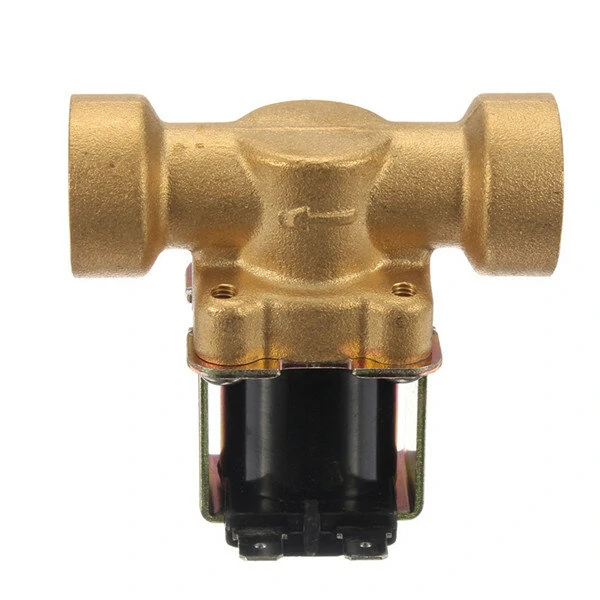

DC12V Two Way Solenoid Valve - Water Air Valve - 12V Electric
$21.00
$25.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:DC12V Two Way Solenoid Valve Water Valve Specification:
| Model | SEN-SZ21NA |
| Weight | 254g |
| Material | Brass |
| Passageway | Through way type |
| Connecting format | Screw thread |
| Applicable medium | Water |
| FLow deirection | Unidirectional |
| Tooth Interface | G1/2?? |
| Operating temperature | 120?? |
| Voltage | DC 12V |
| Working current | 0.46A |
| Power | 5.2W |
| Working pressure range | 0.02-0.8Mpa |
| Flow range | 3.0L/min-25L/min |
| Coil resistance | 26?? |
| Insulation current | ?? 100M?? |
| Direct current resistance | 27????5 |
| Electric strength | 1000V, 50Hz, 1min between conductive metal and non-conductive mounting metal. |
| Life | ??3 million times |
| Using range | Fluid control, normally close |
Features:
This is a small size product that easy to install. Made of pure brass, the product is precise and durable, no power consumption. Suitable for water industry and other fields such as drinking funtain, energy-efficient air conditioning used liquid, water and oil as medium. Package Included:
1 x Solenoid valve
More Details:
