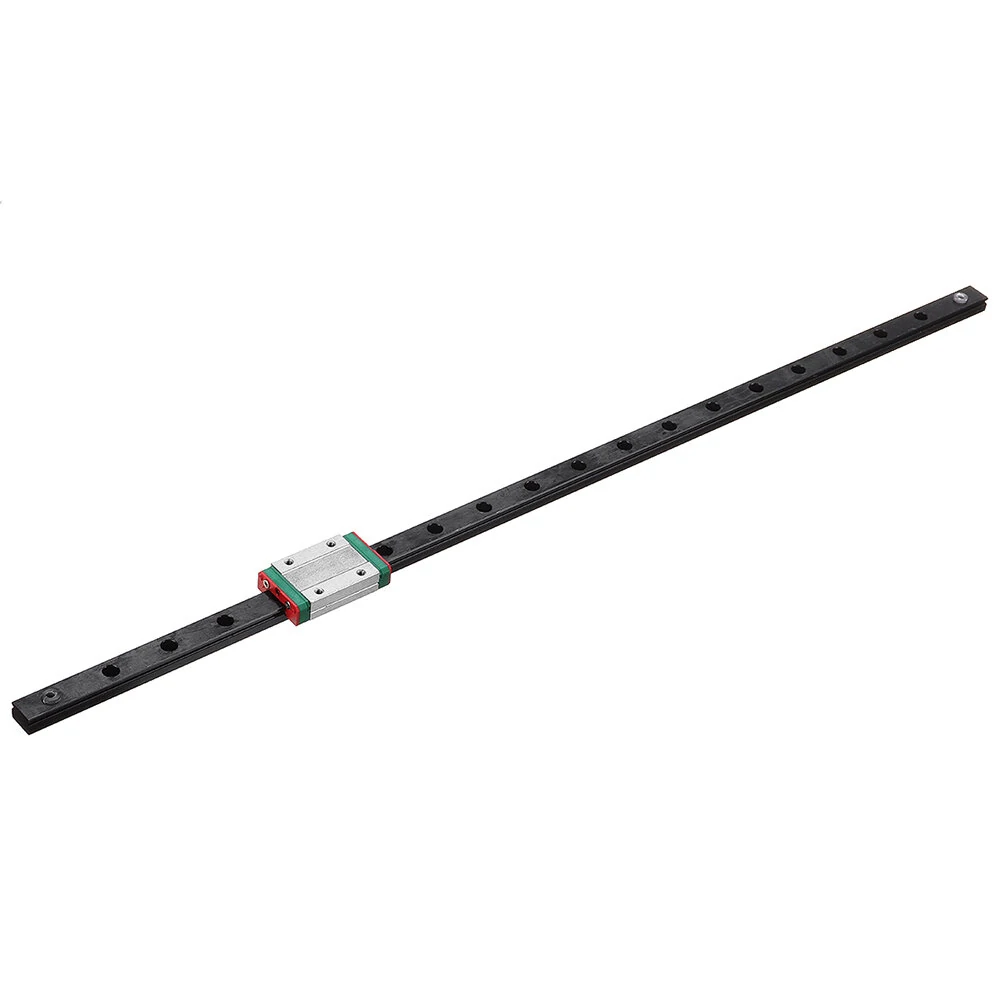

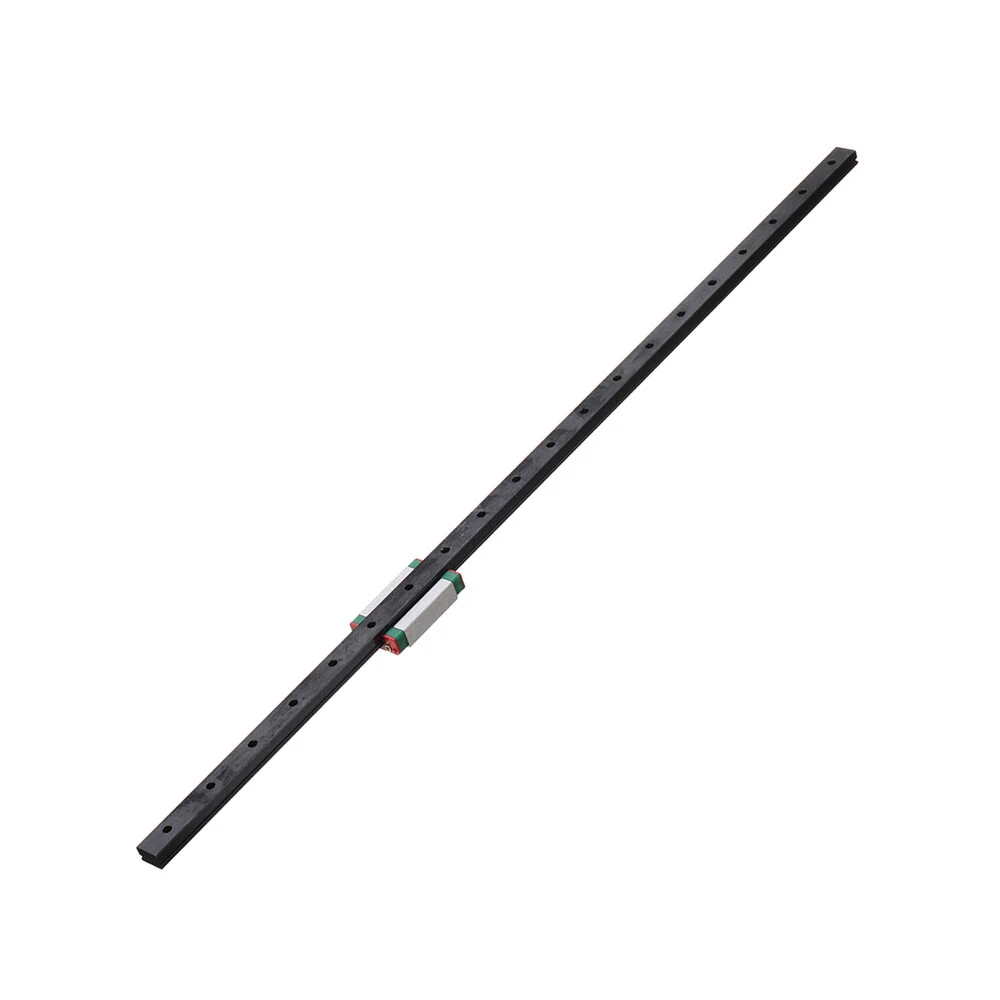

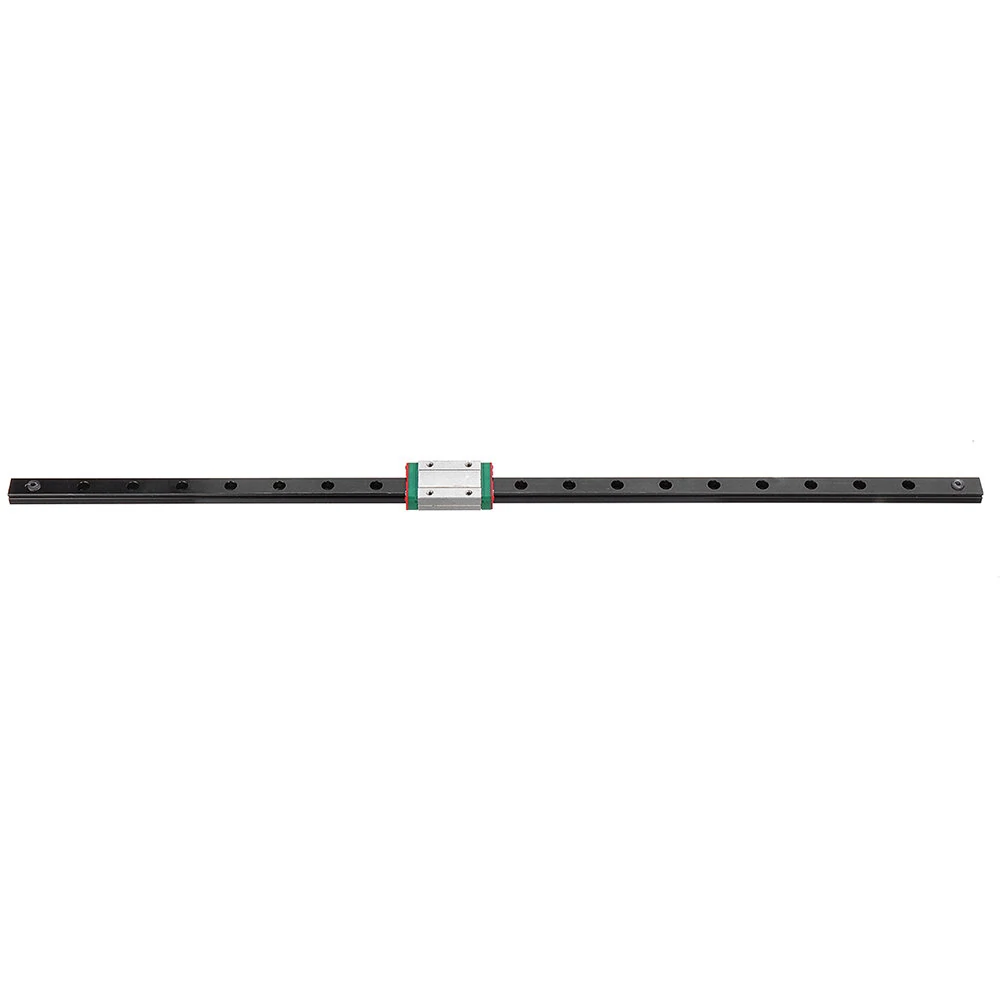

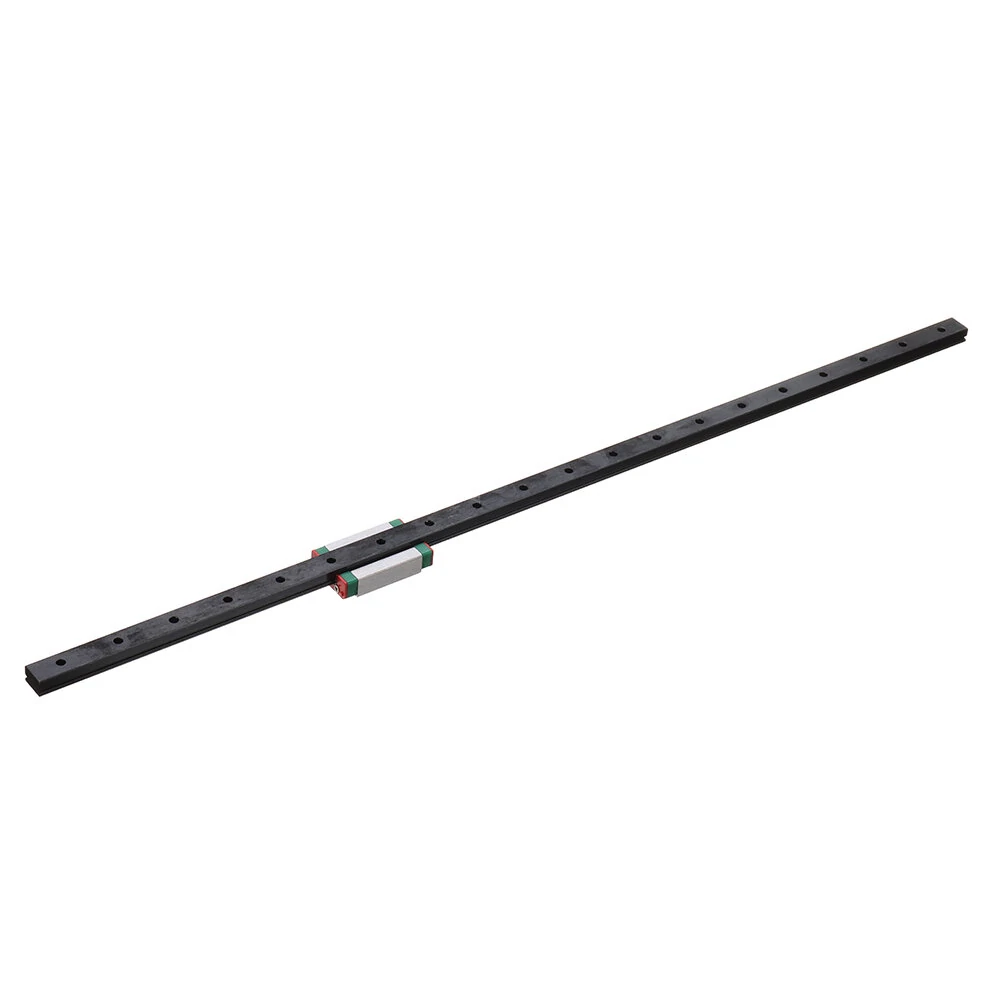

Machifit MGN12 Linear Rail Guide - 100-1000mm Black Oxide with Sliding Block

Product Description

Description:
Machifit MGN12 100-1000mm Black Oxide Linear Rail Guide with MGN12H Linear Sliding Guide Block CNC Parts
Specification:

Height (Block)	10mm
Width (Block)	27mm
Length(Block)	46mm
Height (Rail)	8mm
Width(Rail)	12mm
Length(Rail)	100mm/200mm//300mm//400mm//500mm 600mm//700mm//800mm//900mm//1000mm
Rolling bearing seat material	Bearing steel
Surface treatment	Black oxide
Quantity	1pcs

Features:

Black treatment for rust prevention.

High precision, smooth, high wear resistance and low noise.Advanced production technology, precise products, high hardness and durability.High bearing capacity and low friction.Widely used in CNC machine tools, machining centers, electronics, automated machinery, textile machinery, automotive woodworking machinery, printing machinery, etc. Installation Precautions:When installing, do not remove the plastic rail in the slider in advance, otherwise it will easily cause the steel ball in the slider to fall out during assembly and cannot be installed and used normally. Installation steps:1. Align the end of the rail with the slider.2. Use the guide rail to slowly push out the plastic rail.3. The plastic rail falls naturally until the slider is completely loaded into the guide rail. Note:Please note that the package includes one size set or one single linear block only. Package Included: (optional)
1 x MGN12 Linear Rail + MGN12H Linear Rail Guide Block or1 x MGN12H Linear Rail Guide Block
