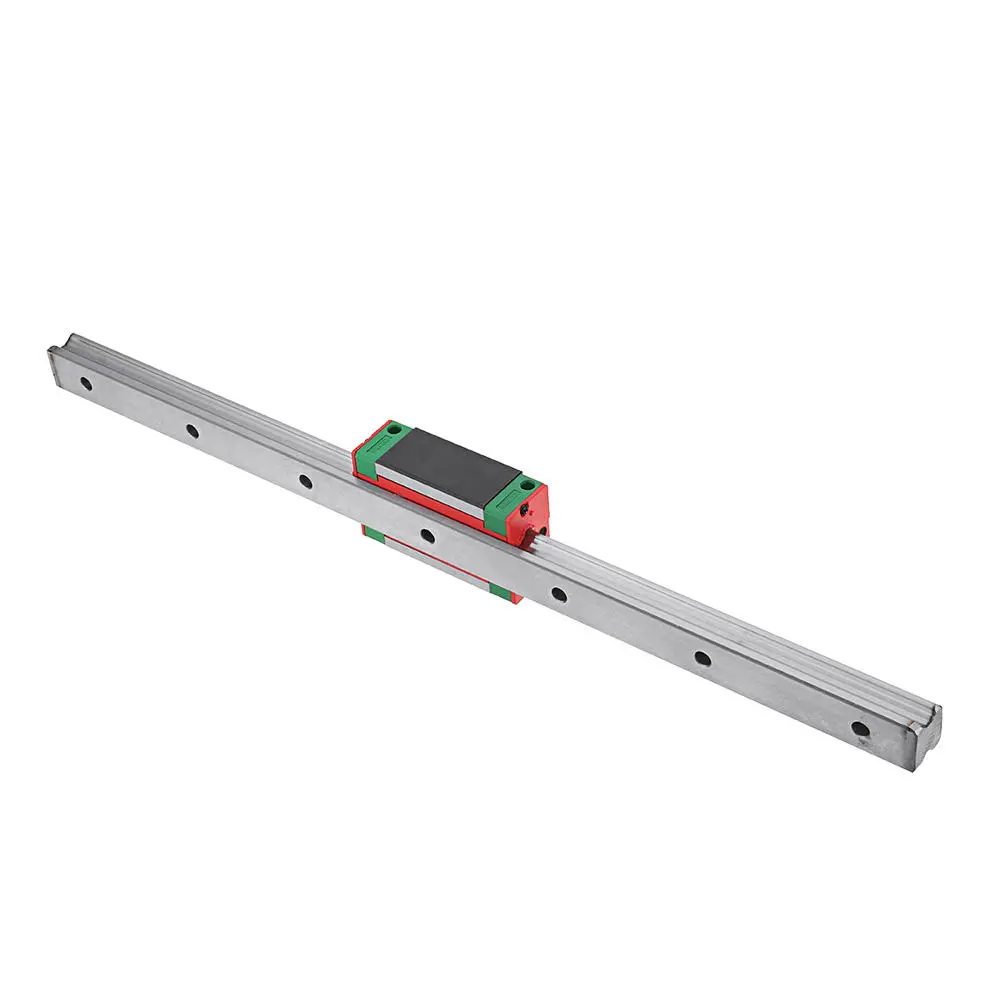

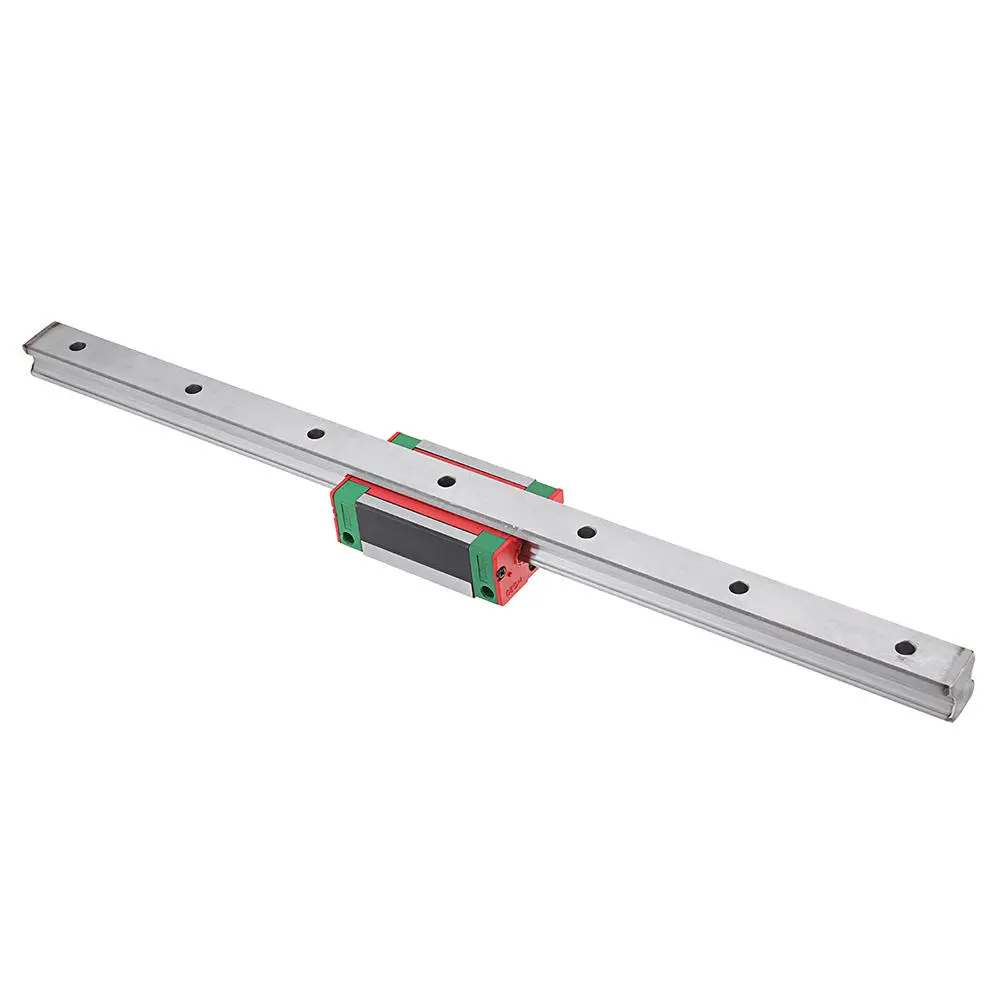

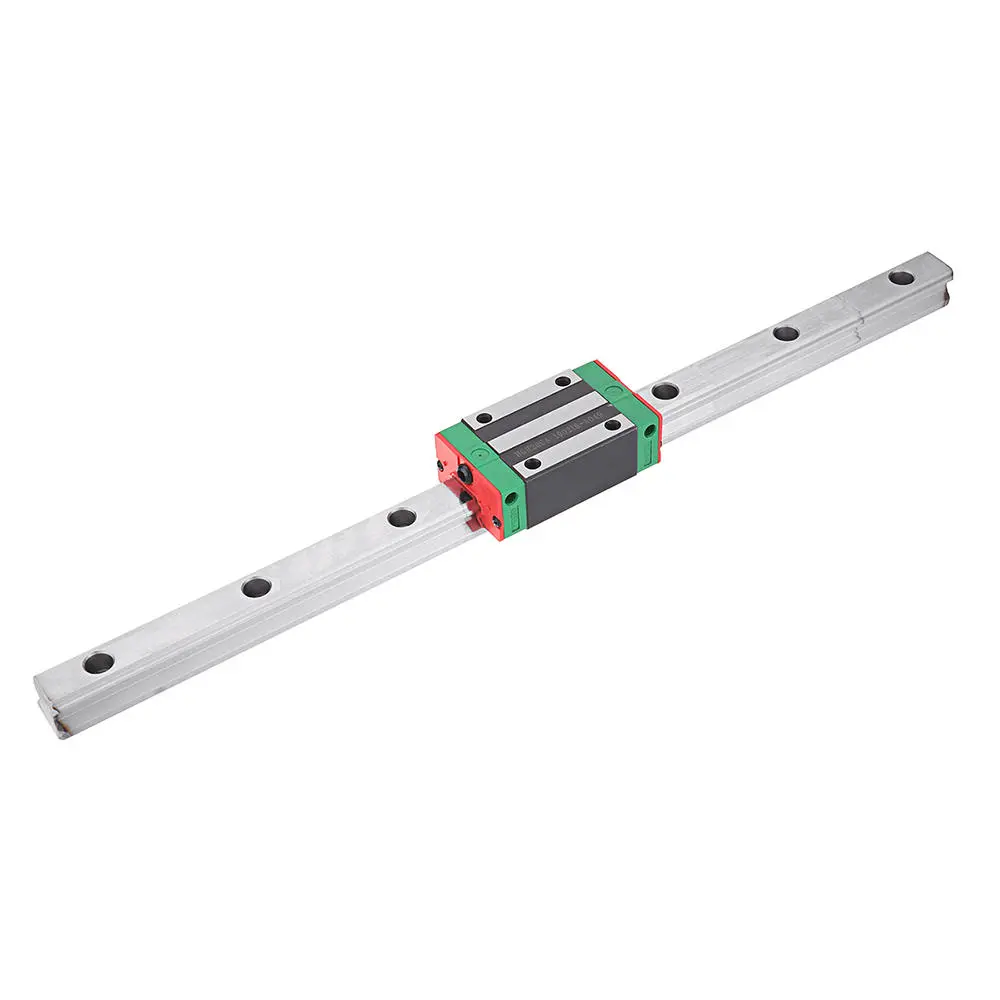

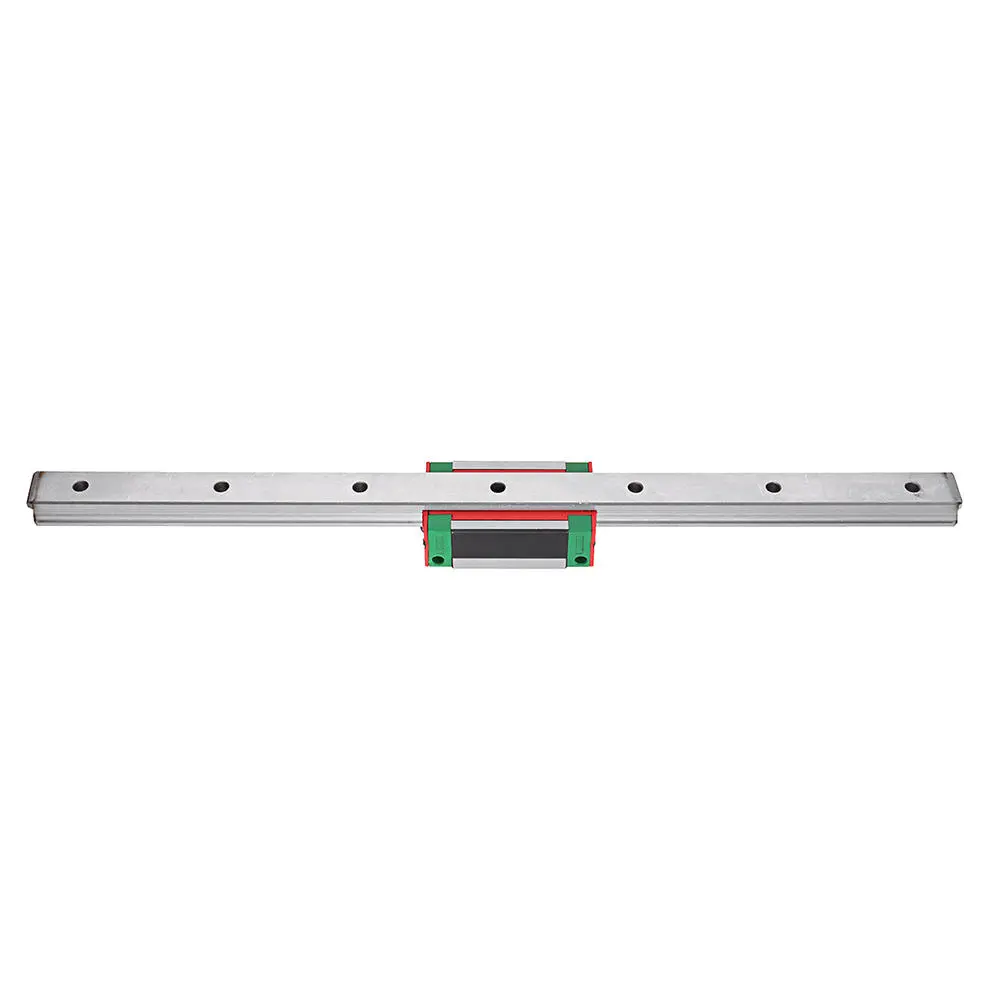

Machifit HGR20 300mm Linear Rail Guide | HGH20CA Slide Block CNC Parts

Product Description

Description:
Machifit HGR20 300mm Linear Rail Guide with HGH20CA Linear Rail Slide Block CNC Parts
Specification:

Model	Rail: HGR20 Block: HGH20CA
Material	Steel
Length	300mm
Width	20mm
Quantity	1pcs

Features:
High precision, smooth, high wear resistance and low noise.
Easy to install, direct locking with screw and worktable. Advanced production technology, precise products, high hardness and durability. High bearing capacity and low friction. Widely used in CNC machine tools, machining centers, electronics, automated machinery, textile machinery, automotive woodworking machinery, printing machinery, etc. Installation Precautions: When installing, do not remove the plastic rail in the slider in advance, otherwise it will easily cause the steel ball in the slider to fall out during assembly and cannot be installed and used normally. Installation steps: 1. Align the end of the rail with the slider. 2. Use the guide rail to slowly push out the plastic rail. 3. The plastic rail falls naturally until the slider is completely loaded into the guide rail.
Note:
Please note that the package includes one size set only.
Package Included:
1 x HGR20 300mm Linear Rail
1 x HGH20 Linear Rail Guide Block
