GANWEI XY Linear Stage | Manual Precision Sliding Table & Displacement Platform
Product Description
Feature:
-High precision, heavy load resistance.
-Long life, low coefficient of friction, versatility.
Specification:
Brand | GANWEI |
Model | MG0-000-0027 |
Name | displacement platform |

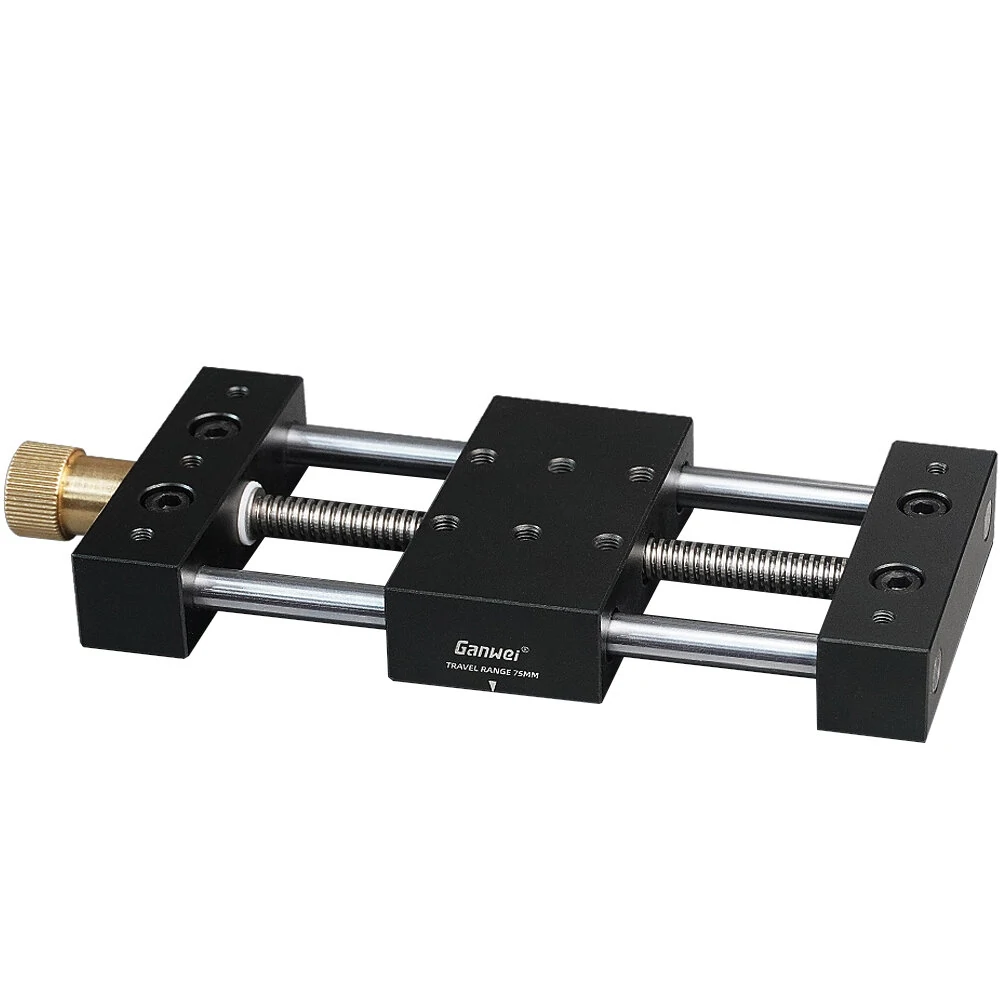

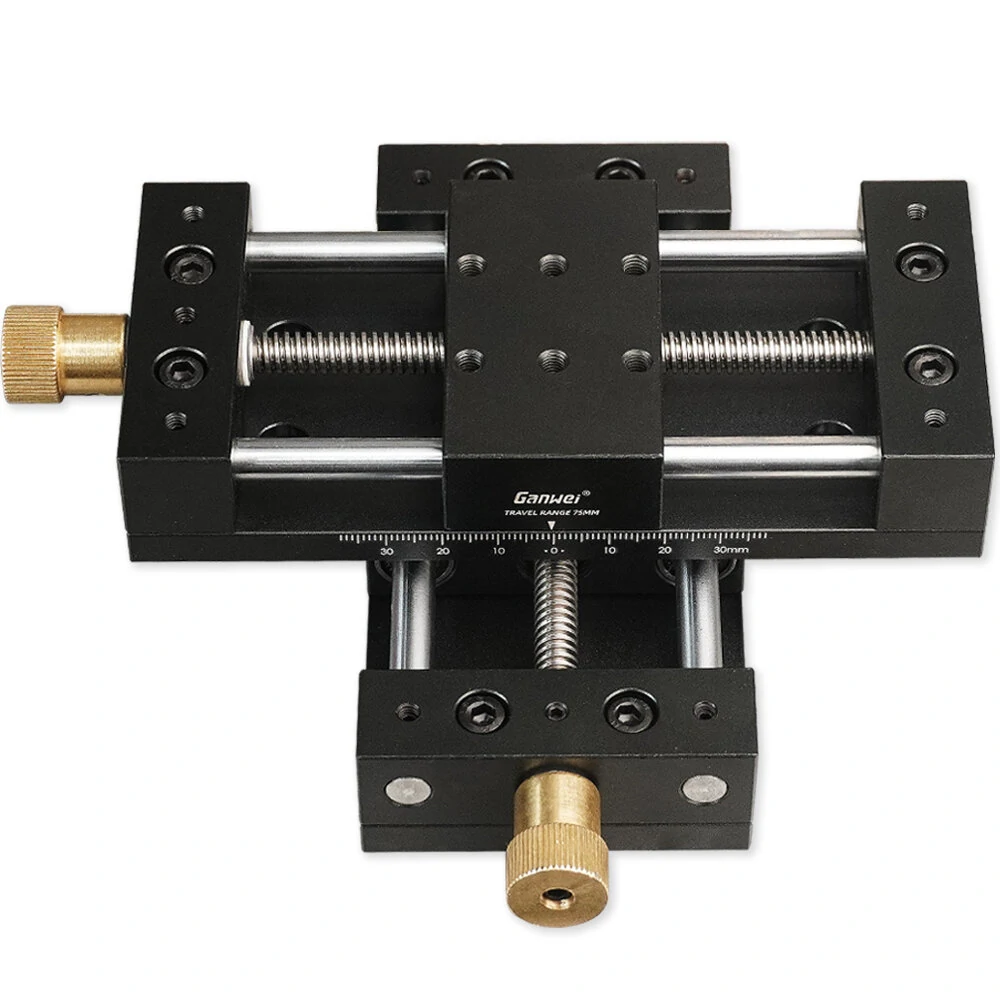

Type(Optional) | #A: One-dimensional sliding table without bottom plate #B: One-dimensional sliding table with base plate #C: Two-dimensional sliding table, group XY axis |
Material | main body-aluminum alloy, screw shaft-stainless steel, knob, anti-backlash nut-brass |
Sliding method | linear bearing |
Load weight | 10kg |
Rotational displacement | a rotation of 2mm (auxiliary reference) |
Stroke range | sliding range 75mm |
Scale mark | centered, left and right, heavy volume; laser marking |
Fixing screw | M5 |
Sliding table size | 40*70mm |
Sliding table thread | M5; 6 fixing holes |
Locking device | top wire |
Packing size | 230*100*70mm |
Product gross weight | 0.78kg |
Product net weight | 0.7kg |
Note:
1. The net weight and gross weight of the product are products with a one-dimensional sliding table with a bottom plate.
2. The two-dimensional sliding table is shipped with two one-dimensional tables and a screw wrench, and the user needs to assemble it easily.
Package Included:
1 X Displacement Platform
More Detail:
