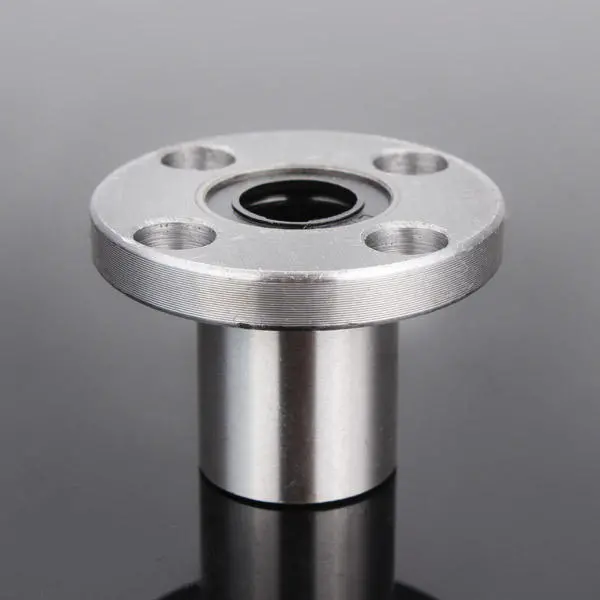

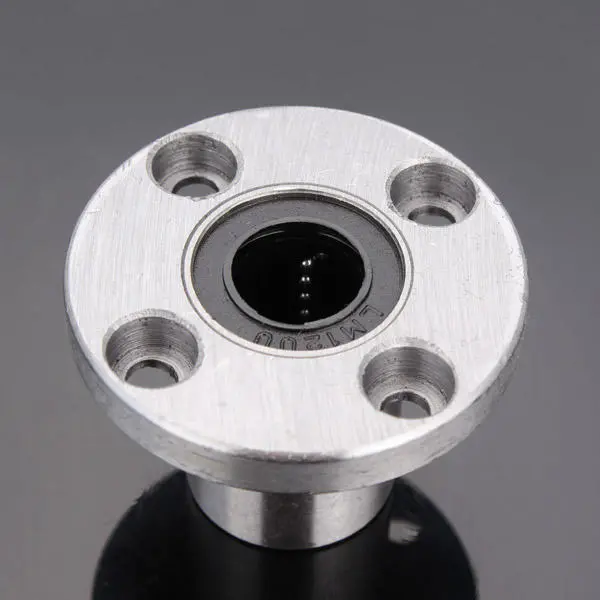

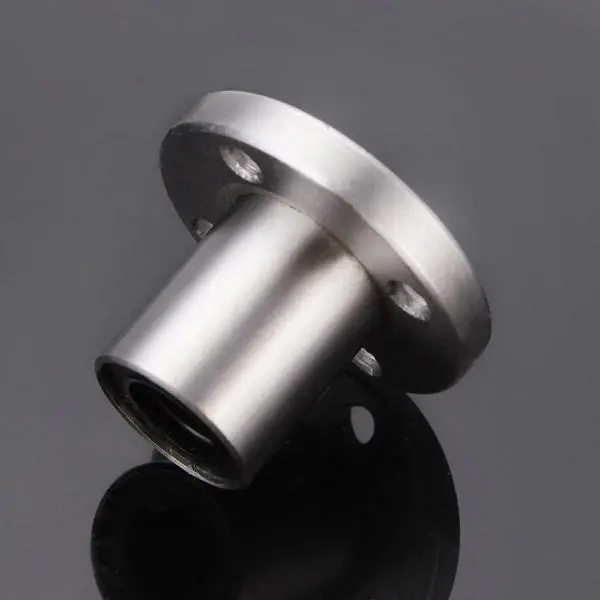

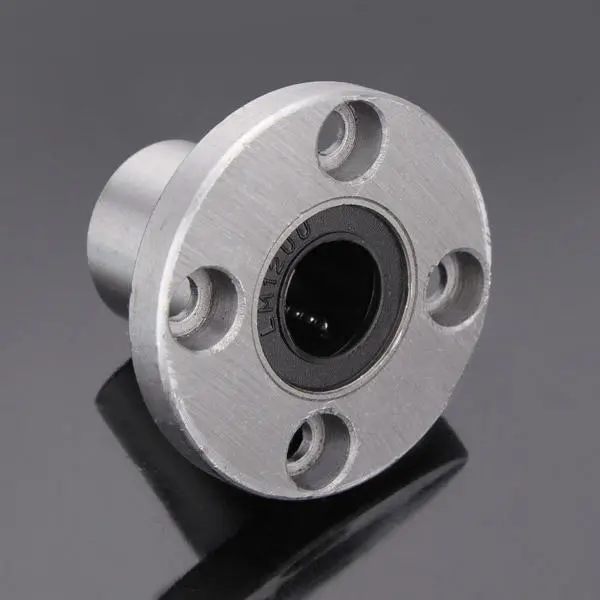

LMF12UU 12mm Flange Linear Ball Bearing Motion Bushing LMF12UU

Product Description

Description:
LMF12UU 12mm Flange Linear Ball Bearing Motion Bushing Bearing

Specification:
Type: Linear
Moder Number: LMF12
Inner Diameter: 12 mm
Material: ball bearing steel

Model No.	Number Of Ball Rows	Main Dimensions													Squareness	radial run-out	Basic Load Rating		Weight (g)
		Inscribed Circle Diameter		Outer Diameter		Length		Flange				Hole For Attachment
		dr (mm)	Tolerance	D (mm)	Tolerance	L (mm)	Tolerance	D1	K	H	??	d1	d2	h	0.012	0.012	Dynamic (C)	Static (Co)	0.70
LMF12	4	12	0-0.009	21	0-0.013	30	0-0.20	42	32	6	32	4.5	7.5	4.1			52	80

Feature:
These bearings are pre-lubricated with grease.
Linear bearing ball cage, hardened coat of both ends ring.
High strength, particularly suitable for automated devices. Products with high accuracy. Safe and reliable. Ball in the cage loop to run a smooth ball guide surface to ensure stability even if high-speed.
Usage:
Semiconductor manufacturing equipment, printed circuit board IC assembly equipment, robotic arm, precision measurement equipment, office automation
equipment, and other large-scale linear slide devices.
Package Included:
1x Flange Linear Ball Bearing
