Machifit 2/3 Axis CNC Milling Digital Readout Display | 50-1000mm Linear Scale for Lathe

Product Description

Description:

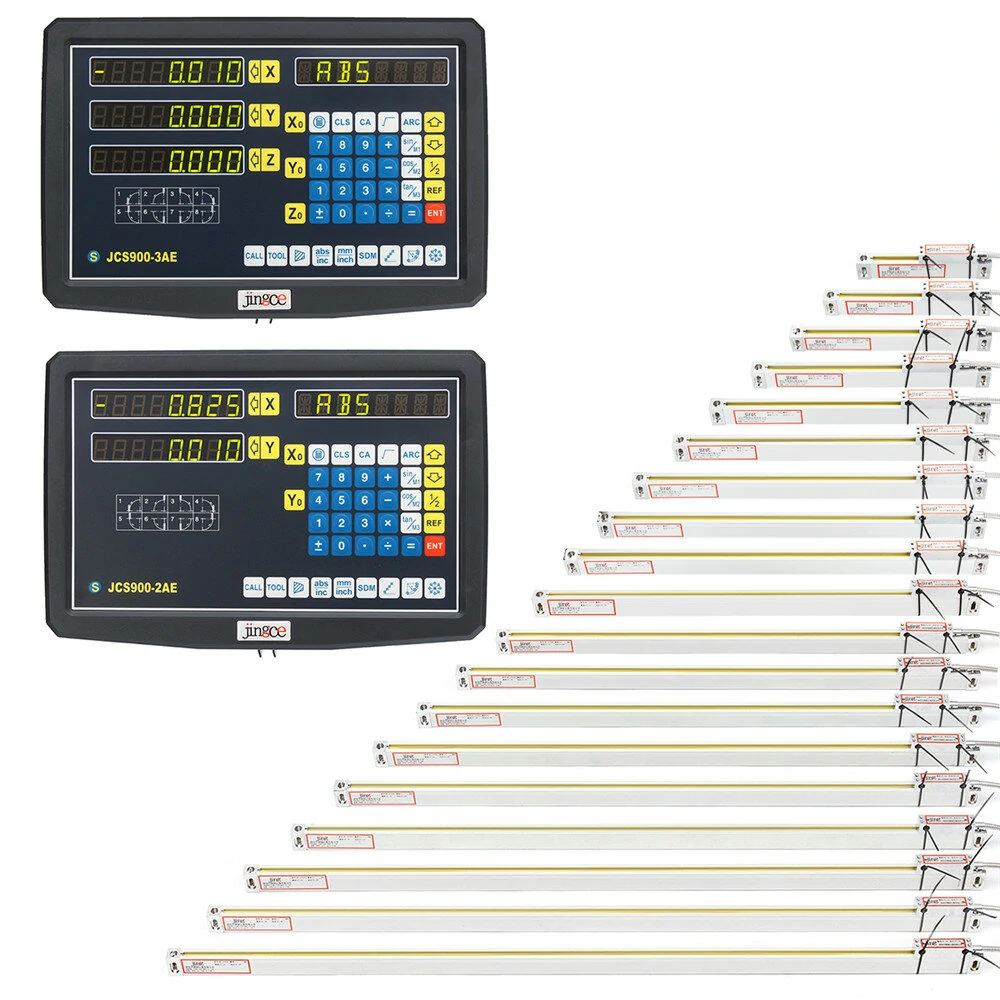

2/3 Axis Grating CNC Milling Digital Readout Display / 50-1000mm Electronic Linear Scale Lathe Tool Note: The item just includes 1pcs item which you select. (JCS900-2AE/JCS900-3AE Readout/50-1000mm Linear Scale)
Specification:

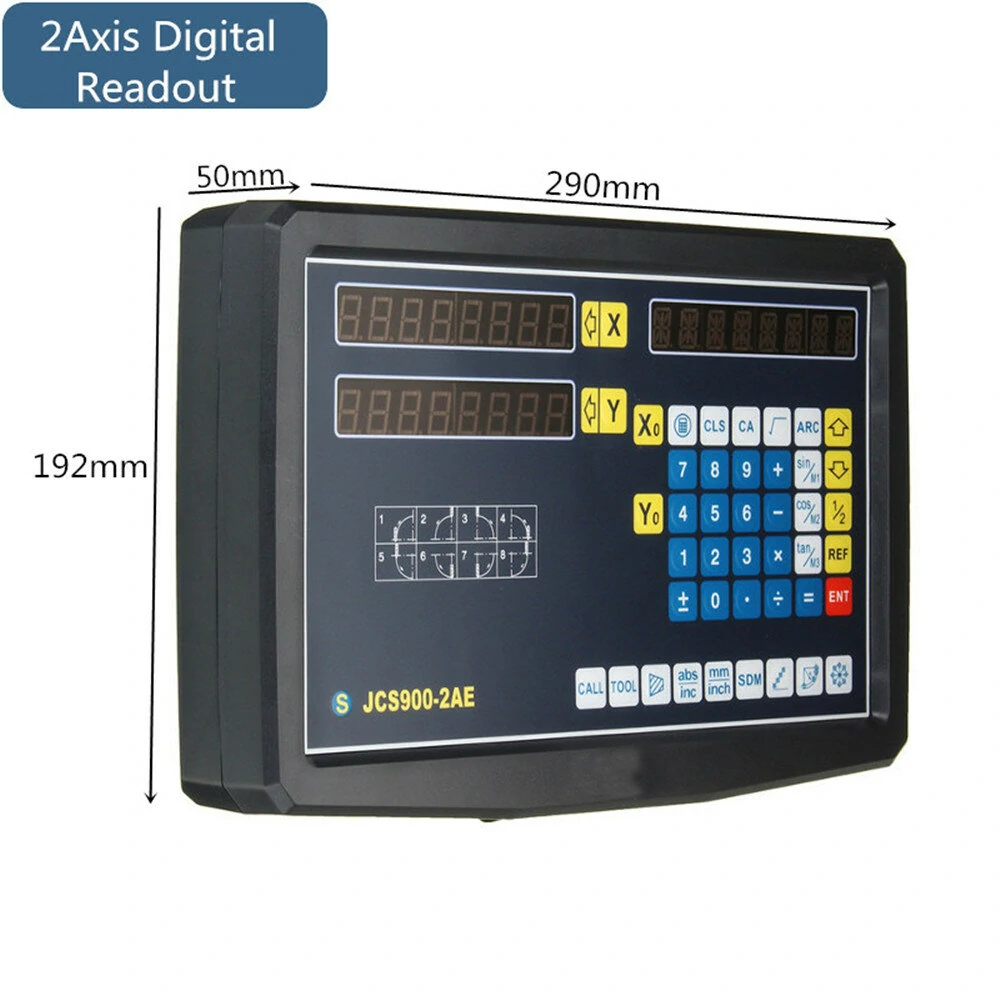

-Axis Digital Readout(2 Axis/3 Axis)
1.Measuring travel: 0-3020mm 2.Accuracy class: ?? 1um 3.Measurement standards: engraved glass grating 4.Operating voltage: 5V ?? 5% DC 5.Working speed: ??1m / S (1um) 6.Acceleration: ?? 60m / s2 7.Reference Operating Humidity: ?? 90RH 8.Grating pitch: 20um (0.020mm) 9.Measurement procedure: Incremental 10.Signal mode: TTL 11.Circuit characteristics: NPN 12.Grating measurement system: transmission infrared optical measurement system, infrared wavelength 940nm 13.Scanning frequency: ??28kHz 14.Anti-vibration: 50Hz-2KHz, ?? 180m / s 2 15.Impact: 16ms, ?? 600m / s 2 16.Displacement frictional resistance: ?? 5N 17.Protection class: IP53 / IP64 18.Signal electrical connection: independent adapter cable (2.5M / 3M / 4M / 5M, ?? 100M, can be connected to install the block)

Note: The above parameters are measured in the ideal environment. There may be some differences in practical application.
-TTL Linear Scale(50-1000mm)
1.Physical length is differnt from the travel length 50/100,150,200,250,300,350,400,450,500, 550,600,650,700,750,800,850,900,950,1000mm 5um. 2.High Precision linear scale 3.Resolution: 5um (0.005mm) 0.0002?? 4.Signal: TTL square 5.Grating pitch: 0.02mm (50LP/min) 6.Accuracy: ??0.005 mm or 0.0002" (at 20 deg C) 7.Reference marks at interval of 50mm 8.Response Speed: 60m/min or 40ins/sec

Note: Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. One inch equuals to 25.4mm.
Features:

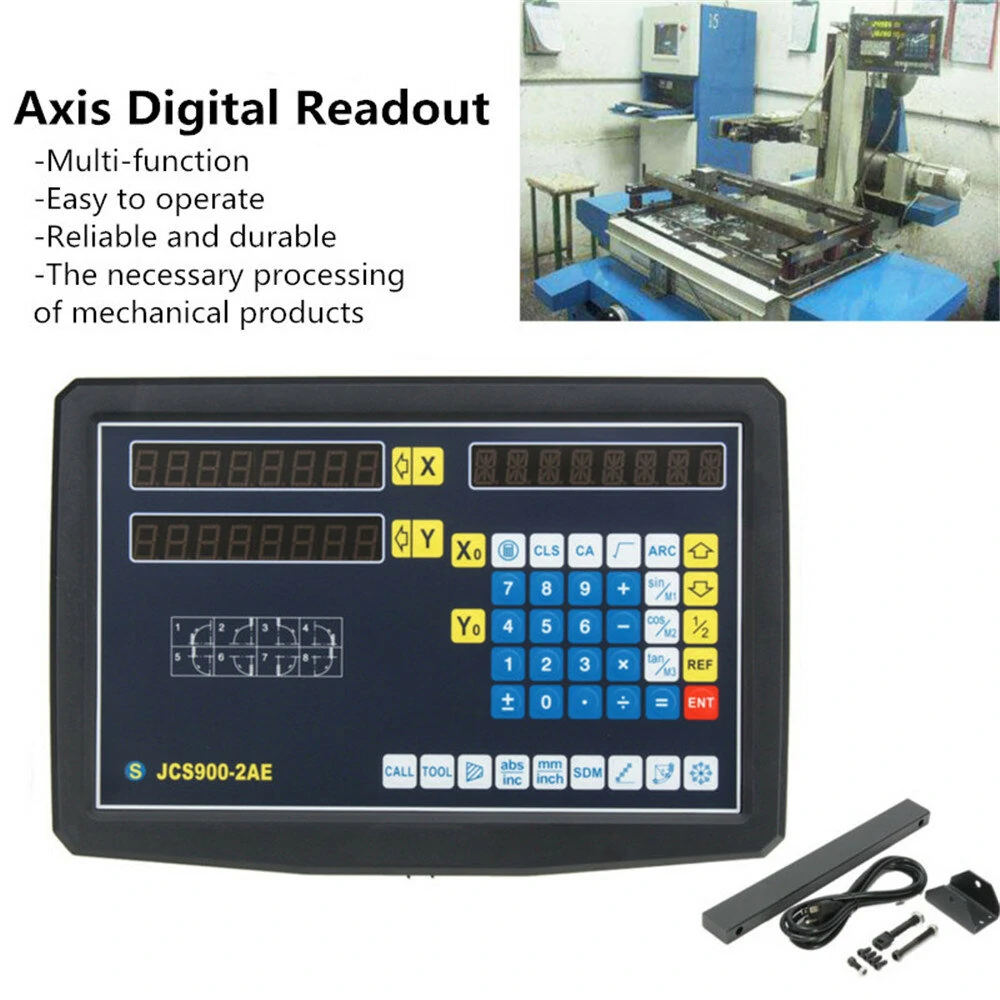

-The sliding part adopts the five-bearing system which has been proved to be the most reliable. The main grating adopts 90-degree assembly, which is more accurate and accurate. -The repeatability of the measurement is more stable. -The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine. -Ruler body with aluminum die-casting, hard chrome plating, corrosion-resistant. -Dust bar with special plastic, corrosion resistance, scratch resistance, friction resistance. -Parts individual, installation, maintenance, easy maintenance, waterproof, dust-proof good, long service life. -The sensor uses a glass precision metrology grating as the measurement reference. -Multi-function, easy to operate, so that the necessary processing of mechanical products.

Manual ID: 1340326

Package Included:

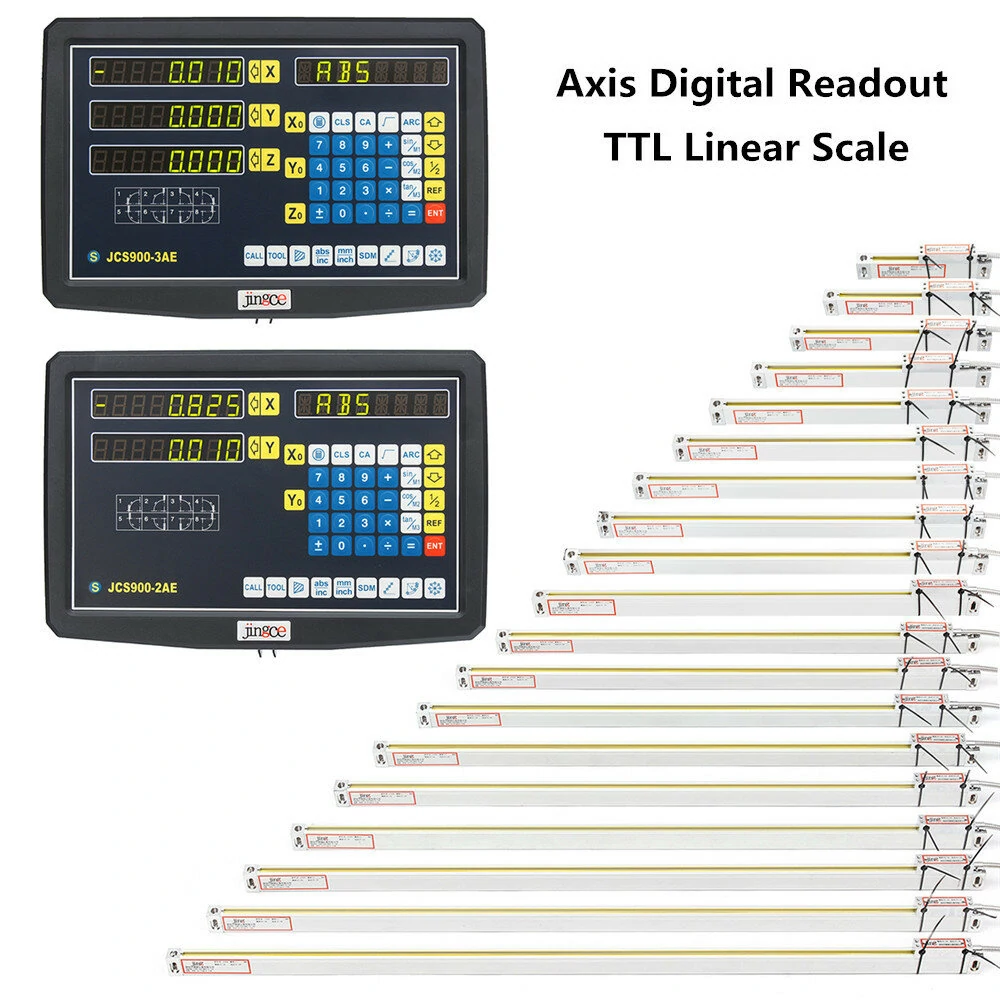

-Axis digital readout

-TTL linear scale

Note: The item just includes 1pcs item which you select.
(JCS900-2AE/JCS900-3AE Readout/50-1000mm Linear Scale)
