MACH4 USB CNC Motion Control Card - 3/4/6 Axis Motion Controller | MK3/4/6-M4 Interface Board

Product Description

Description:

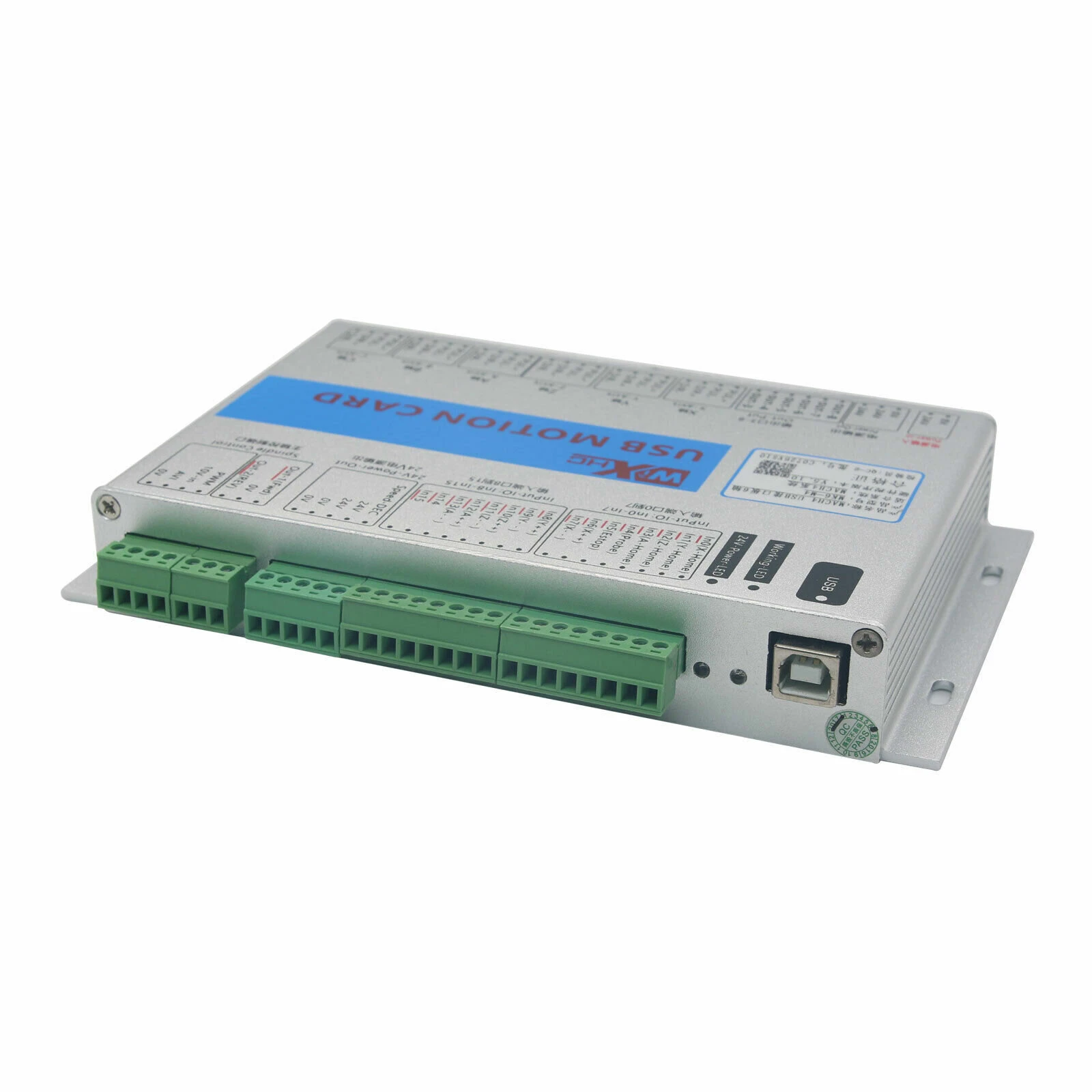

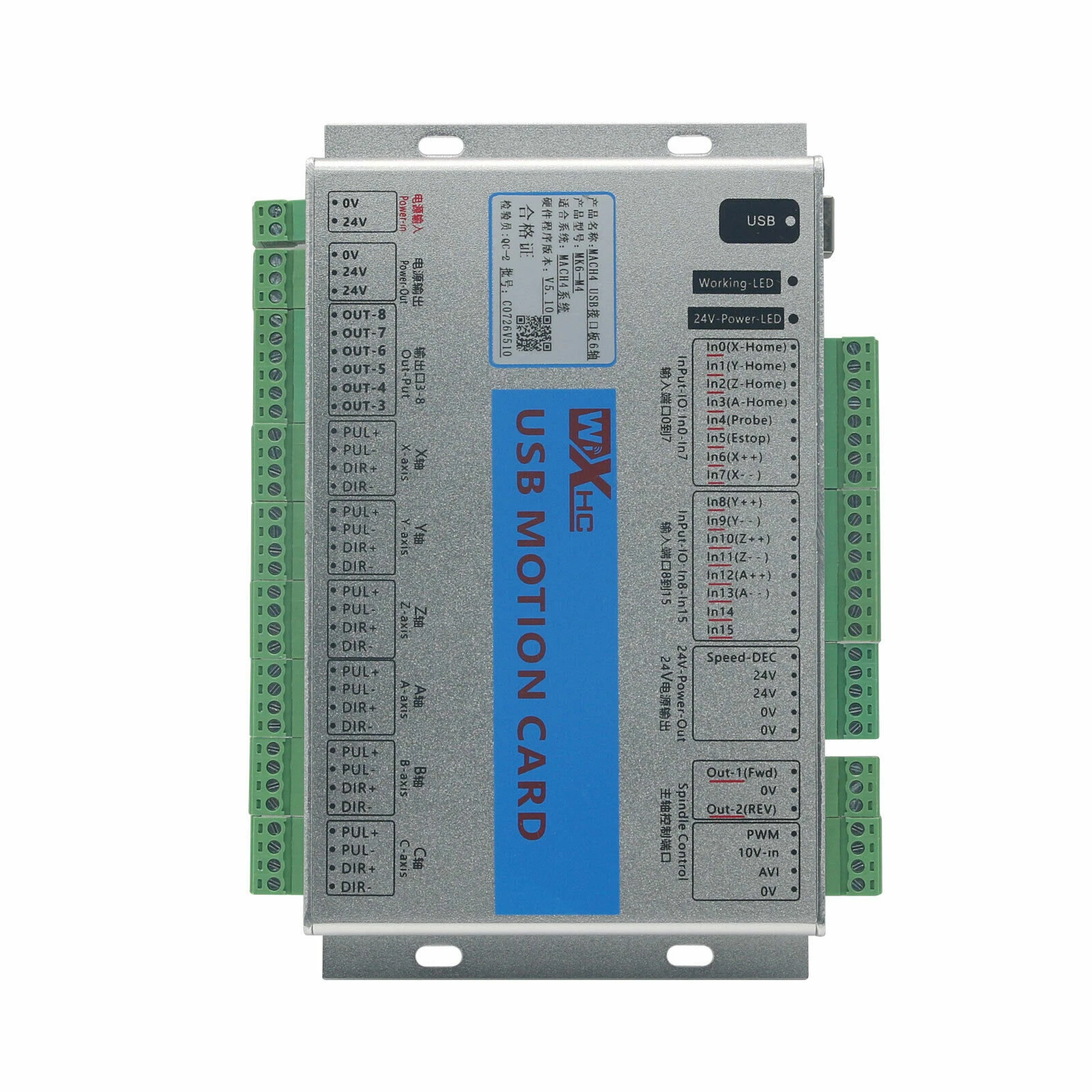

MK3-M4 MK4-M4 MK6-M4 Interface Board MACH4 USB CNC Motion Control Card 3/4/6 Axis Motion Controller

Specifications:

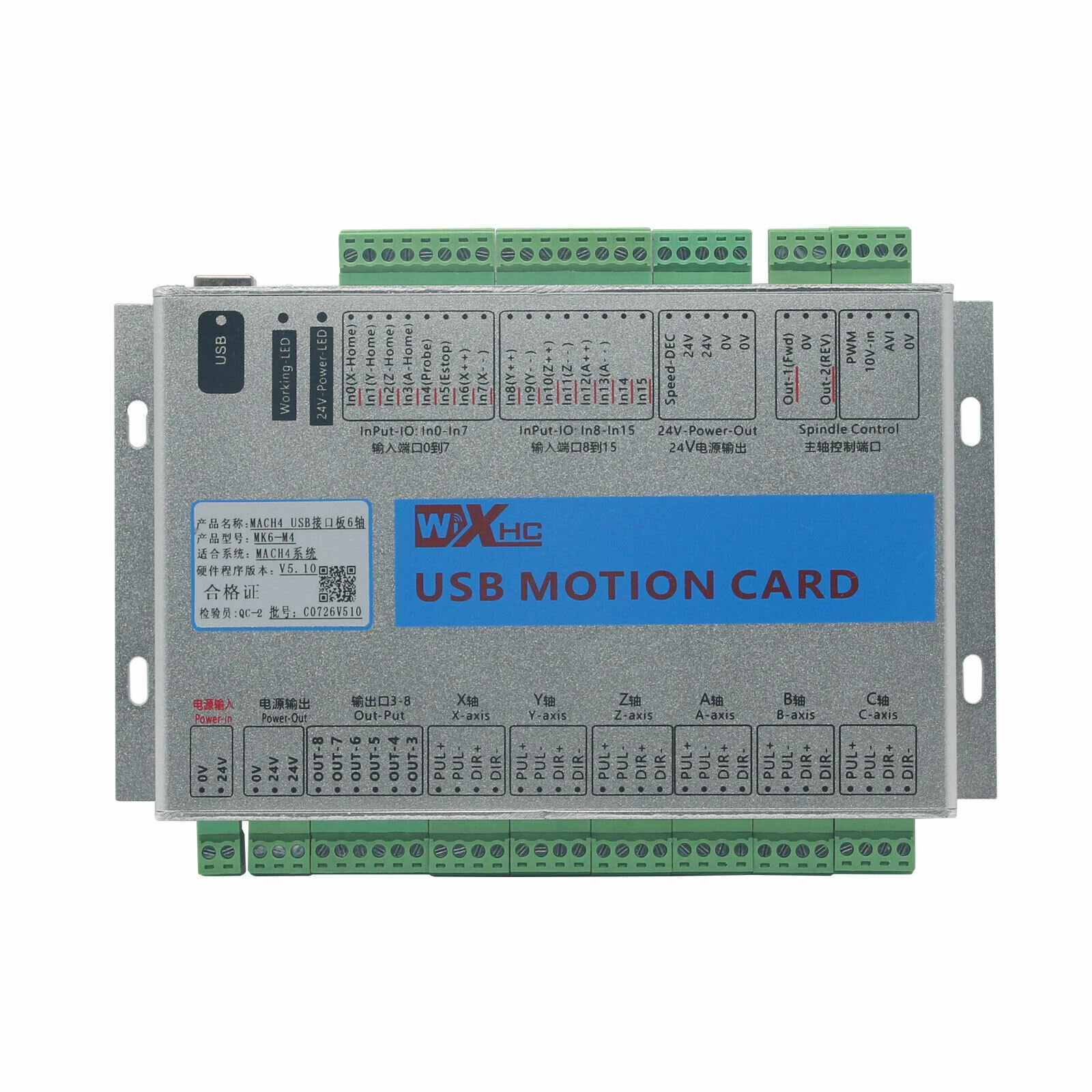

Product Name	MKX-M4 Motion Control Card
Axis Output Control	Drive Current: Isolated open collector output; 5V, 20mA Drive: Pulse + direction output Output frequency: 2000KHZ Isolation Voltage: 3.5KV
Axis	MK3-M4: 3-axisMK4-M4: 4-axisMK6-M4: 6-axis
Spindle Inverter Output	Analog voltage output: 0??10VPWM output: 5V,1KHZ,Duty;0-100%Pulse+direction output : 5V,15HZ to 4KHZ
8 IO Output	Drive Current: Isolation:50mA, 25VIsolation Voltage: 3.5KV
16 IO Input	Input Current: Isolated inputs, 5 mA, maximum voltage 25V Isolation Voltage: 3.5KV
USB Interface	Complies with USB2.0 standard
Size	184*127*30mm
Quantity	1 Set ?? MK-M4 Motion Control Card
Manual	Click to check

More to search:

MACH3 USB ID: 1742678

MACH3 Ethernet Port ID: 1742681

Features:

1.Dual-Processors, ARM+FPGA, More processing power

2.Support all versions of Mach4.

3.Work under Windows 32-bit operating system.

4.Support spindle speed feedback function.

5.USB jack does not need to install the driver, plug and play under all versions of Windows.

6.Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.

7.Supports 3 axis linkage.

8.Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.

9.The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.

10.16 input IO, 8 output IO, Supports extended I / O control.

11.Onboard isolated power supply, not need external power supply.

12.All IO port fully isolated, strong anti-interference, stable performance.

13.Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.

14.Support XHC series of wireless electronic Mach4 MPG

15.With an aluminum shell, effectively shielding interference, stable and reliable performance.

Software installation:No.1: Install MACH4 software,Open Mach4Hobby Installer-4.2.0.2914.exe.click next till to finish.No.2: Copy MACH4 config files plugins and profiles to MACH4 install directory,replace all files.No.3: See wiring diagram, which will control the card connection correctly??No.4: Connect the control card and computer with the USB line.No.5: Open wxMach.exe,choose mach4mill.Click ??configure->mach??,in the motors window,set the motor parameters.Finish settings,click Apply to save.click ??revrese?? when motor moving reverse.No.6: Finish above settings,you could move motor by x+,y- to debug your motor in the jogging window.

Package Included:

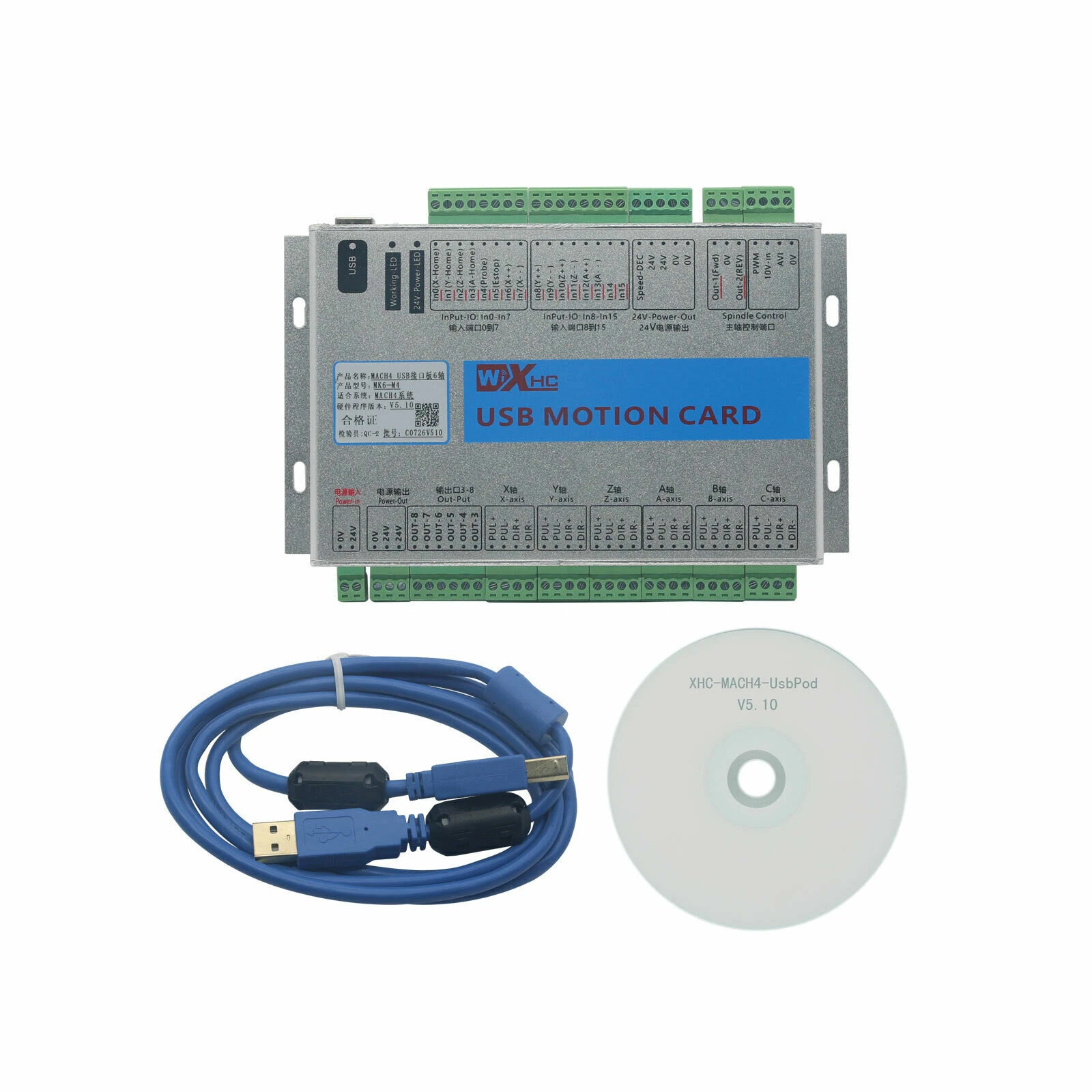

1 x	CNC Motion Control Card
1 x	USB Cable
1 x	English Manual
1 x	CD
