500mm SFU1605 Ball Screw - BK12 BF12 Supports & 6.35x10mm Coupler | CNC

Product Description

Description:

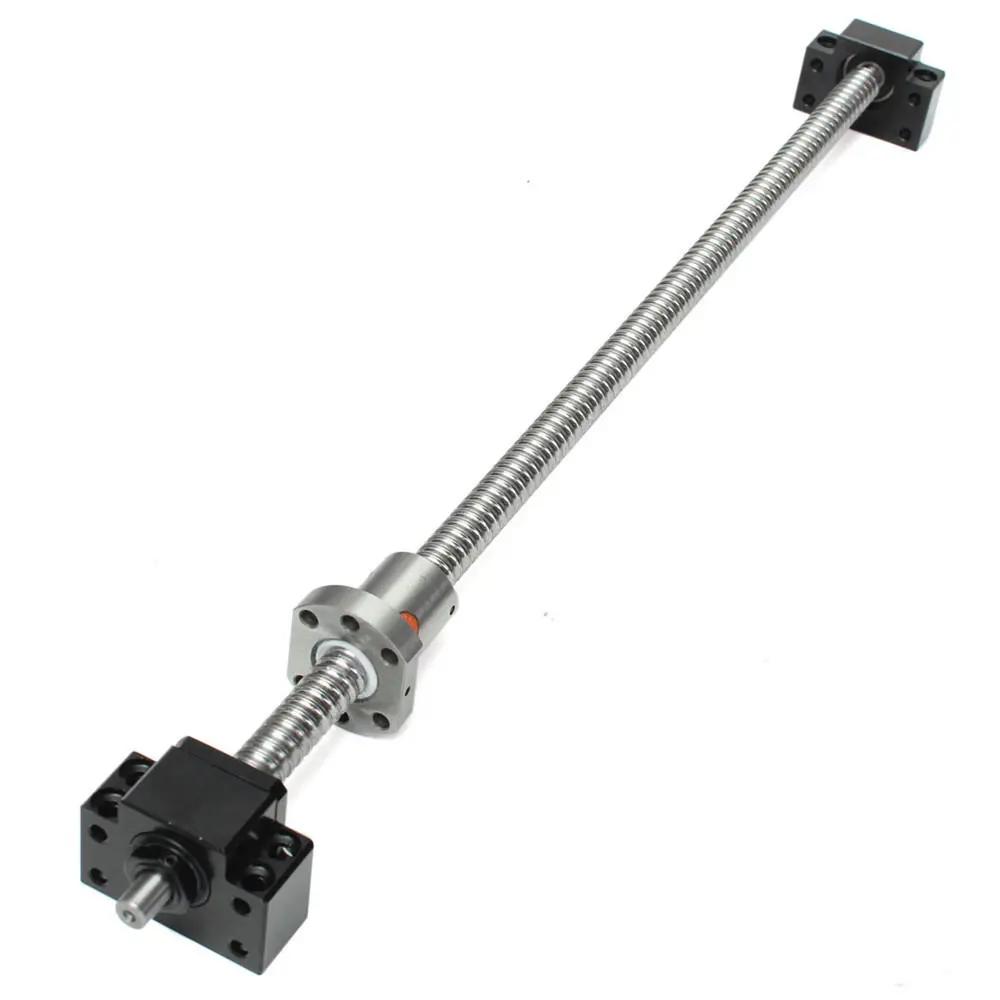

500mm SFU1605 Ball Screw with BK12 BF12 Supports and Coupler for CNC
Specification:

Model	SFU1605
Material	Bearing steel
Diameter	16mm
Length ball screw	500mm
Effective distance(unprocessed)	440mm
Size of supporting seat	60/35*32*25mm
Size of coupler	23*24mm
Diameter of coupler hole	6.35*10mm
Basic dynamic rating load (kgf)	765
Basic static rating load (kgf)	1204

Features:
-Fused with shiny surface matching with high precision. -more resistant to wear and tear, greatly extending the life cycle of the ball screw life increased several times. -more high temperatures in harsh environments without distortion to ensure stability. -smoother curve ball screw drive designers work more smooth and natural.
Package Included:

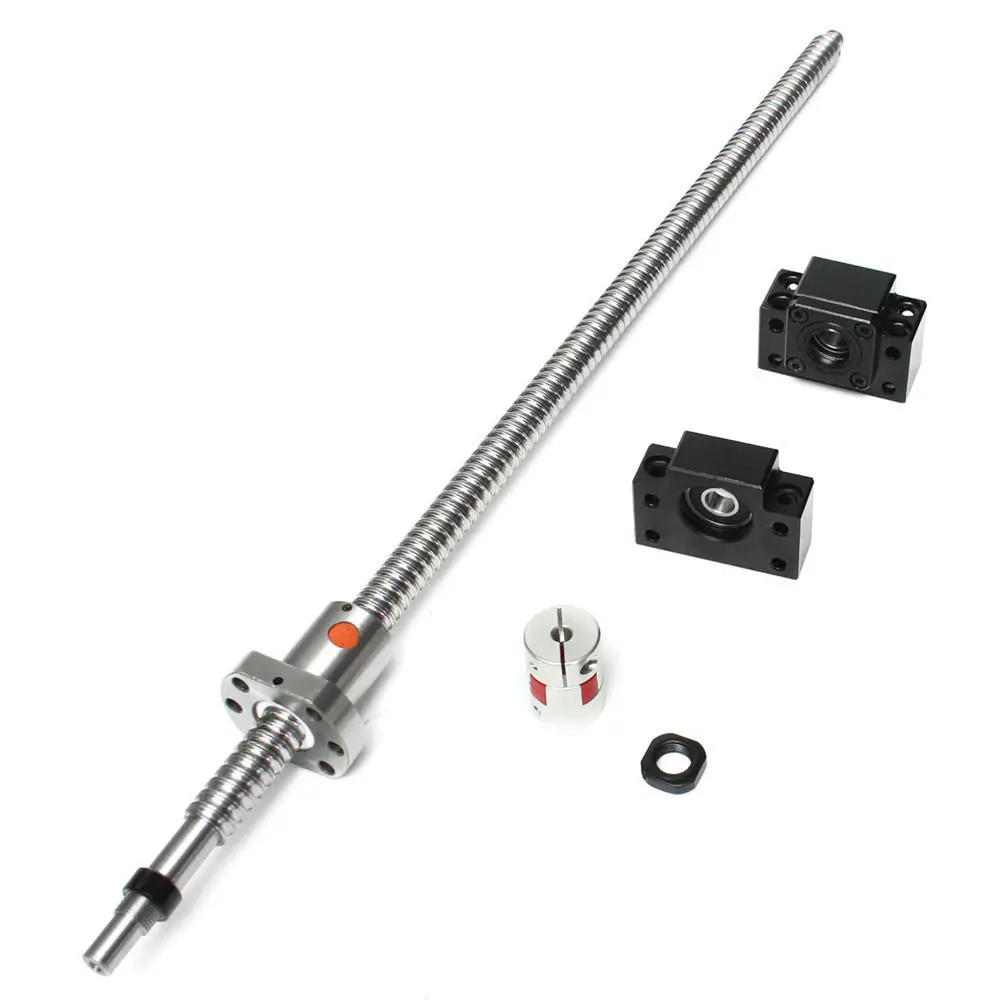

1 x ball screw 1 x coupler 1 x screw 2 x supporting seat BK+BF12
More Details:
