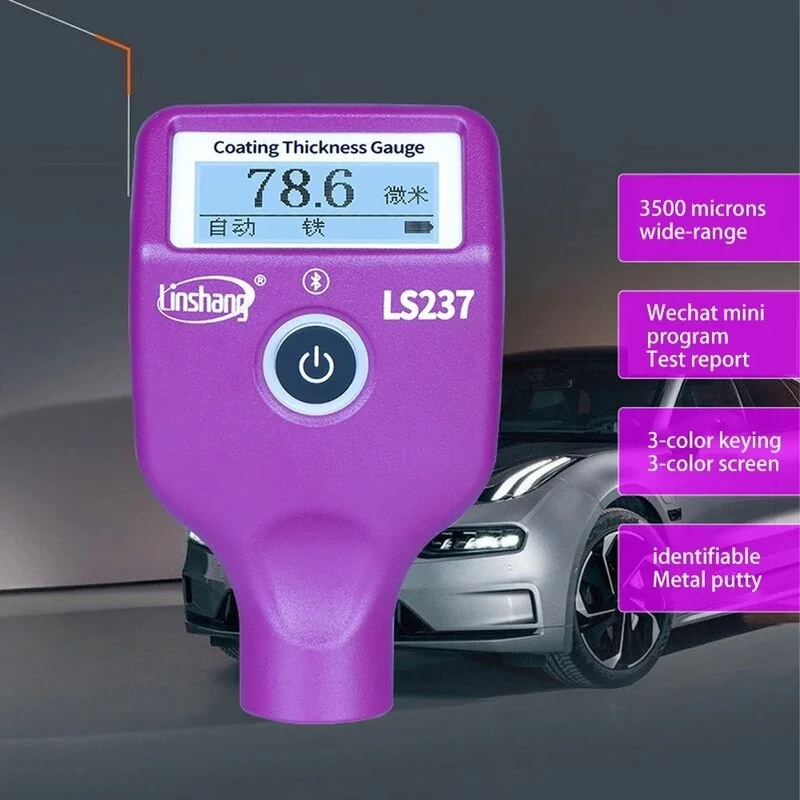

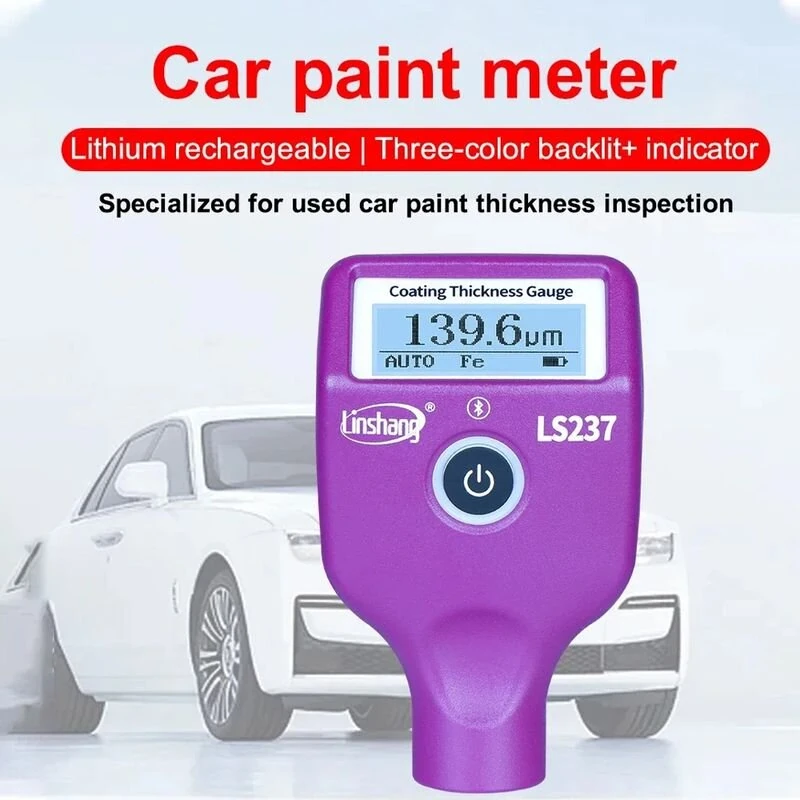

Linshang LS237 Car Paint Thickness Meter | 3500µm Range | Bluetooth

Product Description

Specifications:
Probe Tip: Rub
Measurement Principle: Fe: Hall effect / Al: Edd current
Probe Type: Integrated

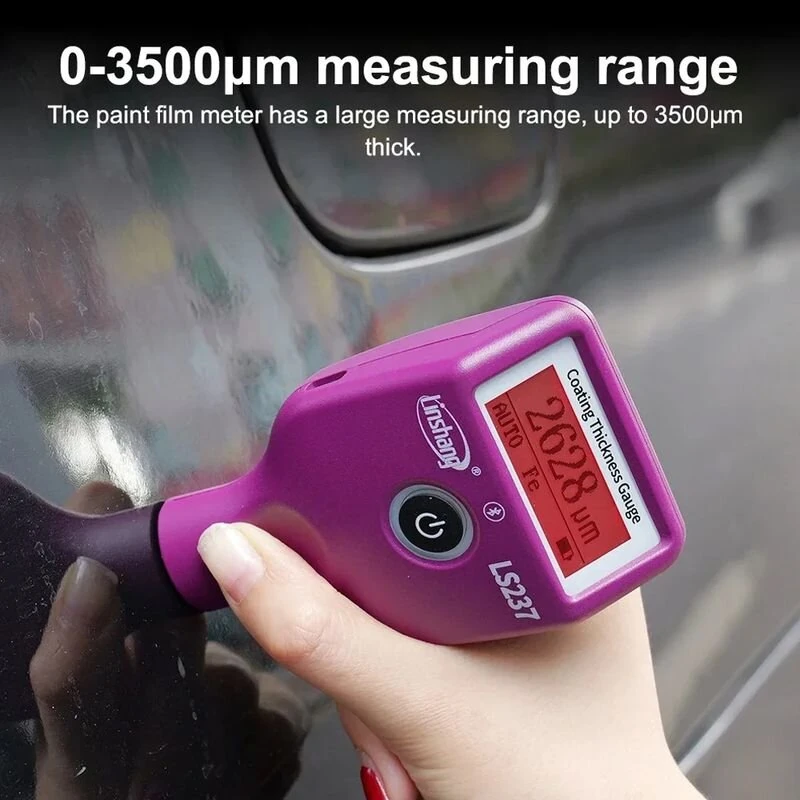

Measuring Range: 0.0?C3500 ??m
Resolution: 0.1 ??m (0 ??m?C99.9 ??m); 1 ??m (100 ??m?C3500 ??m)
Accuracy: ?ܡ?(3%H+2 ??m), where H represents the standard value
Unit Options: ??m / mil
Measuring Interval: 0.5 seconds
Minimum Measuring Area: ? = 25 mm
Minimum Radiu of Curvature: Convex: 5 mm / Concave: 25 mm
Minimum Substrate Thickness: Fe: 0.2 mm / Al: 0.05 mm
Display Type: 128??48 dot matrix LCD
Power Supply: Rechargeable lithium battery (3.7V @ 1200 mAh)
Operating Temperature Range: -20??C to 50??C
Storage Temperature Range: -20??C to 60??C
Device Dimensions: 101 x 62 x 28 mm
Weight (including battery): 76 g
Data Transfer: Bluetooth
Features:
1.Precise Measurement Accuracy
Utilizes advanced Hall effect and edd current principles for reliable results on ferrous and aluminum materials, ensuring accurate evaluations within a range of 0?C3500 ??m.
2.Smart Identification Functionality
Efficiently detects ferrous putty, iron galvanized substrates, and non-metallic surfaces, providing comprehensive diagnostic capabilities for car coating assessments.
3.Dynamic Three-Color Display
Features a unique three-color backlight and indicator system that visually differentiates paint thickness for intuitive monitoring and effortless interpretation.
4.Enhanced Portability and Usability
Lightweight design (76 g with battery) and compact size ensure ease of handling, while the rotatable screen further enhances user convenience during operation.

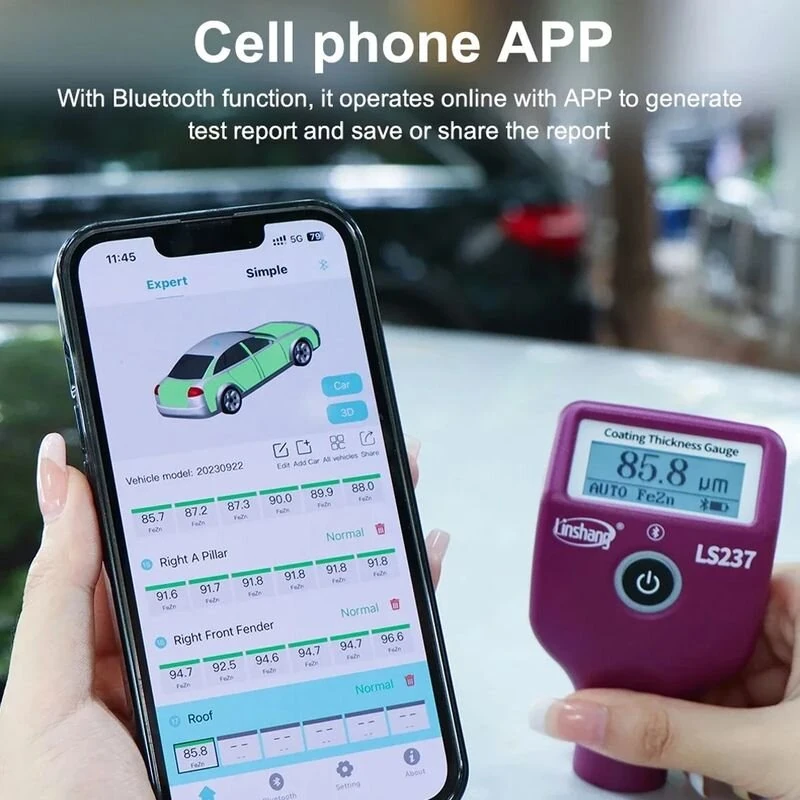

5.App Integration with Real-Time Bluetooth Connectivity
Supports inspection report export and sharing via Bluetooth and accompanying mobile app, simplifying data management and facilitating performance tracking.
Package Included:
1 x LS237 Car Paint Thickness Gauge
