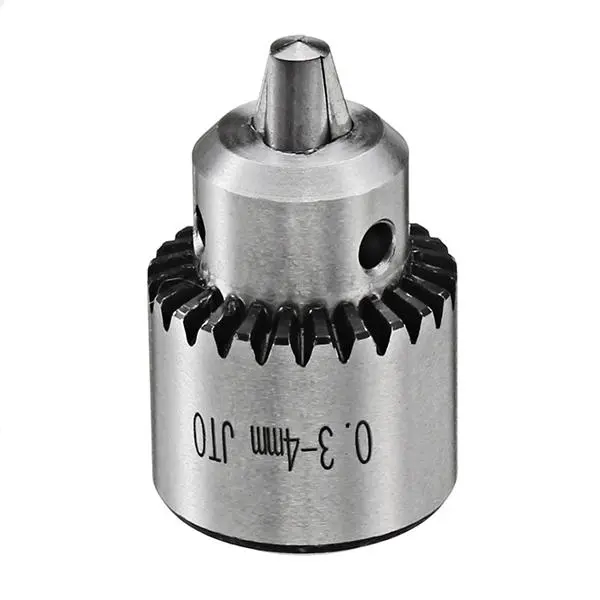

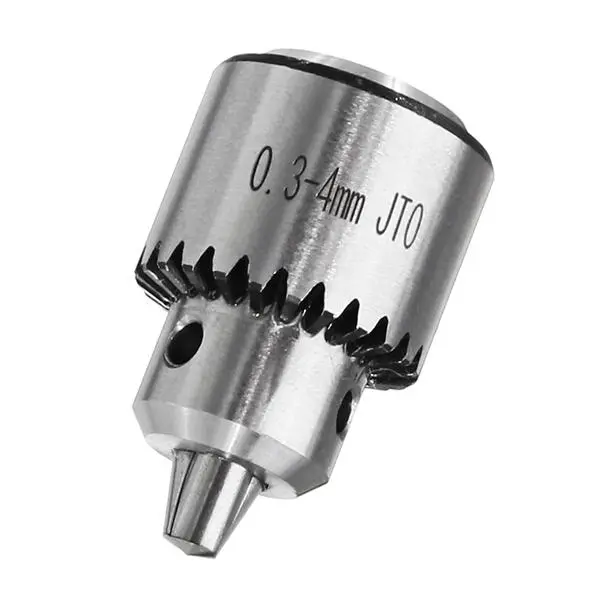

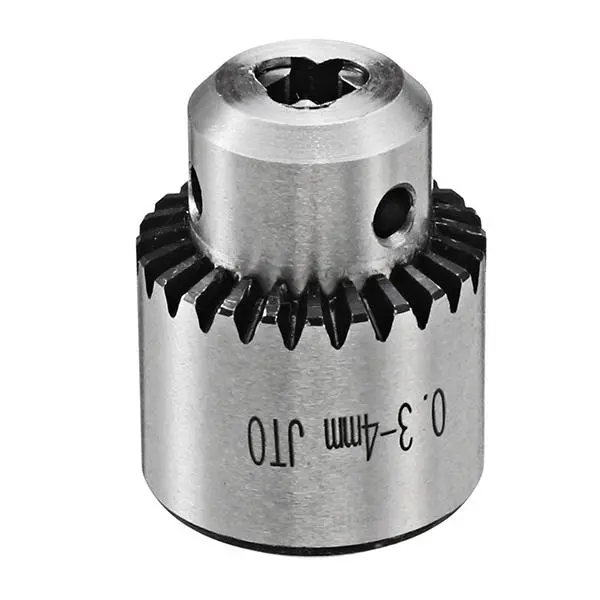

Micro Motor Drill Chuck Clamp 0.3-4mm with Key & 2.3mm Shaft Rod

Product Description

Description 0.3-4mm Micro Motor Drill Chuck Clamp With Key and 2.3mm Shaft Connecting Rod Chuck Specification: Material: High-carbon steel Outer diameter: 21mm Taper: 2 degrees 49 minutes 24.7 seconds Work with 0.3mm-4mm (0.01" - 0.16") Drill Tail hole: 2.3mm The maximum clamping: 4mm Connection size: JT0 (inner hole diameter is 6 mm) JT0 taper the biggest end of diameter: 6.35mm JT0 taper The smallest end of diameter: 5.80mm

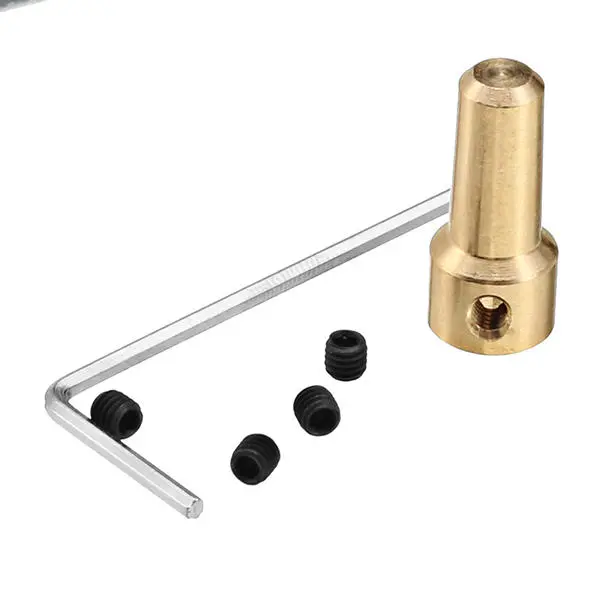

Chuck Features: *High-carbon steel production *Strong impact resistance. *High precision screw thread and tapered hole. *Compatible with impact dril and different power electric drill. Brass Mini Electric Motor Shaft Features: *Material: Brass *Match the motor shaft Diameter: 2.3mm. *2.3mm Brass Mini Electric Motor Shaft Clamp Drill Chuck for 0.3mm-4mm Drill. *Drill Clamp JT0 Connection Rod Connect Motor Drill for 2.3mm Motor Shaft. *3.17mm Shaft Coupling Motor Connector BRASS. *Close-fitting with 2.3mm motor shaft. *Copper rod for 0.3-4mm JT0 dirll clamp. Package Included: 1pc x Drill Chuck 1pc x Spanner/key 1pc x 2.3mm Shaft Connecting Rod Notice: 1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid. 2. The color may have different as the difference display, pls understand. More Details:
