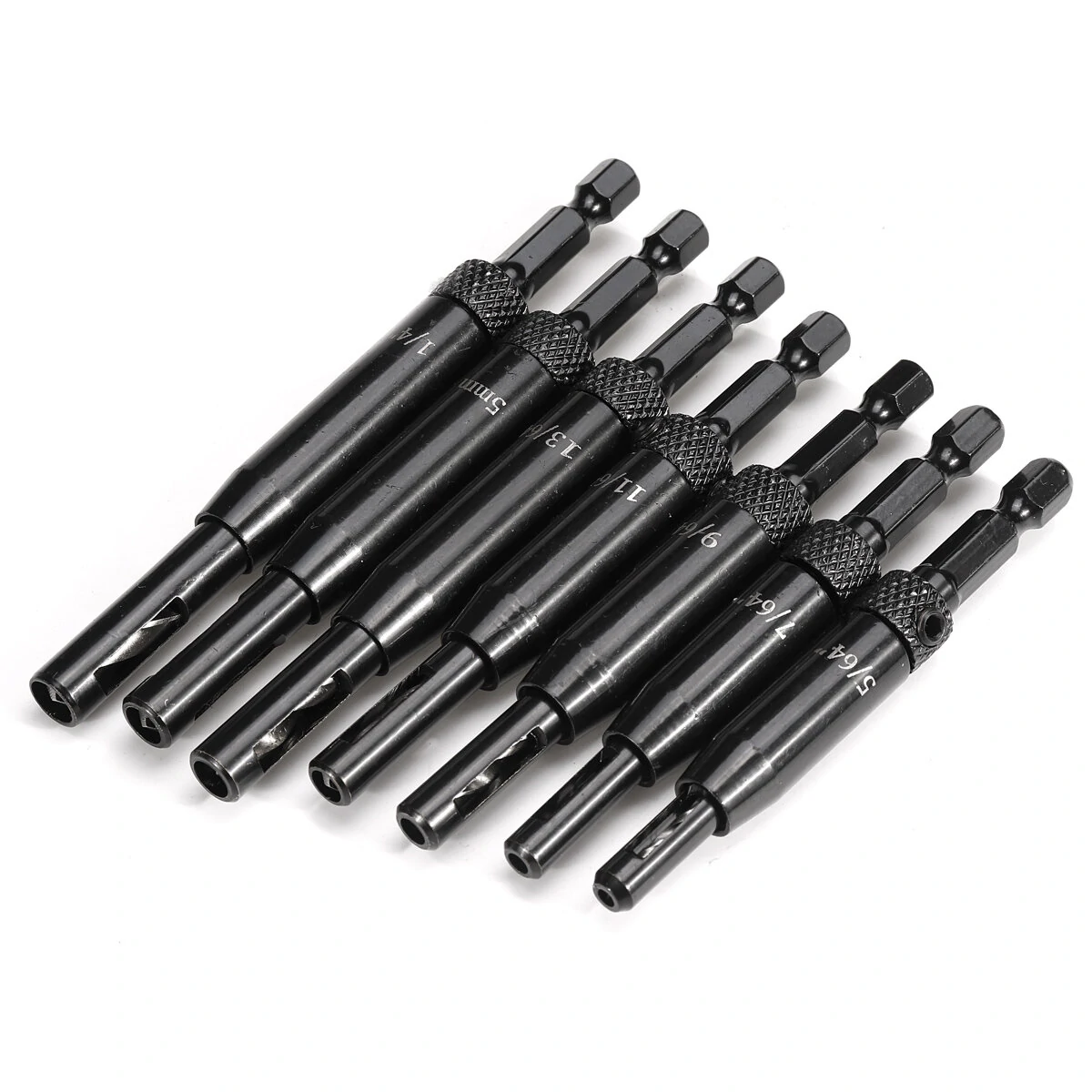

Self Centering Hinge Drill Bit Set | Pilot Hole Guide for Hardware & Drawers

Product Description

Specification:
Type: Hinge Bit
Main Color: Black

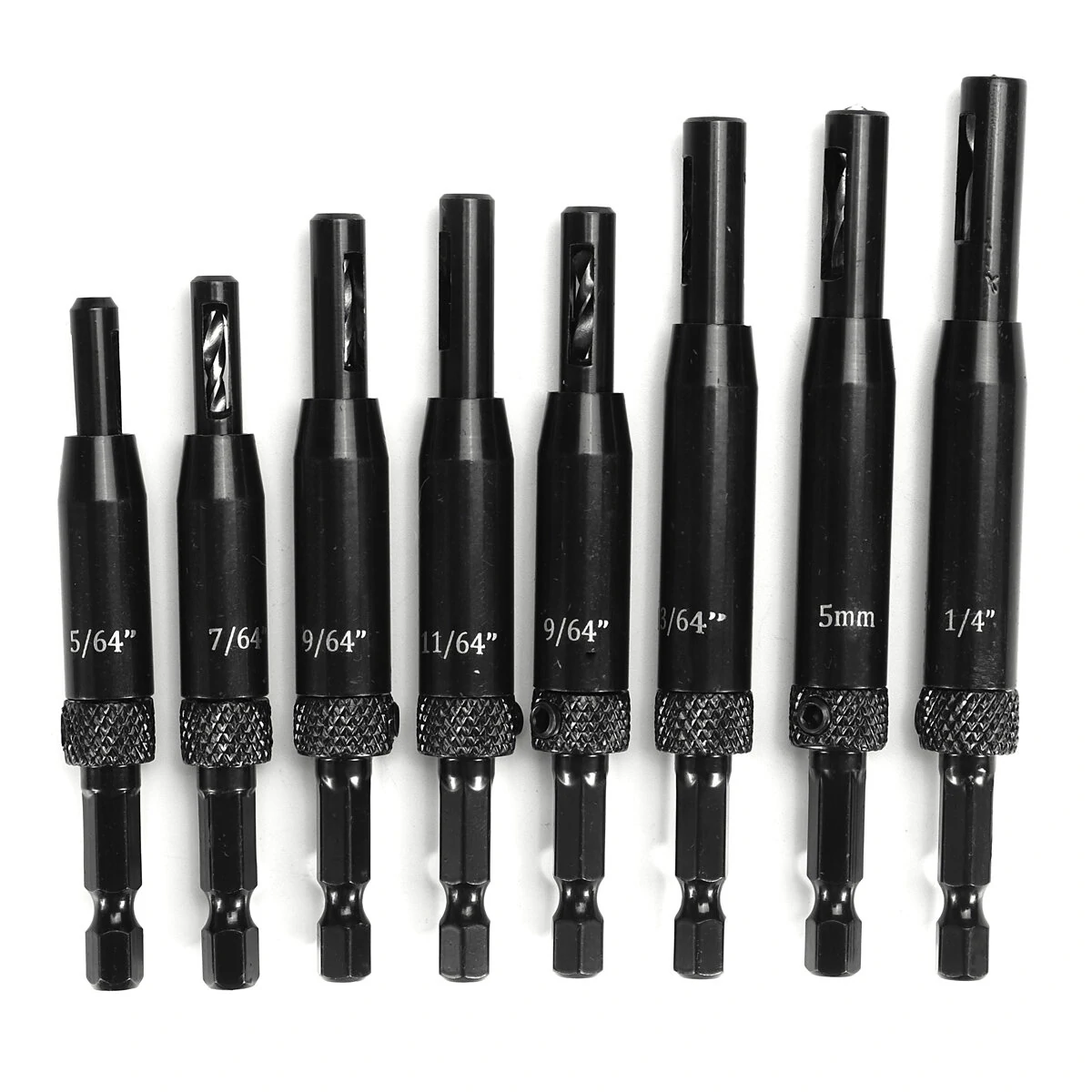

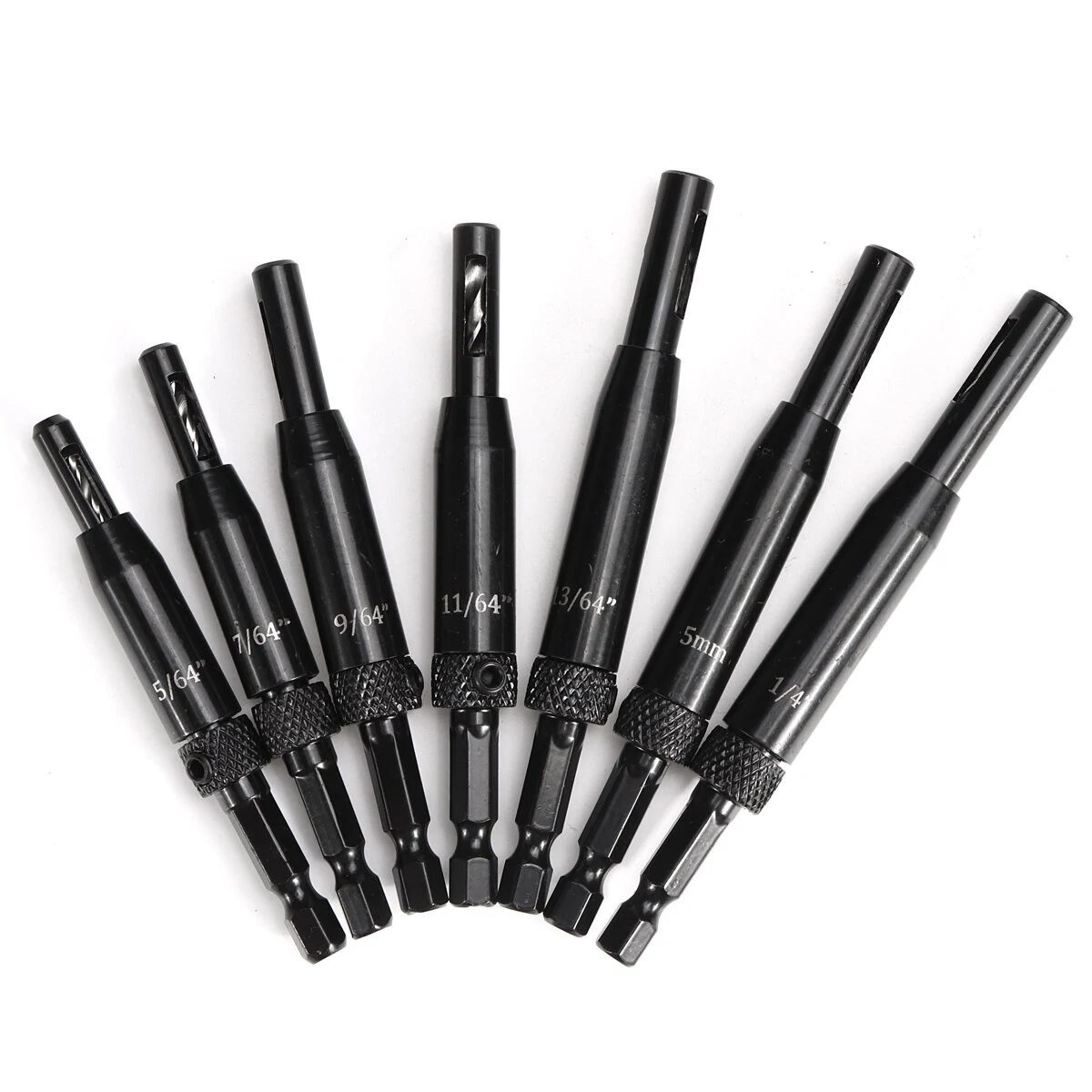

Hinge Bit Size: 5/64",7/64",9/64",11/64",5mm,13/64",1/4"

Optional Pattern:
#1: 7 x Hinge Bit + 1 x Wrench
#2: 8 x Hinge Bit + 1 x Wrench
#3: 8 x Hinge Bit + 8 x Twist Drill + 1 x Wrench

Hinge Bit Details:
??5/64" Drill Bit: Hole diameter: Approx. 2 mm, Use about 2.2 - 2.8 mm tapping screw
??7/64" Drill Bit: Hole diameter: Approx. 2.8 mm, Use about 3 - 3.5 mm tapping screw
??9/64" Drill Bit: Hole diameter: Approx. 3.5mm, Use about 4 - 4.5 mm tapping screw
??11/64" Drill Bit: Hole diameter: Approx. 4.5mm, Use about 5 - 5.5 mm tapping screw
??5mm Drill Bit: Hole diameter: Approx. 5 mm, Use about 5.5 - 6 mm tapping screw
??13/64" Drill Bit: Hole diameter: Approx. 5.2mm, Use about 6 - 6.5 mm tapping screw
??1/4" Drill Bit: Hole diameter: Approx. 6.5mm, Use about 7 - 7.5 mm tapping screw

Features:
??Automatic positioning center enhance accuracy and efficiency.
??135?? inclined blade drill bit make drilling easier and faster.
??Double-sided hole design - fast & automatic discharge sawdust from the hole on both sides.
??All center drill bit shank diameter is 6mm. Suitable for most general purpose electric drills.
??Perfect for hinges, handles, drawer slides, woodworking and etc. Suitable for professionals and DIY lovers.

Package Included:

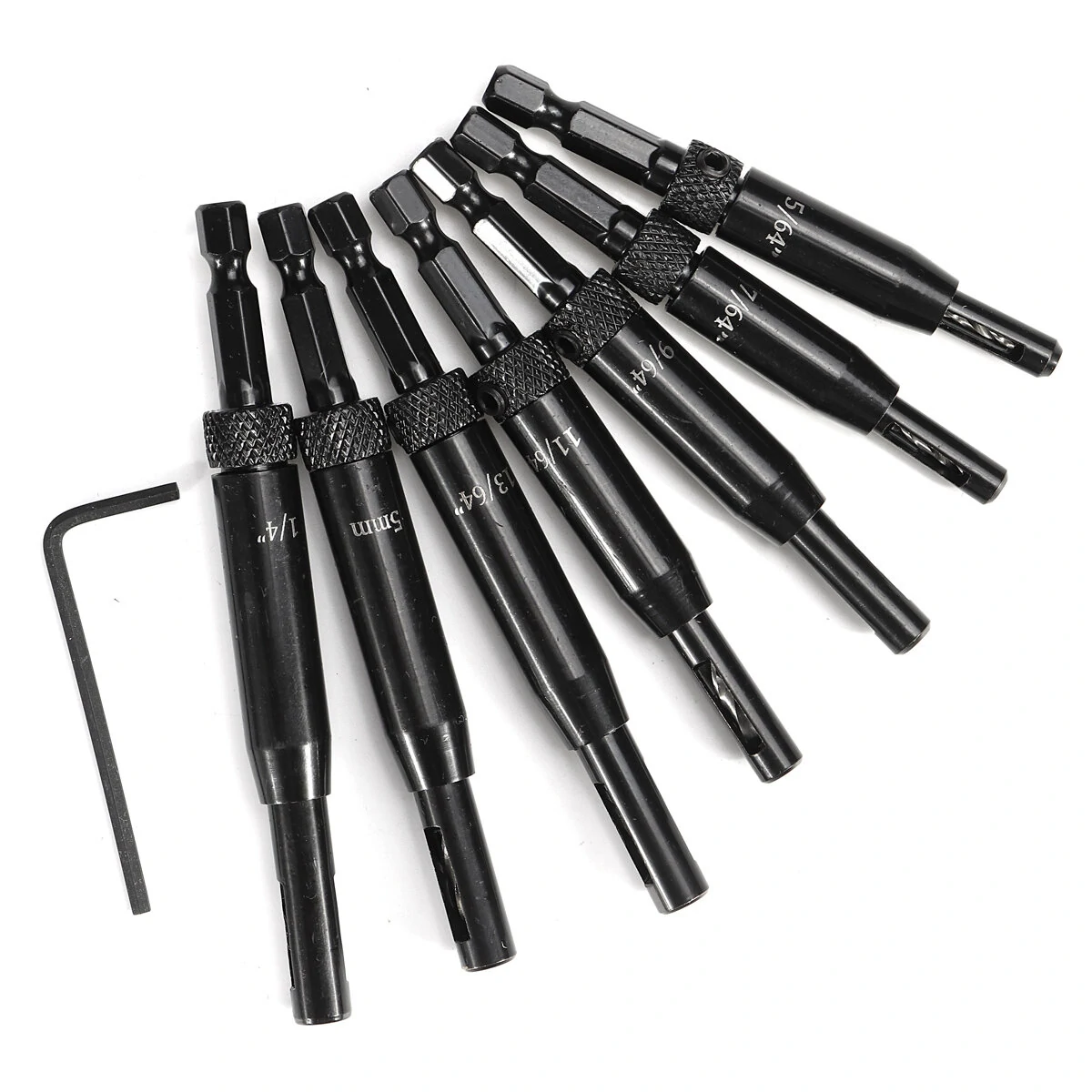

Pattern 1:
7 x Hinge Bit
1 x Wrench

Pattern 2:
8 x Hinge Bit
1 x Wrench

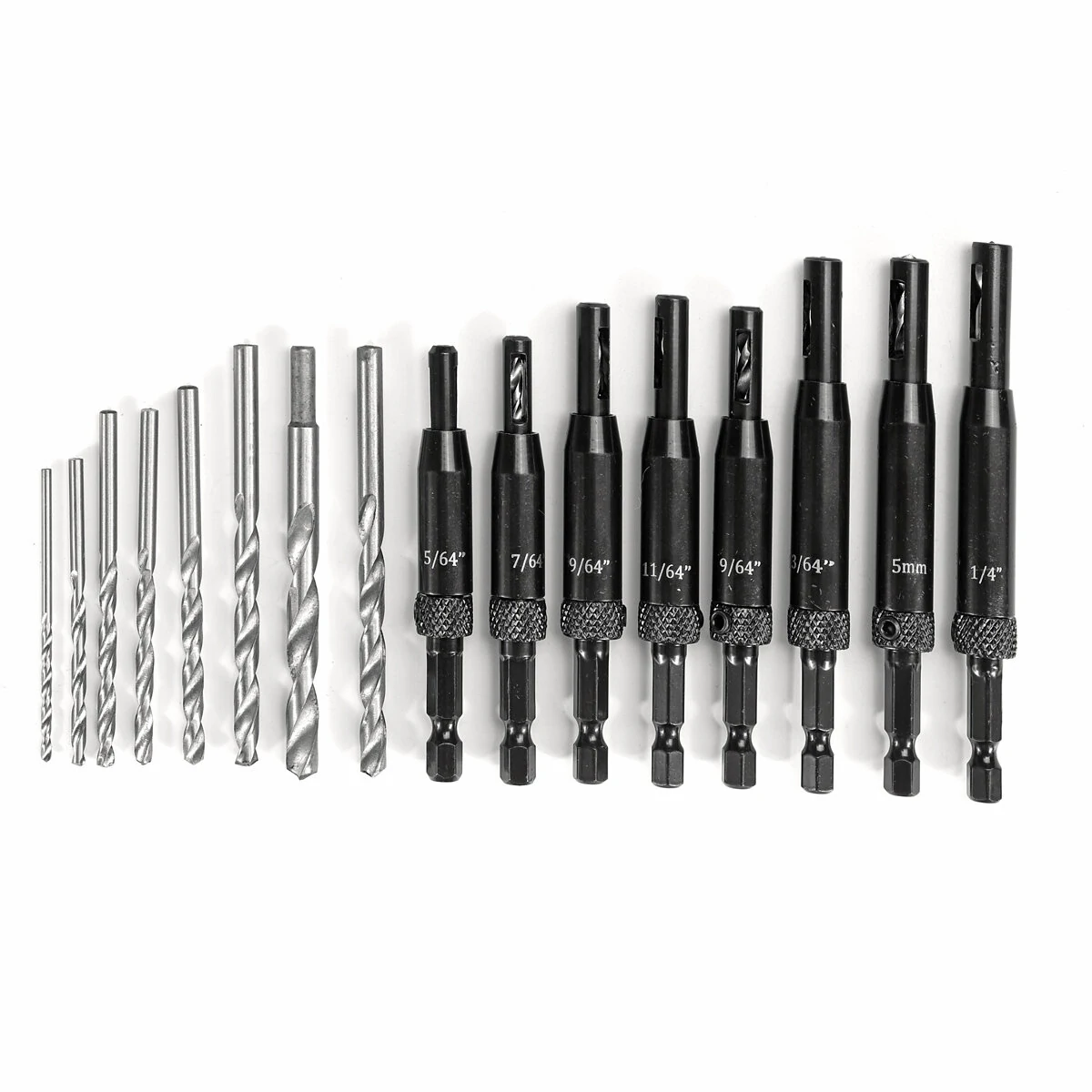

Pattern 3:
8 x Hinge Bit
8 x Twist Drill
1 x Wrench
