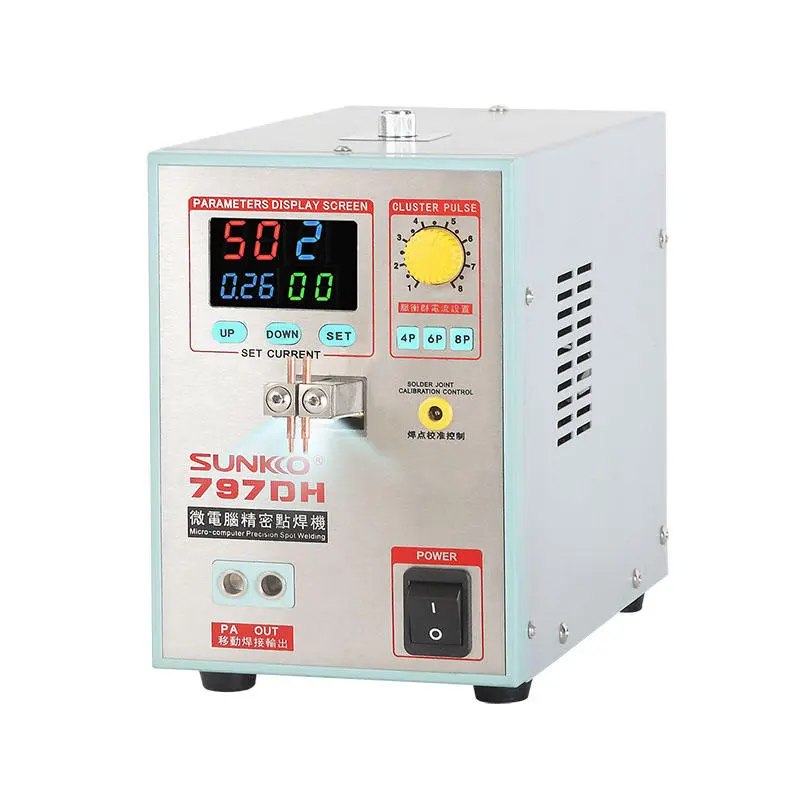

SUNKKO 797DH 3.8kw Spot Welding Machine - 3 in 1 Modes w/ Universal Pen
$585.00
$719.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Specification:| Welding part | |
| Power voltage | AC220V / 110V??20V |
| Power | 3. 8KW(instantaneounsly) |
| Welding current | 500A |
| 2 Pulse time | 1-10ms(Variable) |
| 4 Pulse time | 2-20ms(Variable) |
| 8 Pulse time | 8-80ms(Variable) |
| Welding thickness | 0.05-0.2mm |
| Welding pen | |
| Total length | ??580mm |
| Cross section of cable | 16mm2 |
| Welding needle size | 1.5mmx7mm |
| Welding pulse current | 800A |
| Welding thickness | 0.05~0 2mm |
| Size | 140 x 245 x 200mm |
| Net Weight | 7kg |
Features:
* SUNKKO 797DH 3. 8KW spot welding machine

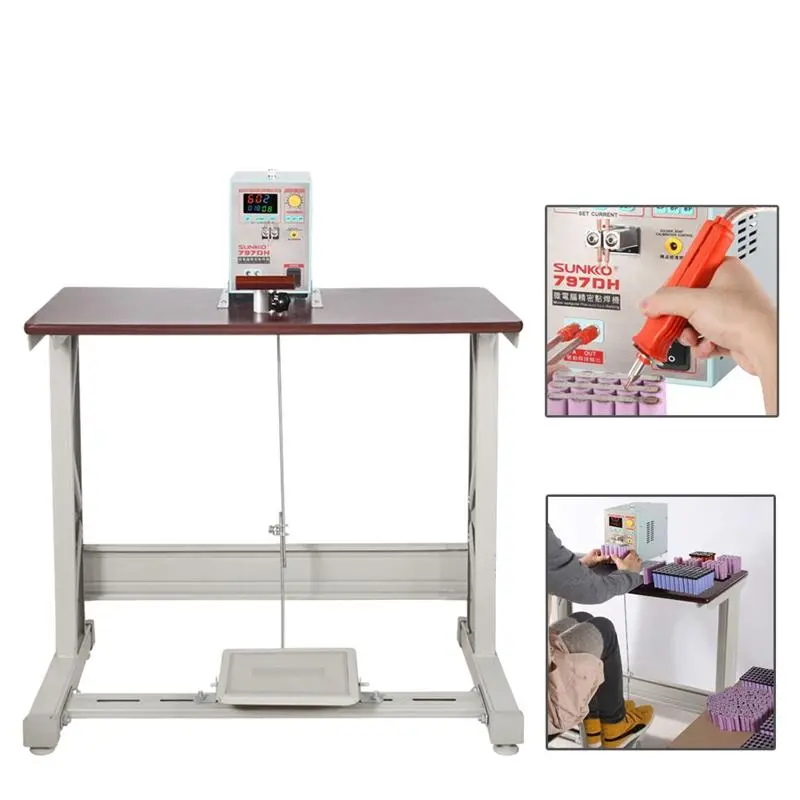

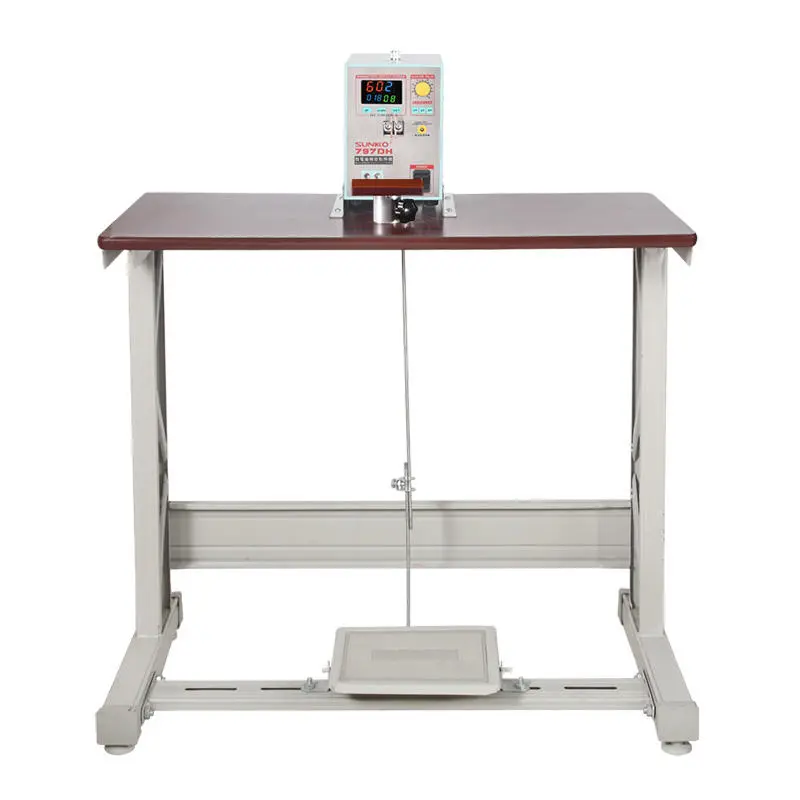

* Foot pedal welding is suitable for quantity pruduction * Color display: Micro-computer control up to level 199(99*1;99*2)1 or 2 pulse can be choose to faster welding * There are fixed welding head and moveable welding pen mode to suit for little component and large parts to weld
* 3 modes intelligent frequency conversion pulse spot welder: Mode 1: Pull down welding; Model 2: Line control spot welding; Mode 3: Movable welding
* The humanization design of integrated welding pen could be held in 1 hand. This design is solved the split welding pen operation. It is the most professional welding pen that is easy to use and no need to learn how to use
Notices for using SUNKKO spot welding machine
1.In order to obtain good weld effect, please don't use the active socket, and should be used the wall socket to ensure stable power supply. 2.Because of the instant welding large current,rated current of tripping device of the leakage protection switch should be up to 40-63A.Lower than 40A will cause tripping. 3.Please set the pressure adjuster to the right parameter to avoid welding effect in not good. 4.Please keep the surface of welding pins clean and wipe off oxide with sand paper. 5.Please keep the welding pin in sharp shape. 6.Please do not worry about the lighting in flash. Spot welder is a high power machine and discharging high current instantaneously. Because this moment is in 20ms and it is normal.
Package Included:
1 x 797DH Machine 1 x User manual 1 x Self-installing pedal device 1 x Bakelite workstation 1 x 70B welding pen 4 x Welding needle
1 x Fixed wrench 1 x Foot pedal switch 2 x Protective tube 20A 1 x Electric grinding machine 1 x Battery holder for 6Pcs 18650
100 x Nickel sample
