Spot Welding Control Board | 40A 100A Single/Double Pulse | Adjustable Voltage & Anti-Shake Foot Pedal

Product Description

Specifications:
Type: 40A, 100A

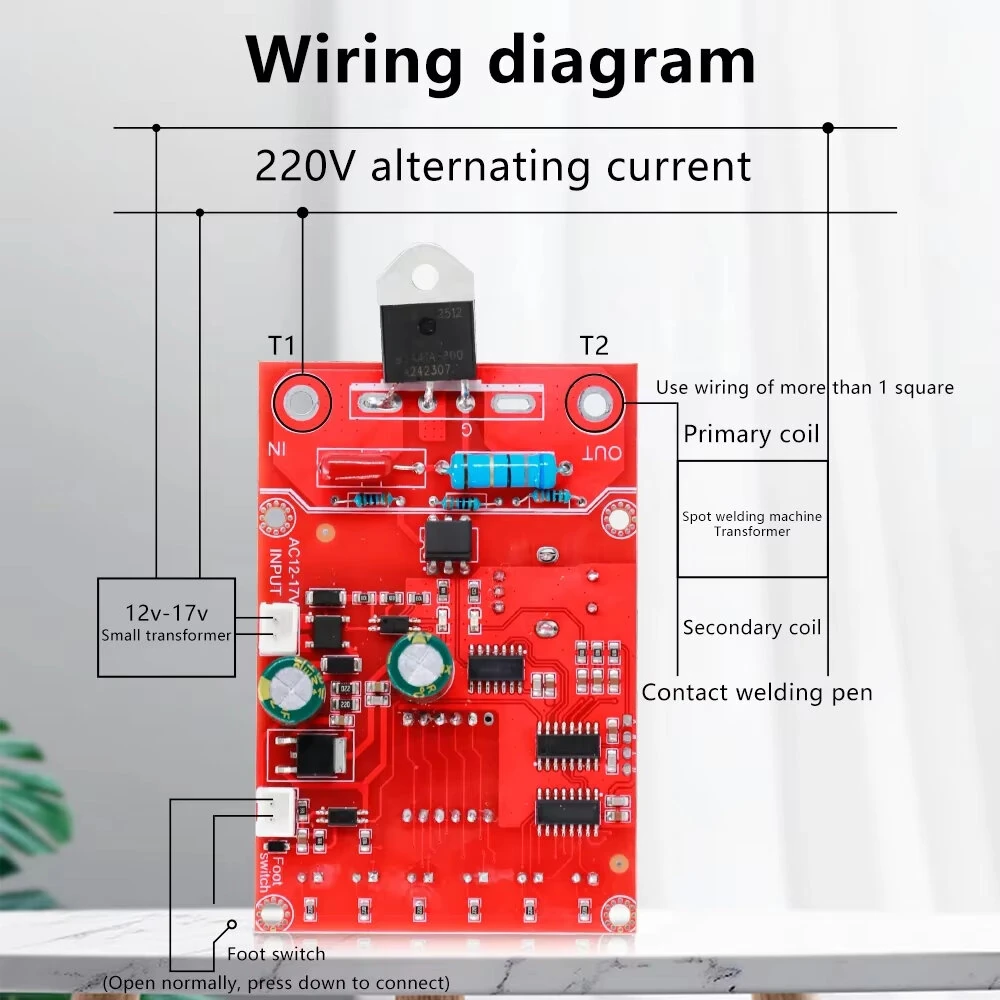

Power Supply: AC transformer (12V-17V input, not compatible with DC power supply)
Max Transformer Control Power: 40A version for transformers up to 1000W, 100A version for transformers up to 3000W
Control Board Dimensions: 9cm (Hx) x 6cm (Wx) / 3.54in x 2.36in
Functions: Single/Double pulse current control, spot welding count, zero-crossing detection, voltage compensation
Features:

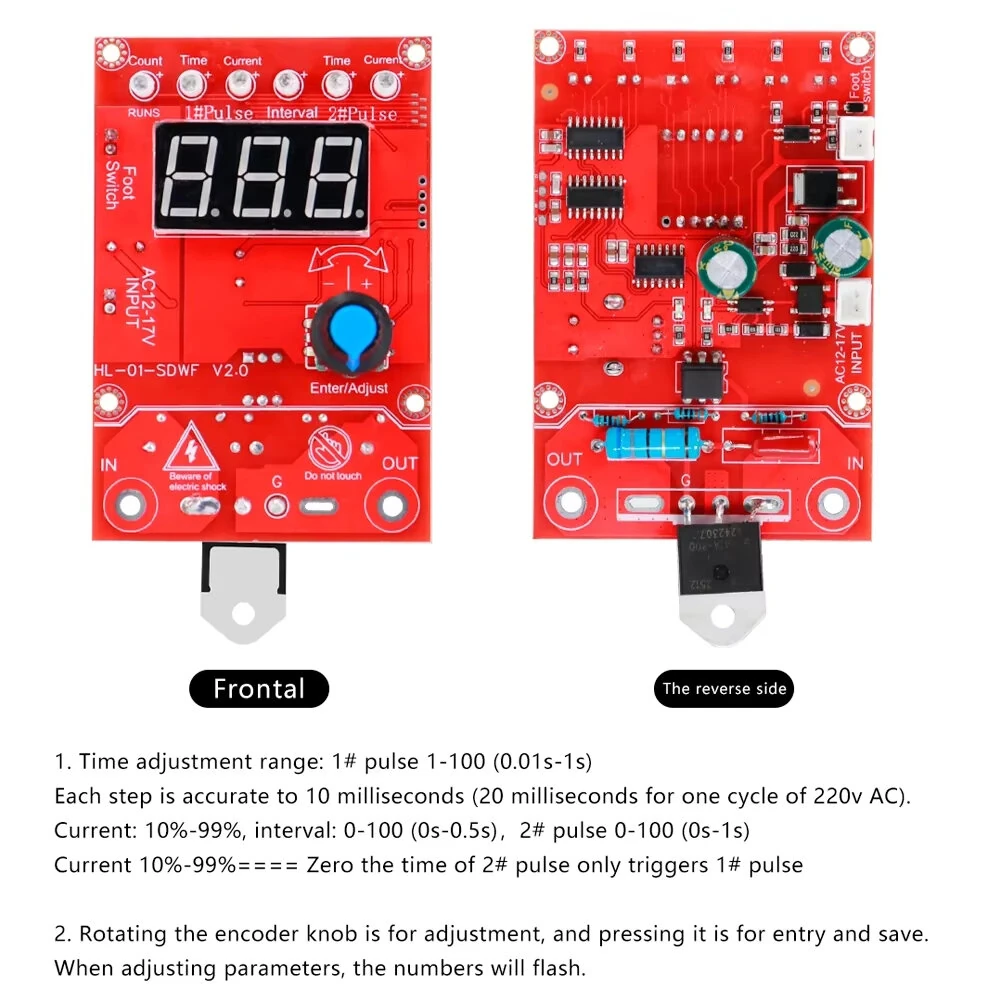

1. Encoder-Based Precision Adjustment
The digital encoder ensures accurate and stable regulation compared to potentiometers, offering extended service life.

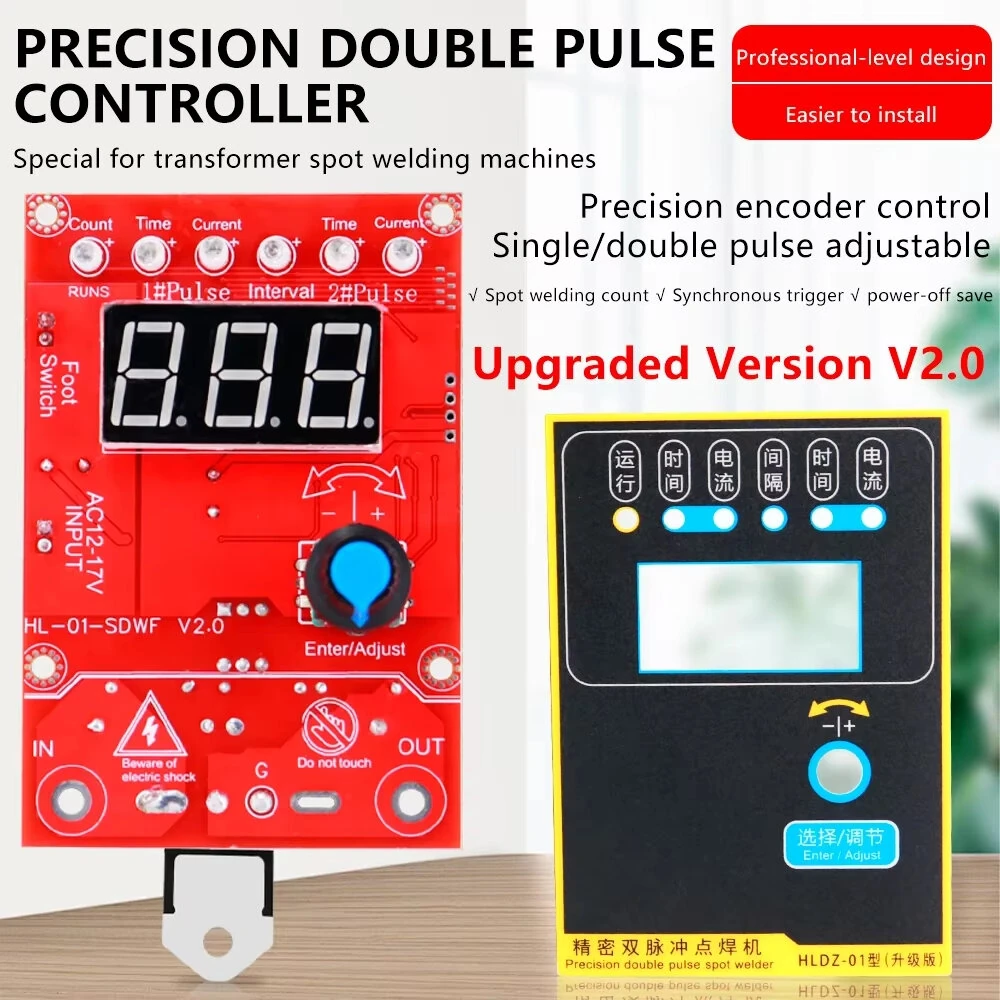

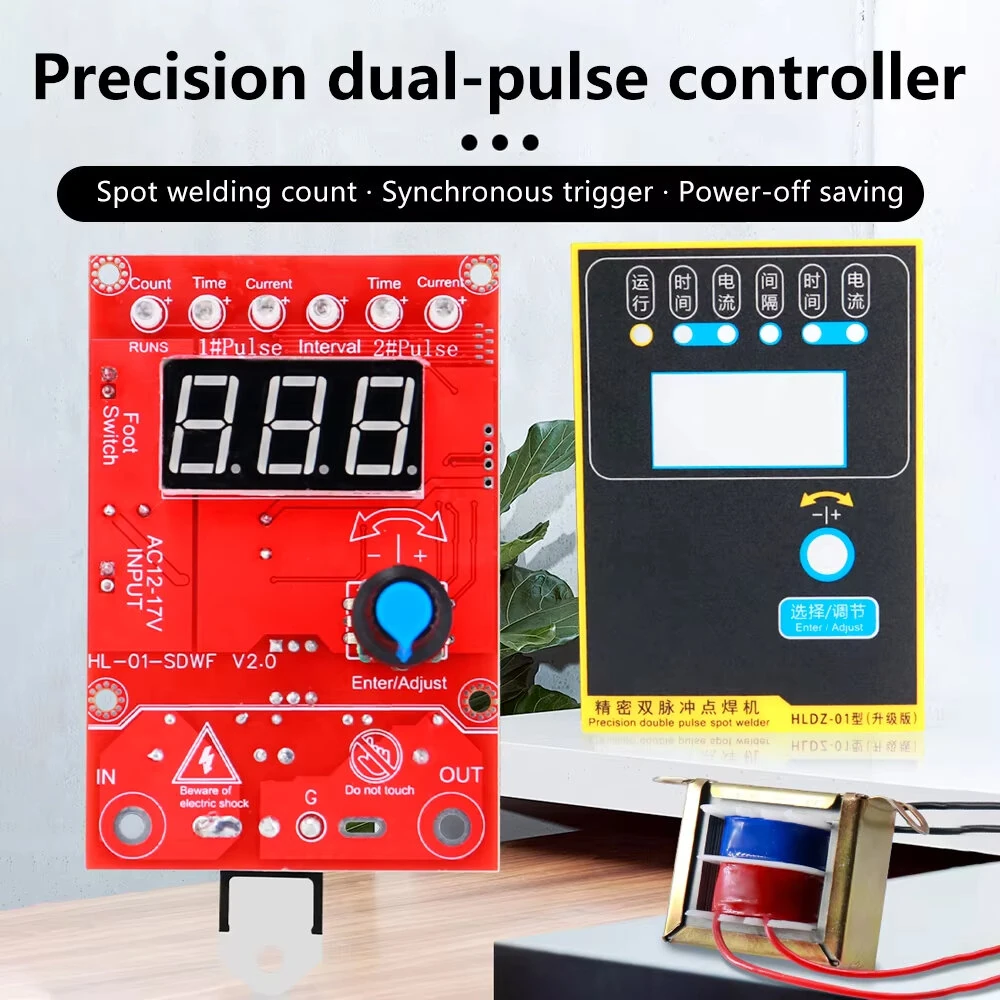

2. Single & Double Pulse Modes
Adjust the device??s pulse modes to meet your specific requirements, with added spot welding count functionality for operational tracking.
3. Voltage Compensation & Zero-Crossing Detection
Maintain stable operation and consistent performance even with fluctuating voltage, ensuring reliable welding results every time.
4. Double-Sided Welded Integrated Design
The thoughtfully laid-out, compact board simplifies installation within machine enclosures, boosting installation efficiency.
5. Anti-Shake Foot Pedal Feature
Innovative anti-shake technology prevents unwanted spot welding caused by accidental or unstable switch contact during operation.
Package Included:
1 x Spot Welding Machine Controller Set
