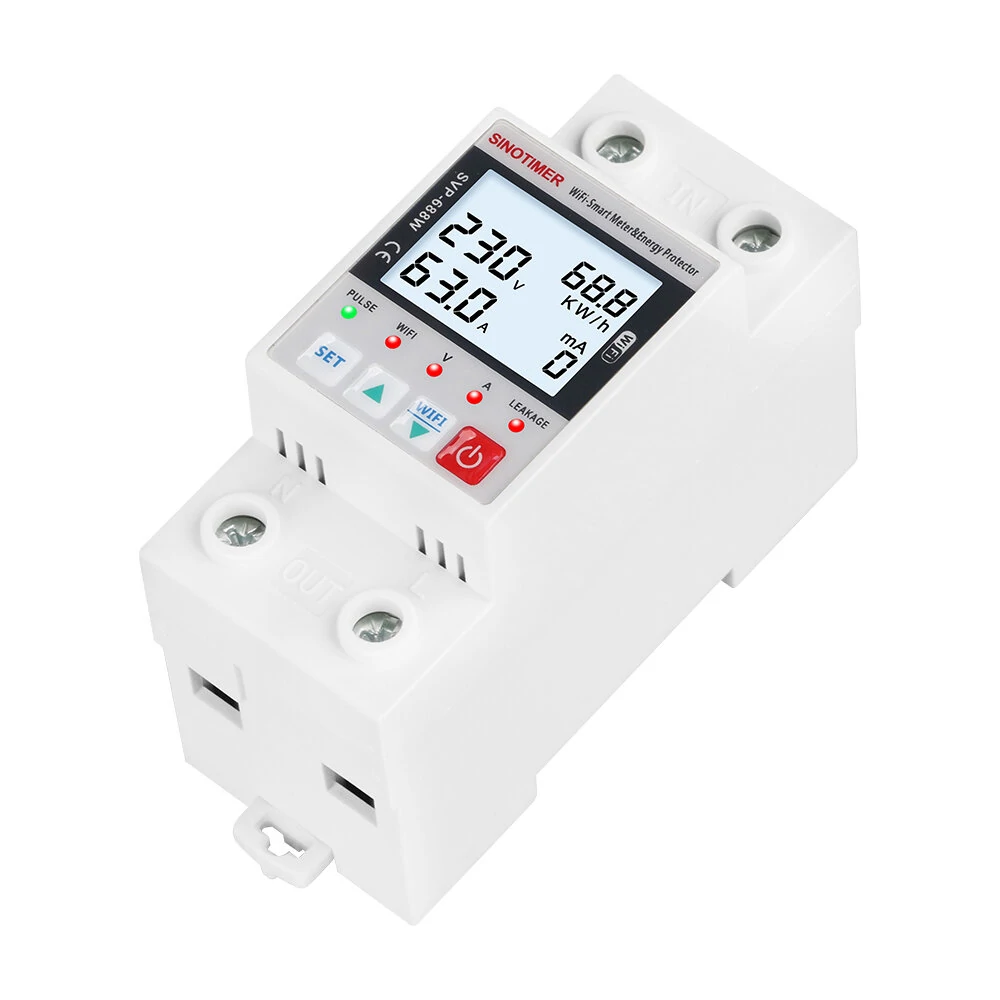

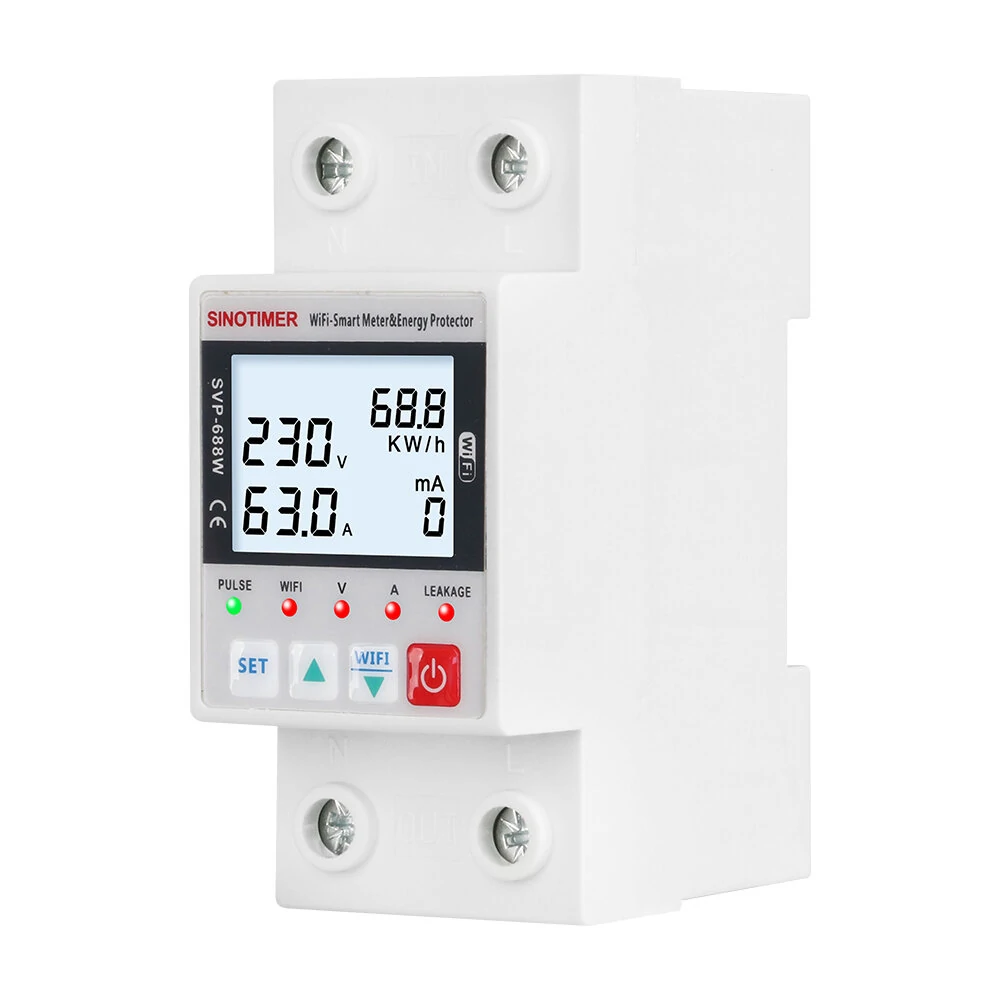

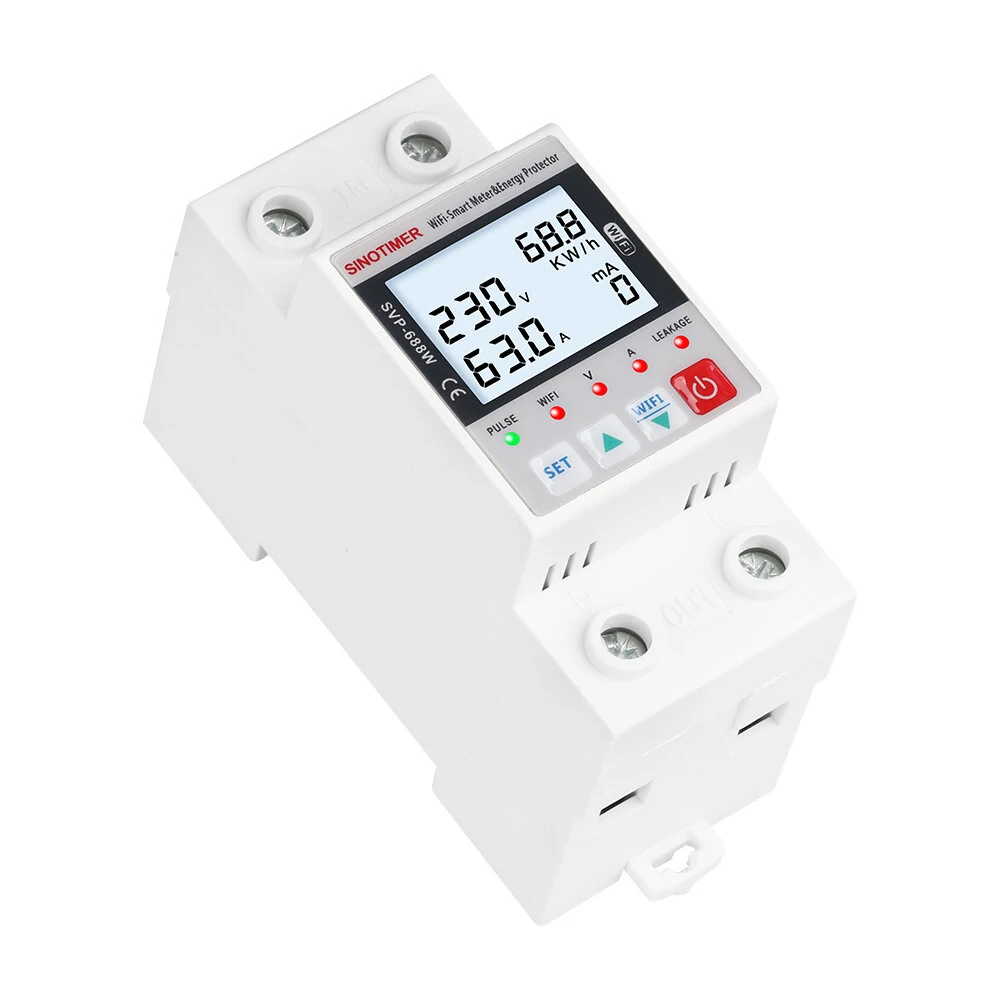

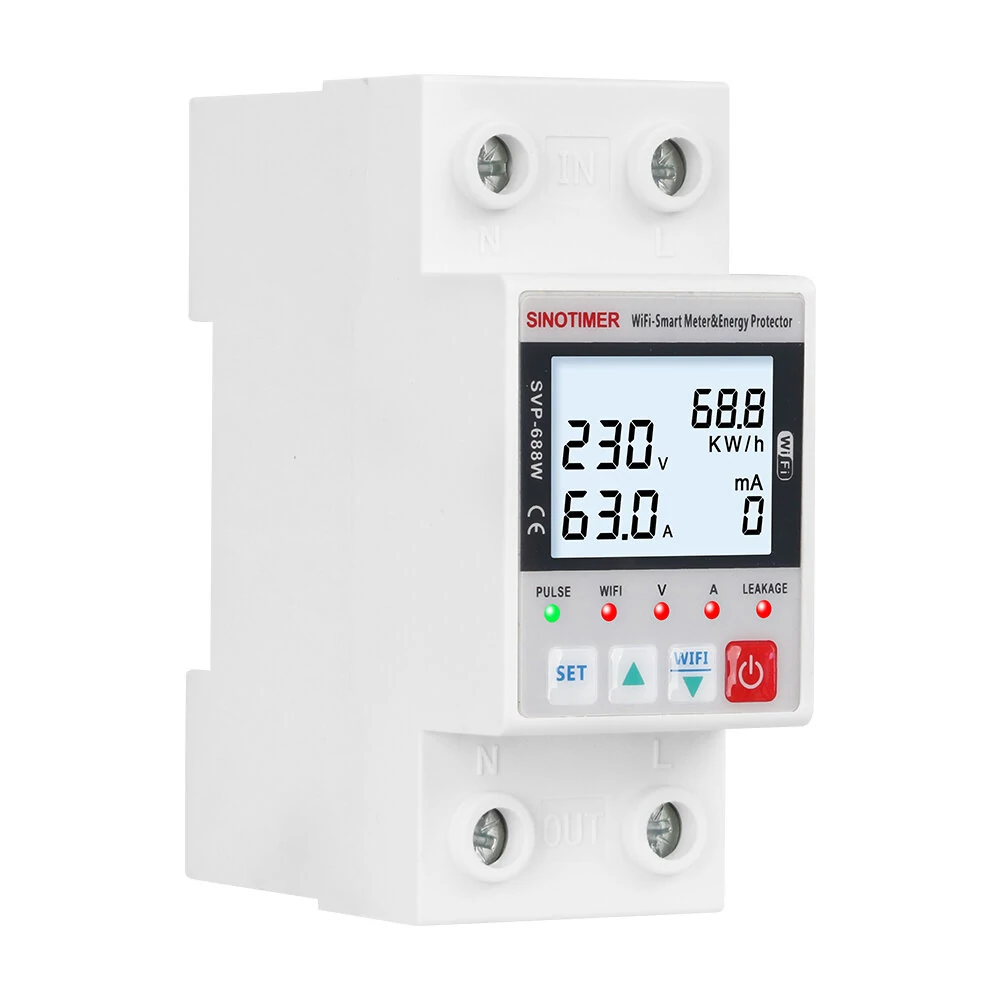

SINOTIMER SVP688 WiFi Energy Meter | Voltage Current Leakage Protection | Real-Time Monitoring & Timing Modes

Product Description

If you need other Electricity Energy Meters, click ID:1996940??1996941

Features:

Remote Control and Monitoring: The SVP688 WiFi Energy Meter allows you to remotely control the ON/OFF function from anywhere using your smartphone. Stay in control of your devices even when you're away.

Real-Time Monitoring: Review current, voltage, leakage current, and total kWh consumption directly from your phone. Keep track of your energy usage and make informed decisions for efficient energy management.

Adjustable Protection Parameters: Customize the over-voltage, under-voltage, over-current, and leakage current protection settings either through the app or directly on the protector itself.

Voltage Protection Range: The under-voltage protection range is adjustable from 145V to 210V (default: 175V), while the over-voltage protection range is adjustable from 240V to 300V (default: 275V).

Current Protection Range: The over-current protection range is adjustable from 1A to 63A (default: 63A), providing reliable protection for various electrical loads.

Electric Leakage Protection: Enjoy the added safety of electric leakage protection, with an adjustable range of 10mA to 99mA (default: 50mA). This feature can be turned off if not required.

Reconnect Time and Protect Times: Set the desired reconnect time (delay on time) from 10s to 99s (default: 30s), and adjust the over-current and leakage protect times from 1 to 30 (default: 5). These features can also be turned off.

Over Temperature Protection: Set the over-temperature protection range from 10??C to 85??C through the app. This parameter can only be adjusted using the app.

Three Timing Modes: Choose between timing mode, countdown mode, or cycle timing to conveniently manage the operation of your devices.



Specifications:

Brand: SINOTIMER

Model: SVP688

Rated Voltage: 230VAC

Rated Current: 63A

WiFi Compatibility: Smartlife/TUYA

Leakage Protection Range: 10mA - 99mA (adjustable, default: 50mA)

Reconnect Time (Delay On Time): 10s - 99s (adjustable, default: 30s)

Over Current and Leakage Protect Times: 1 - 30 (adjustable, default: 5)

Over Temperature Protection: 10??C - 85??C (app adjustable only)

Timing Modes: Timing Mode, Countdown Mode, Cycle Timing

Optional Type:

Type A: No Wifi with Light

Type B: Wifi with Light

Type C: Wifi without Light



Package Included:

1 x Energy Metering Switch Timer (Type as your choice)
