RELIFE XA1 Voltage Tester | 4-25V 5A IPS Display | PD QC Fast Charging

Product Description

Specifications:

Brand: RELIFE

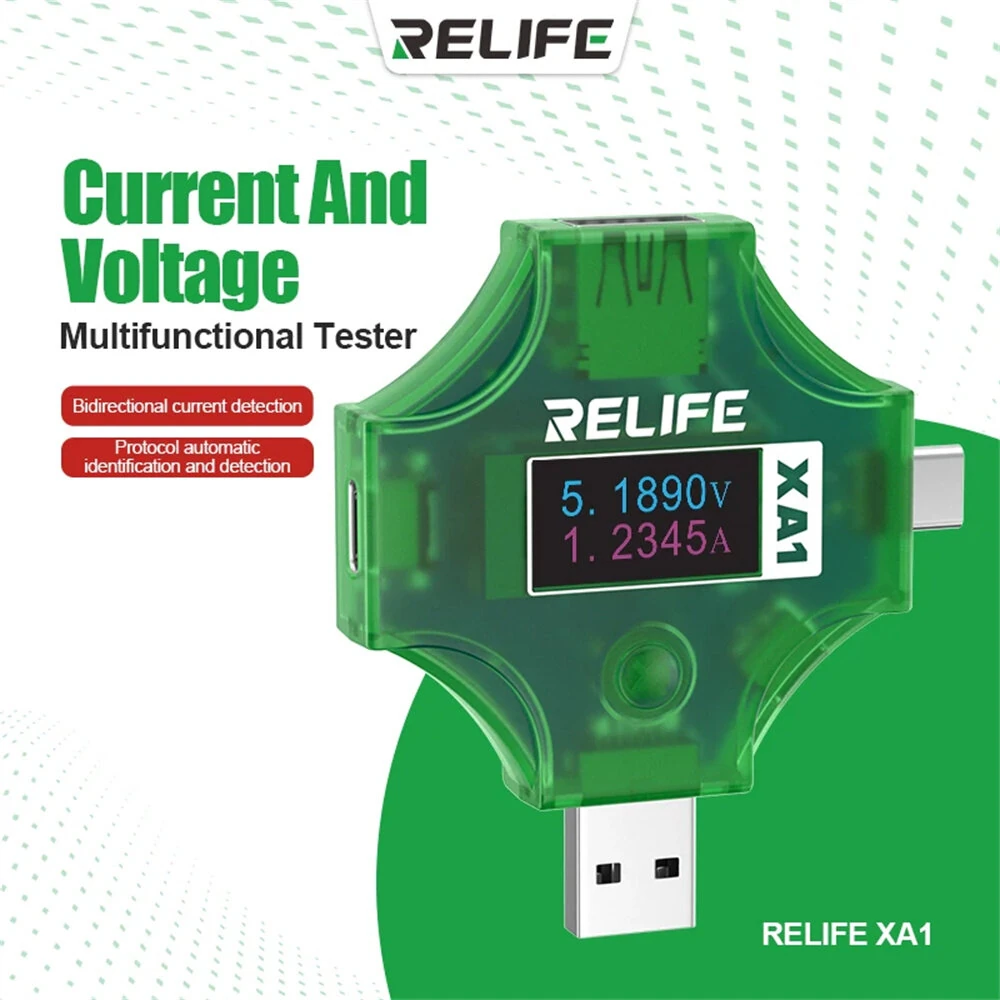

Product Name: Current and Voltage Multifunctional Tester

Model: XA1

Net Weight: ?? 20.5g

Gross Weight: ?? 30g

Product Size: 676212mm

Package Size: 608015mm

Current: 5A

Voltage Range: 4V~25V

Voltage Resolution: 0.01V

Current Resolution: 0.01A

Power Statistics: Support Wh/Ah

Capacity Measurement Range: 0~9999Ah

Voltage Accuracy: 1%

Current Accuracy: 1%

Display: 160*80DPI, IPS screen

Energy Measurement Range: 0~9999Wh

Support Detection Protocol: PD, QC2.0, QC3.0, SCP, AP2.4A, DCP

Features:

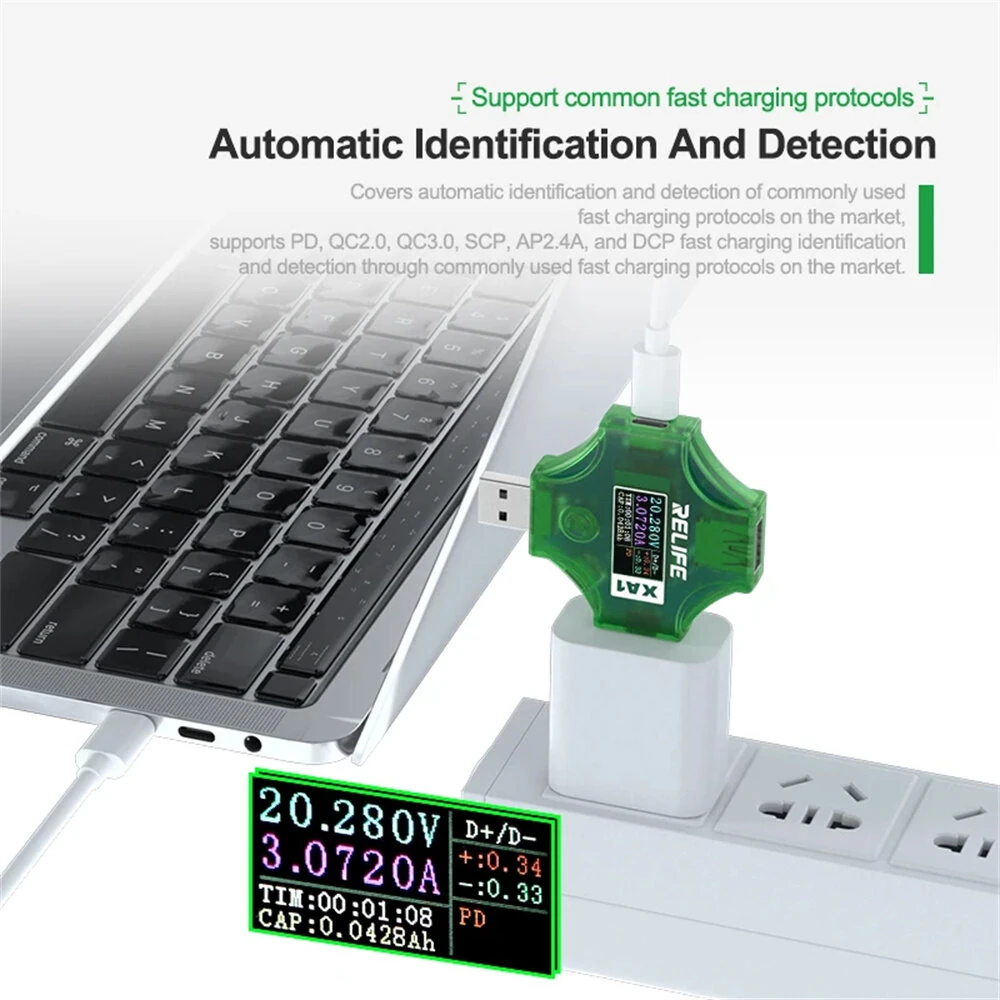

Supports Multiple Fast Charging Protocols: Compatible with PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging standards.

Highly Accurate Measurements: Achieve precise readings with 0.01V voltage resolution and 0.01A current resolution, maintaining an accuracy of 1%.

Compact and Lightweight Design: Weighing only 20.5g with a compact size of 676212mm, it is easy to carry and store.

High-Resolution IPS Display: Features a 160*80DPI, IPS screen for clear and sharp visual monitoring of voltage and current.

Wide Measurement Range: Measure capacities up to 9999Ah and energy up to 9999Wh, making it suitable for various applications.

Package Included:

1 x RELIFE XA1 Multifunctional Tester

1 x User Manual
