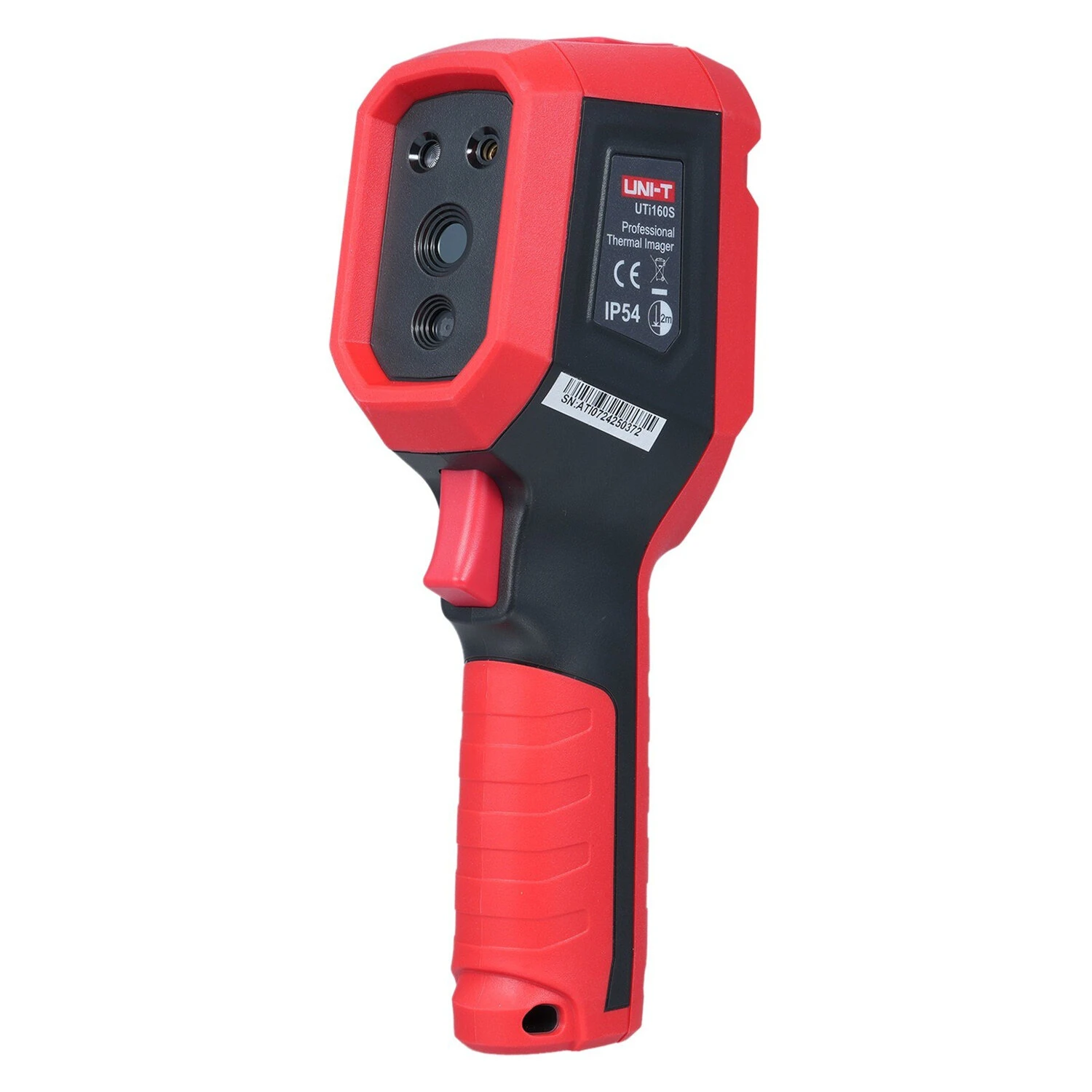

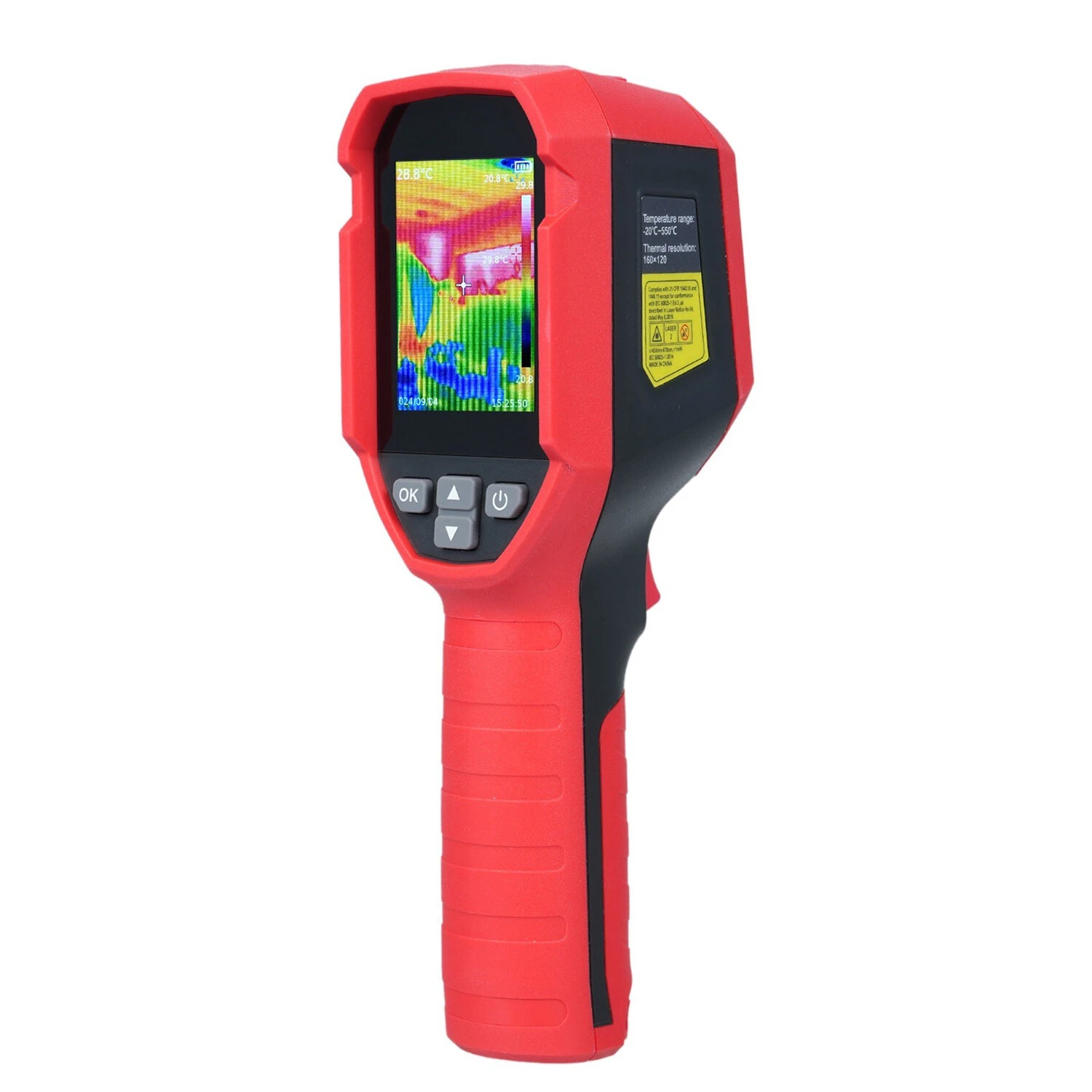

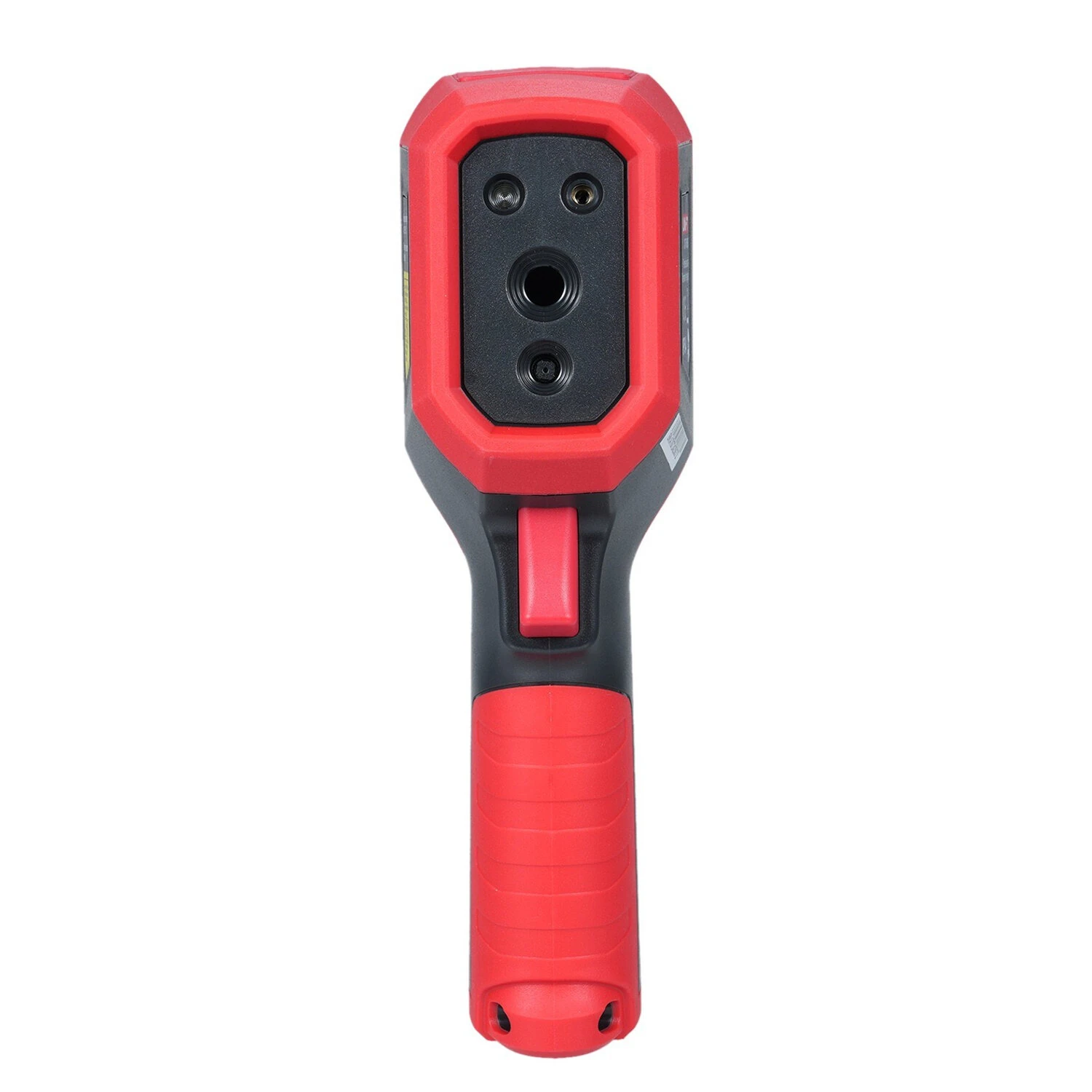

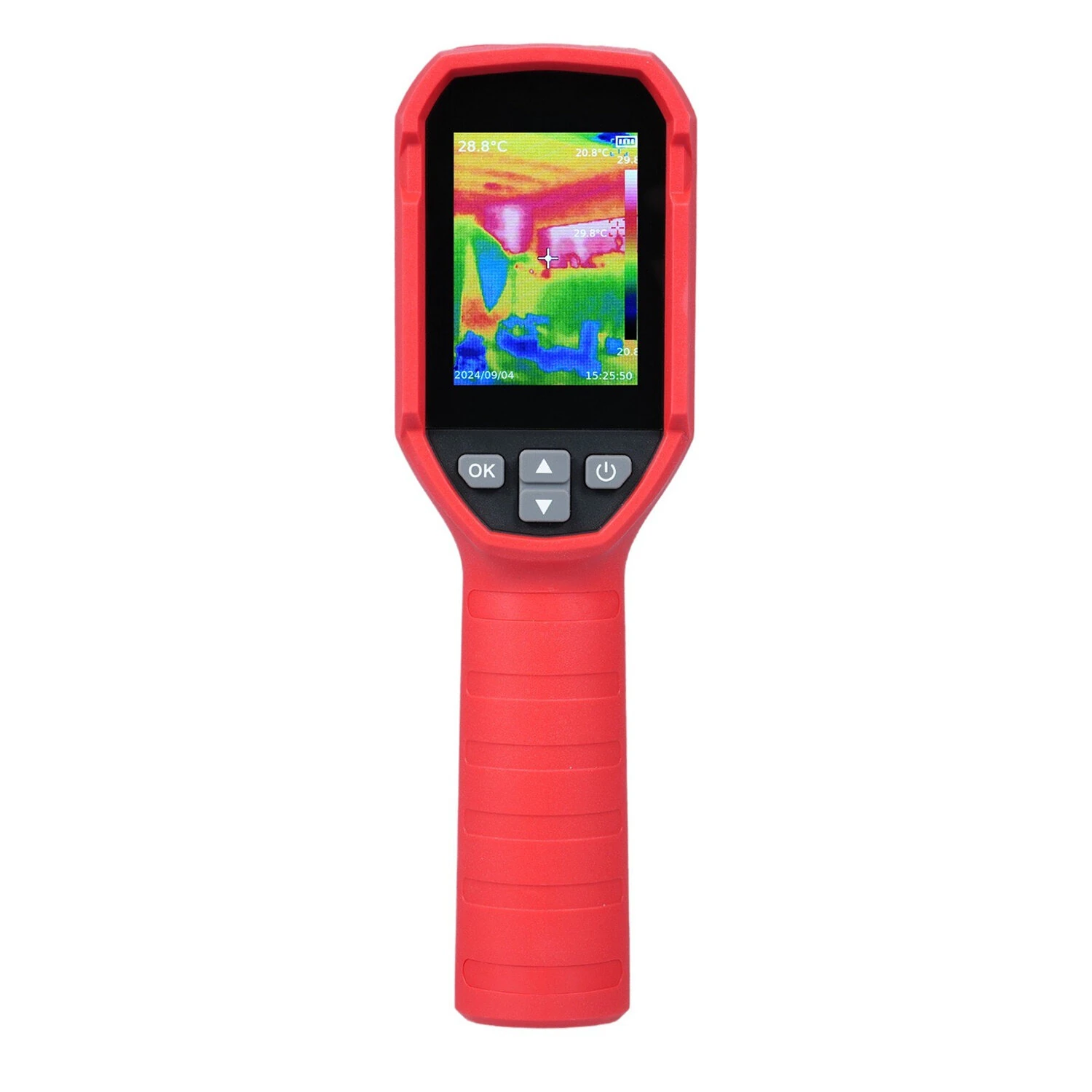

UNI-T UTi160S Thermal Camera | 160x120 IR Imager -20°C to 550°C USB Rechargeable

Product Description

Specifications:

Model: UTi160S

Material: ABS

Detector Type: Uncooled infrared detector

Infrared Resolution: 160x120

Infrared Response Band: 8-14 ??M

Pixel Spacing: 12??M

Frame Rate: ??25Hz

Thermal Sensitivity/NETD: < 50mK @ 25??

Temperature Measurement Response Time: ??500ms

Gain Mode: Automatic gain

Focus Mode: Fixed focus

Thermal Imaging Lens Focal Length: 2.6mm

Aperture: F1.3

Field of View Angle: 40??H x 30??V

Spatial Resolution/FOV: 4.62mrad

Measuring Range: -20?? to 550??

Temperature Measurement Accuracy: ??2??/??2%

Temperature Measurement Resolution: 0.1??

Suggested Temperature Measurement Distance: 0.25m

Temperature Measurement Unit: ??/?H

Temperature Measurement Display: Center point, high and low temperature tracking

High and Low Temperature Tracking: Yes

High and Low Temperature Alarm: Alarm threshold manually set, screen display, LED flash, buzzer alarm

Battery Type: 3.7V, 2600mAh, 9.62Wh rechargeable lithium battery

Battery Working Time: ??6 hours

Charging System: Type-C direct charging

Temperature Measurement Parameters: Emissivity 0.95 (default), adjustable from 0.1 to 0.99

Display Screen: 2.4" TFT TN

Display Resolution: 320x240px

Color Palette: Iron Red, Rainbow, White Heat, Black Heat, Red Heat, Lava, High Contrast Rainbow

Image Mode: Thermal imaging, T-Mix fusion, picture in picture, visible light

Fusion Ratio: Supported

Image Format: JPG

Storage: EMMC built-in storage (28GB)

Data Interface: USB Type-C

Photograph: Yes

Lighting/Laser Indication: Yes

Automatic Shutdown: Off, 5 minutes, 10 minutes, 30 minutes

Charging Time: ??2.5 hours

PC Scanning Software: Yes

Protection Level/Fall Protection: IP54/2m

Item Size: 197 * 72 * 60mm / 7.75 * 2.83 * 2.36in

Item Weight: 326g / 11.49oz

Package Weight: 545g / 19.22oz

Package Size: 25 * 15 * 9.5cm / 9.84 * 5.91 * 3.74in

Features:

High Resolution Imaging: 160x120 infrared resolution provides clear thermographic images for accurate diagnostics.

Wide Measurement Range: Detects temperatures from -20?? to 550?? for various maintenance and detection needs.

Long Battery Life: 2600mAh rechargeable lithium battery provides up to 6 hours of continuous usage.

User-Friendly Alerts: High and low temperature tracking with customizable alarm settings for prompt notifications.

Versatile Image Modes: Multiple visualization modes, including T-Mix fusion and picture in picture, enhance analysis capabilities.

Package Included:

1 x Infrared Thermal Imager

1 x Lanyard

1 x USB Cable

1 x User Manual (English)
