TOOLTOP T5 Thermal Imager for Android - 256x192 IR Camera with Macro Lens | 25Hz for PCB & Phone Repair

Product Description

Note: In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a paus/stop of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

Features:

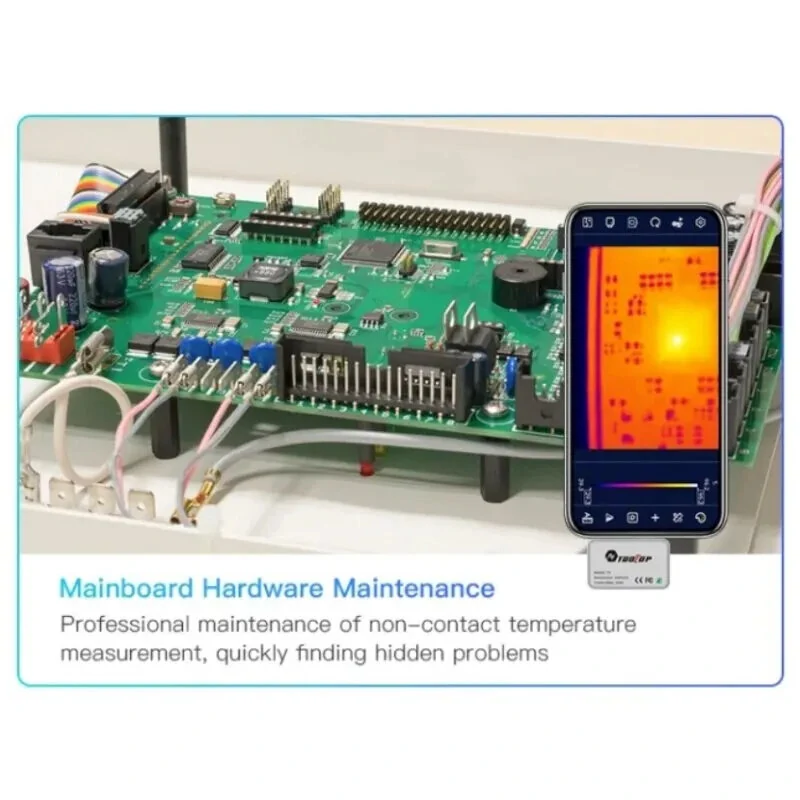

High quality optical lens, 256 * 192 high resolution infrared sensor, built-in Macro lens suitable for PCB circuit detection, observable size: 2x4mm pins and electronic components

25Hz high frame rate imaging, smooth picture flow without lag

Multi language display, support Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish 12 Languages

Used with mobile APP, it supports taking photos ,videos and storing them in the photo album, allowing professional thermal imaging analysis anytime and anywhere.

Add points, lines and rectangular boxes for regional temperature measurement. Lines and rectangular boxes support high and low temperature tracking and high temperature alarms.

Wide temperature measurement range: -15??-600??;

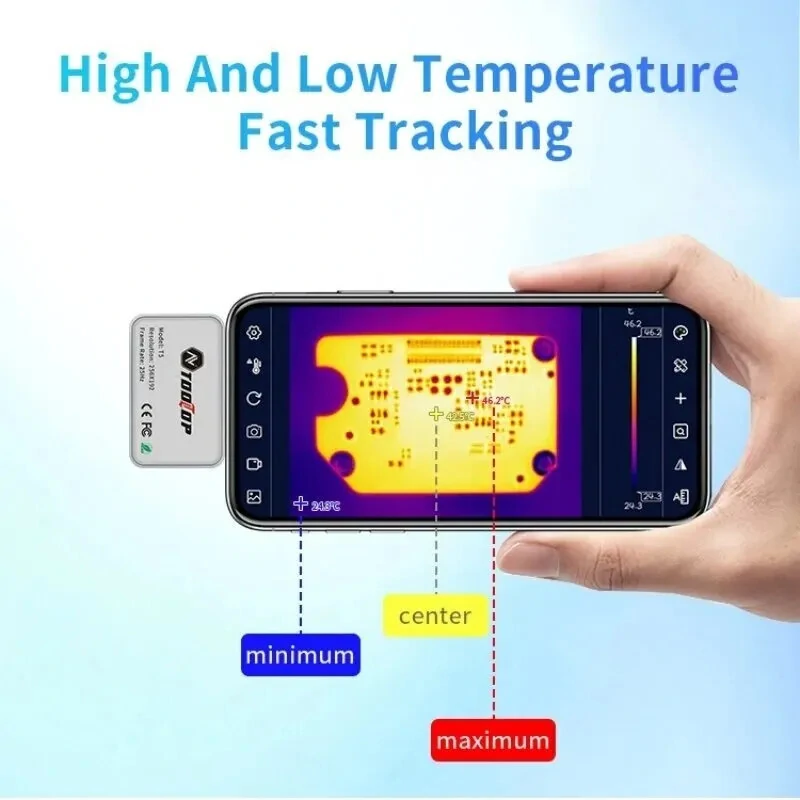

Automatic temperature tracking, supporting high and low temperature and center point temperature tracking;

Specifications:

Brand: TOOLTOP

Model:T5

Name: Macro Infrared Thermal Imager

Resolution:256 x 192

Wavelength:8-14um

Frame rate:25Hz

NETD:<50mk@25??

FOV :56??x42??

Lens:3.2mm

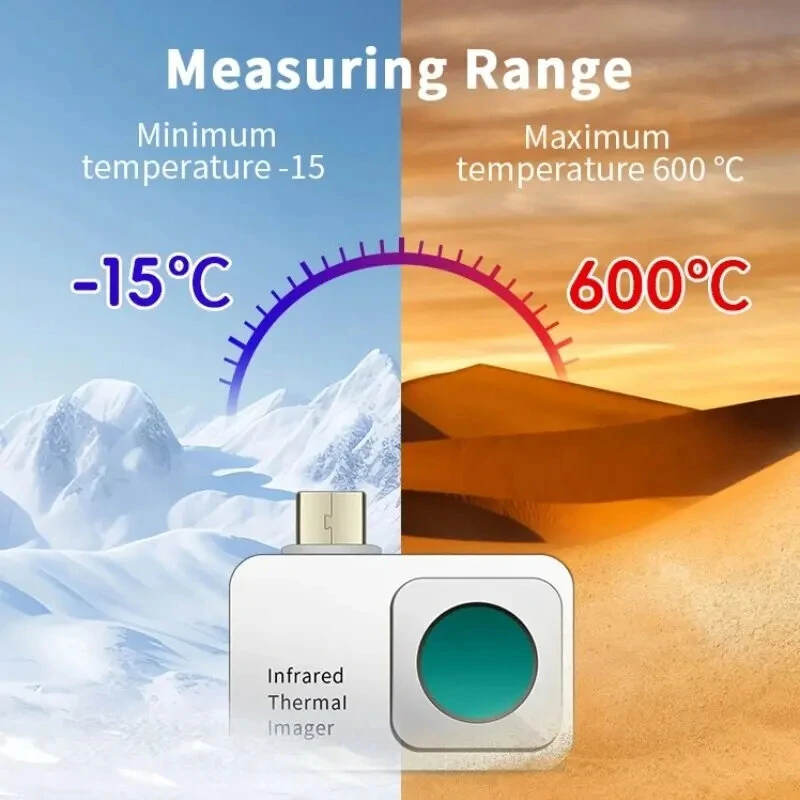

Temperature measurement range:-15??~600??

Temperature measurement accuracy: 2C or 2%

Temperature measurement: Highest, lowest, central point and area temperature measurement are supported

Language: Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish

Working temperature:-10C~75C

Storage temperature:-45C~85C

IP rating:IP54

Dimensions:25mm x40mm x14mm

Net weight:23g

Notice: Using mobile phone thermal imaging in normal environments (prohibited in harsh environments such as high temperature and high magnetism)

Package included:

1 x Thermal Imager

1 x English User Manual

1 x Cloth

1 x Box

1 x Storage Bag
