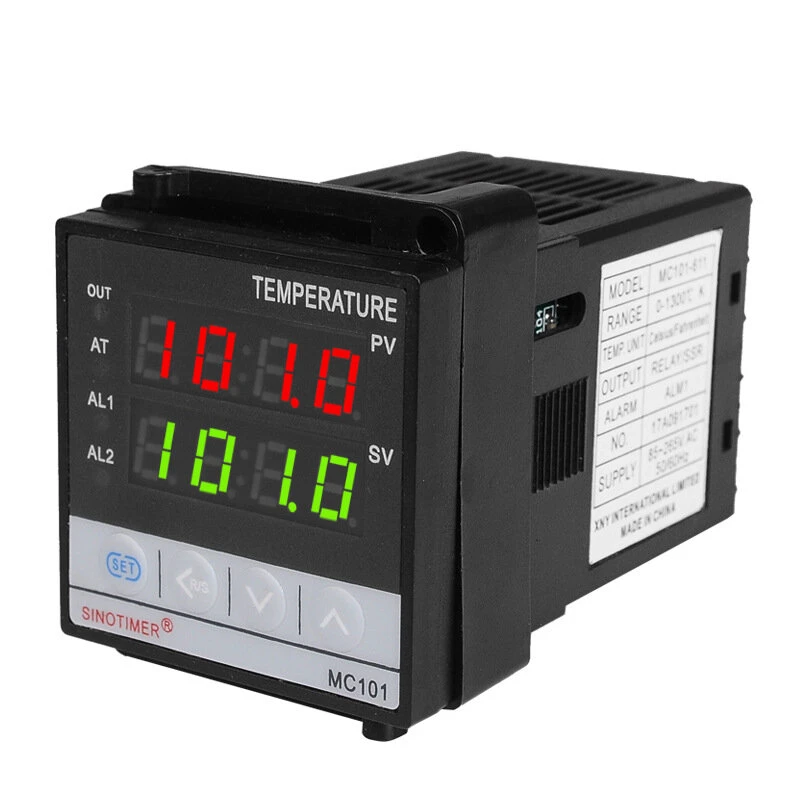

MC101 Digital PID Temperature Controller - 85-265V AC | Thermocouple Input with Alarm & SSR Output
Product Description
Features:
- MC101 series instruments: four-digit LED digital display,measurent accuracy 0.3%.
- The maximum resolution 0.1 degree at thrmocouple and thermal resistance input.
- The maximum resolution 0.001 at analong input.
- Size: 48*48mm
- The thermocouple and thermal resiatance of instrument input signals can be set freely.
- Uses it in Heating Control as well as for Cooling control.
- Auto-tune function can find the best PID parameter automatically.
- Displays temperature in Celsius (degC) or Fahrenheit (degF).
- Four digits LED display can go up to "9999.
- Uses it for Kiln,Furnace,Oven,Incubator temperature control.
- It is used in various industries to control and monitor process temperature.
- Short Shell
- Relay contract + solid-state relay( SSR) voltage output (just support one group output)
Specification:
Input Type | Thermocouple: K, E, S, R, J, T, B RTD: Pt100, Cu50 ( The User can set the input signal type according the requirement. ) |
Input Range | 0 ~+1300ordmC K (this is the default setting. User can set the temperature range which you wanted.) |
Display | Two lines, Four digits in Celsius degC / Fahrenheit (degF) (user can select it) |
Display Resolution | 0.1degC / 0.1degF for all type input |
Accuracy | +/-0.5% or +/-1 unit of full input range |
Control mode | PID, ON/OFF |
Control Output | Relay contract+ SSR voltage output (just support one group output) 0-20mA, 0-10V Analog Output |
Alarm | Alarm 1 ( Upper-limit bias alarm , User can change to be other Alarm Mode.) |
Power Consumption | <2 Watt |
Power Supply | 85~265V AC, 50/60Hz. |
Item Dimensions | MC101 48*48*85mm |
Mounting Hole Size | MC101 45*45mm |
Package includes:
- 1 x PID Digital Temperature Controller (NOT included Thermocouple)

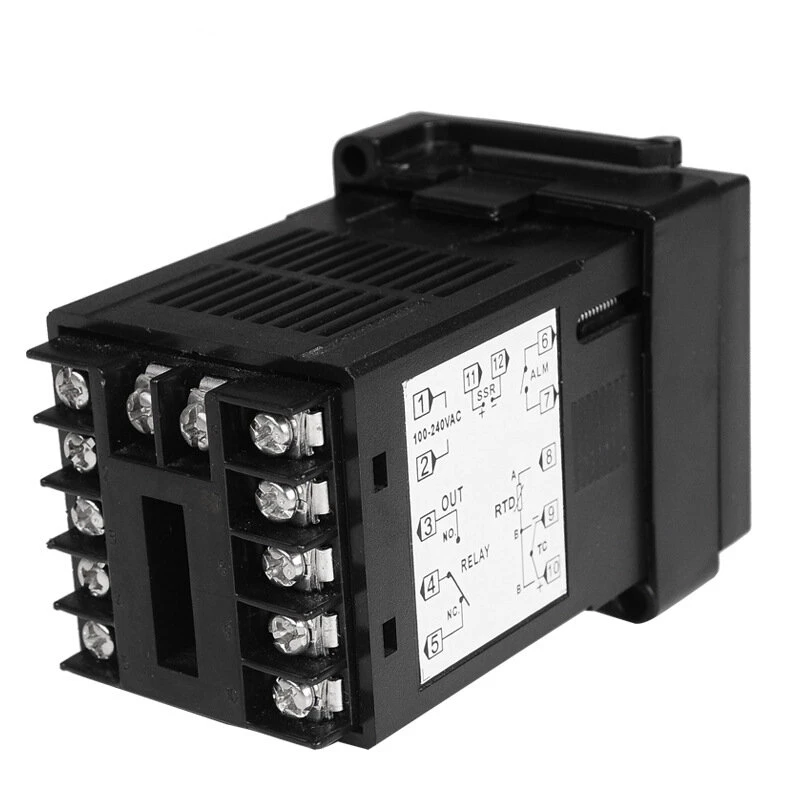

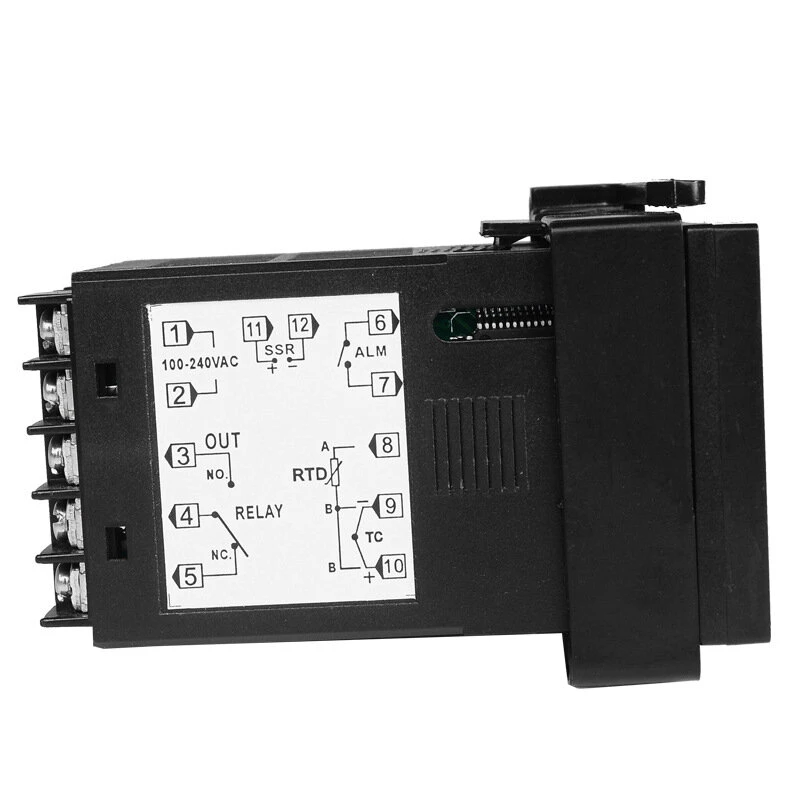

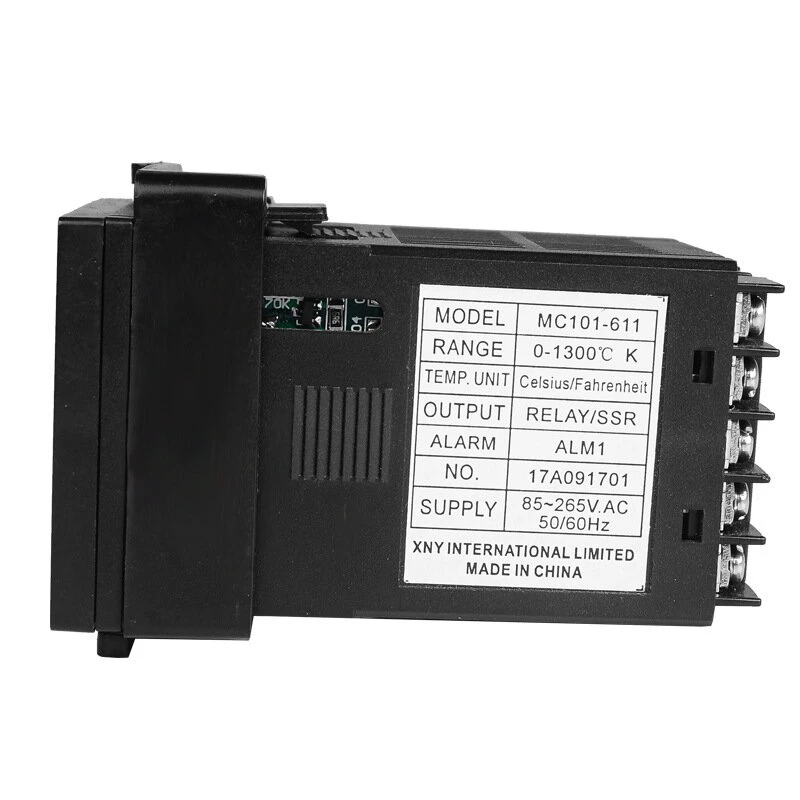

Details pictures:
