SA5 RF Analyzer | 4 Inch Display | 100kHz-6GHz Range | 5000mAh Battery

Product Description

Please click here to download the instruction manual

Specifications:
Input Frequency Range: 100kHz to 800MHz (normal mode), up to 6GHz (ULTRA mode)
Input Impedance: 50 ohm (attenuation ?? 10dB)
Input Attenuation: 0dB to 31dB (1dB steps when LNA inactive)
Maximum DC Input: ??5V DC
Absolute Maximum Input Level: +6dBm (0dB internal attenuation)
Absolute Maximum Short-Term Peak Input Power: +20dBm (30dB internal attenuation)
Suggested Maximum Input Power: 0dBm (internal attenuation in automatic mode)
Best Measurement Input Power: Below -25dBm
Input Intercept Point (IIP3): +15dBm (0dB internal attenuation)
1dB Compression Point: -1dBm (0dB internal attenuation)

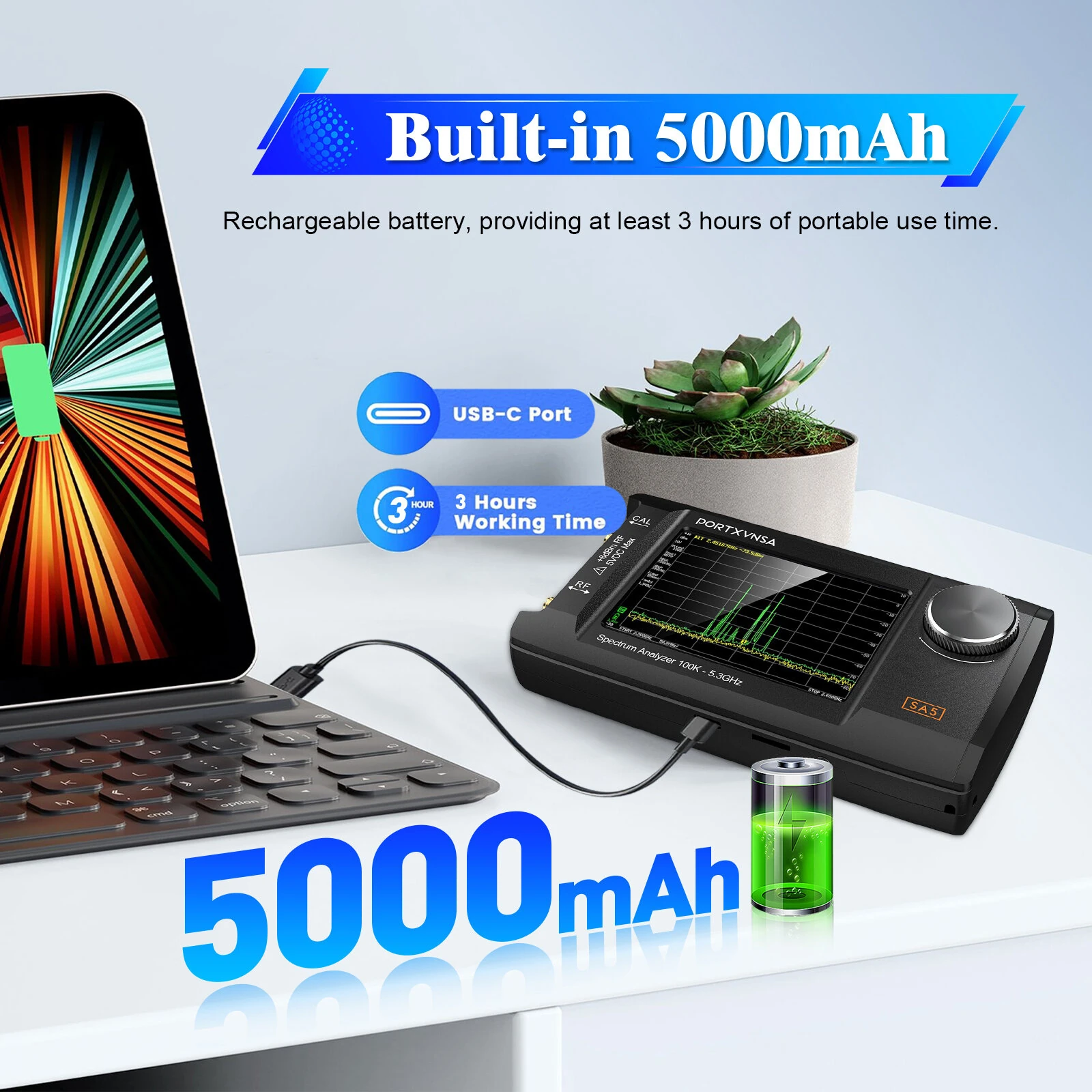

Battery Capacity: 5000mAh

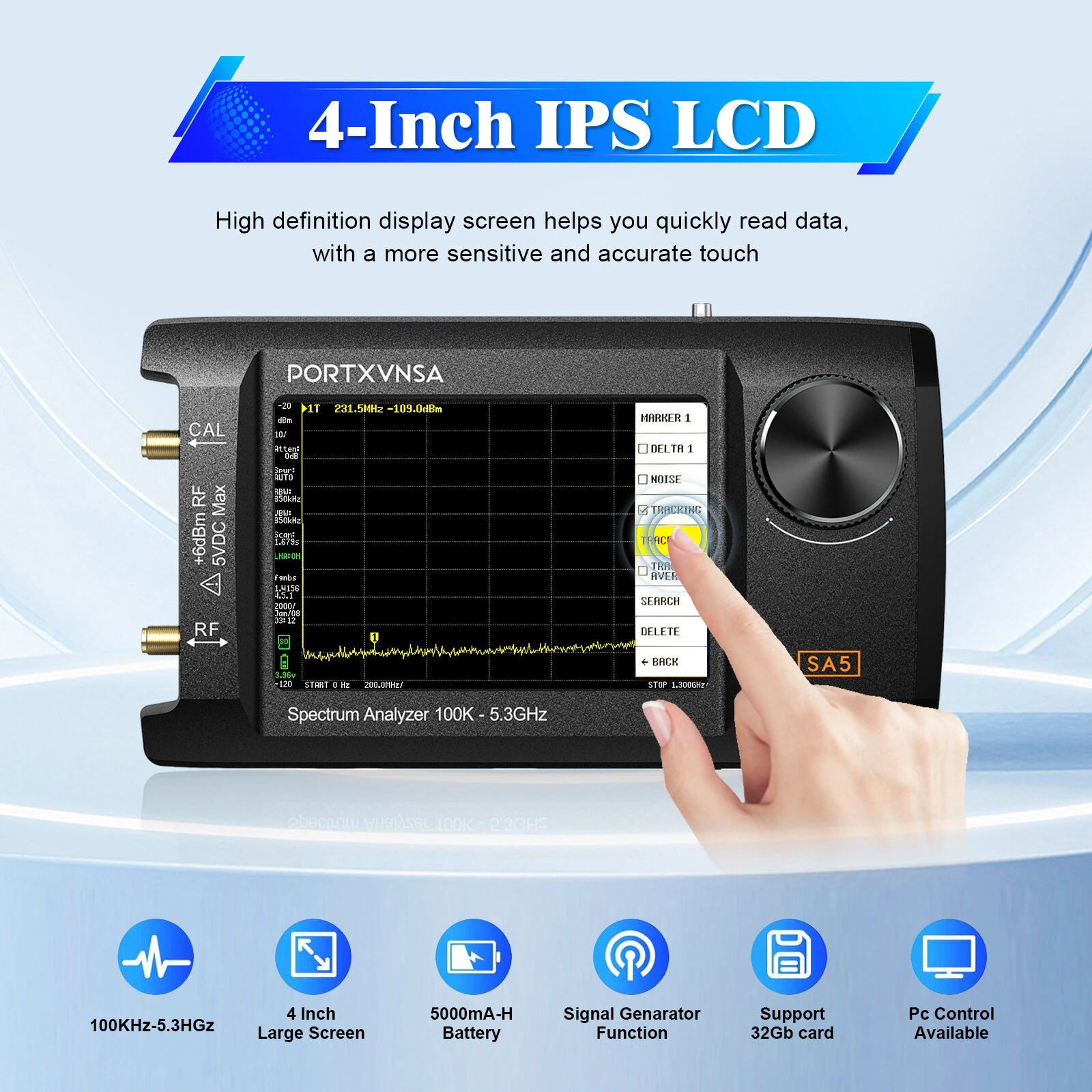

Display Screen: 4 inch
Optional Type:
Type A: Without 32GB MicroSD Card

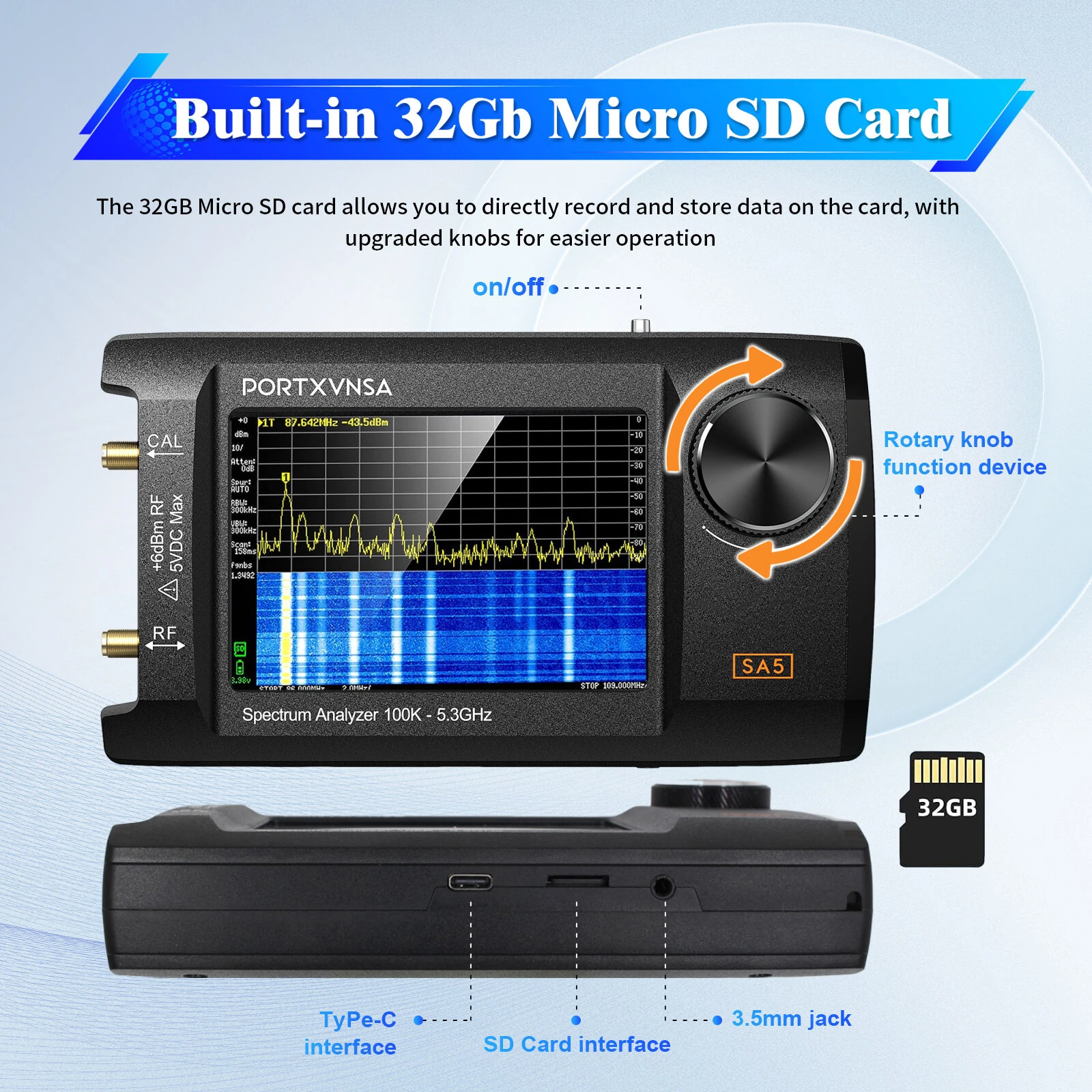

Type B: With 32GB MicroSD Card

Features:
Wide Frequency Range: Covers 100kHz to 800MHz in normal mode, extending up to 6GHz with ULTRA mode, ensuring versatility in applications.
High Precision Attenuation: Customizable manual and automatic input attenuation from 0dB to 31dB in 1dB steps, providing accuracy and control.
Enhanced Sensitivity: Built-in 20dB LNA with a noise figure of 5dB, improving signal test and clarity.
Robust Phase Noise Performance: Features low phase noise of -108dB/Hz at 100kHzoffset, ensuring signal integrity and reliability.
Comprehensive Scanning Capabilities: Supports over 1000 points/second scanning speed with high on-screen resolution up to 450 measurement points.

Package Included:
1 x SA5 Instrument
2 x 30cm RG405 SMAJB2/SMAJB2 RF Cables
1 x SMA-SMA Barrel Connector
1 x Antenna With SMA Connector
1 x Touch Pen
1 x Lanyard Touch Sheet
1 x User Manual
1 x USB Cable
1 x Carrying Case

1 x 32GB MicroSD Card (insert into console????Only Type B Have??
