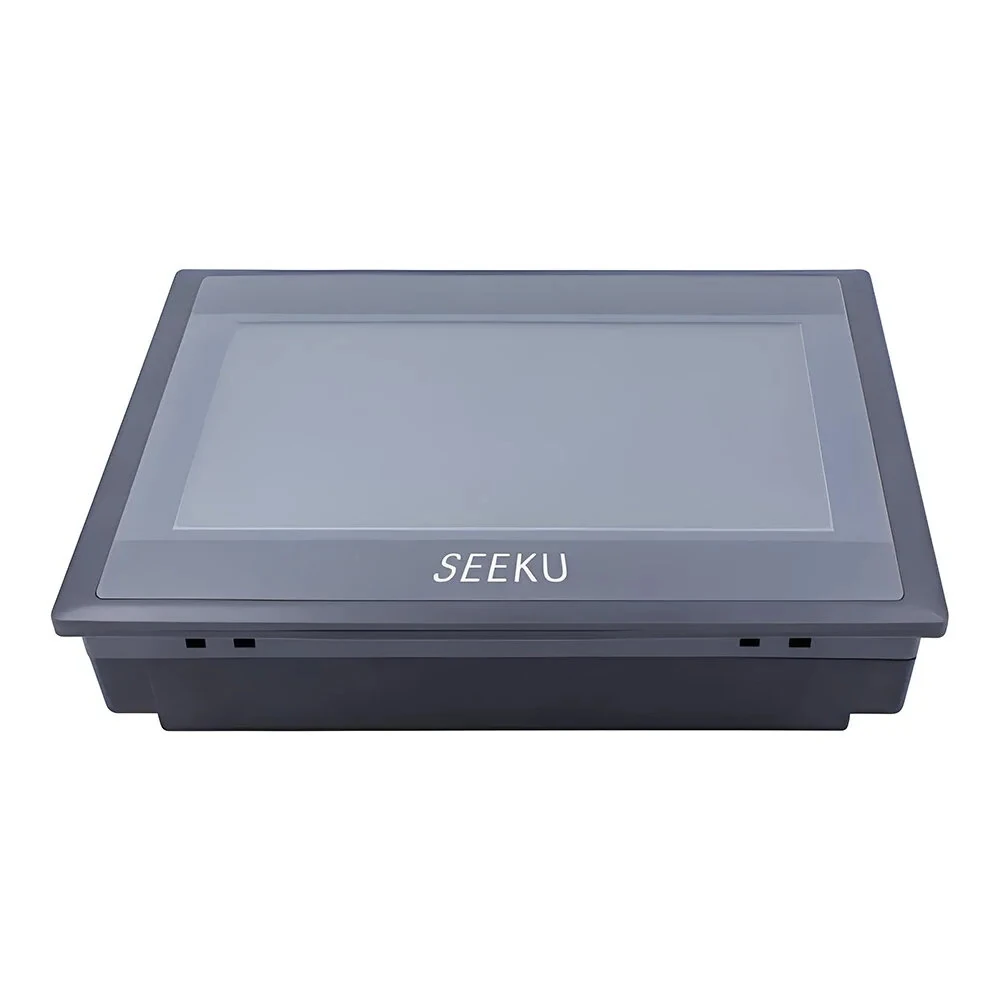

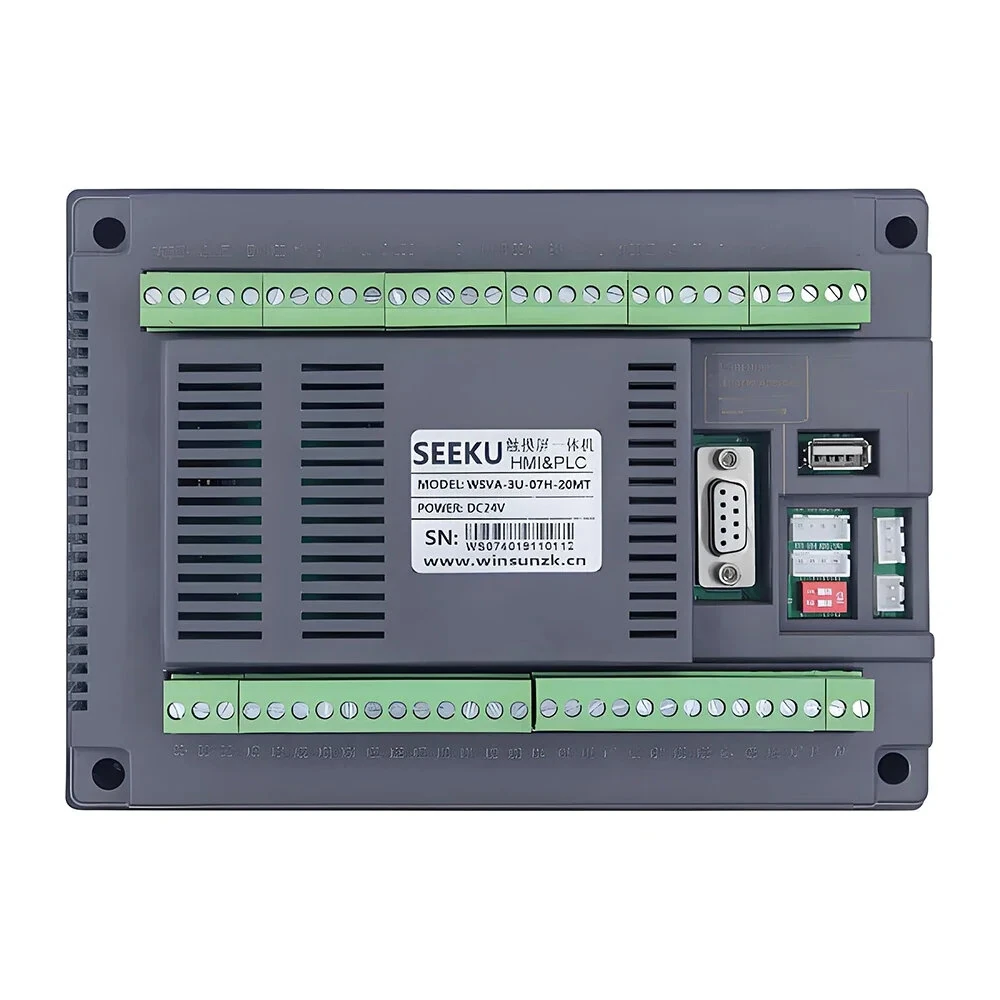

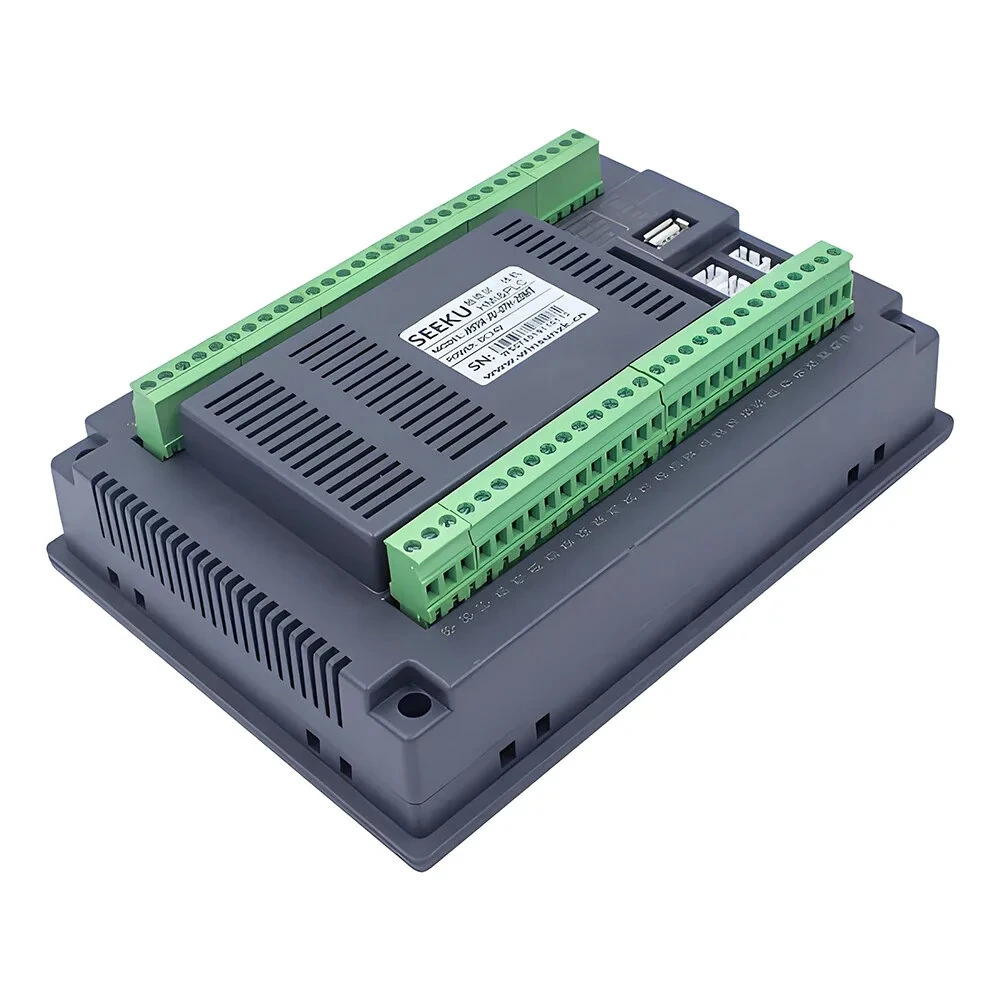

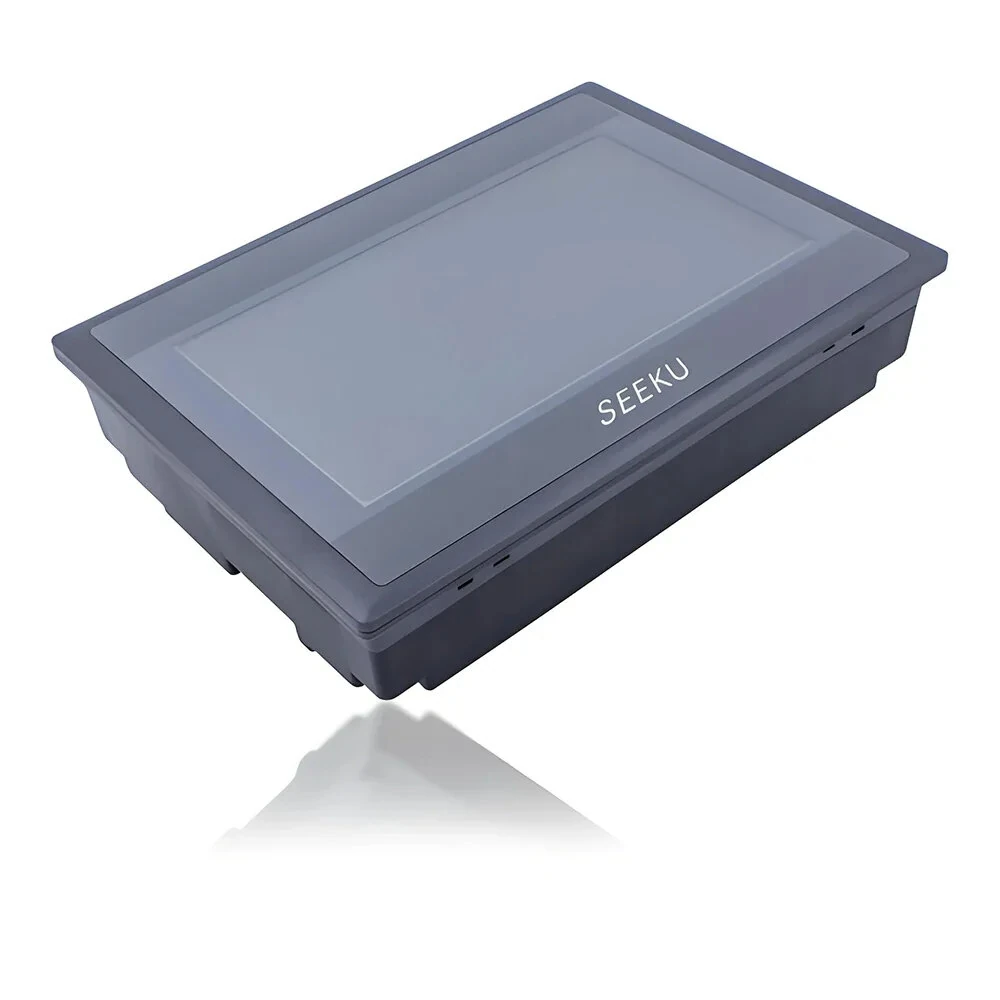

PLC HMI 7 Inch All-in-One Integrated Combo | RS485 RS232 | Compatible with FX3U

Product Description

Feature:

(1) Compatible with FX3U series;

(2) PLC supports Mitsubish GX developer or GX works 2 software ladder diagram programming, and the HMI use WSStudio v5.1 software programming.

(3) PLC and HMI integration, saving space and wiring

(4) PLC adopts 32-bit high-performance CPU with fast running speed,4.3 inch HMI true color display, sensitive and accurate touch control,

Support interrupt, with power-off saving, optional real-time clock, timing lock, support floating point

(5) Memory capacity 8000 steps; Pluggable terminal, convenient for wiring

(6) Support analog input and output function; Support 485 Modbus communication.

Specification :

(1) WS7020T :

7 inch , 12DI 8DO, Transistor outputs,6 Analog inputs (0-10V *3,4-20MA *3) and 2 Analog outputs(0-10V *2),1 RS232,1 RS485(terminal block),4 High speed pulse output(100KHz)

(2) WS7040T

7 inch , 24DI 16DO, Transistor outputs,6 Analog inputs (0-10V *3,4-20MA *3) and 2 Analog outputs(0-10V *2),1 RS232,1 RS485(terminal block),4 High speed pulse output(100KHz)

(3) WS7048T

7 inch , 24DI 24DO, Transistor outputs,6 Analog inputs (0-10V *3,4-20MA *3) and 2 Analog outputs(0-10V *2),1 RS232,1 RS485(terminal block),4 High speed pulse output(100KHz)

(4) WS7020R

7 inch , 12DI 8DO, Relay outputs,6 Analog inputs (0-10V *3,4-20MA *3) and 2 Analog outputs(0-10V *2),1 RS232,1 RS485(terminal block)

(5) WS7040R

7 inch , 24DI 16DO, Relay outputs,6 Analog inputs (0-10V *3,4-20MA *3) and 2 Analog outputs(0-10V *2),1 RS232,1 RS485(terminal block)

(6) WS7048R

7 inch , 24DI 24DO, Relay outputs,6 Analog inputs (0-10V *3,4-20MA *3) and 2 Analog outputs(0-10V *2),1 RS232,1 RS485(terminal block)

Package Included:

1 x 7 inch HMI PLC All in One
