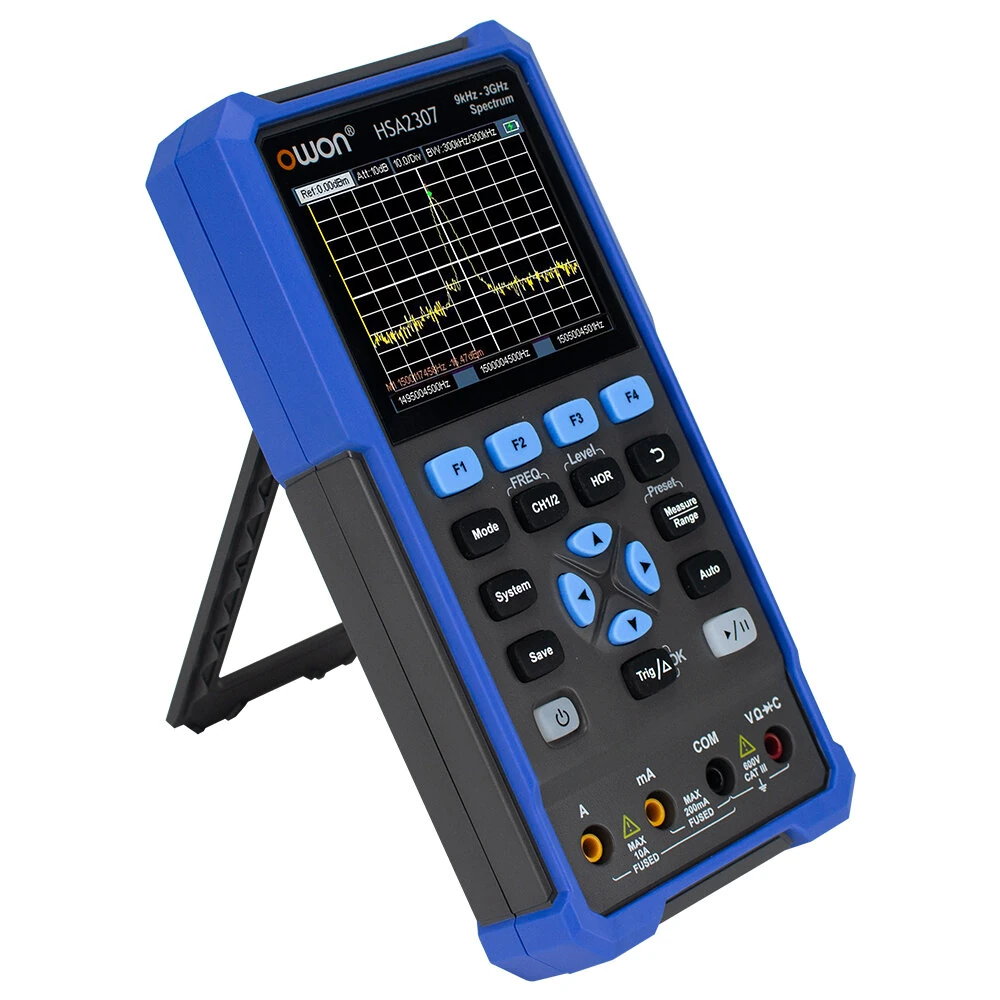

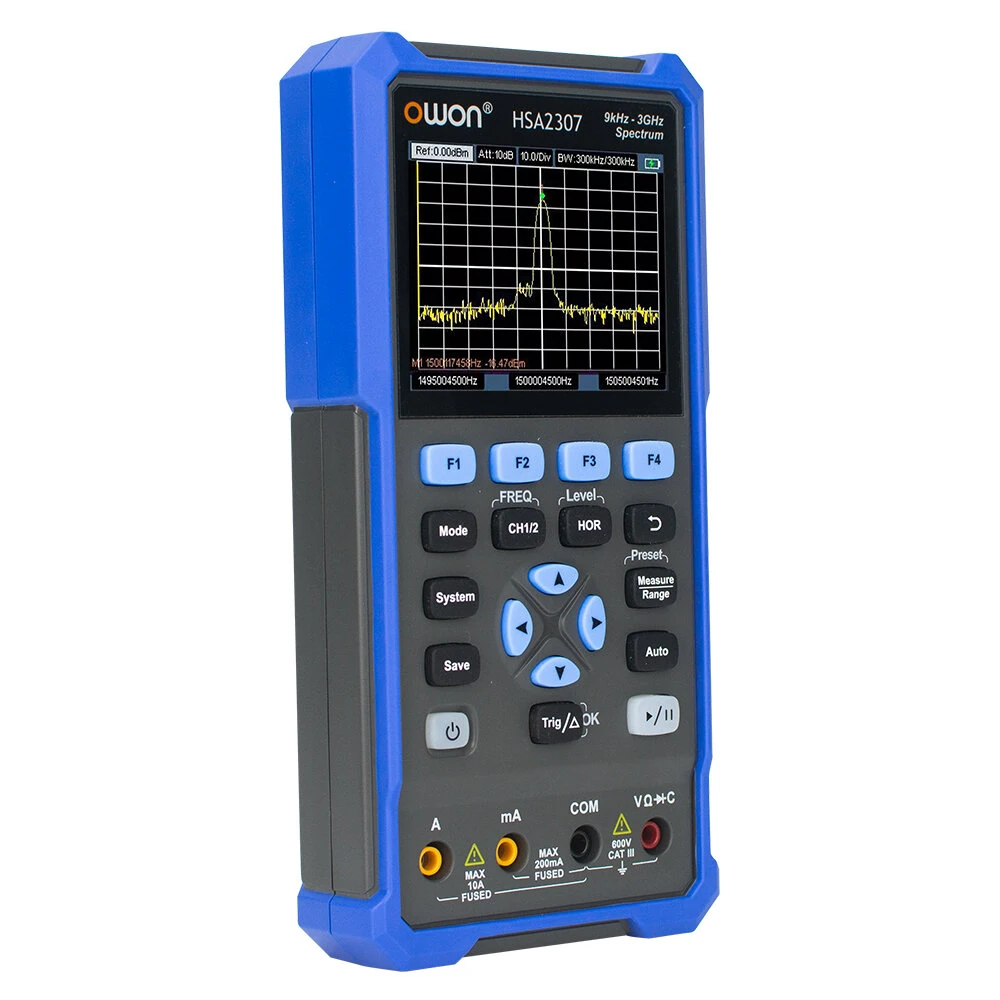

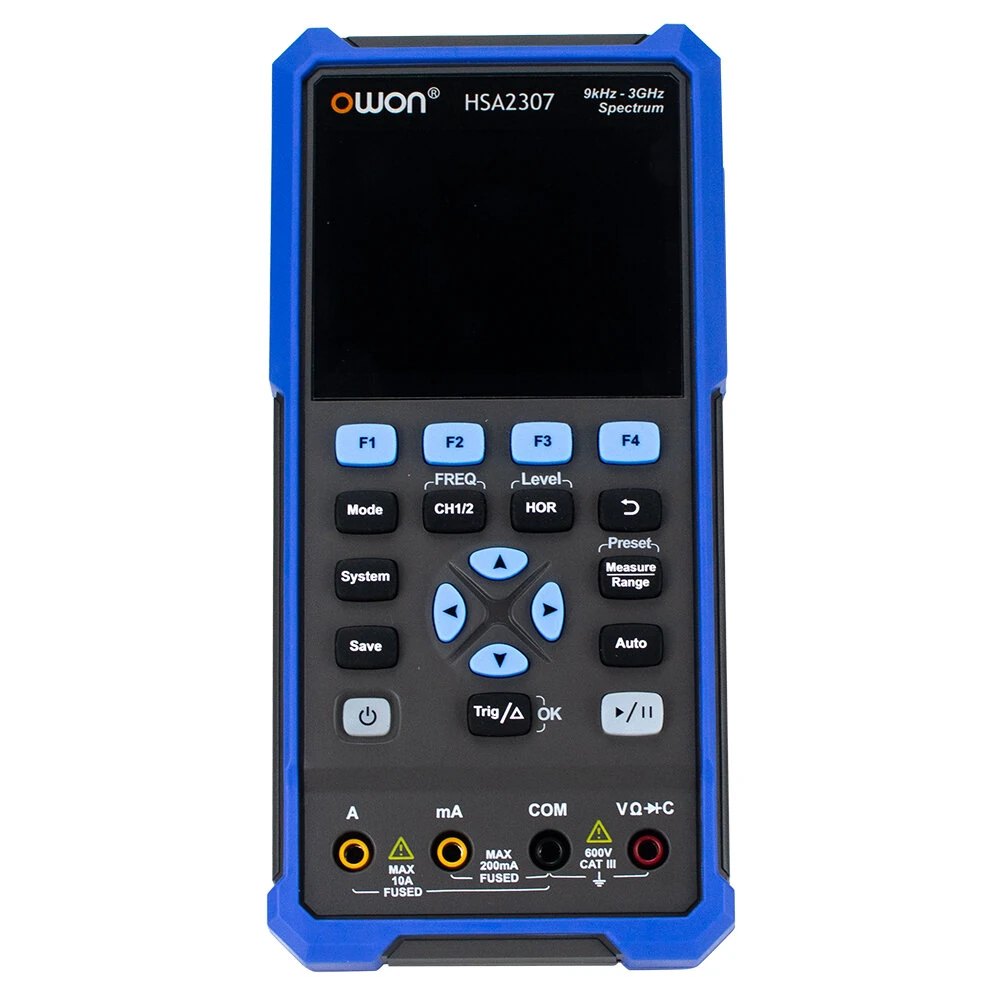

OWON HSA2300 Series Handheld 3-in-1 Spectrum Analyzer | 9kHz-3GHz, 200MHz Bandwidth

Product Description

Specifications:

Model: HSA2307 / HSA2310 / HSA2320

Spectrum Analyzer:

Frequency Range: 9kHz to 3GHz

Frequency Resolution: 100Hz

Continuous Power Measurement: +20dBm (100mW)

DANL (Displayed Average Noise Level):

10MHz to 2GHz: < -120dBm

2GHz to 3GHz: < -115dBm

Oscilloscope:

Bandwidth: 70MHz (HSA2307) / 100MHz (HSA2310) / 200MHz (HSA2320)

Max Sample Rate: 250MSa/s (HSA2307) / 500MSa/s (HSA2310) / 1GSa/s (HSA2320)

Record Length: 8K memory depth

Waveform Refresh Rate: 10,000 wfms/s

Multimeter:

Display: 4 1/2 digits

Voltage Measurement: DC 20.000mV-1000.0V / AC 20.000mV-750.0V

Current Measurement: DC ??10.000A / AC ??10.000A

Resistance: 200.0?? to 100.0M??

Capacitance: 2.000nF - 2.00mF

Other Features:

Display: 3.5-inch LCD screen

Communication Interface: USB Type-C

Power Supply: Power adapter or battery

Dimensions: 96 x 198 x 38 mm

Weight: 0.6 kg

Features:

1. 3-in-1 Functionality

Combines spectrum analyzer, oscilloscope, and multimeter into one compact handheld device. Ideal for engineers seeking a versatile, space-saving solution.

2. Wide Spectrum Range

9kHz to 3GHz frequency range with high 100Hz resolution provides precise measurement across diverse applications in testing and troubleshooting.

3. Advanced Oscilloscope Performance

Features up to 200MHz bandwidth, 1GSa/s sampling rate, and 8K memory depth for accurate analysis of fast and complex waveforms.

4. Enhanced Multimeter Features

Supports voltage, current, resistance, capacitance, diode, and continuity testing, equipped wit
