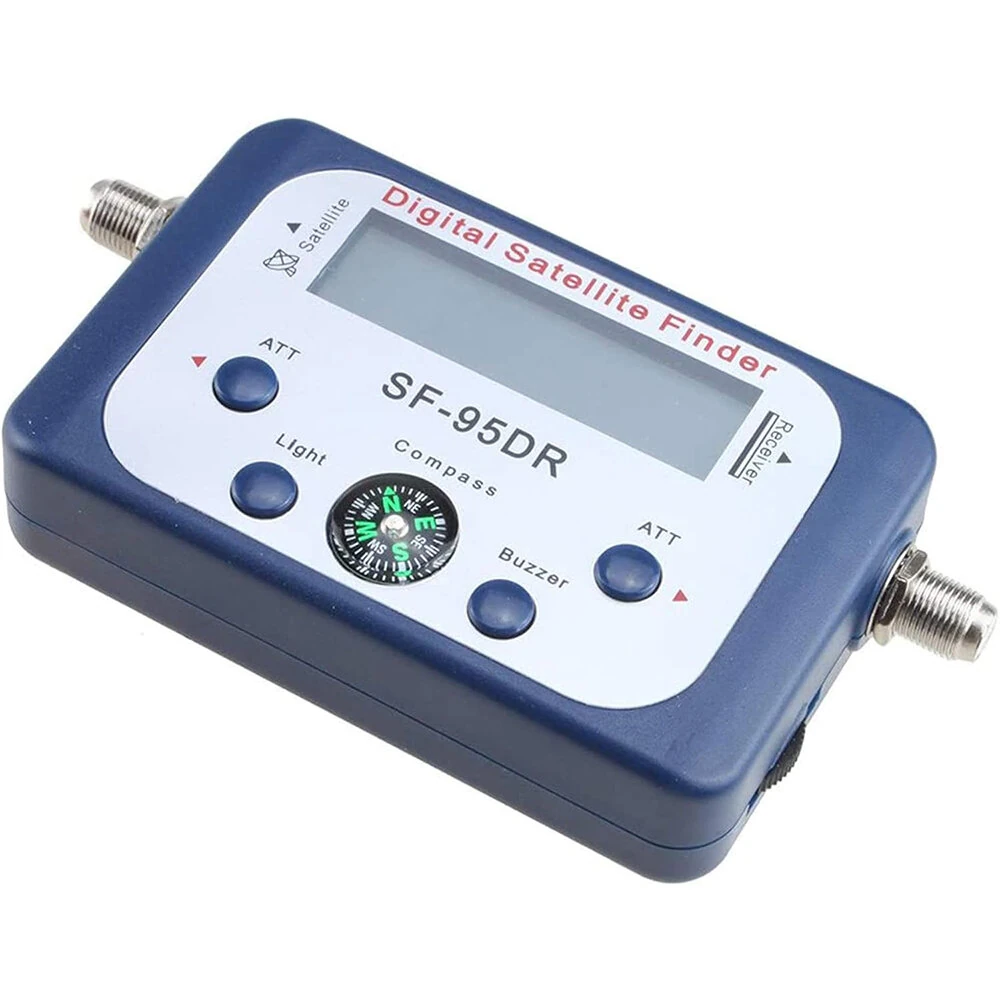

SF-95DR Satellite Finder - Digital Signal Meter 950-2150 MHz with Amplifier

Product Description

Specifications:

Model: SF-95DR

Product type: Satellite Finder

Style: Compact

Item Dimensions (L x W x H): 5.12 x 2.36 x 3.15 inches

Min. Operating Voltage: 13 Volts

Measurement Type: Decibel Meter

Input Frequency: 950-2150 MHz

Input Level Min: -40dBm

Input Level Max: -10dBm

Input Impedance: 75??, F connector

Output Impedance: 75??, F connector

Power Supply: DC 13/18 V

Operating Range (LNB gain): 52-60dB

Features:

High Quality Components: Features anti-corrosion connectors for long-lasting performance and reliability.

Built-in Amplifier: The integrated amplifier compensates for insertion loss, ensuring accurate signal measurement.

Sensitive Measurement: Sensitive meter designed for in-line use; its pocket-size and light weight make it portable.

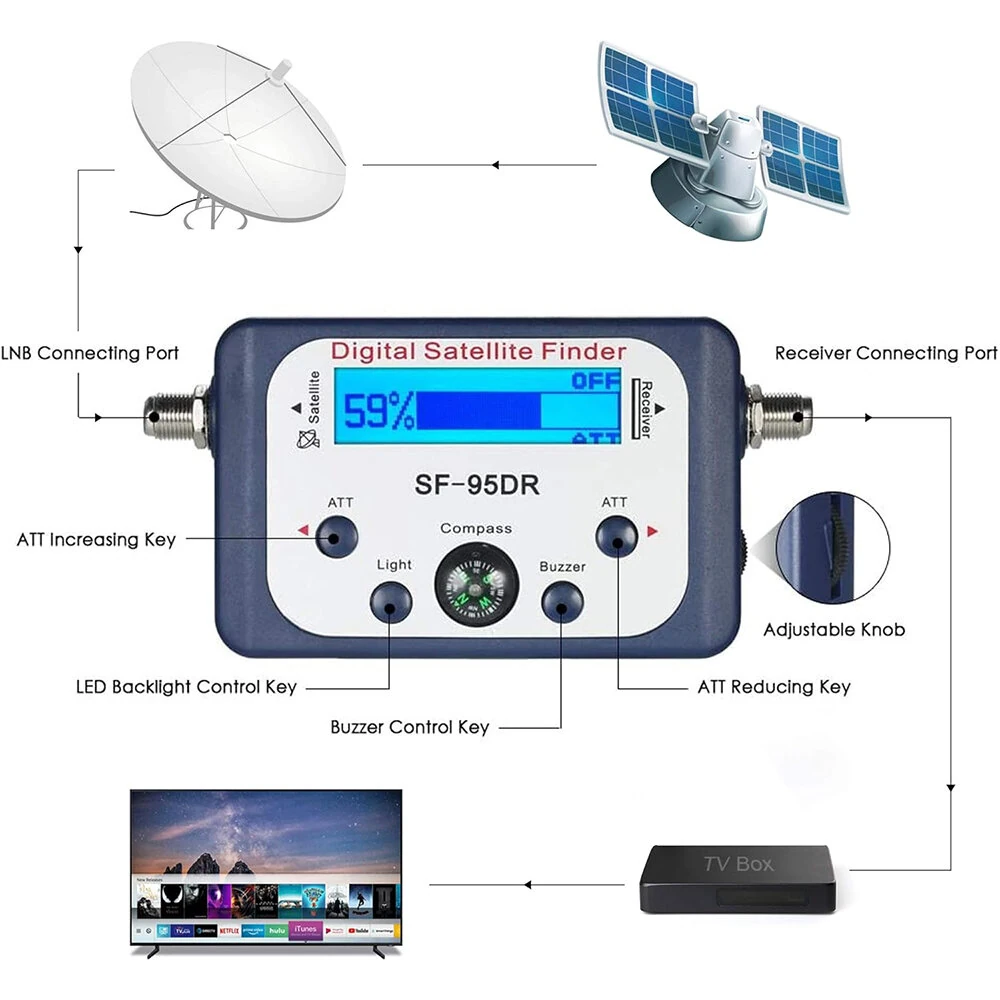

User-Friendly Interface: Includes an electronic buzzer, attenuation, audio tone, and backlight for easy operation.

Receiver Powered: Powered directly by the receiver, making it a perfect tool for campers and on-the-go installations.

Package Included:

1 x Digital Satellite Signal Meter Finder

1 x Instructions

1 x Compass For Free
