SATLINK SP-2100 HD Satellite Finder - DVB-S/S2 Meter with 3.5 Inch LCD Screen

Product Description

Description:

SP-2100 is a dvb-s / s2 and mpeg-2 / h.264 compatible handheld satellite meter. thanks to the compact size, small weight, user interface, long working hours battery life and a rich set of functions, the meter provides all ???ߧܧ? as required for the installation and inspection services, digital satellite tv homes or multifamily units.

?Features:

? 3.5 Inch High Definition TFT LCD Screen

? Fully DVB-S/DVB-S2

? Support formal international standard video and audio encoding

? Digital meter for signal strength and quality

? Supports scan of Auto,Blind,Manual or NIT

? Sound and Light Alarm for Locking Signal

? Auto Calculate Angle of AZ ,EL

? Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone

? Speaker Integrated

? Support both AV out and AV in

? LNB short protect

? 7.4V/2600mAh Li-Ion Battery Included

? Software upgrade via USB port

? Easy to carry

Specifications:

dvb-s / s2, mpeg-2, mpeg-4, h.264

satellite entrance / demodulation

connector type: f male

the frequency from 950 to 2150 mhz

the level of the input signal, from 65 to - 25 islamic

the switch 22 khz ranges:

the power source of lnb: 13 / 18, 350mA imax

the type of demodulation: QPAK, 8PSK APSK, 16, 32 APSK

the frequency of the symbol: 2 < rs < 45 Mband (SCPC / MCPC)

display:

lcd display: tft Transmissive

solution: 320X240 (rgb)

the active area of the display, 70,0x52,5 mm

av output.

connector type: 3.5 mm plug

video output: CVBS

audio output: stereo l / r

av input.

connector type: 3.5 mm plug

video output: CVBS

audio output: stereo l / r

the service data transmission.

interface: usb type a

the protocol of data transmission, usb 2.0

Manaement file system ntfs, fat32, fat16.

file format: wma, mp3, mp4, avi, jpg, jpeg, jpg firewalls, img

the micro processor.

microprocessor: GX6605

the 600 mhz clock rate.

synchronous dynamic memory: DDR2512Mbit

lithium ion battery: 7.4 / 3000 much

adapter: exit: 12 v dc / 1.5A

entrance: 100 240A av, 50 / 60Hz

wattage: a maximum of 10 w

size: 101 (sh) x77 (d) x47 mm (in)

net weight: 0.5 kg

Package include:

1 x SP-2100 Meter

1 x AV Cable

1 x Power Adaptor

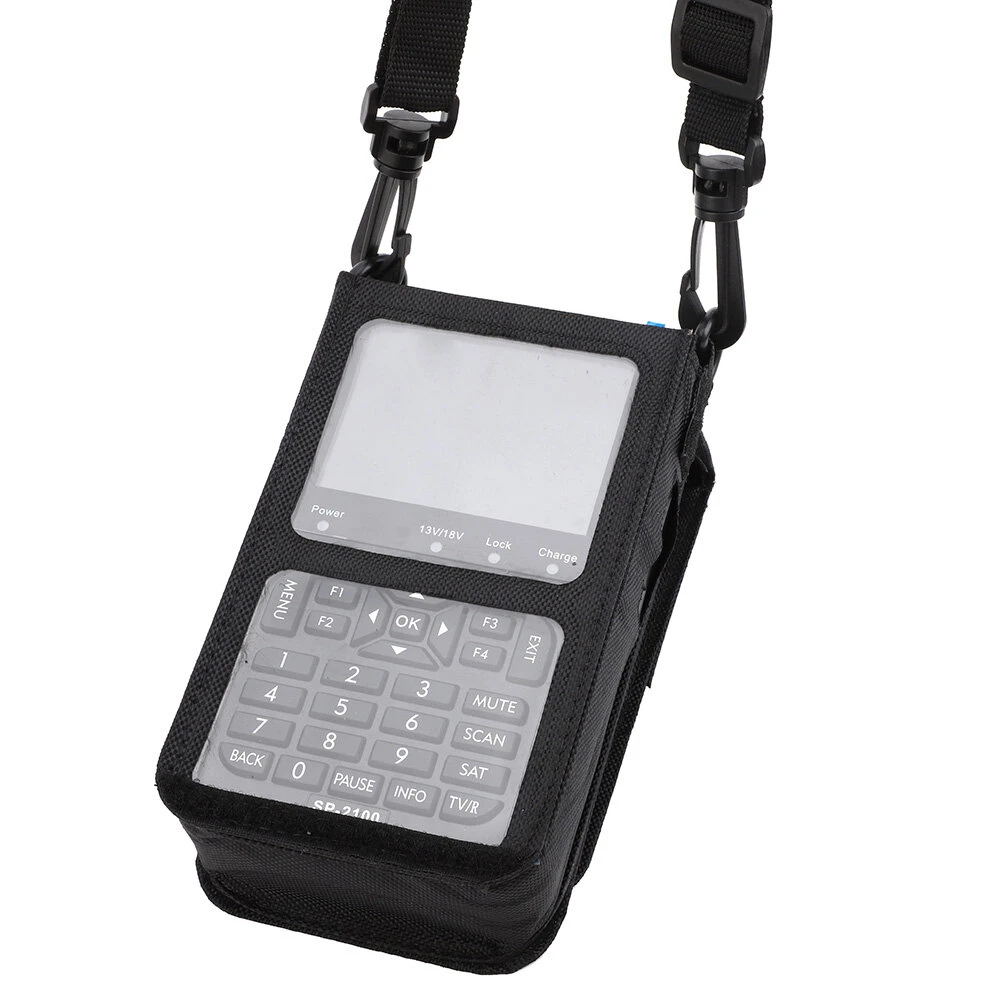

1 x Silicone Case

1 x User Manual (CD)

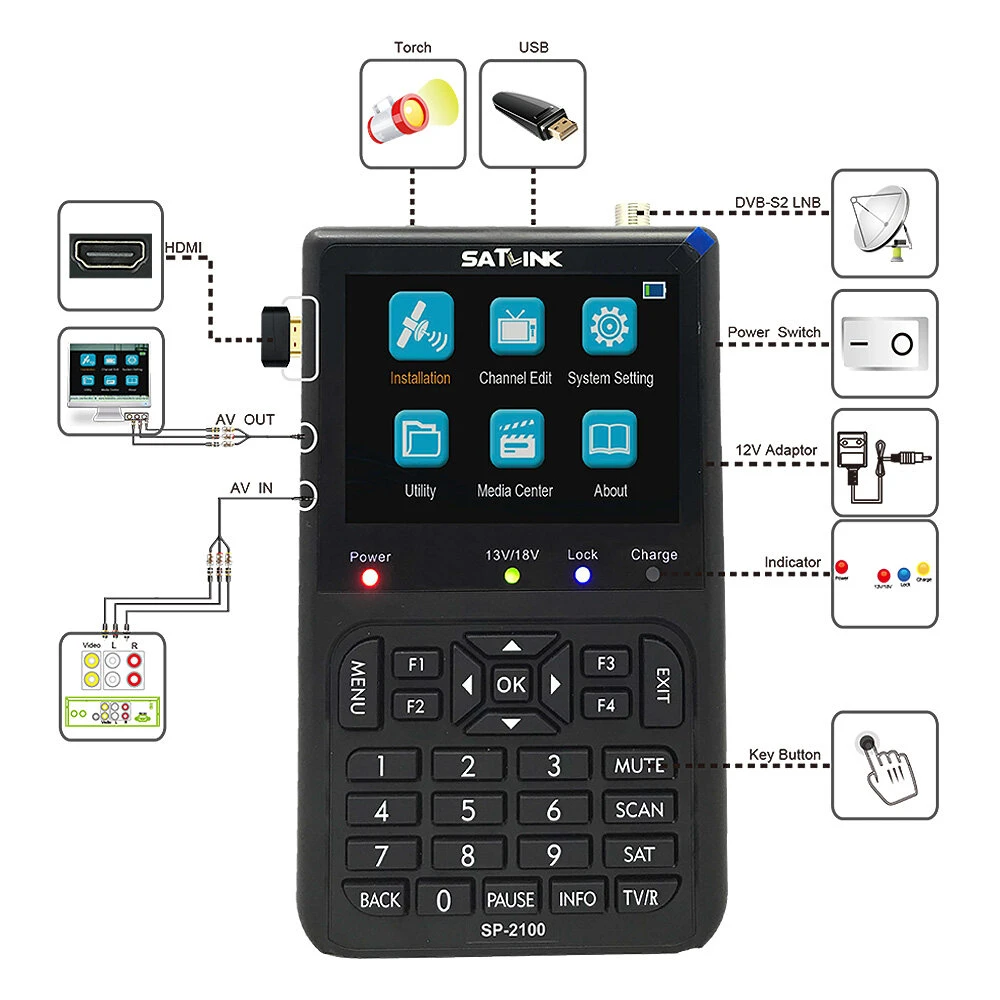

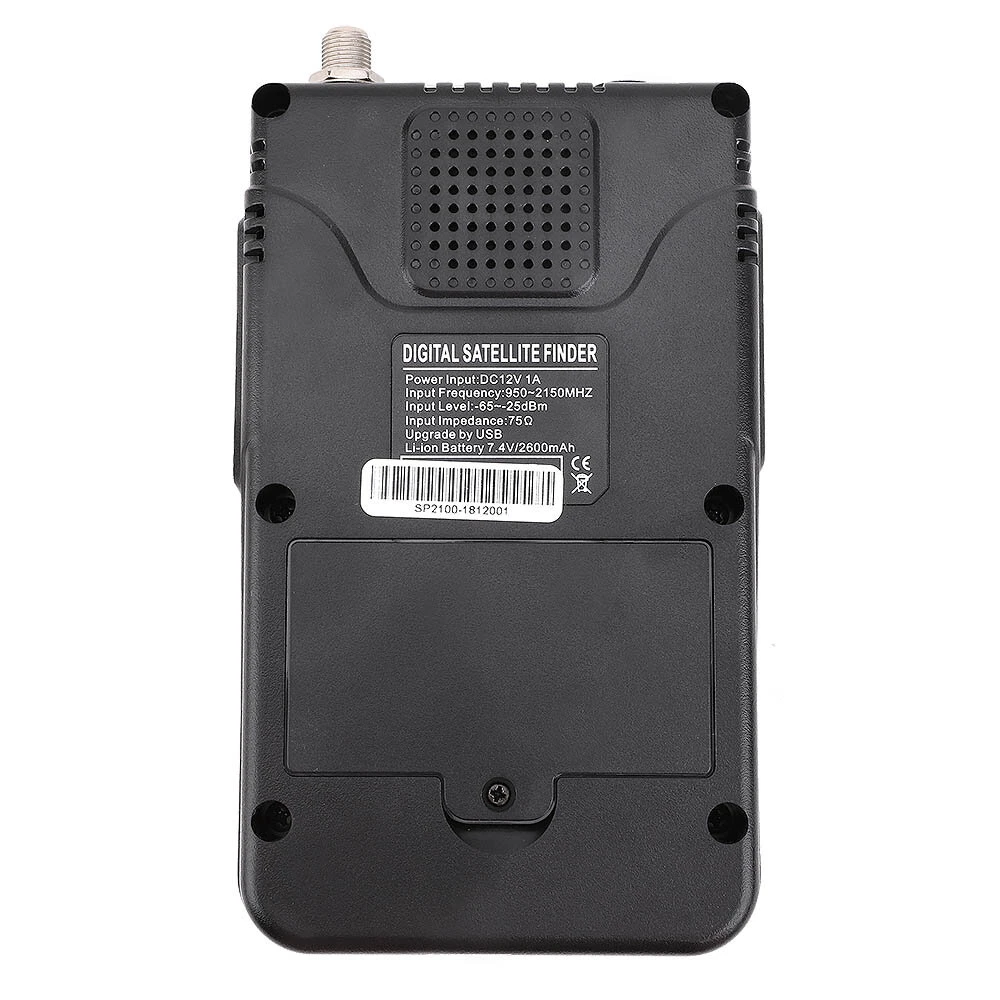

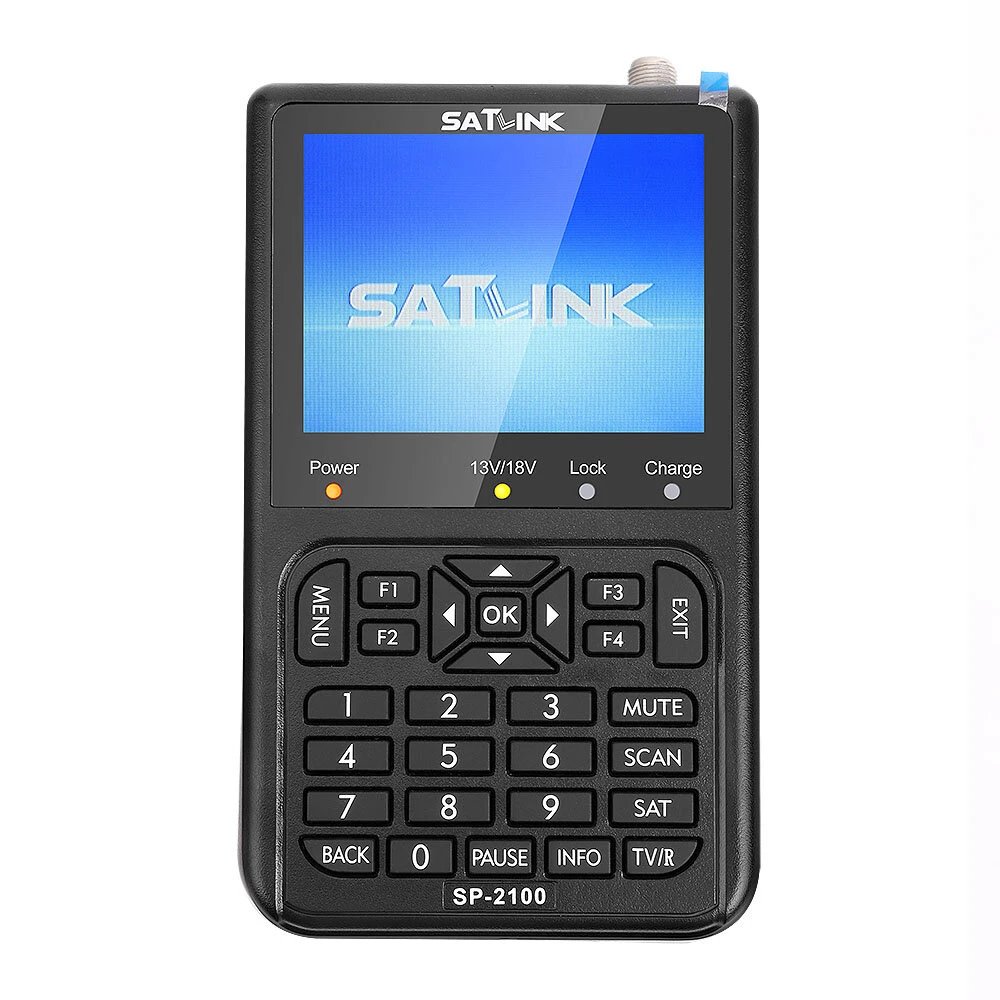

Details pictures:
