BT100 LCD Battery Tester - Voltage & Resistance Checker with External Trigger
$169.00
$207.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

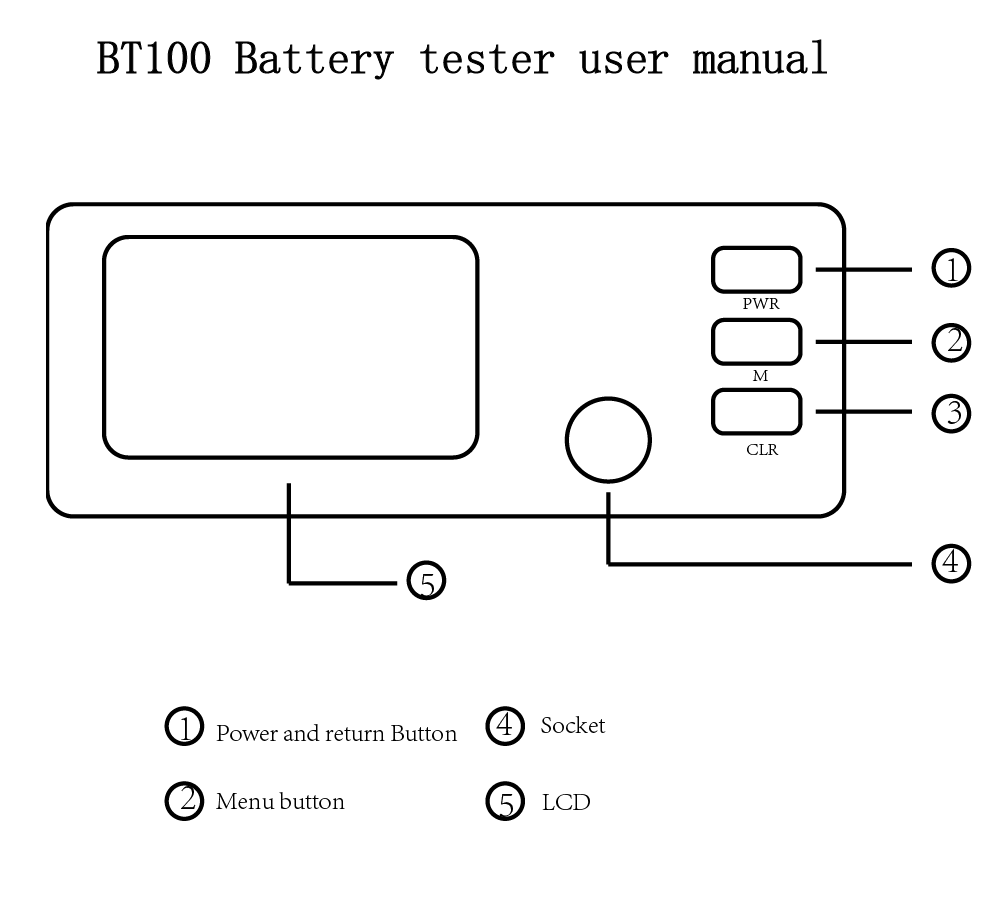

>>Please Click Here to Download the English User Manual<<Description:

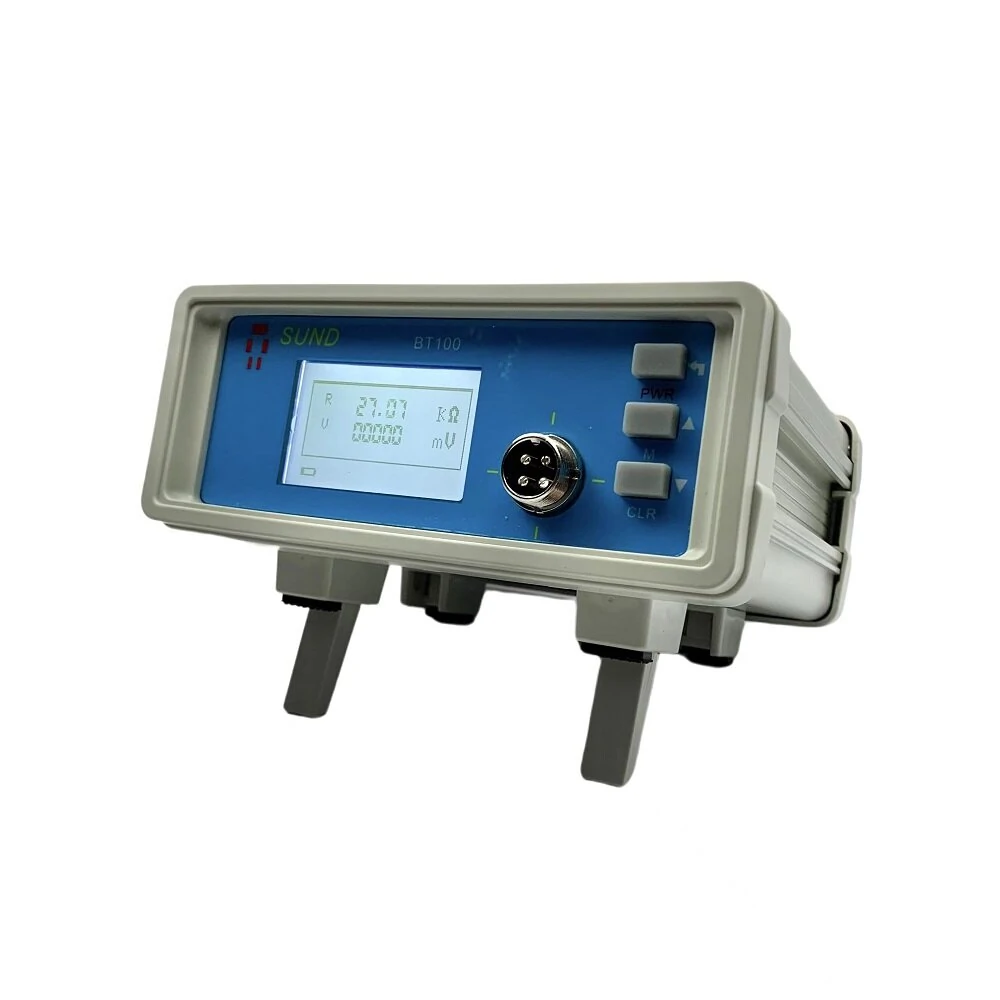

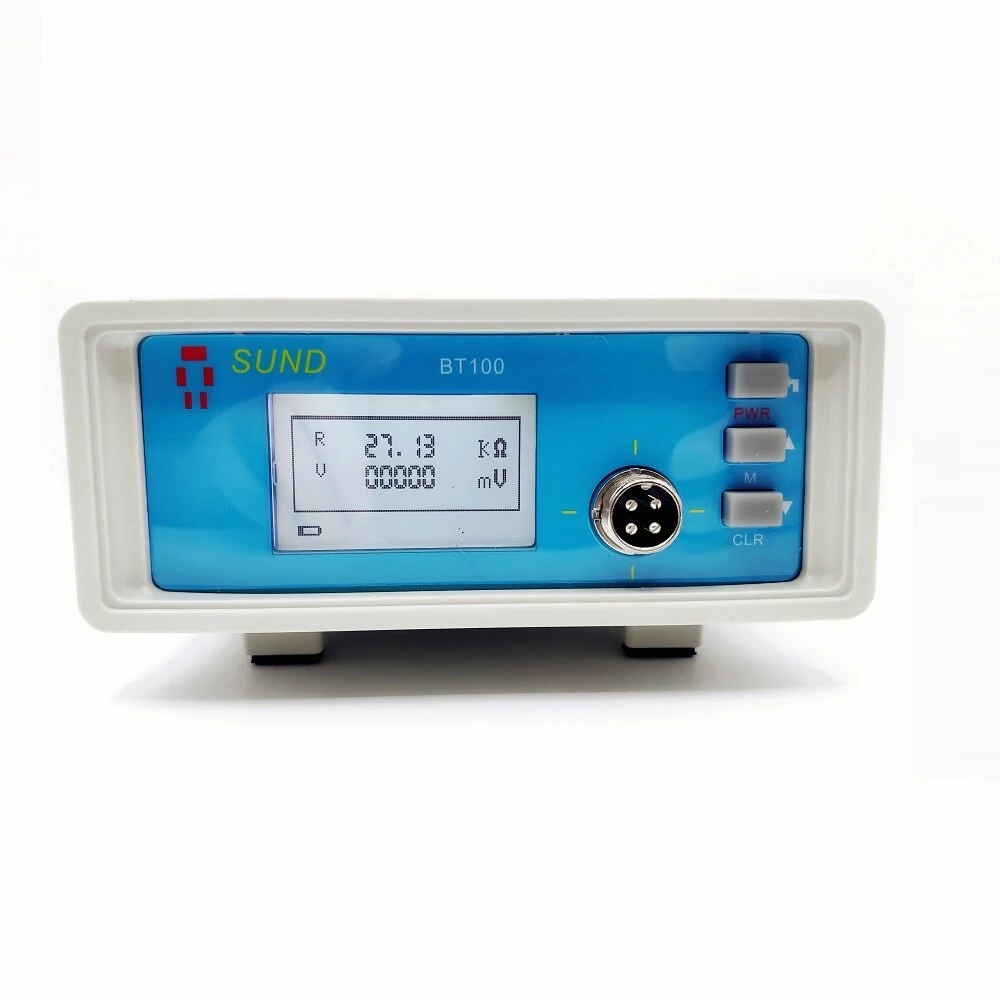

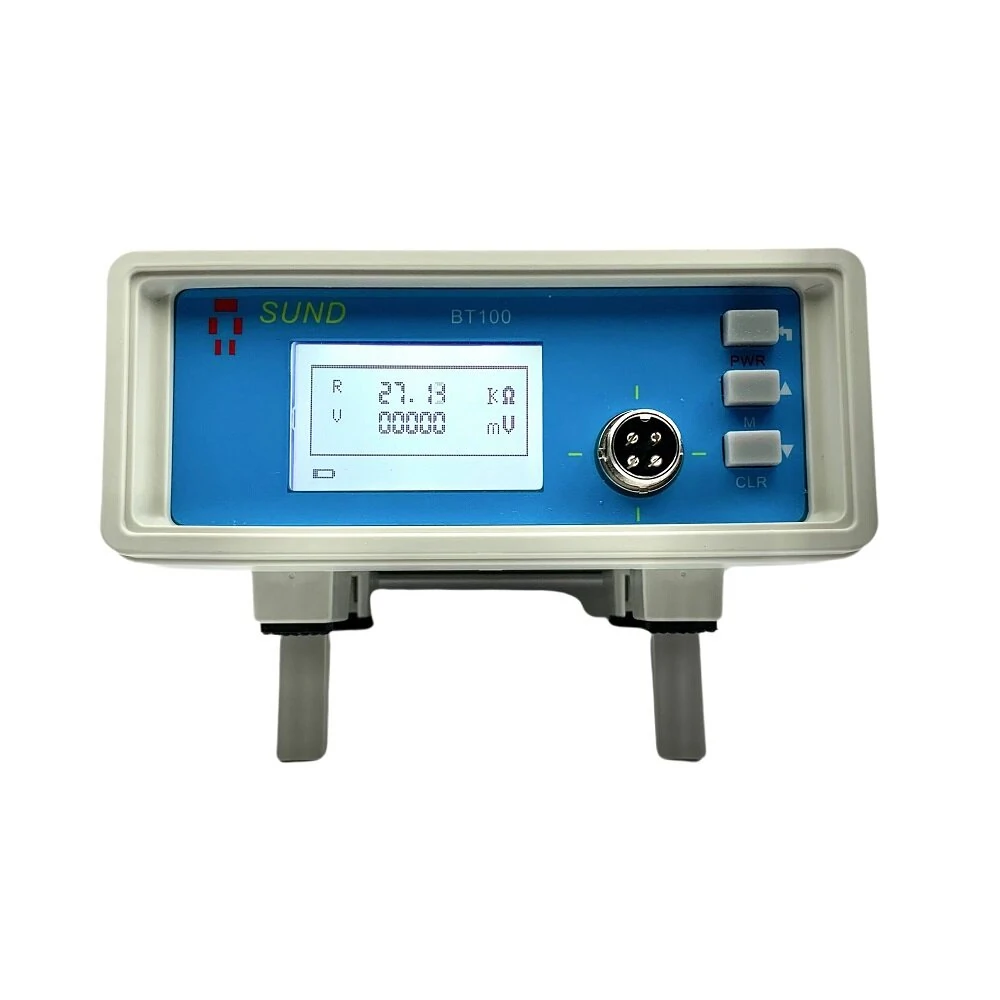

This desk type battery tester is simple but effective. This tester is suitable for most batteries and it is easy to operate. The LCD display screen with backlight allows you to read the testing data more clearly. If you are interested in this product, come and have a try, it will not let you down.
Features:
Normal Trigger Mode: In the normal trigger mode, the instrument automatically tests the internal resistance and vol tage of the battery then send to RS232 serial port.External Trigger Mode: Input low-level trigger pulse signal from BNC socket on the back of the instrument, The low-level time of the trigger signal is greater than 20ms, and the instrument tests once for each pulse, send the measurement results to RS232 port after measurement.Large LCD Display Screen: This battery tester with large LCD display screen and backlight, you can turn on the backlight as needed.Two Communication Transmission Format: The String modes is sends measurement results in ASCII format and the another mode is sends measurement results in hexadecimal format.Automatic shutdown: The machine can be set to shut down automatically without any operation for 20-120 minutes.Save Battery: With this tool, you can test battery voltage and resistance to determine whether the capacity of the battery is low or highly and keep you from wasting perfectly batteries.
Specification:
Material: ABSCommunication baud rate: 115200bpsStop bit: 1Parity: noneFormat: BF, AA, Vn, Vn+1, Vn+2, Vn+3, FF, EFAdapter: EU PlugPackage size: 250 x 180 x 90mm / 9.8 x 7.1 x 3.5inPackage weight: 1263g / 2.8lb
Package included:

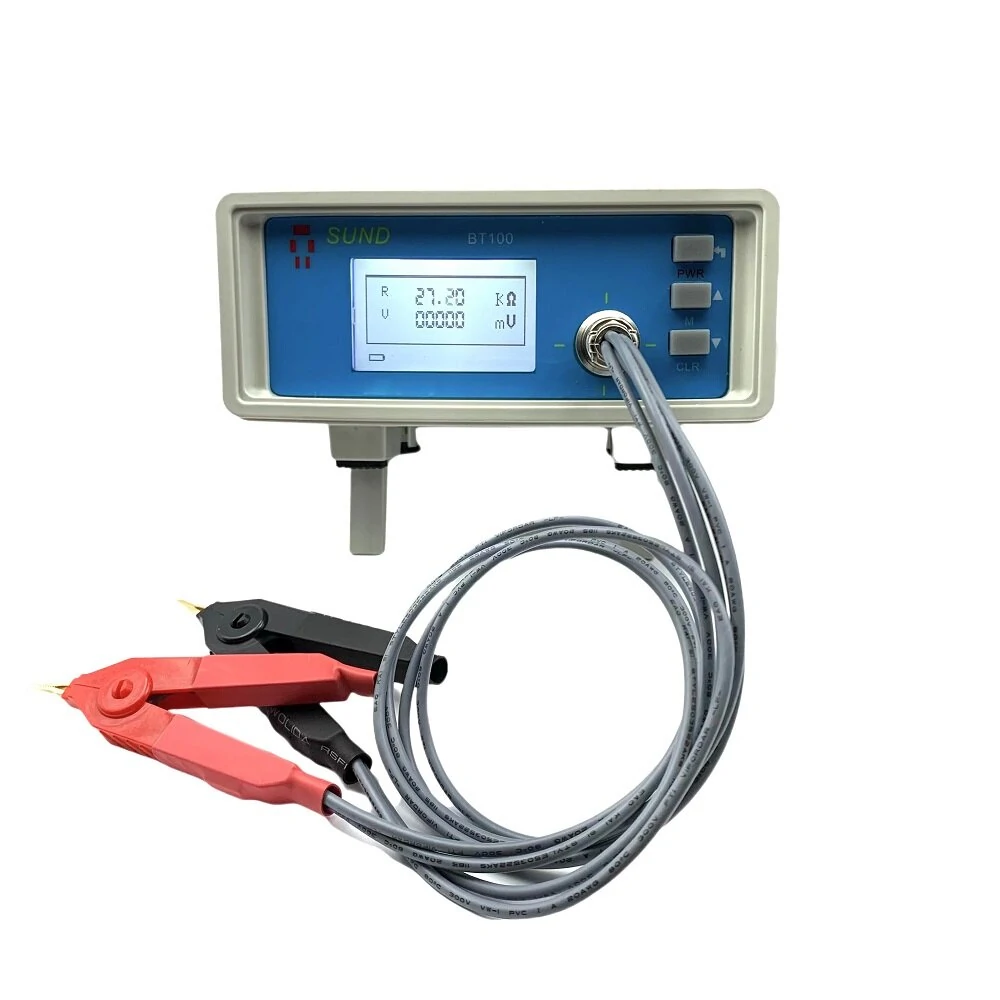

1 x Battery Tester1 x Adapter with Plug1 Pair of Testing Pen
