HAYEAR 4K HDMI Microscope Camera | 7X-45X Zoom Trinocular Stereo Microscope for Industrial PCB
$1,145.00
$1,409.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Feature:Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.7x-90x super wide zoom magnification power

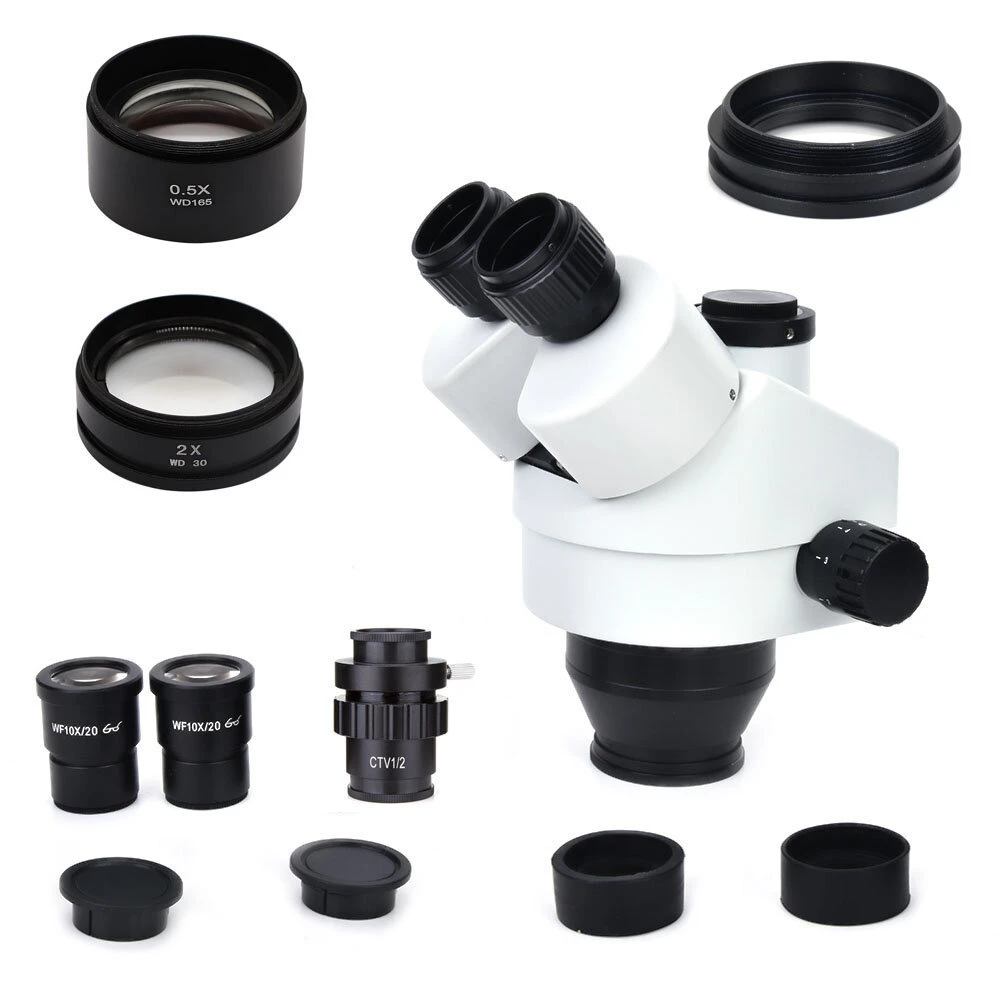

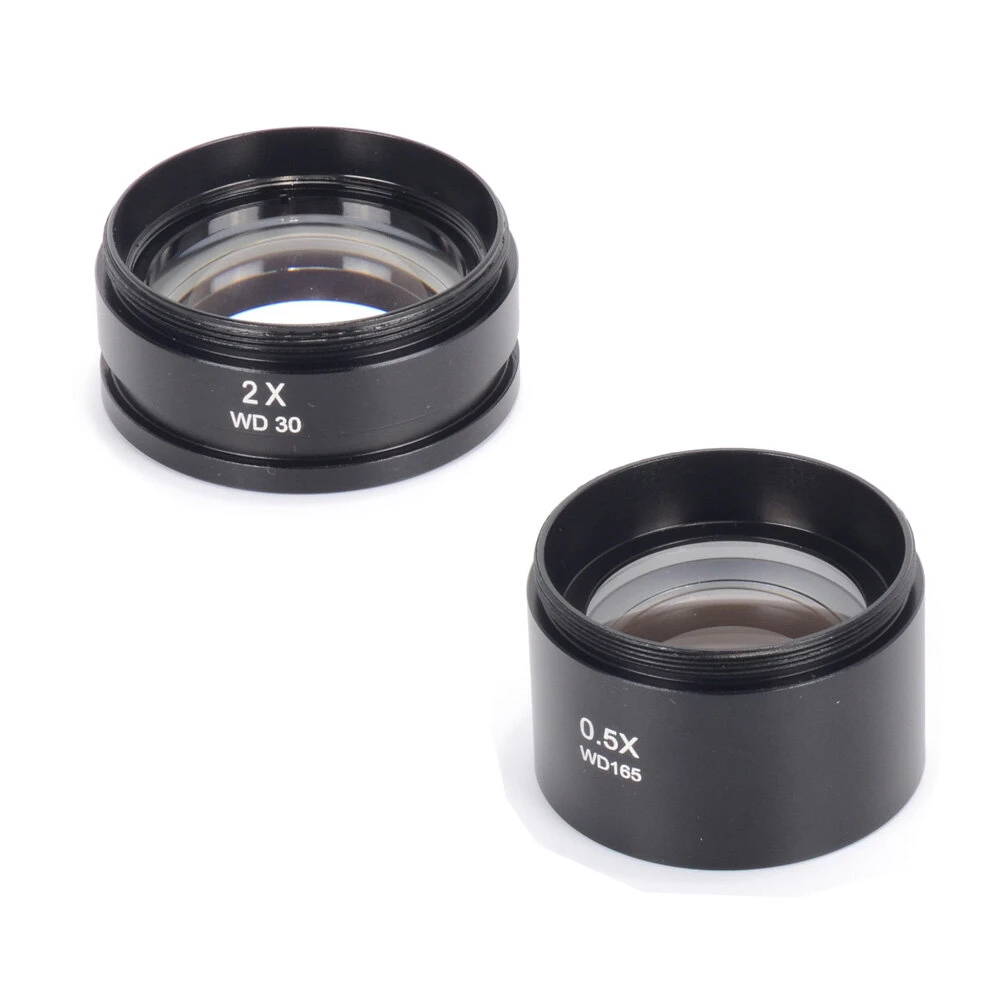

Magnification??7X-45X, 7X-540X with optional eyepieces and objectivesEyepiece??WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glassesOptional Eyepiece??WF10X/20mmMain Body??Binocular head, 45?? inclined, 360?? rotatable, can be locked in any position desiredInterpupillary Distance adjustment:54-76mm; Diopter adjustment:??5 dioptersObjective??0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1Aux Lens??0.5X, 2XFocusing Mount??A3 focusing mount with vertical working distance 50mmExpand the scope of operation and observe the object in any directionDiameter????32mmVertical Post??355mmHorizontal moving??265mmBase Size??380x280x10mmWith A3 Focusing Mount
Specification:

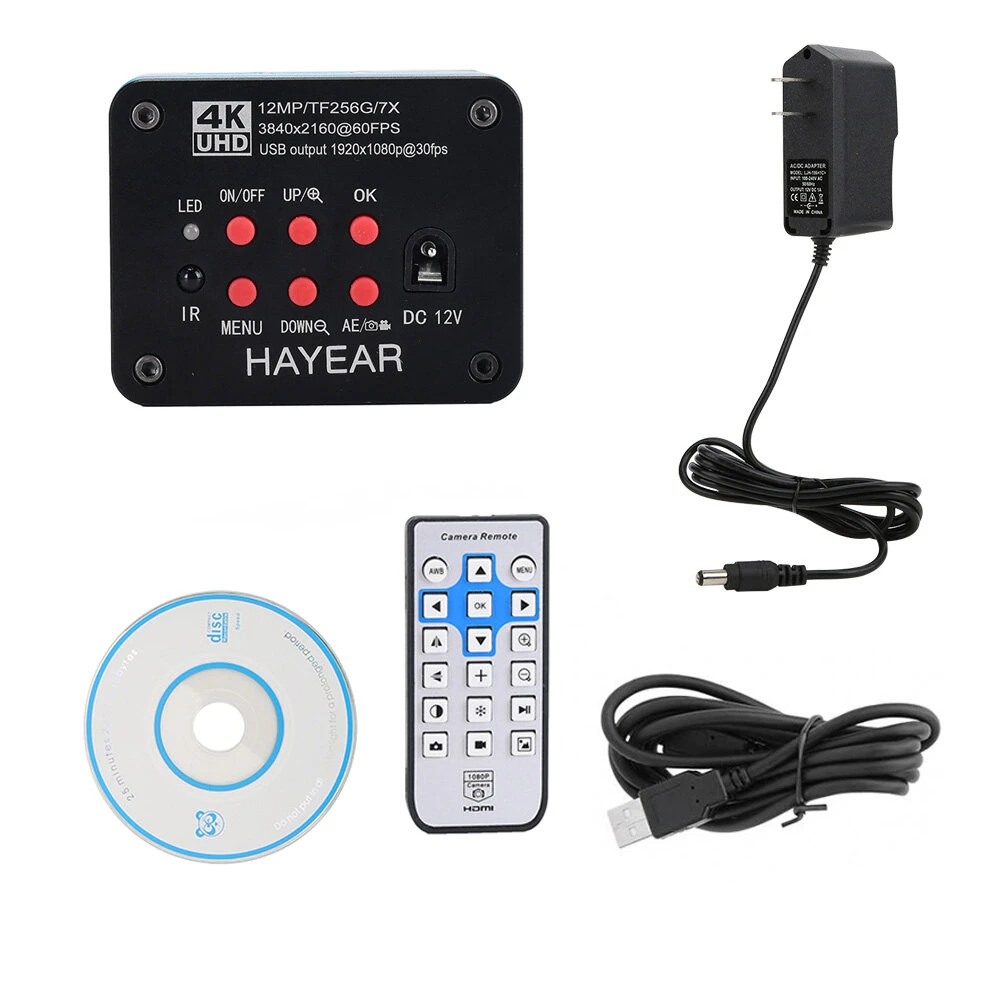

Image sensor: 4K SOiNY IMX sensor 1/2.33 inchEffective Pixels:SOiNY 12MP CMOS 1/2.33 IMX 4K SENSORResolution:4K/1080P 1080P??USB??Sensor Size:1/2.33inchPixel Size:1.55 ?? 1.55??mImage Resolution:4032 ?? 3024 (12MP) (16:9)Frame rate:60@FPS (4K)Image Format:JPEGWaveLength[nm]:400nm~700nmFrame Rate:3840??2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPSLens Fype:C / CSTiming Photo/Record:Support Timing Photo/RecordStorage:TF Card, Max 256GPC Support:Windows / Miac / Linux System PC Software with Measuring FunctionImage Measurement??Support HAYEAR MeasurementLanguage:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JPOutput Interface:HDMI/USB Standard usb2.0 interface (Type B)Image Scaling :7-Fold zoom Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movableDifferent color,5 horizontal line , 5 vertical line,any positionsEncode:H.264 /H.265 (High Profile)Video format:MP4Expand the scope of operations,any orientation and angle observed the objectives.Vertical Height : 400mmHorizontal Distance:770mmBase size: 98x80x116mmMax Clamp:50mmSteel Gears on Focusing Holder.Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm. 144 bright white LED bulbs100,000 hours of lifeIntense and focused shadow-free illuminationThe brightness of 0-100%Adjustable,high brightnessVariable i'ntensity controlPower input: 100-240V, 50-60HZSuit for the dia of the lens: 30mm-160mm Package include: 1 x Trinocular Stereo Zoom Head1 x Pair of Super Widefield 10X20MM Eyepieces1 x 144-LED Ring Light1 x Focusing Rack1 x C-mount Adapter1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)1 x High Temperature Resistant Working Pad1 x Articulating Arm Clamp Microscope Bracket1 x 4K HDMI Microscope Camera1 x HDMI Cable1 x USB Cable1 x IR Remote control1 x Power Supply Adapter (EU)1 x SZMCTV 1/2 Lens Details picture:
