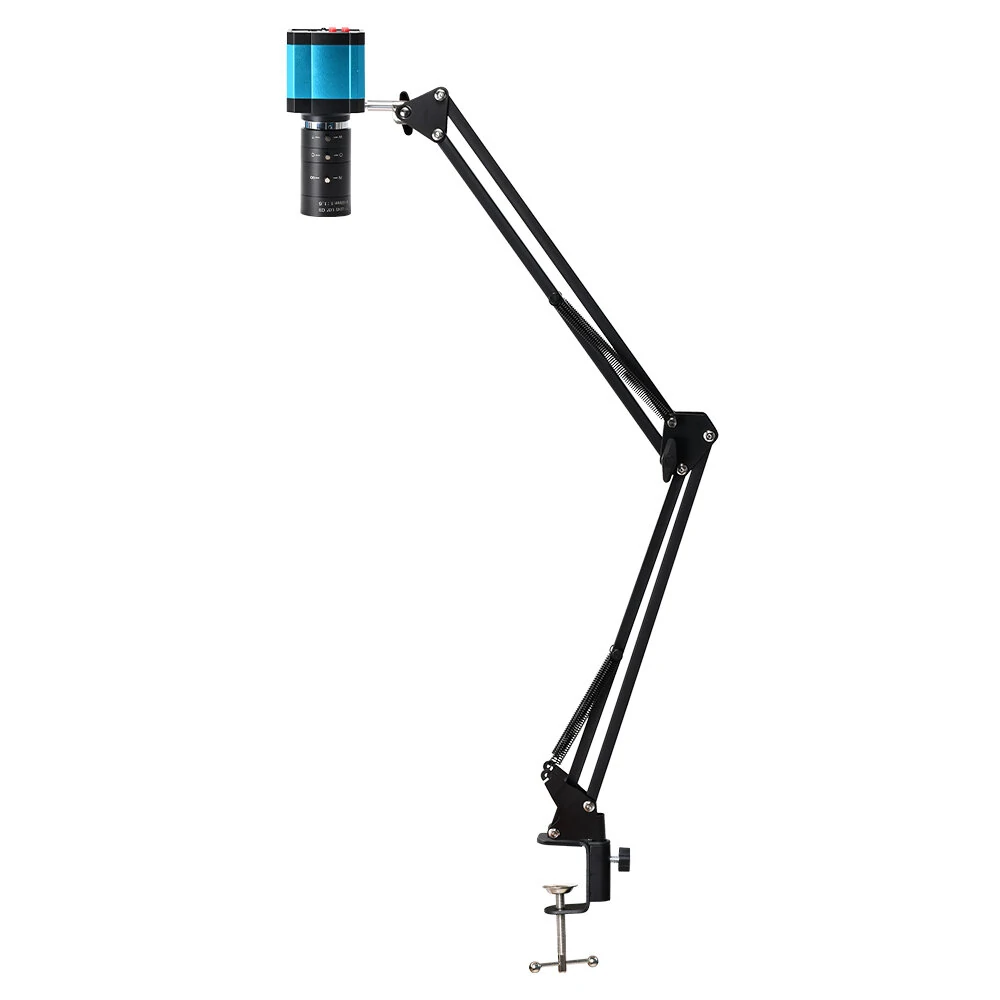

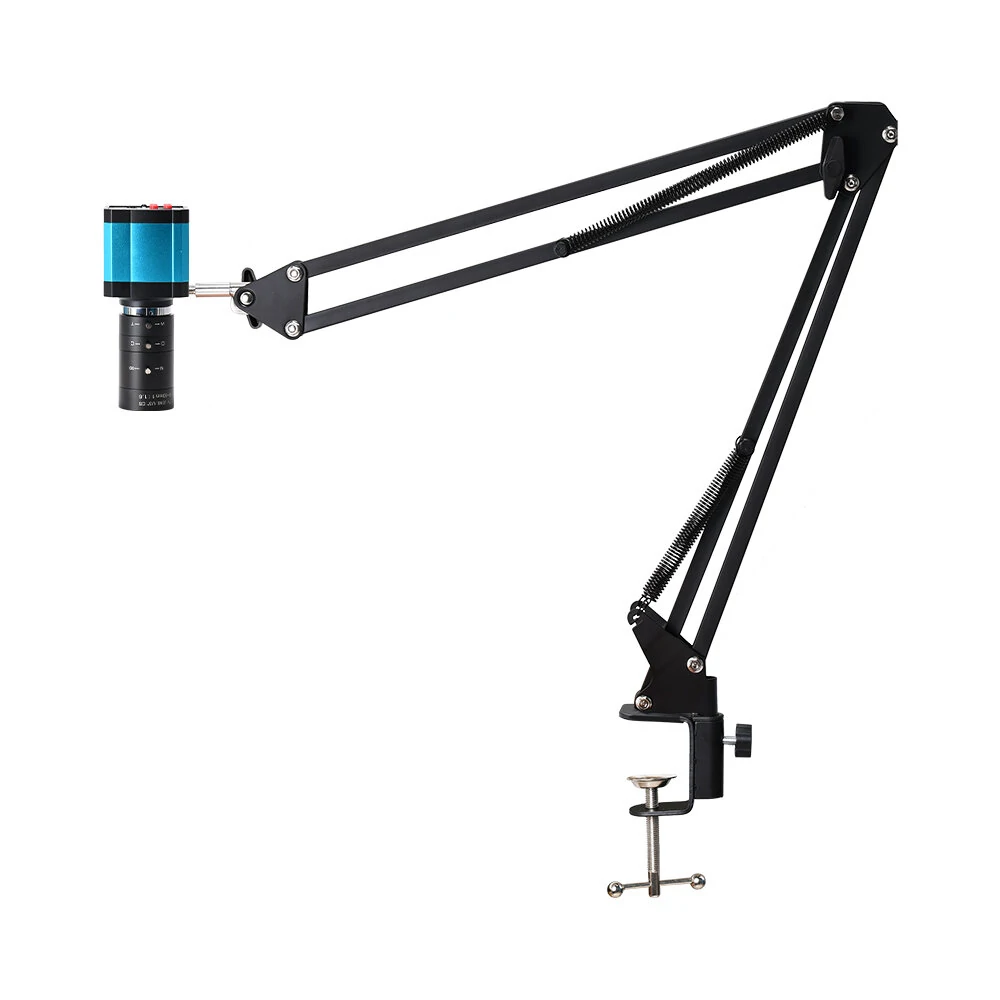

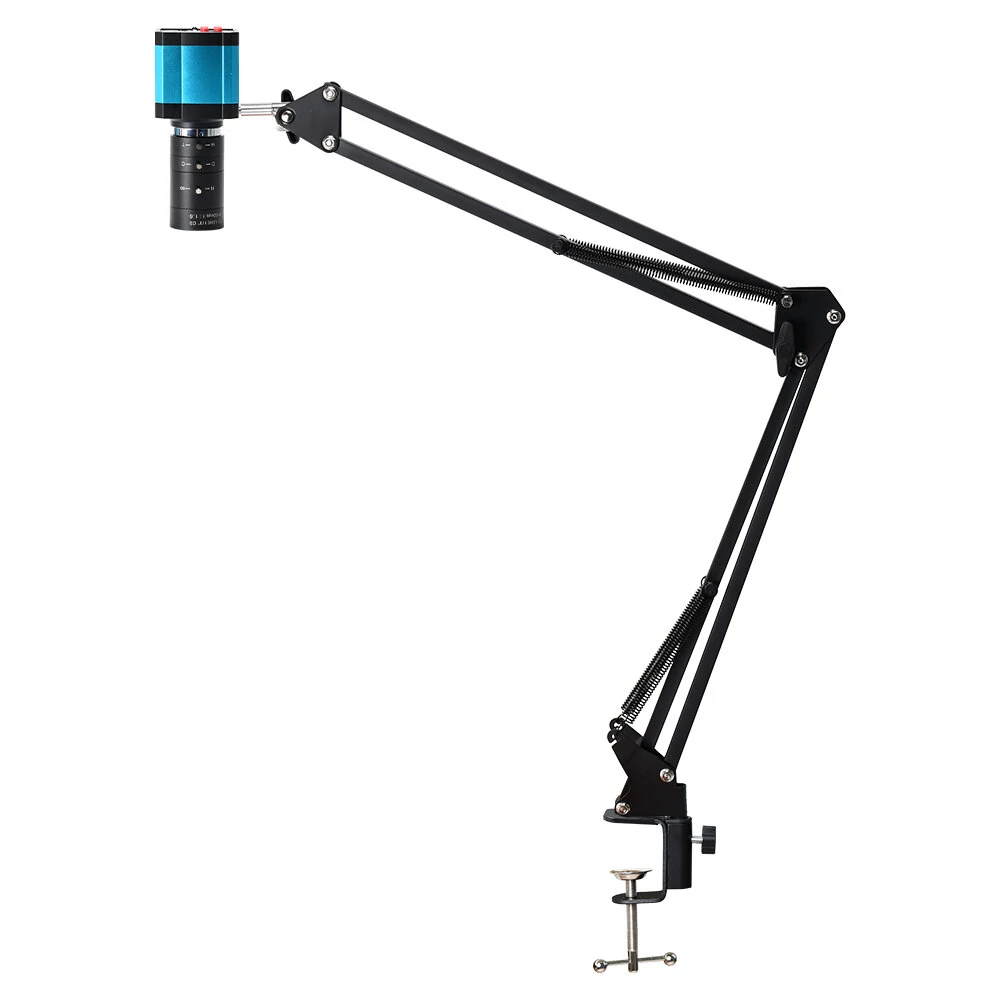

HAYEAR 48MP USB Microscope Camera | 2K HDMI | 6-60mm Zoom Lens for PCB Soldering & Repair
$221.00
$271.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
>>Please click here to download the software<<Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.2. Especially suitable for observing the surface microstructure of large objects.3. Using high quality materials, strong and durable, has a long service life.4. HD camera with 48 megapixel CMOS sensor 1/2.9 inch, with HDMI USB port.5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specification:
Item Type: Microscope CameraModule: 2307DSensor: 48MP CMOSOptical Format: 1/2.9inchPixel Size: 1.335??mx1.335??mInterface: HDMI (Type A). USB (Type B). Small memory cardHDMI Image Resolution: 48MPVideo Resolution: 2K at 30FPS 1080p at 60FPSHDMI Resolution: 1920 x 1080p 60FPSHDMI Scale: Support 4: 3,16: 9,16: 10 screenUSB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPSSmall Memory Card: Up to 128GB (not included)AWB: AWB color correction/automatic/manualR.G.B value setting independentExposure: Automatic/manual. AE value can be setCross Line: 8 lines, color, width, position can be setScale Line: 2 lines.Dotted Line: 2 lines, color, width, position can be setSharpness Contrast Color Gain: SupportMono Negative Film: SupportMirror: Horizontal and vertical mirrorLanguage: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.Digital Zoom: SupportInfrared Remote Control: SupportVoltage Input: DC 12VPower Supply Voltage: Input: AC100-240VOutput: DC12VPower Consumption: Maximum 0.15W 12V, 0.12ALens Interface: C/CS portRemote Control Battery: 1 x CR2025 button battery
6-60mm Feature:Image Format: 1/3"Focus Length: 6-60MMAperture: F1.6Mount Type: CS TypeAngle of View: 44.8??-4.6??Minimum photographic distance: 0.2
Problem Solution:LCD no video or flickering1. Check the power supply. Check if the red LED lights up. Press PowerKey to move it up.2. Check the lens cover. Increase lighting.LCD has black bars and image distortion1. Change the resolution of LCD2. Change the camera resolutionDirty spots1. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent
Package includes:

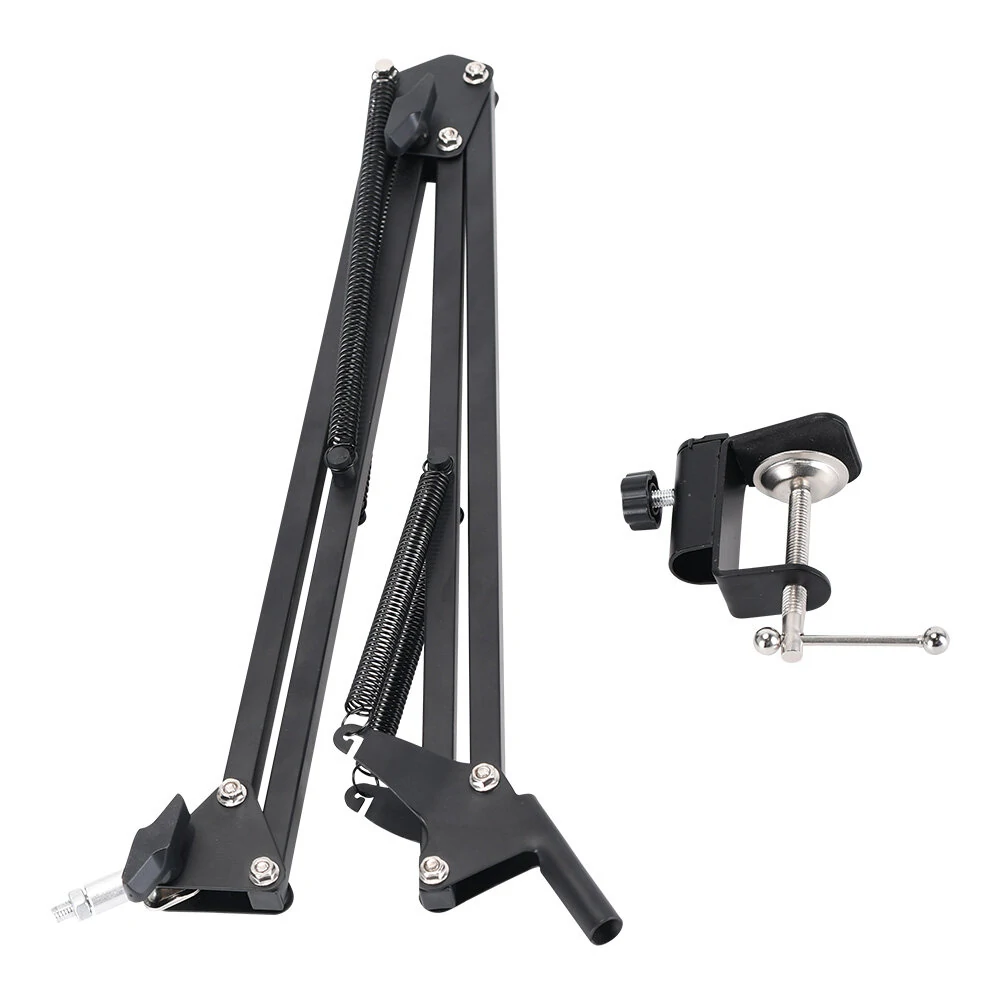

1 x 48MP Microscope Camera1 x HDMI Cable1 x USB Cable1 x IR Remote control1 x Power Adapter (EU Plug)1 x Stand1 x 6-60mm Lens
Details Pictures:
