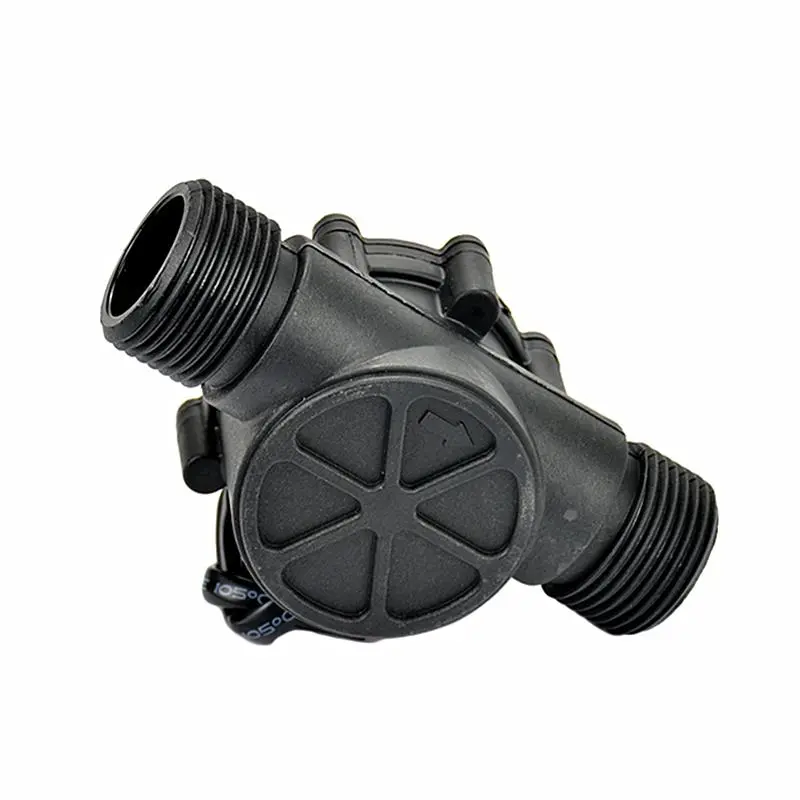

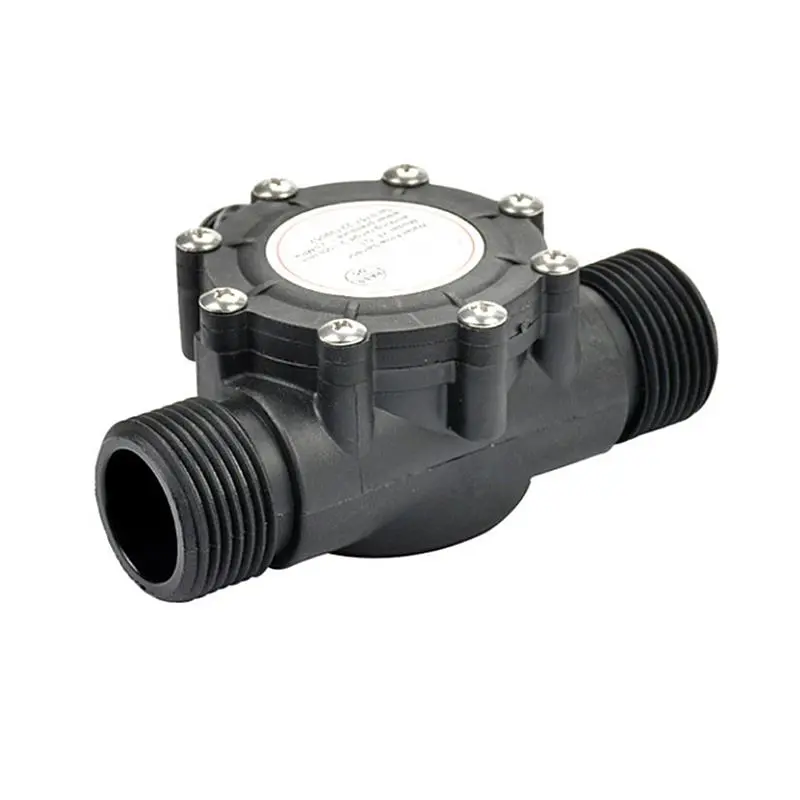

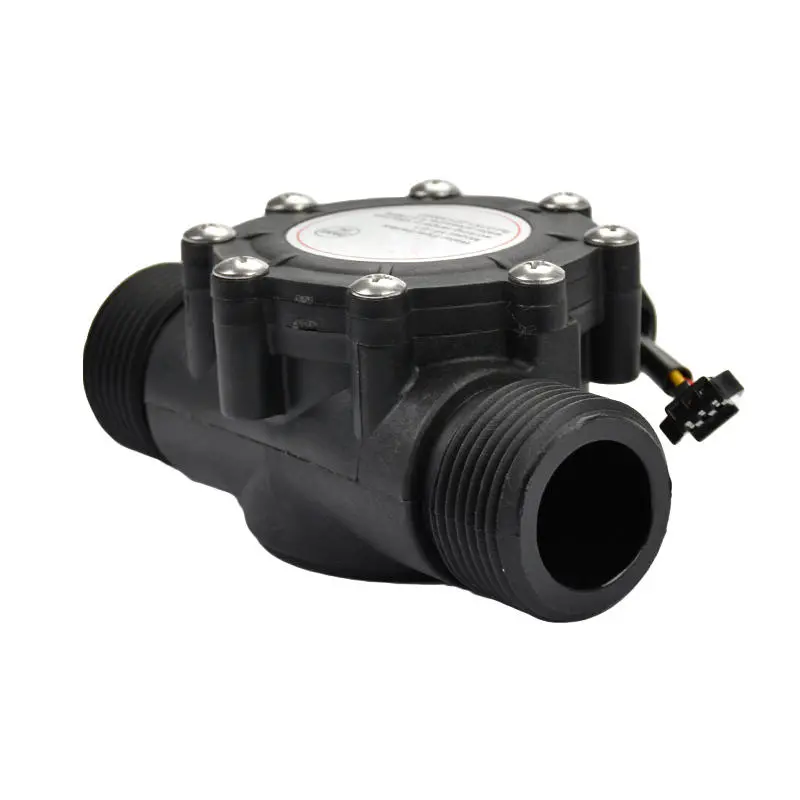

YF-G1 Water Flow Meter Sensor | DN25 G1 2-100L/min | Water Heater Accessories
$23.00
$28.78
-20% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

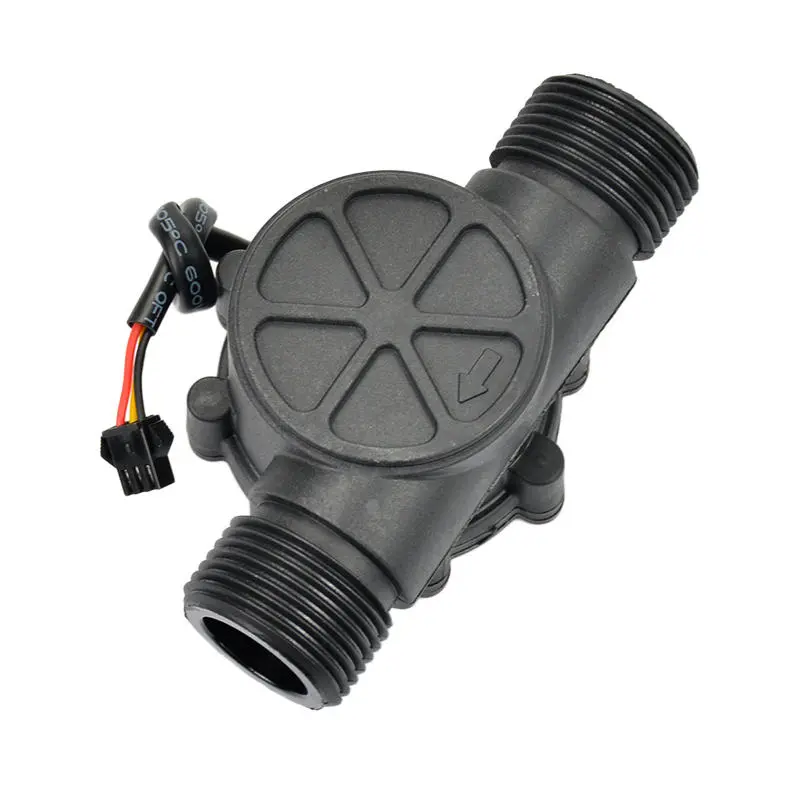

Features:The hall effect water flow sensor is light, nimble outline, small size and easy to install. All materials are in line with SGS testing standards. There is an integrated hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. Stable, high temperature, low water pressure start. Three wire connection: Red for positive, black for negative, yellow for pulse signal.
Application:
Water heater, washing machine, boiler, electromagnetic water heater, water dispenser, water purifier, R.O. machine, U.F. machine, coffee machine, water machine, water machine control, water control machine, machine, beauty equipment, shower equipment, electrolytic water machine, energy engineering, heat pump,IC meter, steam equipment, irrigation equipment, water system, campus card self-service sale (sell) water machine, washing machine, automatic washing equipment, water treatment equipment, water dispensing equipment, cooling system, circulation system, intelligent toilet (toilet), bidet, mechanical equipment, heating equipment, Pharmaceutical (agents) equipment etc.
Calculation Formula:
*F(Hz)= 1*flow rate(Q)(l/min)*1L=55Hz,*Error:??5% for both formula;
Features:
1.PA66 body and turbine, SUS304 stainless steel shaft(axle).2.Threaded design of inlet and outlet connection;3.Imported Hall IC from Japan, stable and reliable;4.Flow Range: 1-100L/min;5.Working voltage: 5-18V(regular version)6.Rated voltage: DC5V for three different versions7.Output voltage:Rated: DC5V for regular version: output high level 4.5V and above; low level 0.5V and below8.Pulse output duty cycle: 50+-10%9.Insulation resistance: 100M Ohm and above;10.Tightness: Seal up all the holes, and inflate with 0.8MPa water, after 1 minute, no leakage and deformation;11.-20-60 centigrade;12.Max Pressure: 1.7Mpa13.Electrical Strength: AC500V 50Hz.14.Wire length: regular 35cm, other length can be tailor made against request.15.Wire end connection: SM2.54 Plug/XH2.54 plug
Note:
1. When magnetic material is close with the sensor, its characteristics may vary.2. In order to avoid particle debris, the sensor must be installed after a filter.3. The flow sensor can be installed in any direction. IT has to avoid strong vibrating and shaking environment, so as not to affect the accuracy.
Package includes:
1 X FY-G1 Flow Meter
Details pictures:
