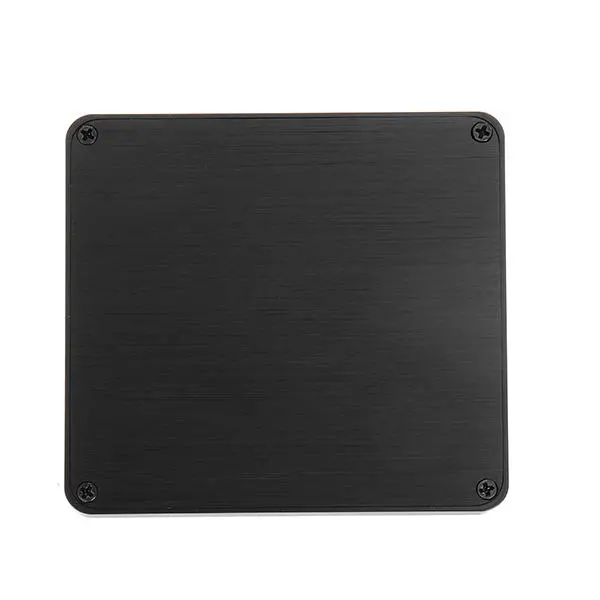

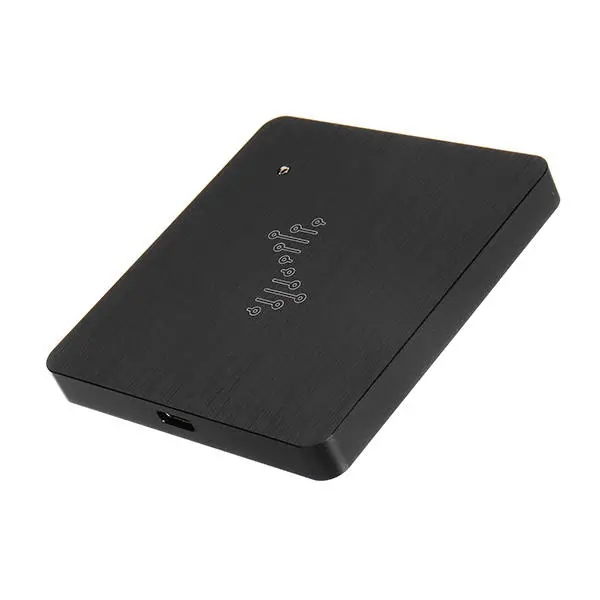

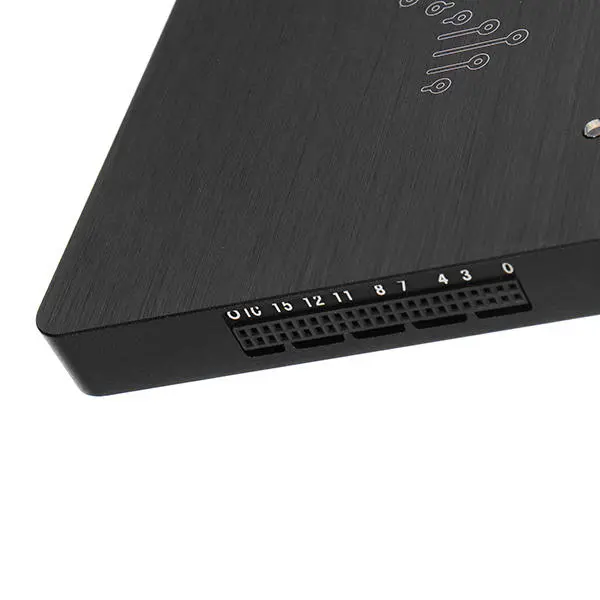

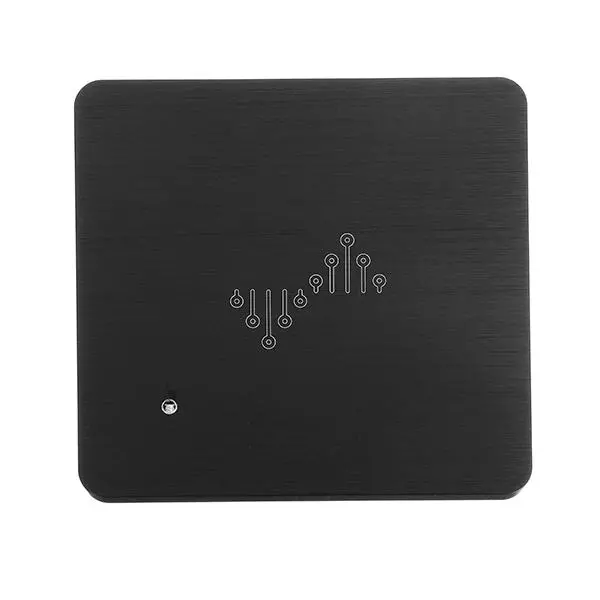

DSLogic Plus Logic Analyzer | 400M Sampling, 5x Saleae16 Bandwidth

Product Description

Description:
DSLogic Plus can provide up to 400 MHZ real-time sampling, the status of 50 MHZ sampling, sampling depth of 16 M * 16 channel.
Technical indicators as shown below:
Maximum sampling rate(Butter Mode):
4 channels @ 400 MHZ
8 channels @ 200 MHZ
16 channels @ 100 MHZ
Maximum sampling rate(Stream Mode):
3 channels @ 100 MHZ
6 channels @ 50 MHZ
12 channels @ 25 MHZ
16 channels @ 20 MHZ
The onboard storage depth:
Total 16G@ stream/256M@Buffer
Continuous adjustable threshold voltage range: 0V to + 5 V
The input voltage range: - 30 v to + 30 v
Input impedance: 250 kohm//7pF
The largest state sampling clock: 50 MHZ
Package included:
1 x Type-C data cable
1 x DSLogic Plus host
1 x 4+1 cable
16 x Signal clip
