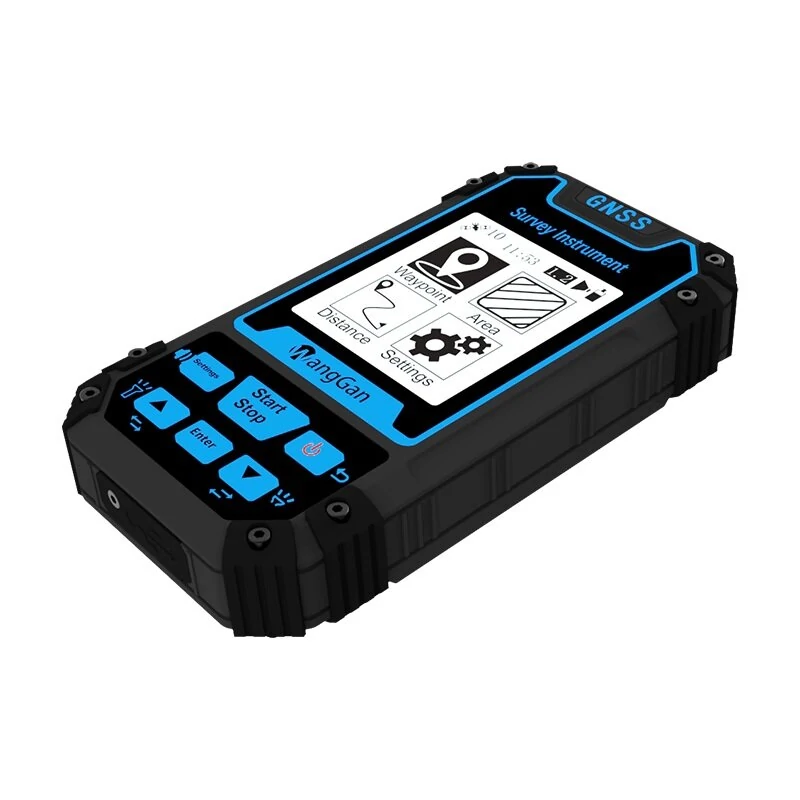

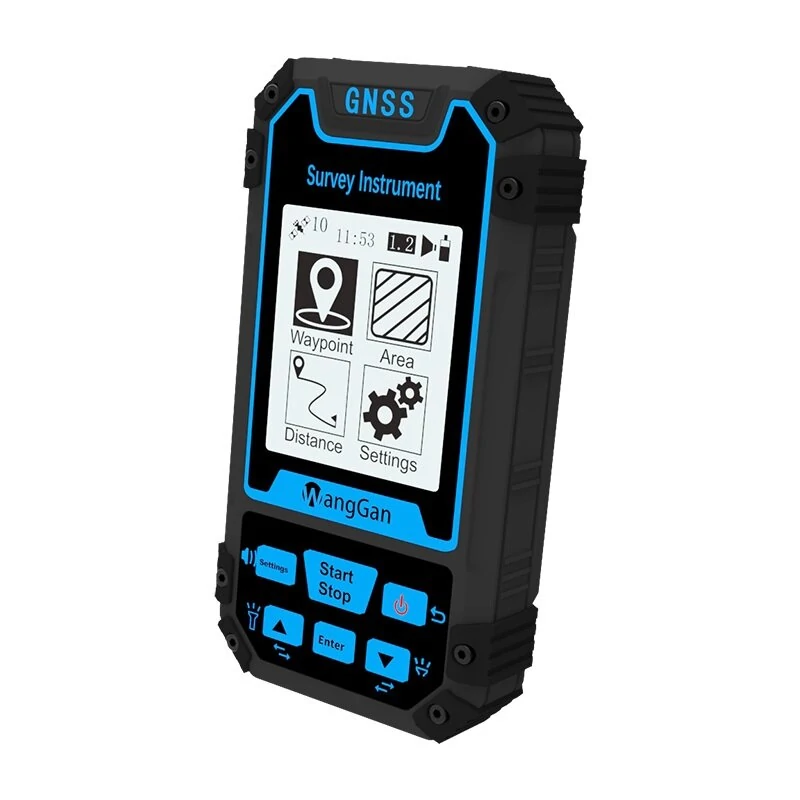

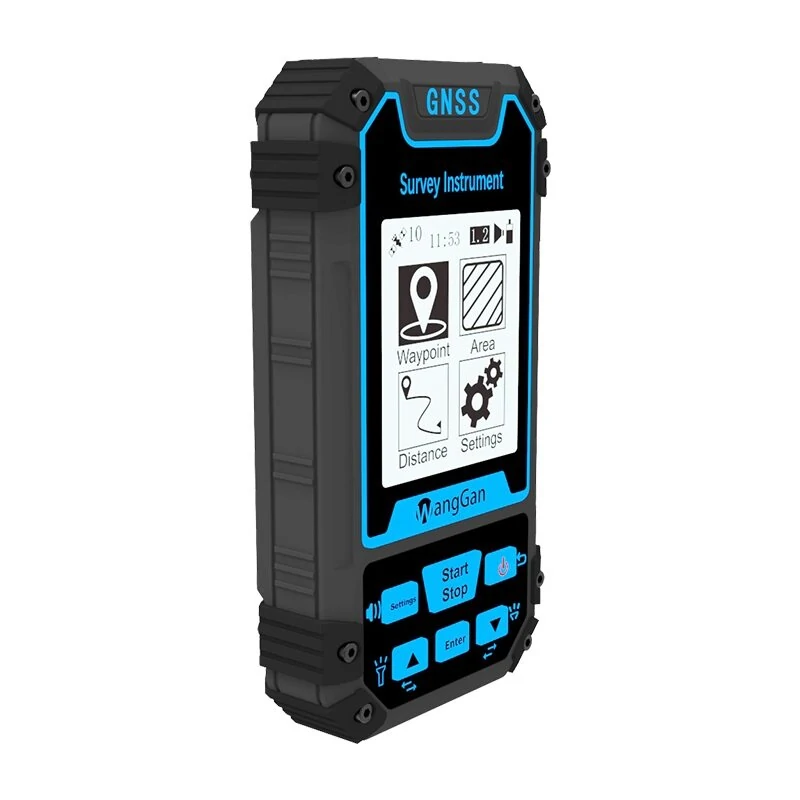

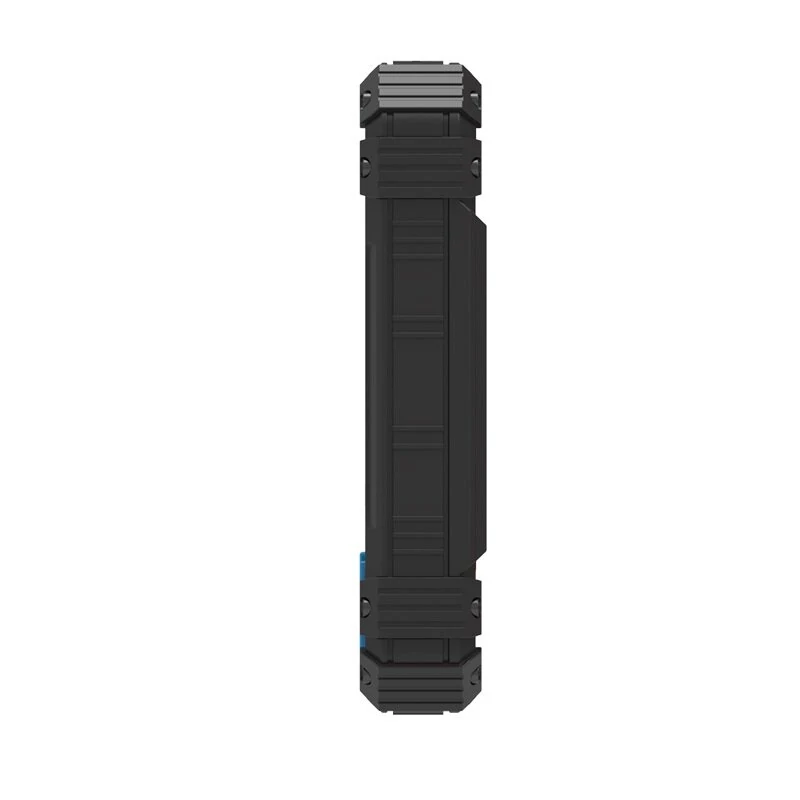

S8 Handheld GPS Land Meter - Survey Equipment with Longitude Latitude Locator

Receiver Antenna

Taimeng Passive Large - Size flat plate antenna

Positional Time

Hot Start Time: one Second; Cold Start Time: 30 Seconds

Positional Accuracy

Within 2 Meters (HDOP Value Less Than 1.0)

Area Accuracy

Measurement error is not more than 0.03 Mu (1-3 Mu), 2% (More Than 3 Mu)

Distance Accuracy

Within one Meter (When HDOP value is less than 1.0, measure the length of 100 meters)

Functional Characteristics

Coordinate Measurement, Route Edit, Track Record, Navigation Function, Altitude Measurement,Area Measurement, Distance Measurement, Lofting Function

Data Statistics

Area Statistics, Distance Statistics

Area Record

99 pieces Way point Record 2000 pieces

Distance Record

99 pieces Track Record 100 pieces

Route Record

Maximum Number Of Editions 200, Single Route Up To 400 Points

Track Display

The trajectory will be displayed in real time during the measurement process, and the past measurement figures can also be viewed in the statistical records.

Barometric Altimetry

About one meter (Barometer measurement, absolute altitude needs to be calibrated) About 10 Meters (GPS Measurement, HDOP value below 1.0)

HDOP Settings

User-Defined HDOP Setting

Display Screen

2.4 Inch, outdoor high-definition black-and-white screen

Working Temperature

-20???65??

Storage Temperature

-40??~75??

Data Interface

USB Interface, Which Can Be Charged Through This Interface

Data Export

??

Device Size

117mm x 61mm x 20mm

Device Weight

120g (Battery Free)

Package size

180mm x 140mm x 80mm

Gross weight

0.4kg
