Hantek PP-200 Oscilloscope Probe 200MHz Bandwidth X1 X10 Auto Diagnostic Tool
$22.00
$27.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

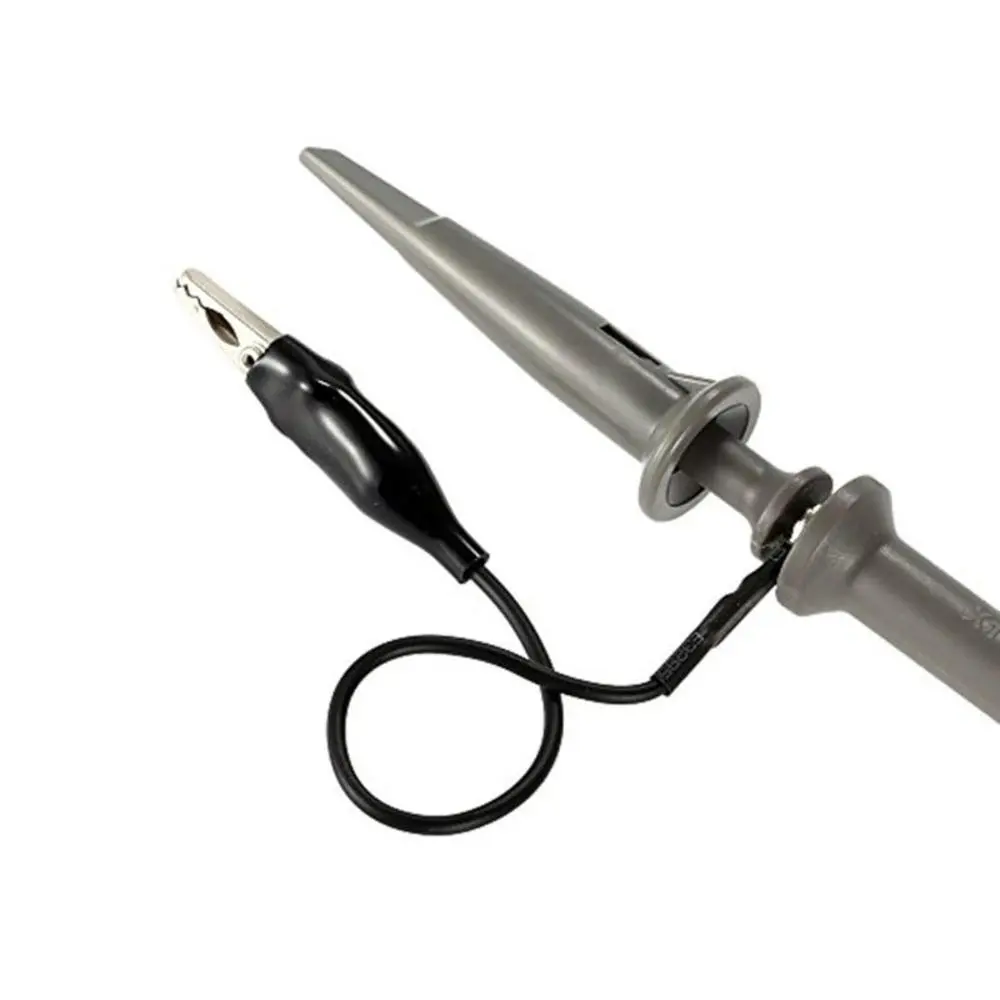

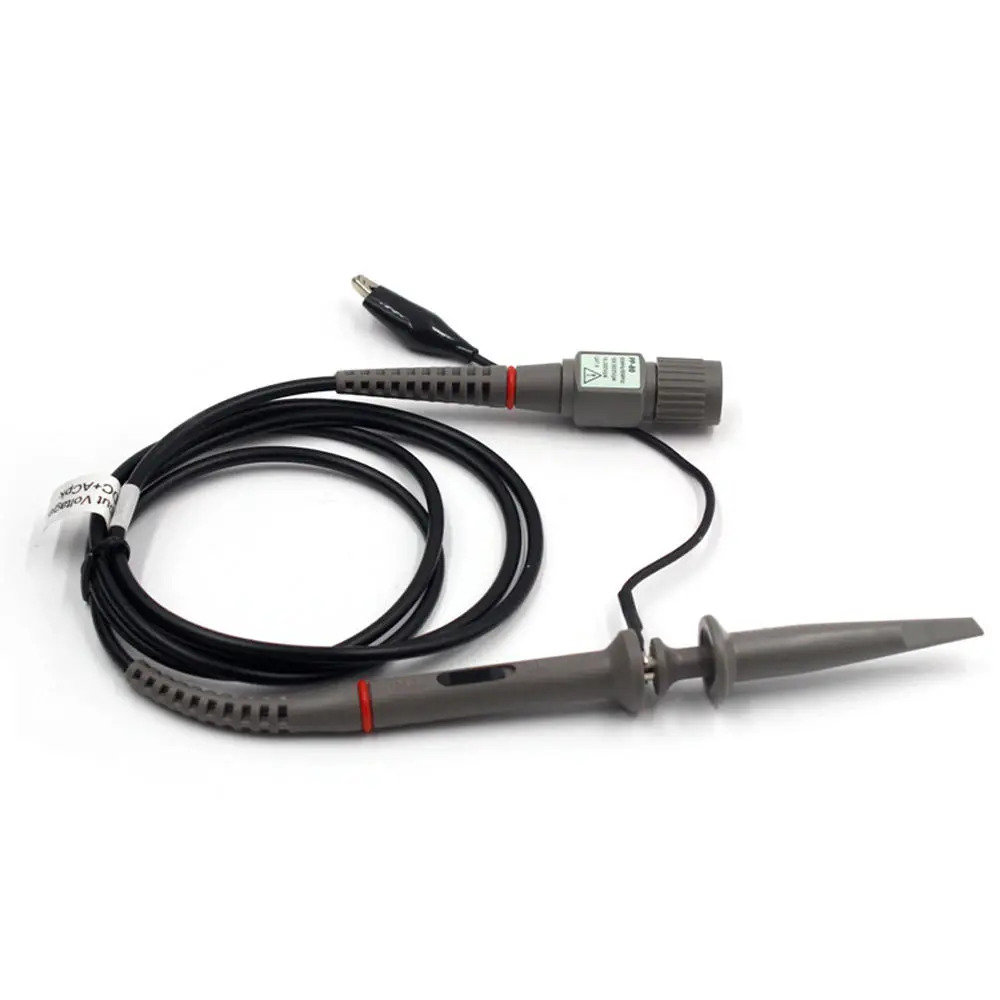

Features :The Hantek PP-200 200 MHz Oscilloscope Probe Kit provides a probe tip, ground lead, several marker rings, tip locating sleeve, and adjustment tool.
The probe is a passive, low-impedance attenuation probe.
The probe has been designed and calibrated for use on instruments having an input impedance of 1M?? paralleled by 20pF.
It may also be recalibrated for use on instruments having an input capacitance of 15 to 40pF.
The probe incorporates a two position (1X, 10X) slide switch in the compensating network and cable length of 1.2 meters. Specification :
Temperature: -15??C to 70??C Attenuation: X1, X10 Input Capacity: 85pF~115pF, 18.5pF~22.5pF Oscilloscope Input capacity: 15pF~40pF Input Resistance: X1: 1M????2% / X10: 10M????2% Bandwidth: X1: DC-6MHz / X10: DC-60MHz/100MHz/200MHz Max input Voltage: X1: <200V DC + Peak AC / X10: <600V DC + Peak AC Probe Body: 95mm Coaxial Cable: 1200mm Package includes :

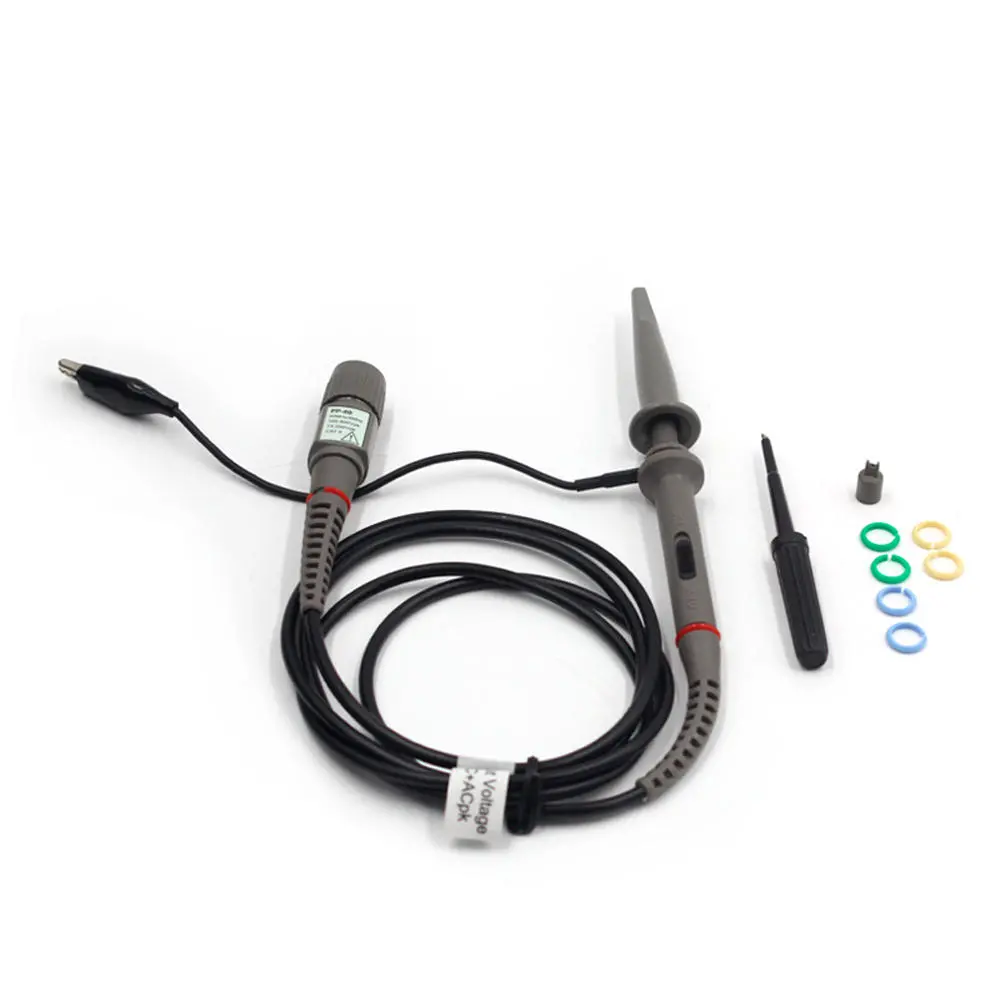

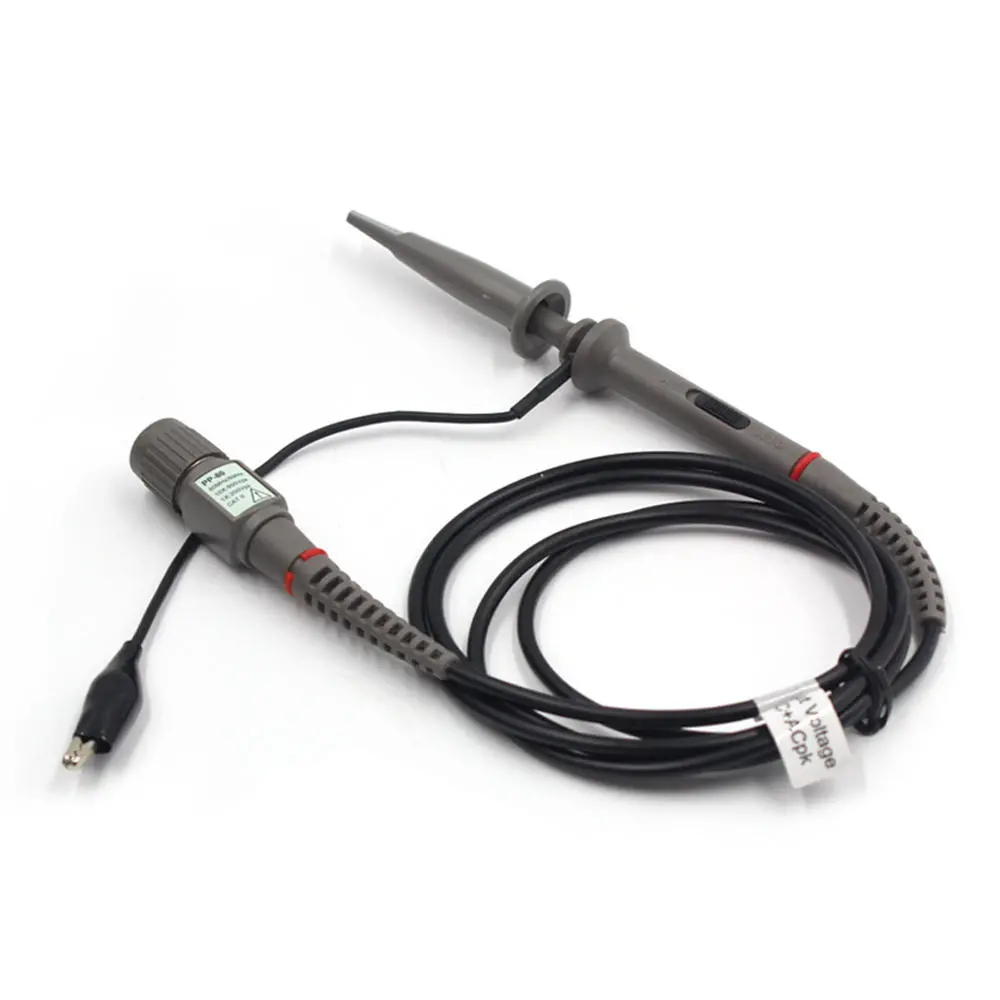

1 x Probe Tip 1 x Ground Lead 2 x Marker Ring 1 x Tip Locating Sleeve 1 x Adjustment Tool Details pictures :
