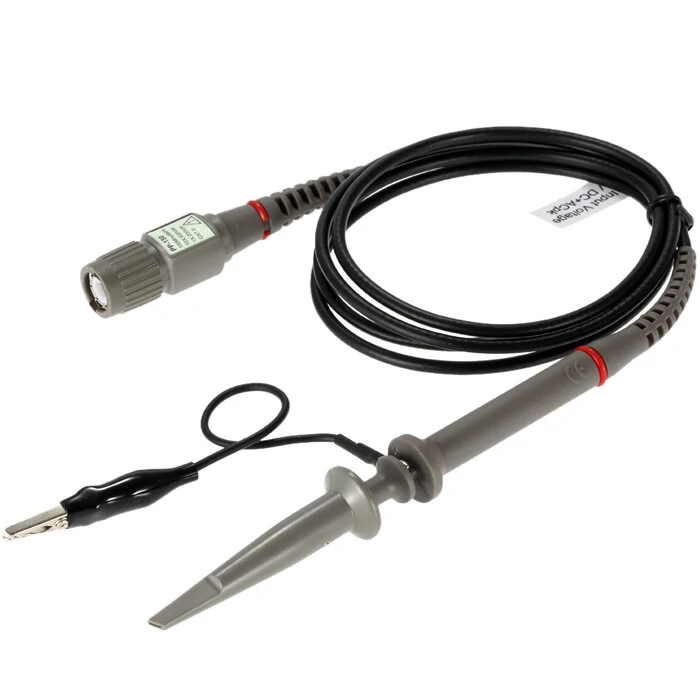

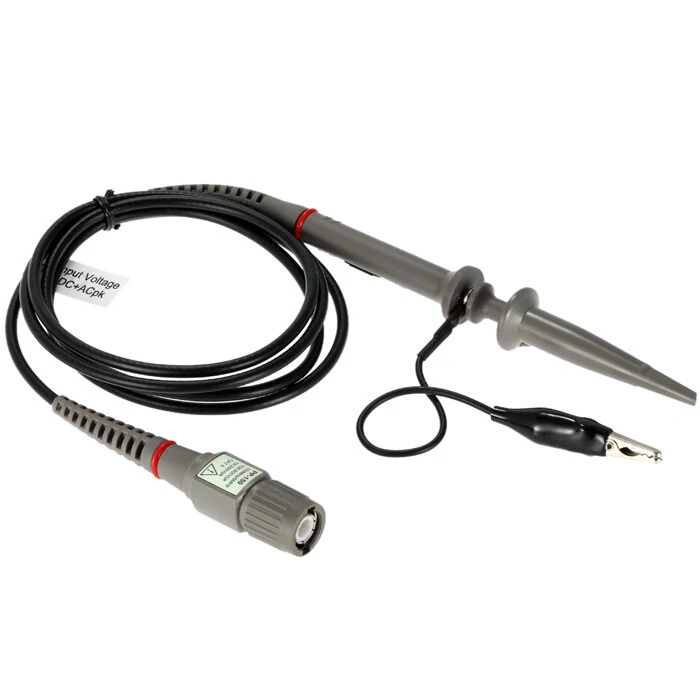

Hantek PP-150 Oscilloscope Probes - 100MHz 1X/10X for Digital Multimeter
$12.00
$14.38
-17% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Features:
High quality and reliable. Attenuation ratio: 1?? and 10?? adjustable. Portable design according with ergonomics. Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Safety standards: it has passed the CE Attestation of European Community. Application Fields: Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals. Specifications:
Color: Black + Grey Type: PP-80 / PP-150 Attenuation: x1 x10 Input Resistance: 1M??: 10M?? Input Capacitance: x1: 85pF-115pF x10: 18.5pF-22.5pF Compensation Range: 15pF ~ 35pF System Bandwidth: x1: DC-5MHz x10: DC-100MHz Input Voltage: x1: <200V DC +Peak AC x10: <600V DC +Peak AC Operating Temperature: -10??~ +50?? / 14?H~ 122?H Non Operating Temperature: -20??~ +75??/ -4?H~ 167?H Humidity: ??85% (Relative Humidity) Cable Length: 120cm / 47.2in Item Size: Approx. 17 x 2 x 2cm / 6.7 x 0.8 x 0.8in (ONLY Probe) Item Weight: Approx. 49.1g / 1.7oz Package Size: Approx. 20 x 13 x 2cm / 7.9 x 5.1 x 0.8in Package Weight: Approx. 74g / 2.6oz Package included:

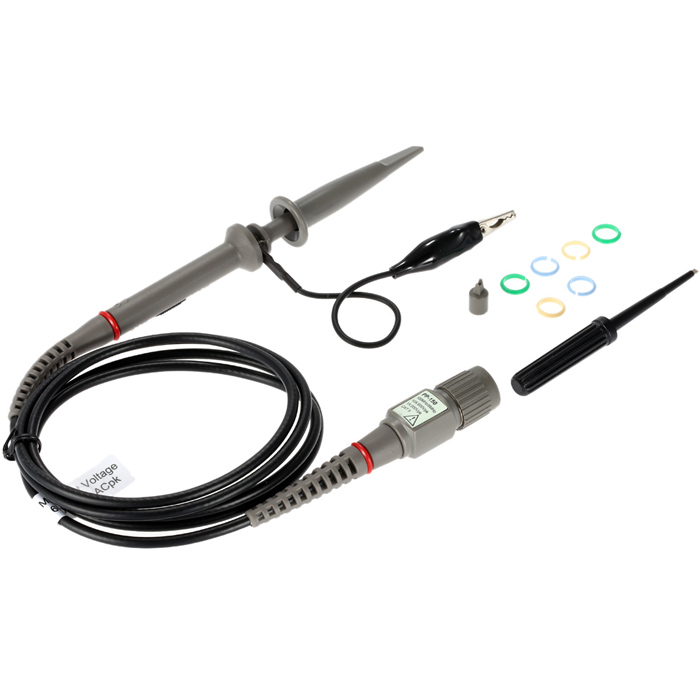

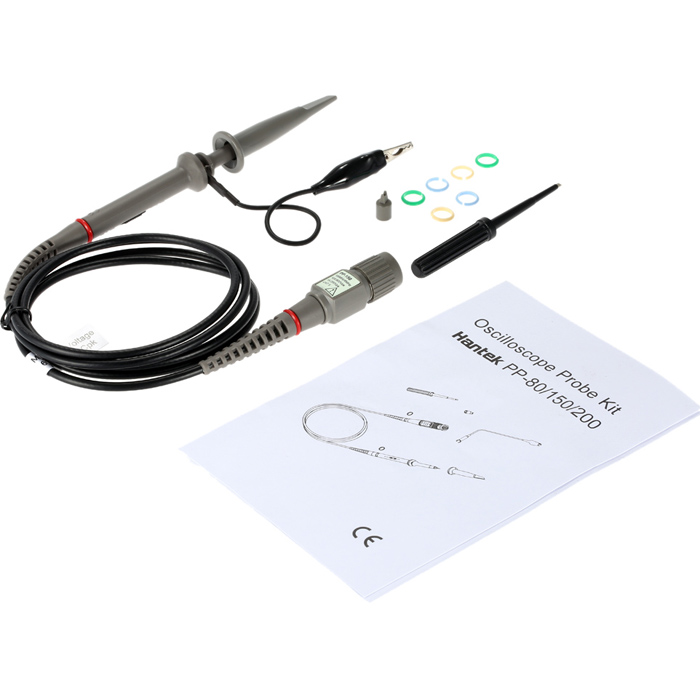

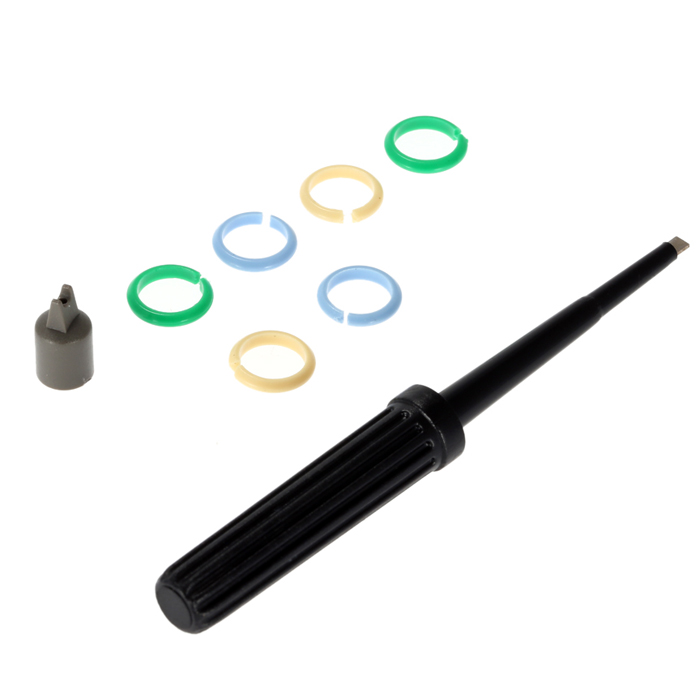

1 x Oscilloscope Probe 1 x Adjustment Tool 1 x Tip Locating Sleeve 6 x Color Circle(send by random!) 1 x User Instruction

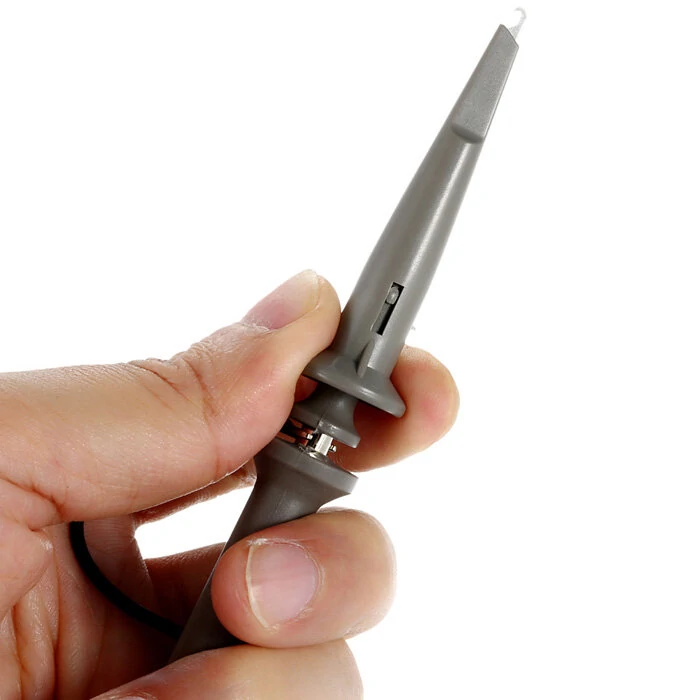

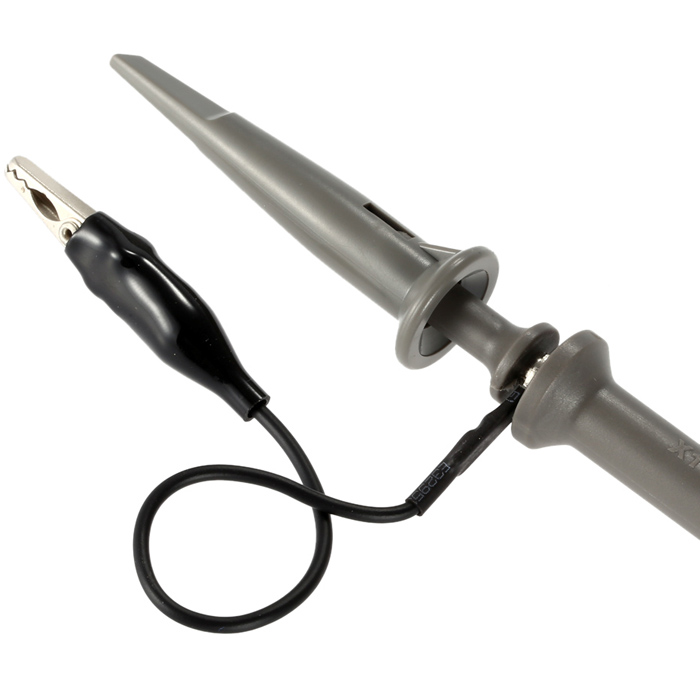

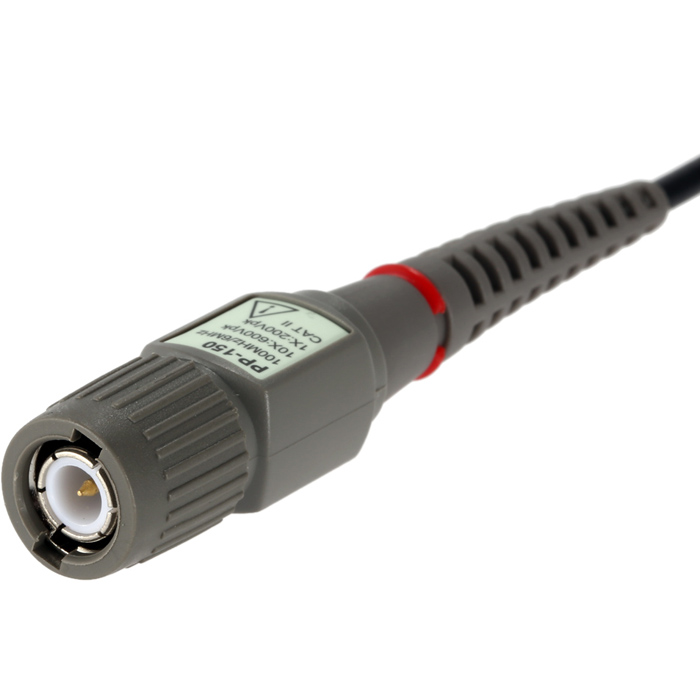

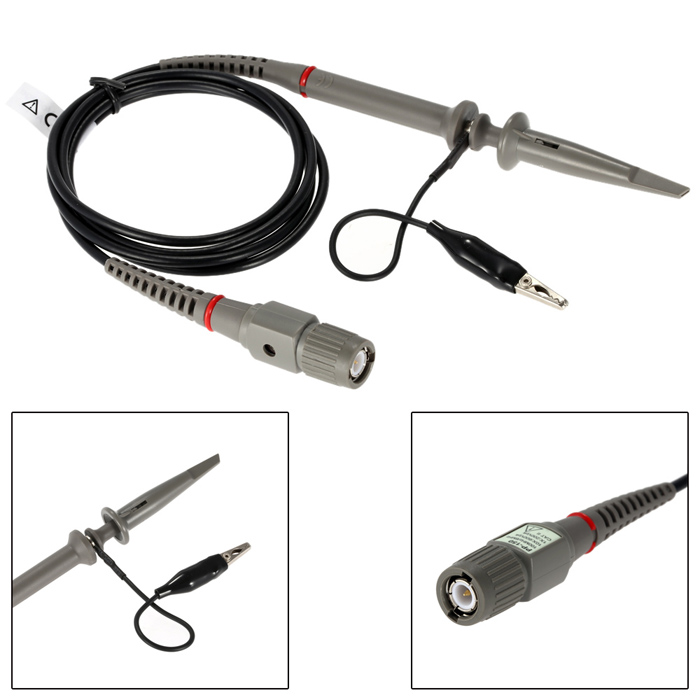

Detail Pictures:
