FR050 Clamp Current Sensor - 0-1000A AC High Precision Converter | Harmonic Detection
$152.00
$187.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:
- The FR050 clamp current sensor is a high-precision AC current converter, using the latest CT technology, circular large-diameter structure design, it can be quickly and easily freely taken and put in use, and its small size is easier to carry and use. It is suitable for the detection of AC current, high-order harmonic current, phase, electric energy, power, power factor, etc.
- FR050 can be used with a variety of measuring instruments, such as: electric energy meter field calibrator, harmonic analyzer, recorder, multi-function electric energy meter, oscilloscope, digital multimeter, cable identification instrument, cable fault detector, double clamp ground resistance Testers, double-clamp phase voltammeters, etc., can measure and compare a variety of electrical parameters in an uninterrupted state. It is widely used in substations, power plants, industrial and mining enterprises, testing stations, and electrical maintenance departments for current detection and field electrical work.
Specification:

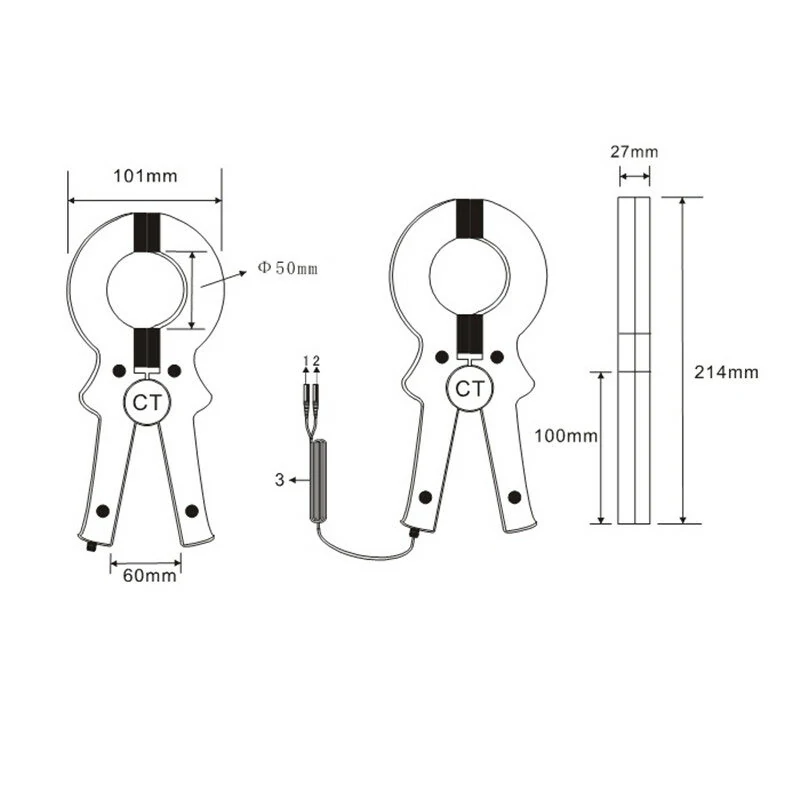

Features: Portable CT clamp-shaped structure, safe and convenient to useJaw size: 50mmRange: AC 0. 0mA~1000AResolution: AC 0. 1mAAccuracy: ??0. 5%FS (50Hz/60Hz; 23??C??2??C)Turn ratio: 1000:1 (can be customized according to needs)Reference load: RL: 0~100mA??300??; 0~10A??30??; 0~1000A??0. 3??Weight: 470gDimensions: width, height, thickness 101mmX 214mmX 27mmOutput interface: 3.5mm audio plugOutput line length: 2mOutput mode: current induction outputShell material: ABS resin, flame retardant grade 94V0Line voltage: Test at 600Vac (insulated wire) 30Vac (bare wire)Working temperature: -25?? C to +55?? CInsulation resistance: 100 M??@ 500VdcDielectric strength: AC3700V/rms. (between core and shell)Current frequency: 45Hz~65Hz (the measured current frequency)Frequency characteristics: 10Hz~100kHz
Package includes:
1 x Clamp Current Sensor
Details picture:
