DT-901 Phase Indicator | 40V-690V AC | LCD Display | 15Hz-400Hz Frequency

Product Description

Specifications:

Nominal Voltage Range: 40V to 690V AC

Frequency Range: 15Hz to 400Hz

Current Pickup: 1mA

Nominal Test Current (Per Phase): 1mA

Power Supply: Powered directly from the unit under test

Electrical Safety Standards: IEC 61010, IEC 61557-7, EN 61557-7

Protection Level: CAT III 600V

Type of Protection: IP40 (Dust and splash resistance)

Operating Temperature Range: 0??C to 40??C

Dimensions (H x W x D): 135mm x 73mm x 30mm

Weight: 195g

Features:

1. Wide Voltage and Frequency Compatibility: Supports a nominal voltage range from 40V to 690V AC and frequency ranging from 15Hz to 400Hz, making it suitable for various electrical systems in different environments.

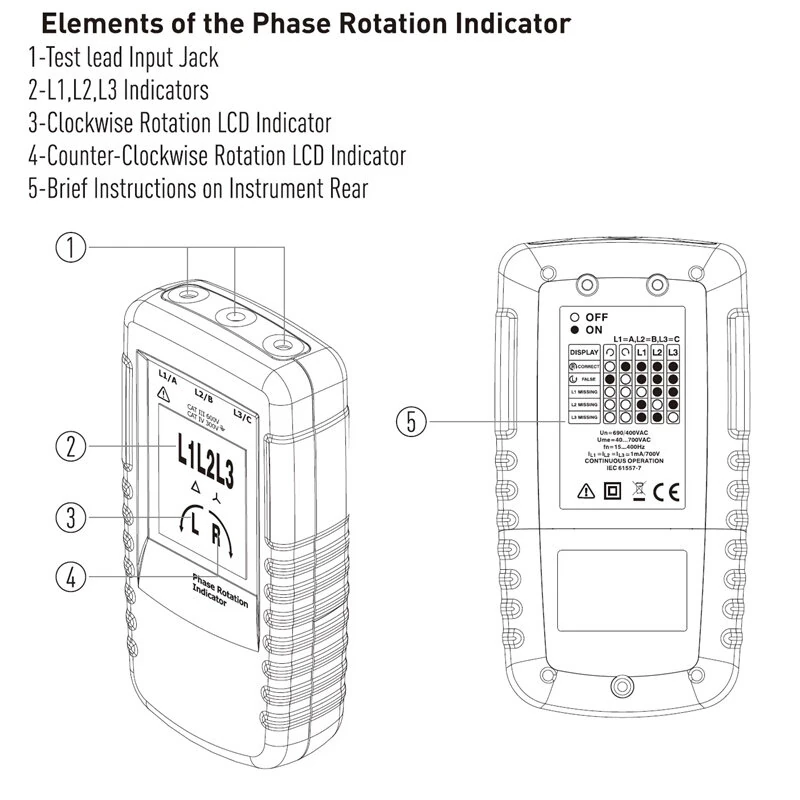

2. Clear LCD Display: The easy-to-read LCD screen provides clear phase-sequenc indication, enhancing usability and eliminating the need for manual interpretation in professional applications.

3. Sensitive Current Pickup: With a 1mA current pickup, this meter ensures accurate phase recognition even in circuits with minimal current flow, making it ideal for complex setups.

4. Enhanced Electrical Protection: Certified for CAT III 600V safety standard, this device provides superior protection for users in industrial and high-voltage scenarios.

5. IP40 Dust and Splash Resistance: Designed for dust and splash resistance (IP40), enabling safe and reliable operation across diverse environments or working conditions.

Package Included:

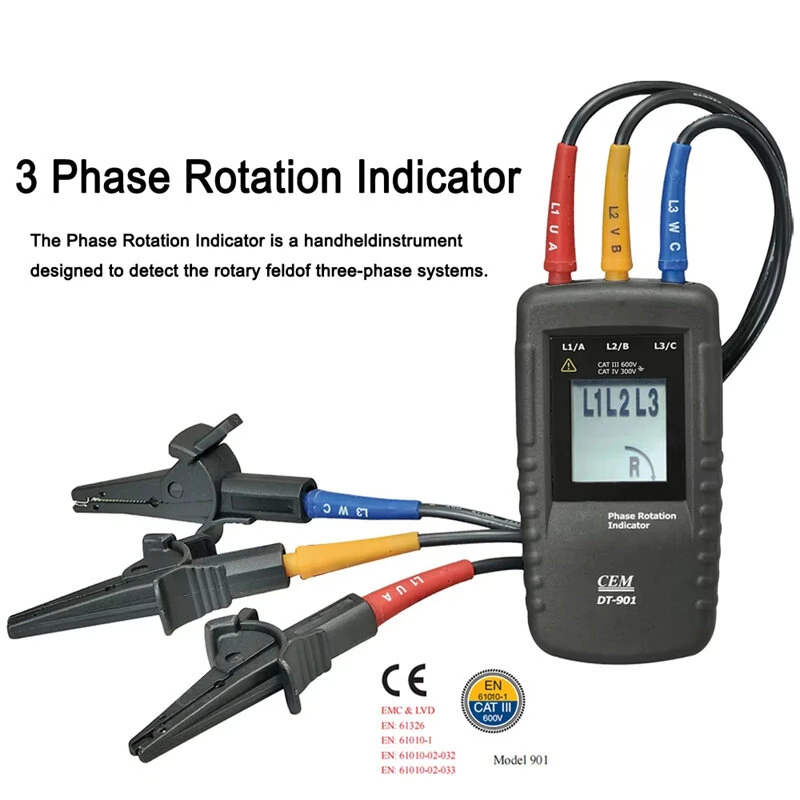

1 x CEM Handheld 3-Phase Rotation Indicator Meter
