High-Impedance Amplifier | 1MΩ Input 50Ω Output | 300MHz for SDR HackRF One

Product Description

Features:

High Input Impedance for Optimal Energy Capture

With a towering 1M?? input impedance, this high-impedance amplifier allows you to maximize the amount of energy captured from your antenna. This minimizes signal loss due to impedance mismatch, so you can achieve top-notch reception even in challenging RF environments.



Standard 50?? Output for Universal Compatibility

Whether you??re using a HackRF One, a mini loop antenna, or a donut antenna, the standard 50?? output ensures that you can seamlessly integrate this amplifier into your existing setup. Compatibility issues become a thing of the past, making this a versatile addition to your radio gear.



Zero Gain for Pure Signal Integrity

With 0dB gain, this amplifier maintains your signal's integrity without introducing any additional noise or distortion. It's all about optimizing the impedance without altering the original signal, making it ideal for any application that requires high-fidelity reception.



Wide Bandwidth of 300MHz for Multiple Applications

Covering a massive 300MHz bandwidth, this device is not confined to one or two specific types of RF signals. It can handle a multitude of different frequencies, making it highly adaptable to a wide array of applications, from SDR radios to conventional broadcast receivers.



Long-lasting Battery and Easy Charging

Designed with an 800mAh internal battery and efficient 600mA charging current, this amplifier gives you the freedom to operate for more than 24 hours on a single charge. It charges via a simple 5V input, making it convenient to recharge even on the go.



Specifications:

Input Impedance: 1M??

Output Impedance: 50??

Gain: 0dB

Bandwidth: 300MHz

Charging Voltage: 5V

Internal Battery Capacity: 800mAh

Charging Current: 600mA

Working Time: >24h

Dimensions: 50x45x18mm

Optional Type:

#A:

High-Impedance Amplifier



#B:

High-Impedance Amplifier

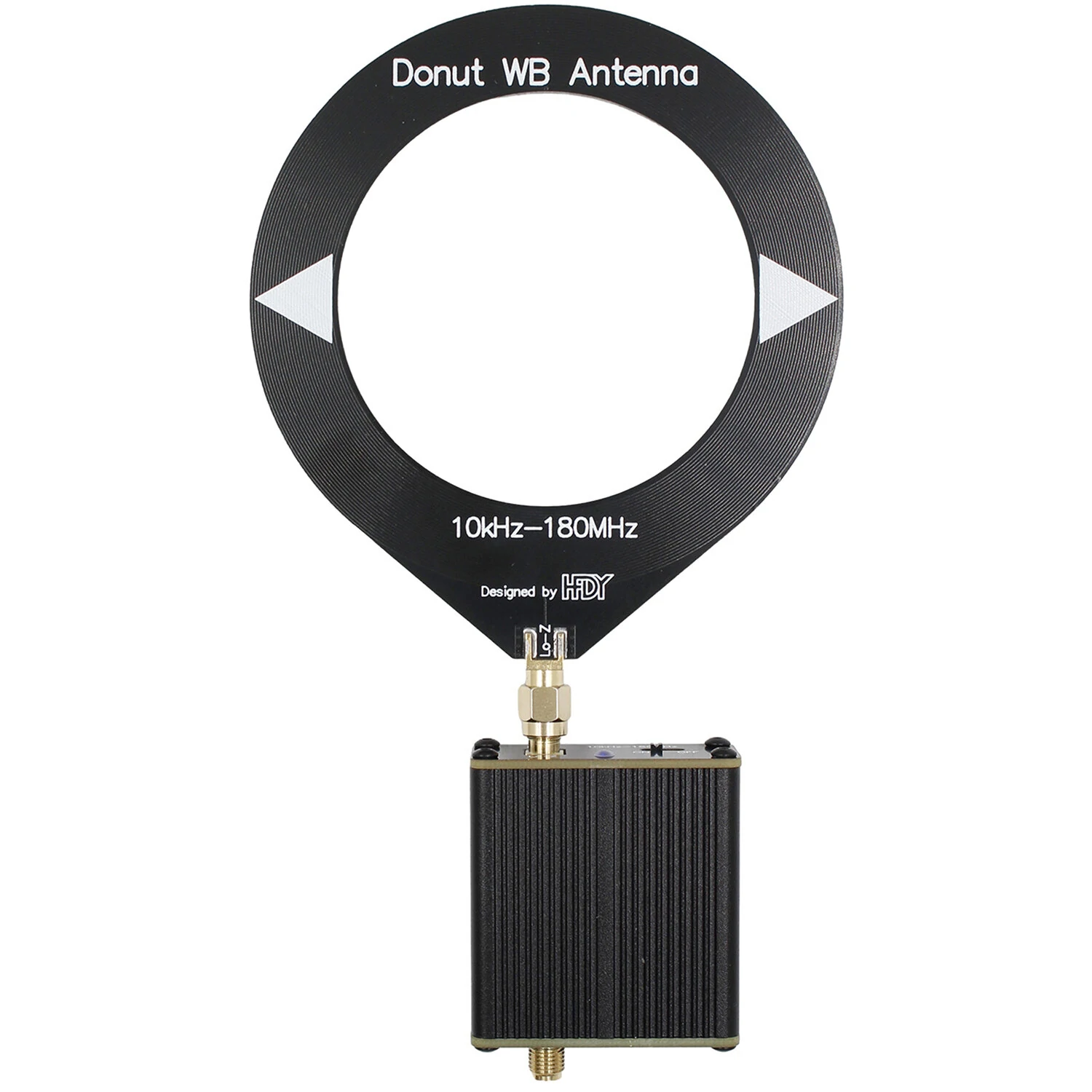

Donut Antenna for Shortwave

Donut Antenna for Medium Wave



Package Included:

Type A:

1 x High-Impedance Amplifier



Type B:

1 x High-Impedance Amplifier

1 x Donut Antenna for Shortwave

1 x Donut Antenna for Medium Wave
