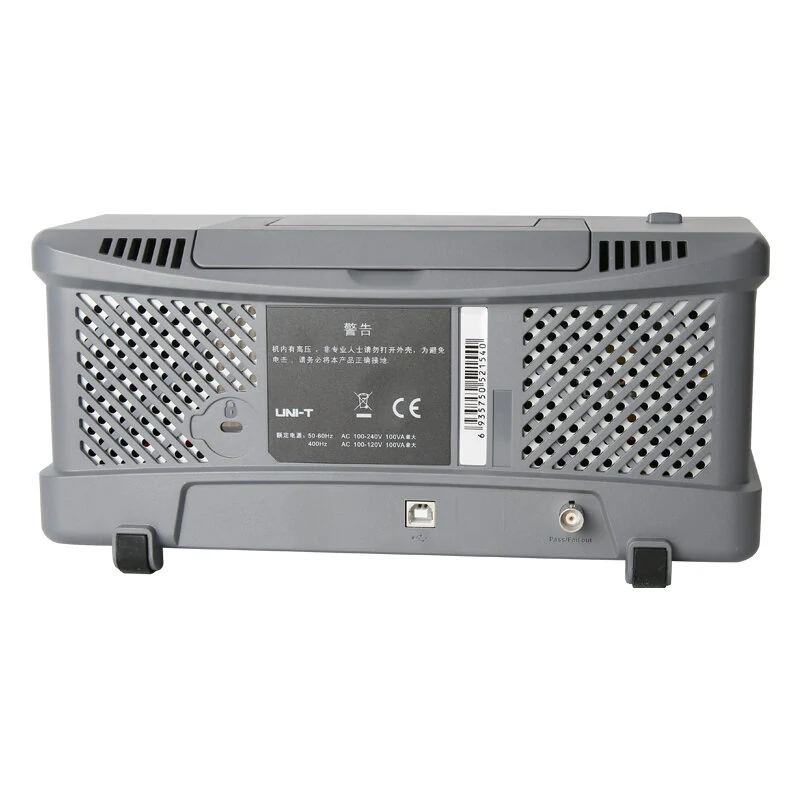

UNI-T UTD2072CL Oscilloscope | 70MHz 500MSa/s | Dual Channel Digital Storage
Product Description
>>1.5M 10A Power Cord EU/US/UK Pure Copper Conductor Wire Suitable for Oscilloscope Signal Generator Desktop Multimeter<<
Features:
1. The design of the front panel is clear and intuitive, conforms to traditional usage habits, and is convenient for users to operate.
2. With 70mhz bandwidth, 2 analog channels.
3. Provide 34 kinds of automatic measurement waveform parameters.
4. Wide display range.
5. With a variety of frequency standard square wave output of 10hz, 100hz, 1khz, and 10khz.
6. Support plug-and-play USB storage devices, which can be remotely controlled with a computer and via USB.
Specifications:
Model | UTD2072CL |
Channels | 2 |
Bandwidth | 70MHz |
Sampling rate | 500MS/S |
Rise time | < 2.4ns |
Memory depth | 64kpts |
Waveform capture rate | 5,000wfms/s |
Vertical scale (V/div) | lmV/div?20V/div |
Time base scale (s/div) | 2.5ns/div-50s/div |
Time base modes | Y-T, X-Y, Roll |
Storage methods | Setup, wave, bitmap |
Trigger types | Edge, pulse, alternate, slope, video |
Mathematical operations | A+B, A-B, AxB, A/B, FFT |
Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq,Rise, Fall, RiseDelay, FallDelay, +Width, -Width, +Duty, -Duty,(UTD2052/25CL)FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, Area, CycArea, OverSht, PreSht, Phase, 34 paramet ers in total |
Number of measurements | Display 5 measurements at the same time |
Frequency counter | 6 bits |
Standard interfaces | USB OTG, Pass/Fail |
Power | 100-240V AC, 45-440HZ |
Display | 7 inches TFT LCD, 800x480 |
Product color | White and grey |

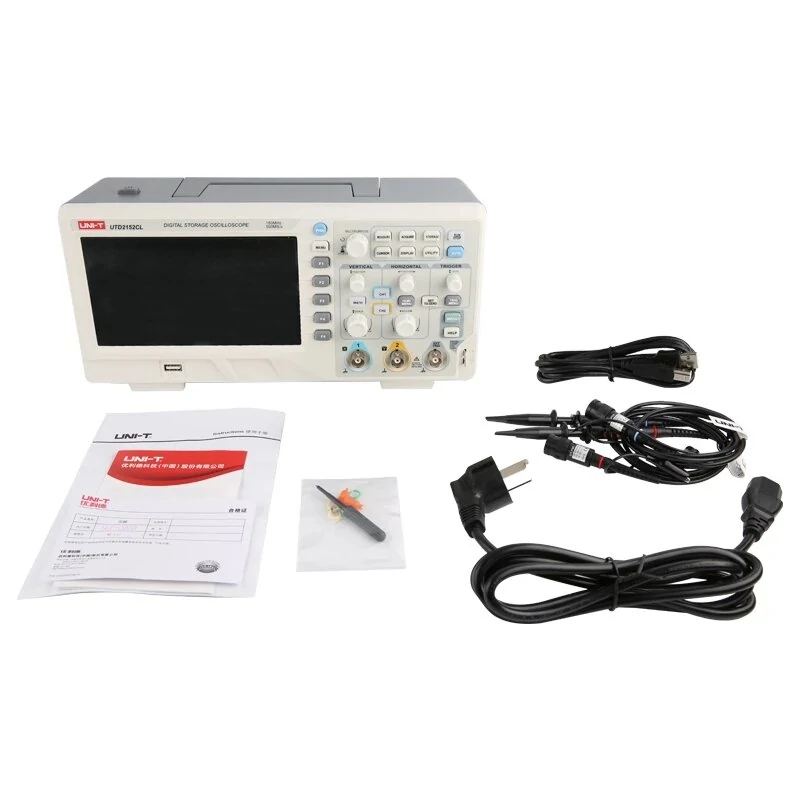

Package Included:
1 x UTD2072CL Digital Storage Oscilloscope
1 x Power cord (AU Plug)
1 x USB interface cable
2 x Passive probe (1x, 10x switchable, 200MHz)
2 x Passive probe (1x, 10x switchable, 60MHz)
Note: we will send the plug adapter according to your country.
