UNI-T UPO1152HD Oscilloscope - 150MHz Bandwidth, 12-bit ADC, 1.25GSa/s, Touch Screen

Product Description

Specifications:Model: UPO1152HD (2 Channels), UPO1154HD (4 Channels)Bandwidth: 150MHzSampling Rate: 1.25GSa/s (Single Channel), 625MSa/s (Dual Channel), 312.5MSa/s (Four Channel)Storage Depth: Automatic (limit to 5Mpts), 25kpts, 250kpts, 500kpts, 5Mpts, 50Mpts, 100MptsWaveform Capture Rate: Ultra Phosphor 3.0 100,000wfms/s (Standard), 500,000wfms/s (Sequential Mode)Rise Time: ??2.2nsVertical Resolution: 12-bitVertical Gear: 500??v/div to 10V/divTime Base Gear: 2ns/div to 1ks/divSampling Method: Real-Time SamplingWaveform Recording & Playback: Hardware real-time recording up to 100,000 framesEnhanced FFT Point Count: Up to 1MptsFrequency Meter: 6Display: 7-inch 1024x600 High-definition Capacitive Touch ScreenSize: 282mm x 175mm x 49mmWeight: Approx. 1.6kg

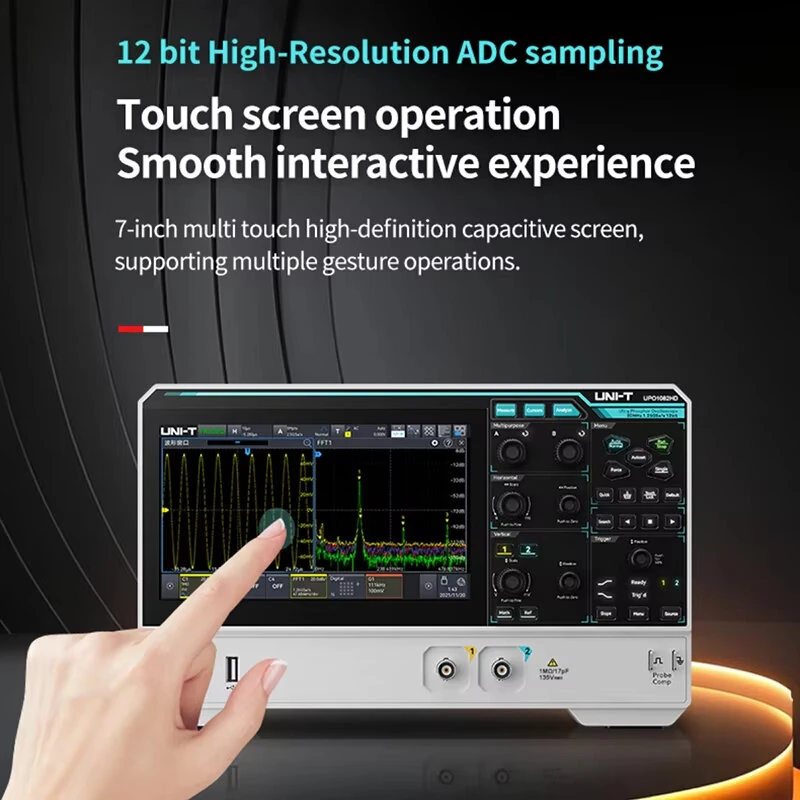

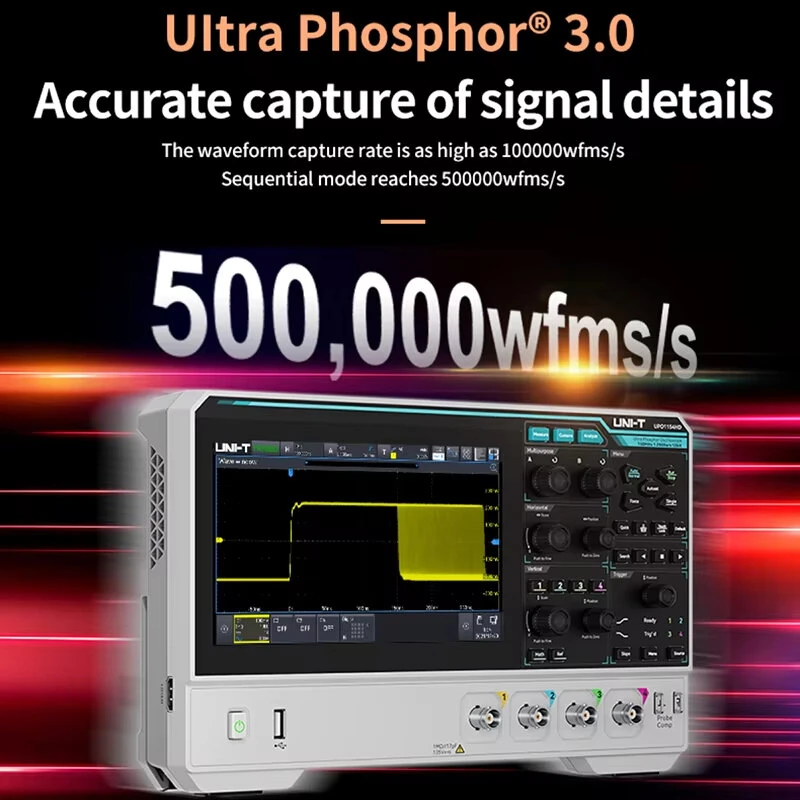

Features:1. High Sampling Rate for Accuracy: Equipped with an impressive sampling rate of up to 1.25GSa/s on a single channel, enabling precise waveform measurements and detailed signal visualization.2. 12-bit Vertical Resolution: Provides exceptional signal clarity, offering detailed and accurate data capture for intricate analysis in various applications.3. Large Storage Depth Options: Adjustable storage depth settings, up to 100Mpts, ensure extended signal analysis capability for continuous and complex waveforms.4. Fast Waveform Capture: Ultra Phosphor 3.0 technology delivers up to 500,000 waveforms per second in sequential mode, making it ideal for capturing dynamic signals efficiently.5. Enhanced Display Interface: The 7-inch high-definition capacitive touch screen delivers crystal-clear visuals and intuitive operation for improved user experience.
Package Included:1 x Oscilloscope1 x Power Line1 x USB Cable1 x Ground Wire1 x Data Download Guide1 x Certificate of ConformityOptional:4 x 200MHz Probes (for UPO1154HD) or 2 x 200MHz Probes (for UPO1152HD)
