PDS138 Mini Digital Oscilloscope | 2.5MHz Sampling, 200kHz Bandwidth, AUTO PWM

Product Description

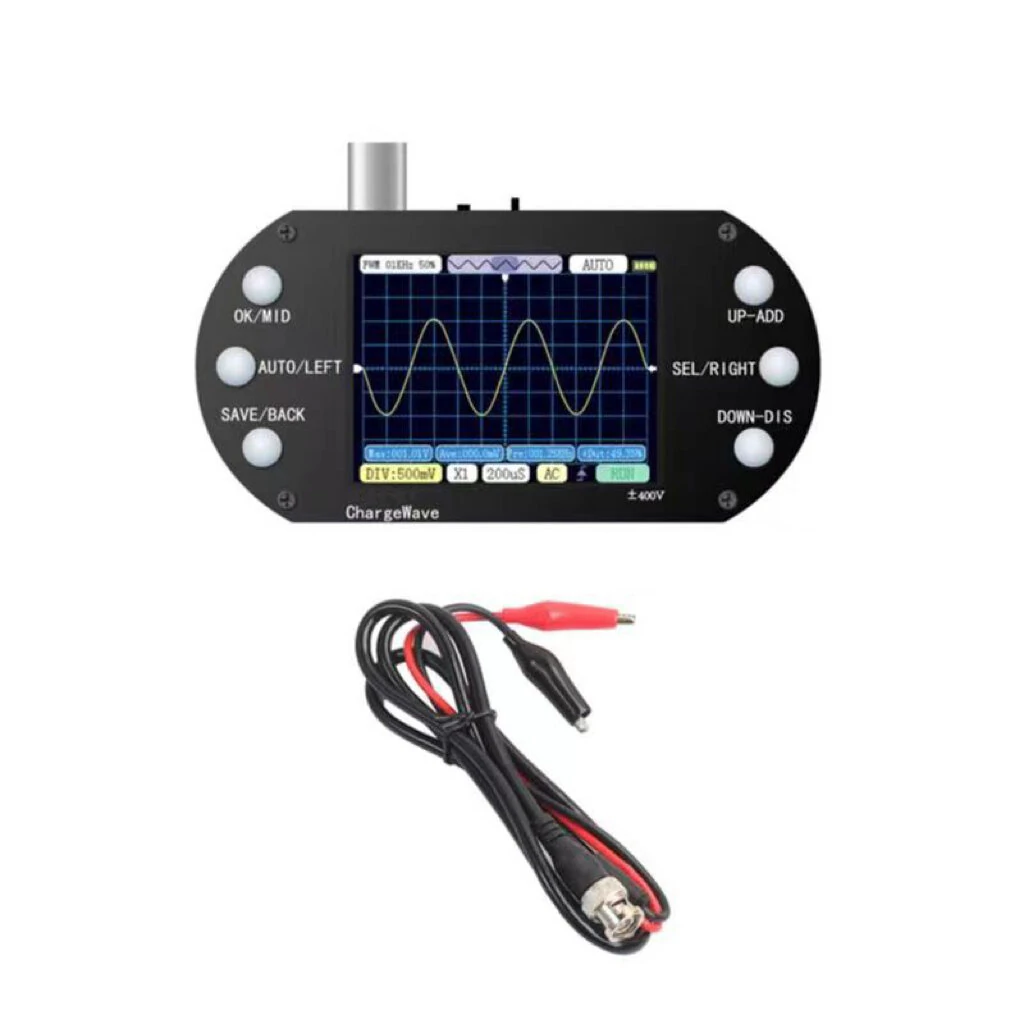

Delivery list:Type 1:1 x Host1 pair of test clipsORType 2:1 x Host1 pair of test clips1 x 10X Test Probe

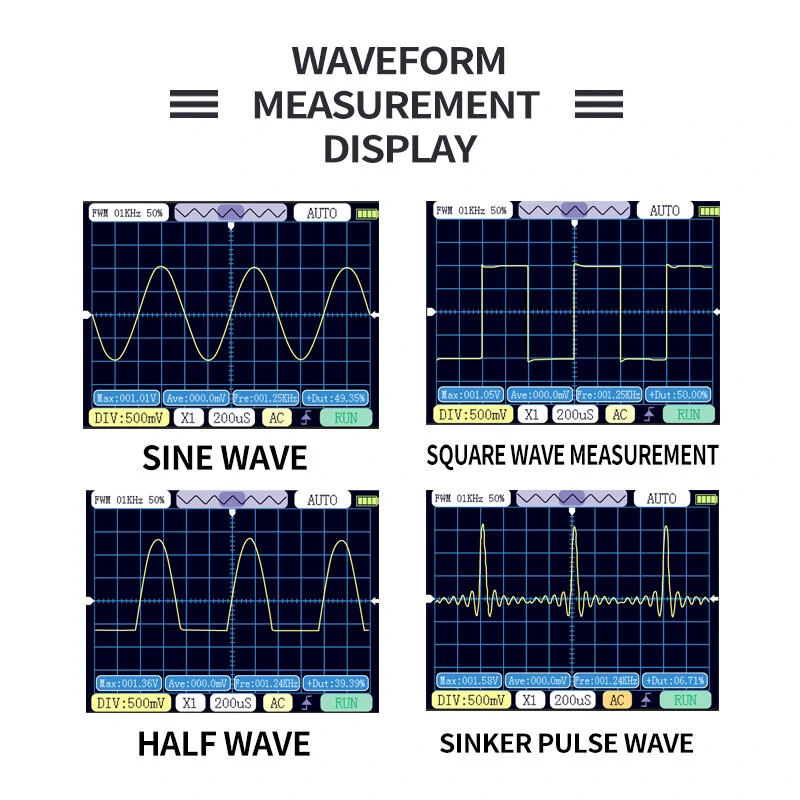

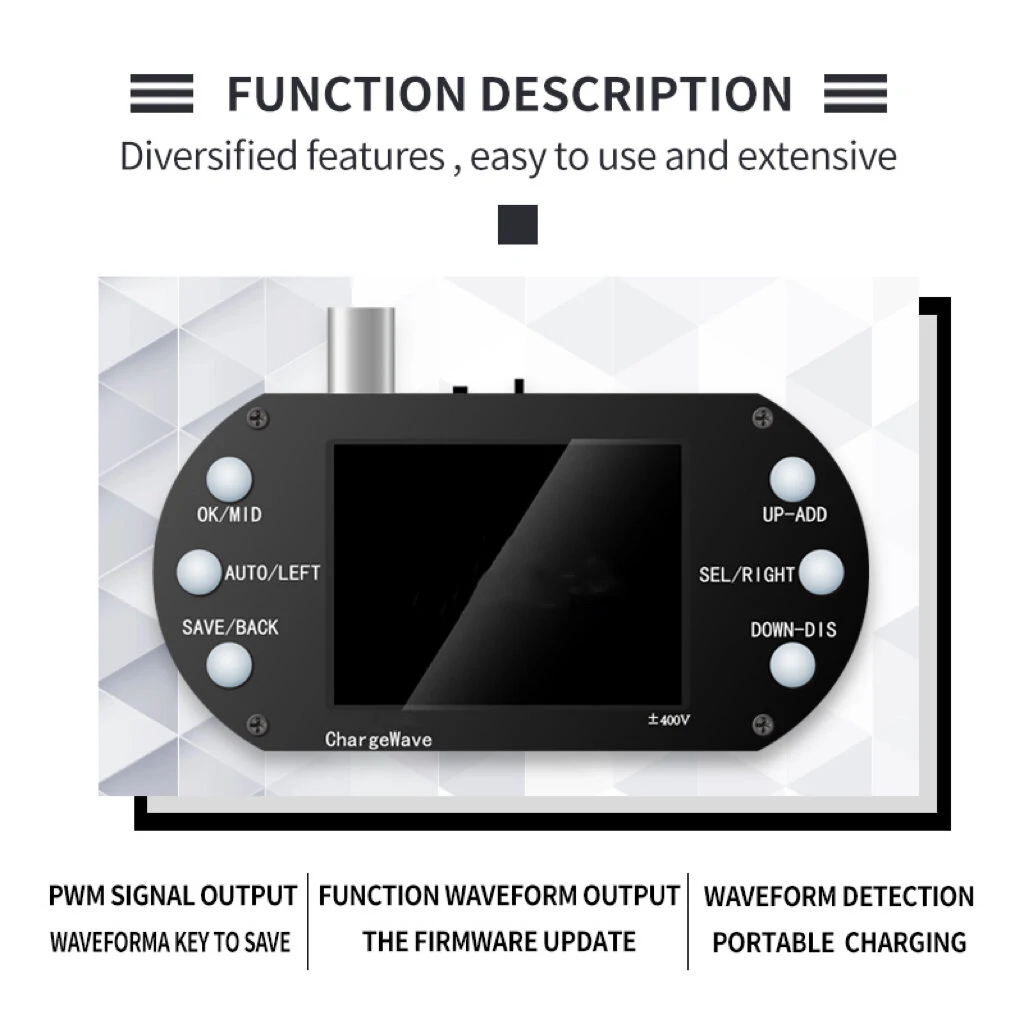

Function:2.5MHz sampling rate, actual bandwidth 200KHzAnalog bandwidth 1MHz (sine wave)It has complete triggering function (single time, normal, automatic), and can be used freely for both periodic analog signals and non periodic digital signals?? 400V voltage signal can be measured at mostEquipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.One button waveform saving function
Parameters:Sampling rate: 2.5MHzAnalog bandwidth: 1MHz (sine wave)Actual bandwidth: 200KHzMeasuring voltage: X1/?? 40V, X10/?? 400VInput impedance: 1M ??Storage depth: 1KbParameter display: 12 typesPWM output: frequency 1K~80KHz, duty cycle 0~100%, output voltage 3.3VFunction waveform: 17 waveformsOutput frequency: 1~1KHz Voltage range Vpp 0~3.3V (not adjustable)Display: 2.4 inch TFT, 320 * 240 resolutionCharging voltage: 5VBattery capacity: 600mA/h 3.7VUpper computer: temporarily not supportedFirmware upgrade: supportedSize: 50cm wide and 100cm long (excluding BNC head)Weight:180g??only DSO)
