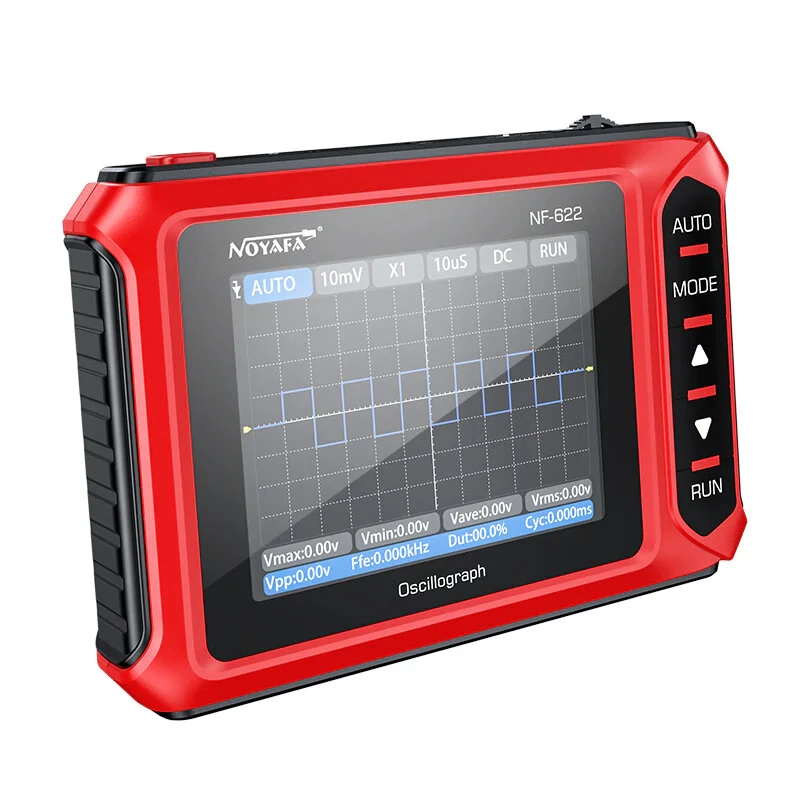

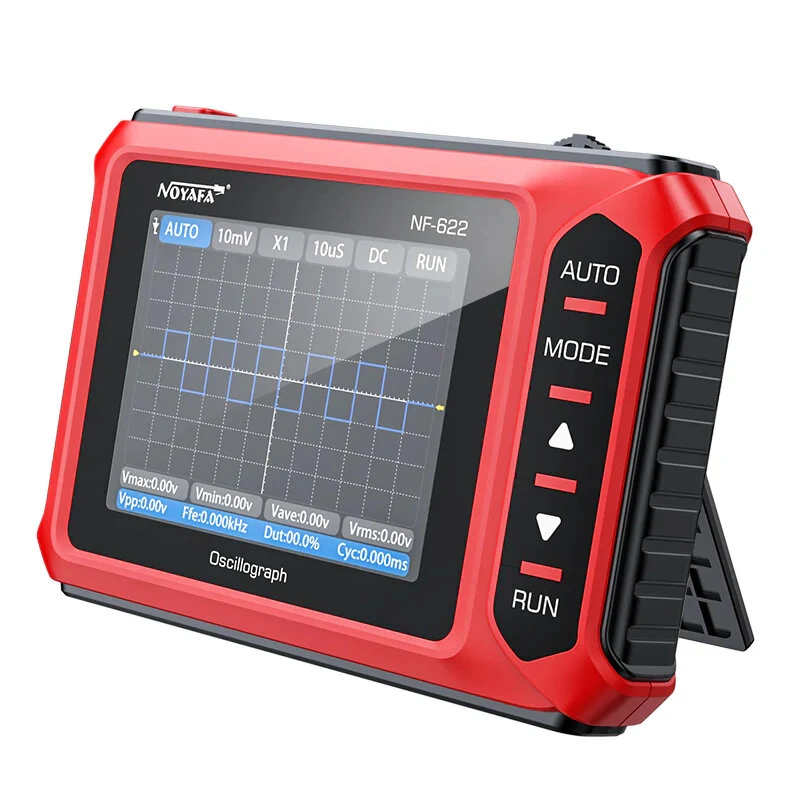

NOYAFA NF-622 Mini Handheld Digital Oscilloscope | 2.8 TFT Display | 2.5MS/s Sampling Rate

Product Description

Features:

1. Automatic Measurements: Can automatically measure various signal parameters such as peak-to-peak voltage, frequency, rise time, and pulse width, reducing the burden of manual measurement and improving measurement efficiency and accuracy.

2. Advanced Waveform Analysis Capabilities: This oscilloscope supports pausing and moving waveforms. Whether you're trying to detect hidden noise signals that might be interfering with your data or conducting a thorough analysis of complex modulation modes, its waveform manipulation functions can fully meet your needs.

3. High - Performance AUTO Function: The AUTO feature enables the oscilloscope to accurately measure various waveforms. No matter how complex or diverse the signals are, it can swiftly and precisely analyze and present the waveform details, saving you time and effort in manual adjustments.

4. Flexible Mode Switching: You have the freedom to switch between AUTO, Normal, and single - test modes at will. This flexibility allows you to adapt to different measurement scenarios. For routine measurements, AUTO mode is convenient; while for more in - depth and detailed analysis, Normal or single - test modes can be selected.

5. Miniature Design for Portability: With a minuscule cubage and weighing merely 100g, this device is extremely easy to carry around. Whether you're on - the - go for fieldwork or need to quickly move between different workstations, its compact size won't be a burden.

6. Long - Lasting Battery Life: Equipped with a 1000mAh battery, it can be used continuously for approximately 4 hours. This long - lasting power supply allows you to work outdoors without being constrained by the location of power outlets. You can carry out measurements in remote areas, construction sites, or any location where access to electricity is limited.

Specification:

Product model: NF-622

Display: 2.8-inchTFT

Sampling rate: 2.5MS/S

Bandwidth: 200K

Vertical sensitivity: X1:10mV/Div~10V/Div

X10:100mV/Div~100V/Div

Time base range: 10us/500s

Voltage range: X1:??40V??Vpp:80V??

X10:??400V??Vpp:800V??

Trigger mode: AUTO/Normal/Single

Coupling mode: ACIDC

Calibratedsquare wave: Frequency:1KHZ??duty cycle:50%

Auto shutdown: 30min

Low power shutdown: 3.4V+0.1V

USB charging: 5V/1A

Power supply: 1000mAh lithium battery

Product size: 105??73??21mm

Package Included:

1 x NOYAFA NF-622 Mini Handheld Digital Osciloscope

1 x Alligator Clip probe

1 x Charging Adapter

1 x User Manual

1 x Storage Bag

1 x Packing Box
