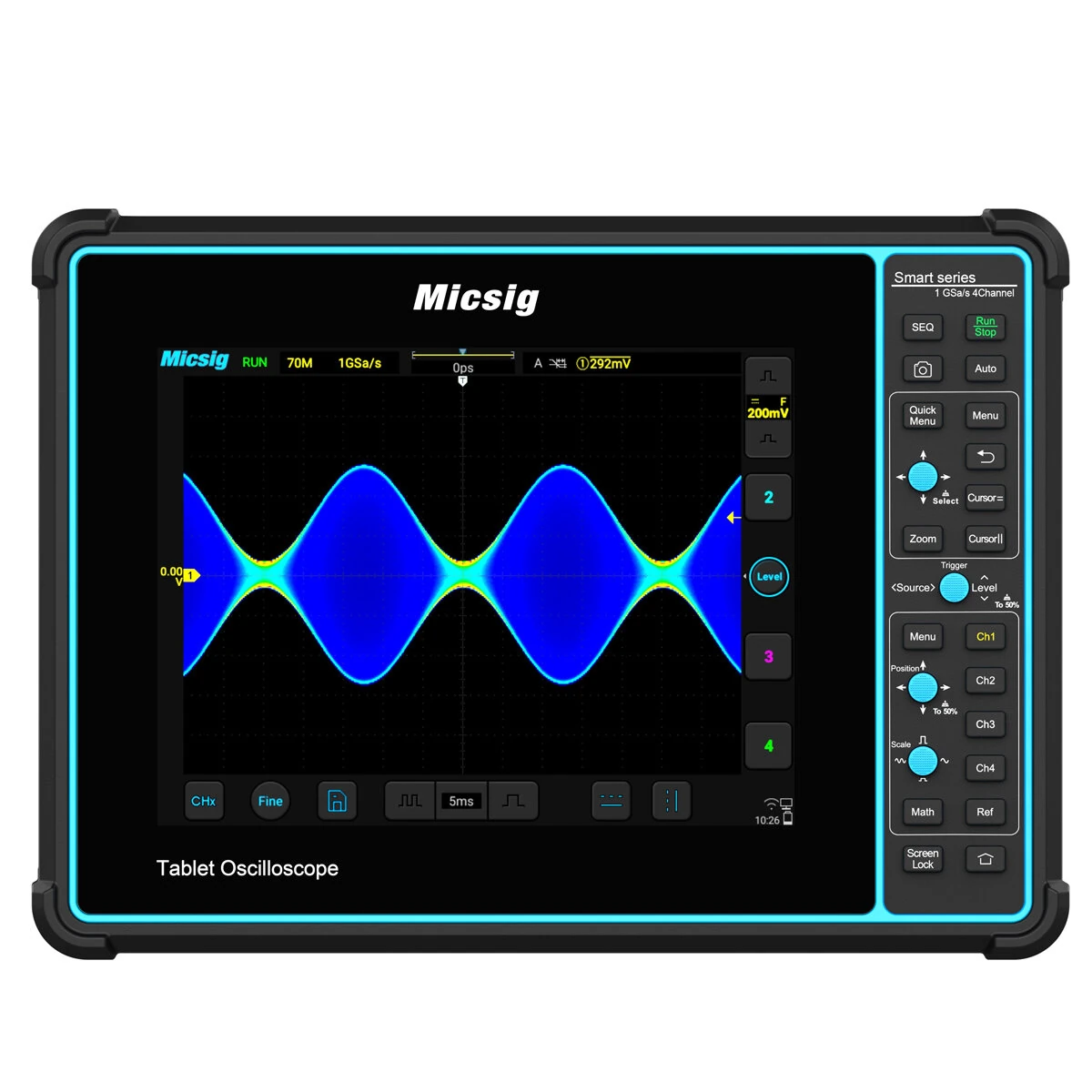

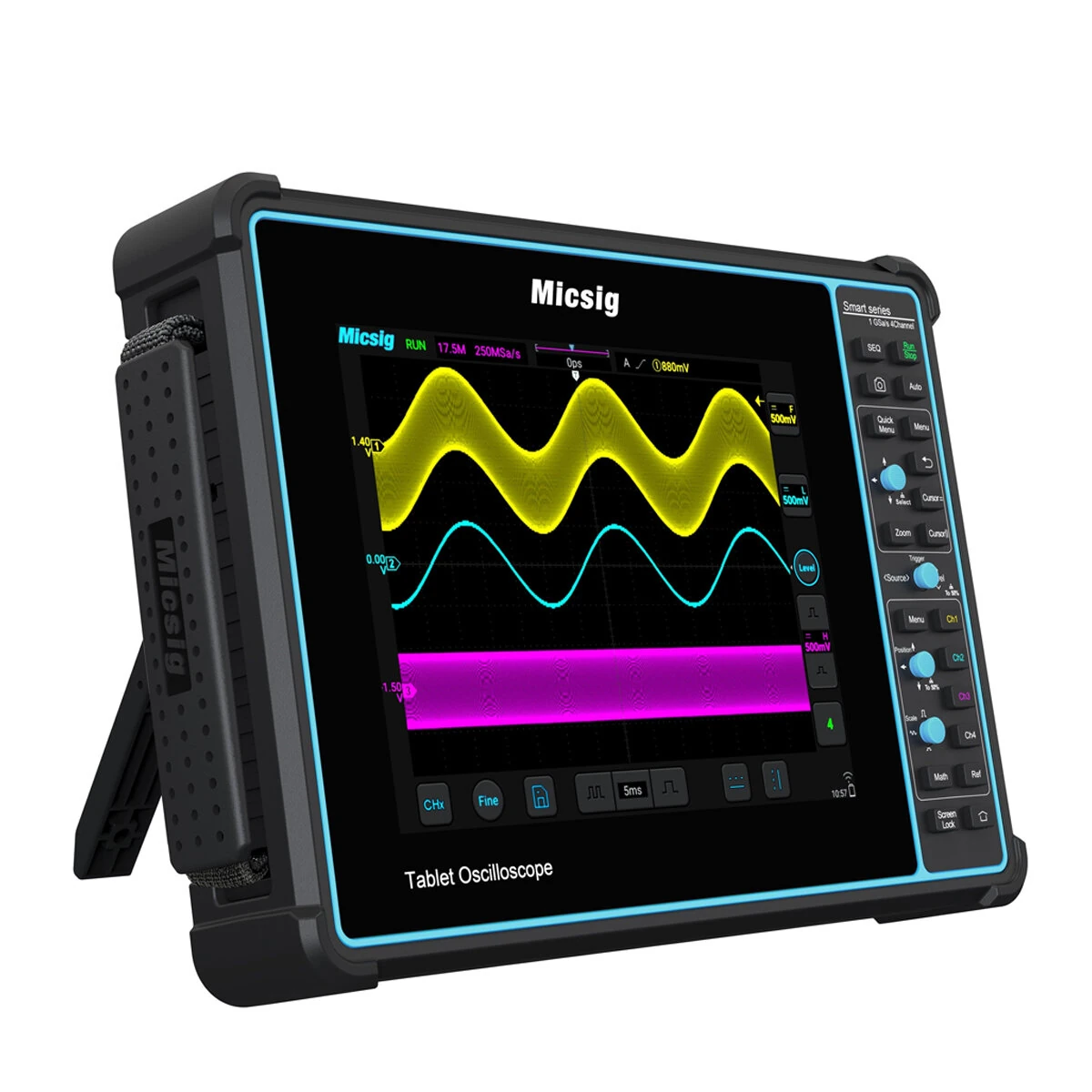

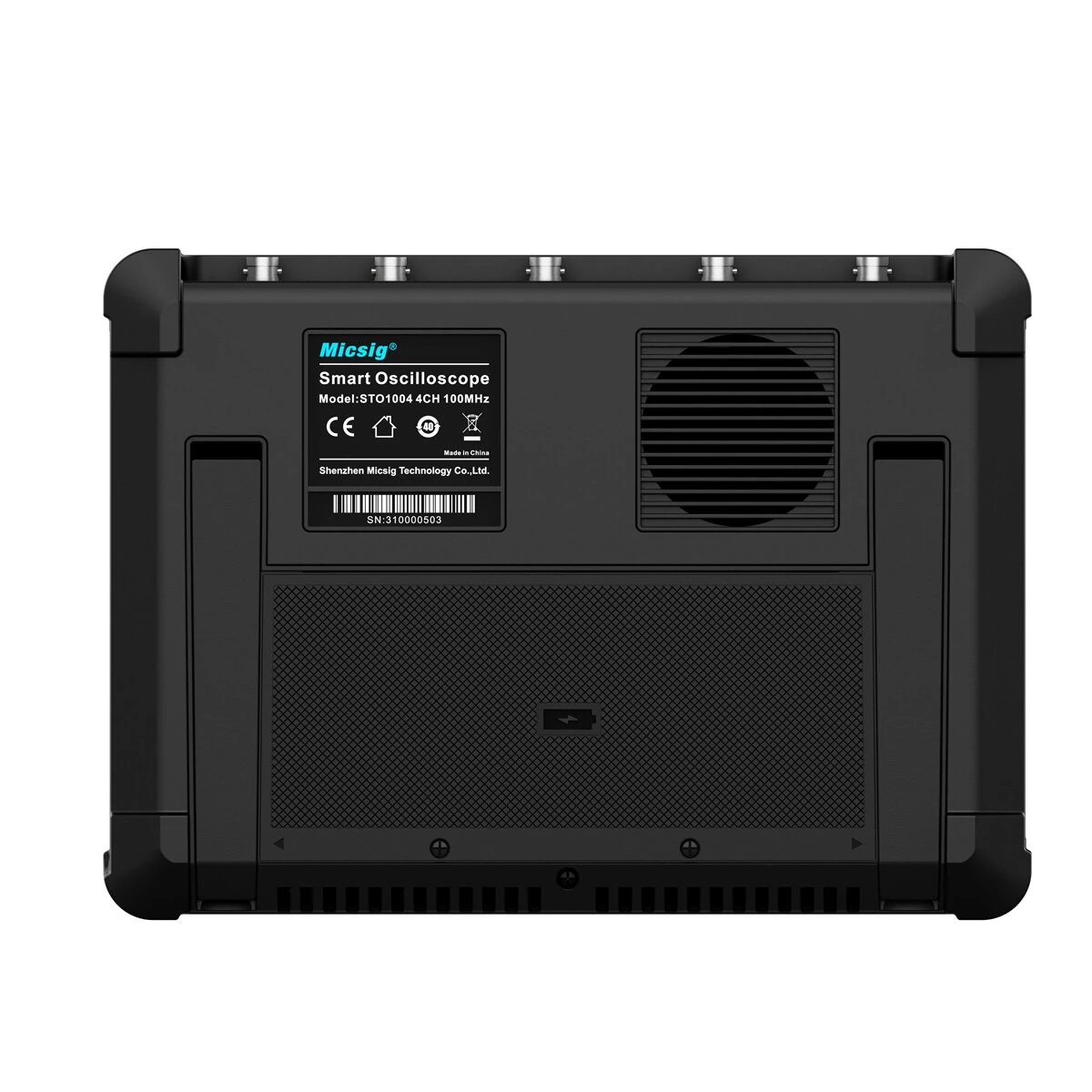

Micsig STO1004 1G Sa/s Tablet Oscilloscope - 4 Channel Digital Scopemeter

Product Description

Features:
Bandwidth up to 100MHZ, 1 Gsa/s Sample Rate.
Up to 28mpts Sample Memory Depth, 4 Channel
80, 000 Waveforms per Second
8 inch Full Capacitive Touch Display
256-level Intensity Grading and Color Temperature Display.
High Quality Buttons and Knobs for Simple and Smart Operation
8GB Flash Memory with Unique File Management System for Easy Waveform Data Storage and Transfer
Video Recording Function
Ethernet and Wifi Network Access
High-Definition Multimedia Interface Port for External Display
Remote Control using ios and Android APP

Specifications:
Brand: Micsig
Size: 280*180*50MM
Bandwidth: 100MHZ
Input channel: 4
Sample rate: 1G Sa/S
Memory depth: 28mpts
Max capture rate: 80,000wfm/s
Bandwidth limitation: 20MHZ, high pass, low pass
Interface: WI-FI, LAN, High-Definition Multimedia Interface, USB Host, USB Device, DC power, Trigger out
Screen: 8 inches TFT LCD, 800*600 pixels display resolution, 14"10 grids

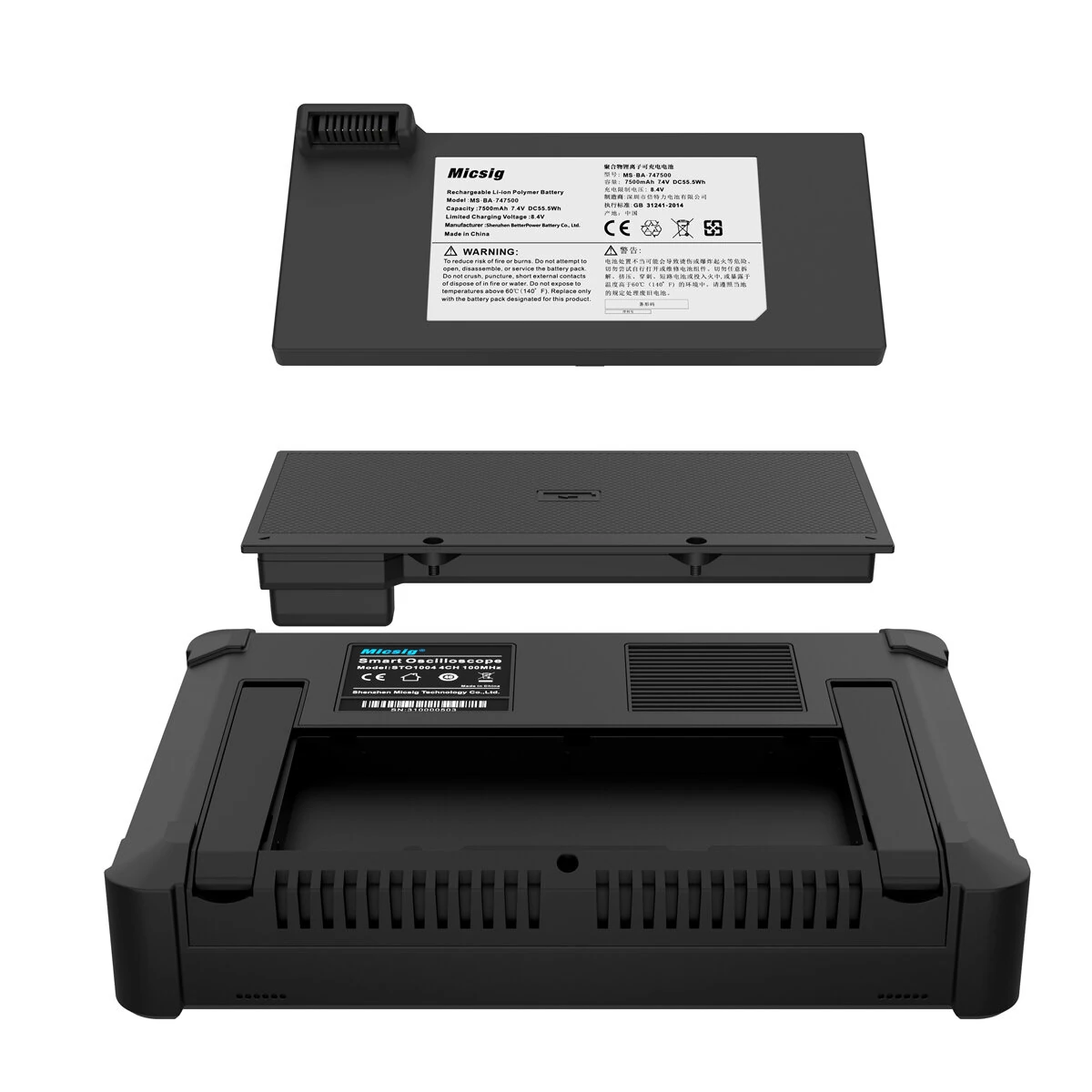

Battery: Built-in lithium battery, working time is up to 5 hours continuously
Language: It can support English, German, Spanish, French, Korean, Czech, Italian, Chinese, etc.
Optional Plug Type: EU Plug / US Plug

Package Included:
1 x STO1004 Tablet Oscilloscope
1 x Power Cord (Plug as your choice)
2 Pair x Alligator Clips
2 Pair x Soft Pin Probes
4 x BNC to Banana Leads
2 x Passive Probes
