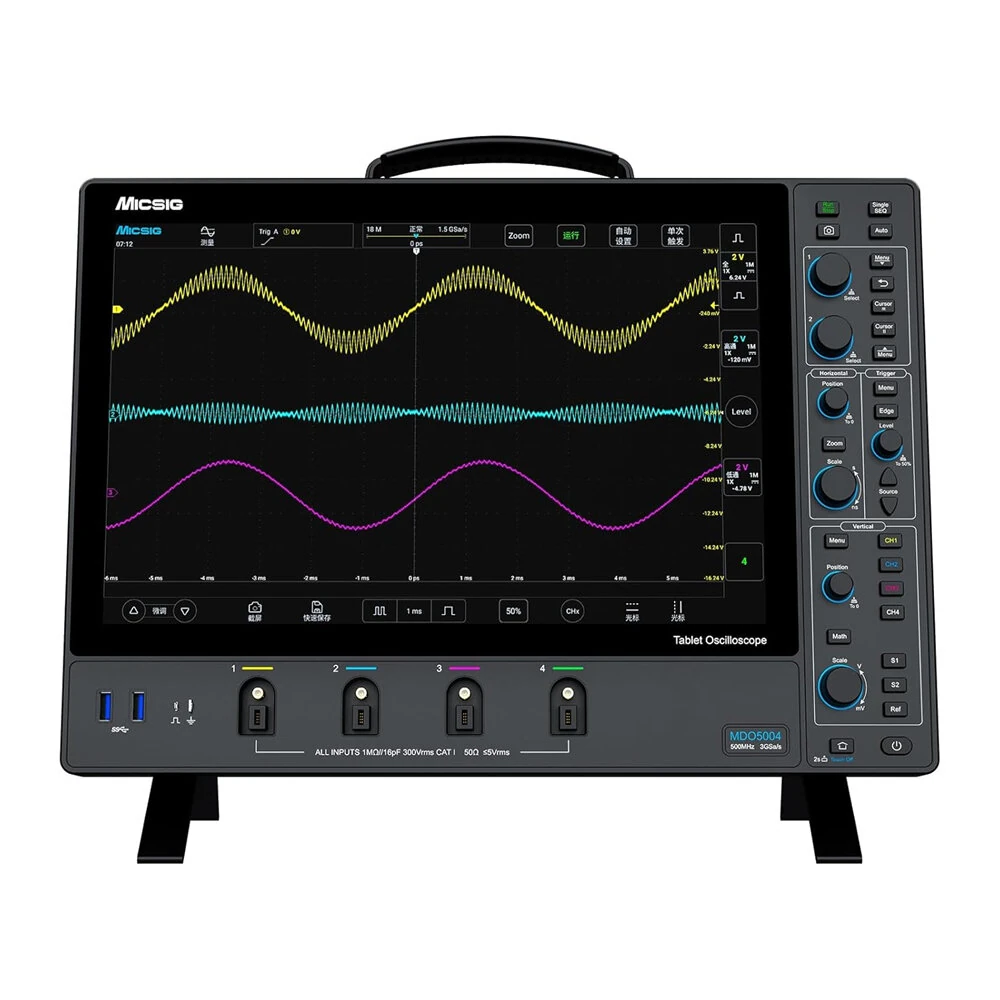

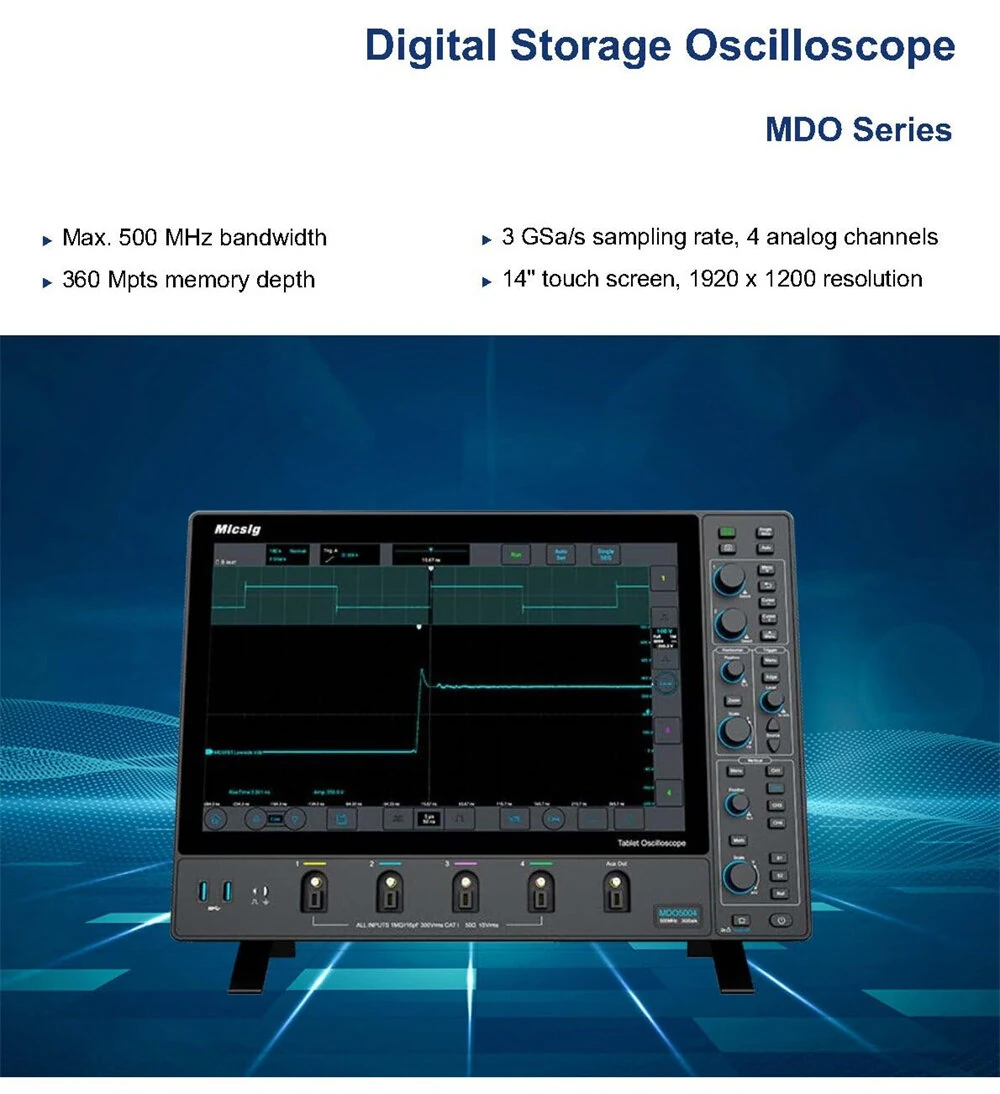

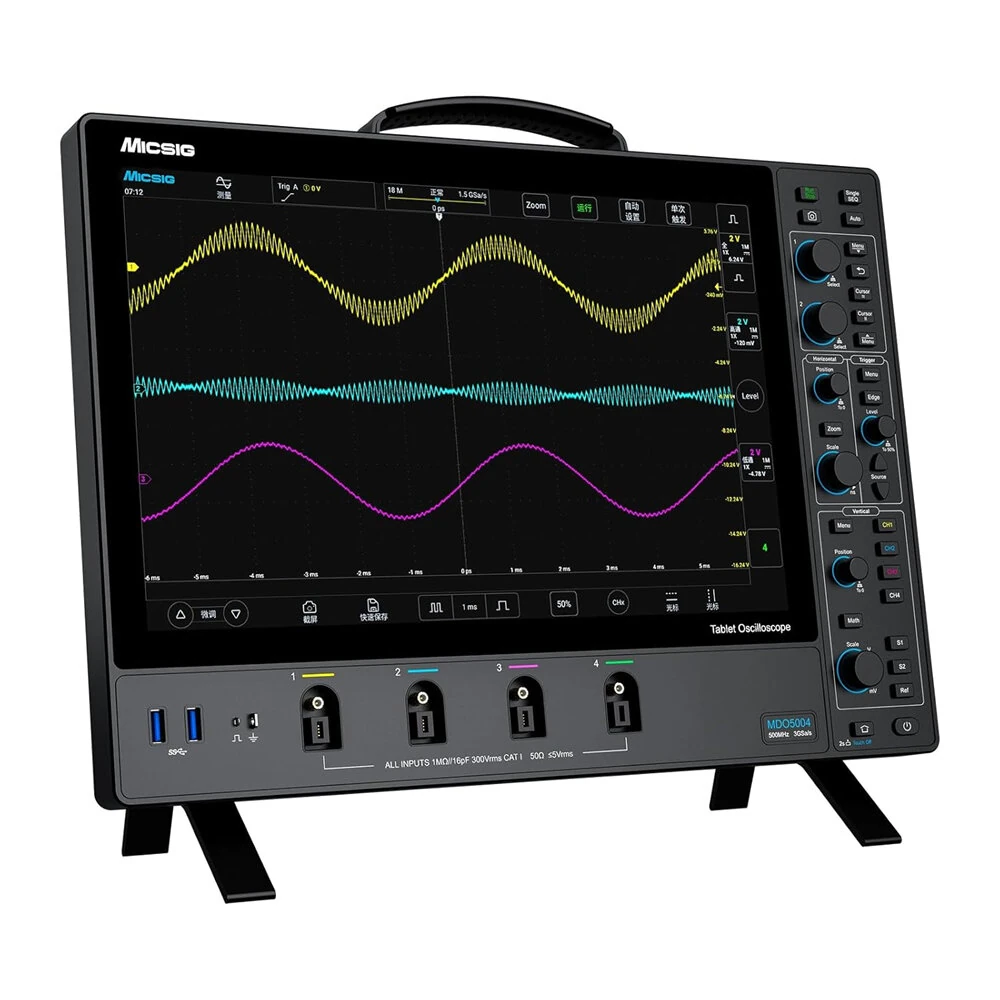

Micsig MDO2504 Digital Oscilloscope | 4 Channel 250MHz | Full Touch Screen

Product Description

Specifications:

Model Options: MDO2504, MDO3504, MDO5004

Bandwidth: 250MHz (MDO2504), 350MHz (MDO3504), 500MHz (MDO5004)

Rise Time: ??1.4ns (MDO2504), ??1ns (MDO3504), ??0.7ns (MDO5004)

Number of Analog Channels: 4

Sampling Rate: 3.5GS/s

Memory Depth: 360Mpts

Waveform Capture Rate: 230,000 wfm/s

Vertical Resolution: 8 bits

Noise Level: ??90??Vrms

Bus Decoding Standards: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B

Interfaces: USB 3.0 Host, USB Type-C, LAN, HDM, Trigger Output

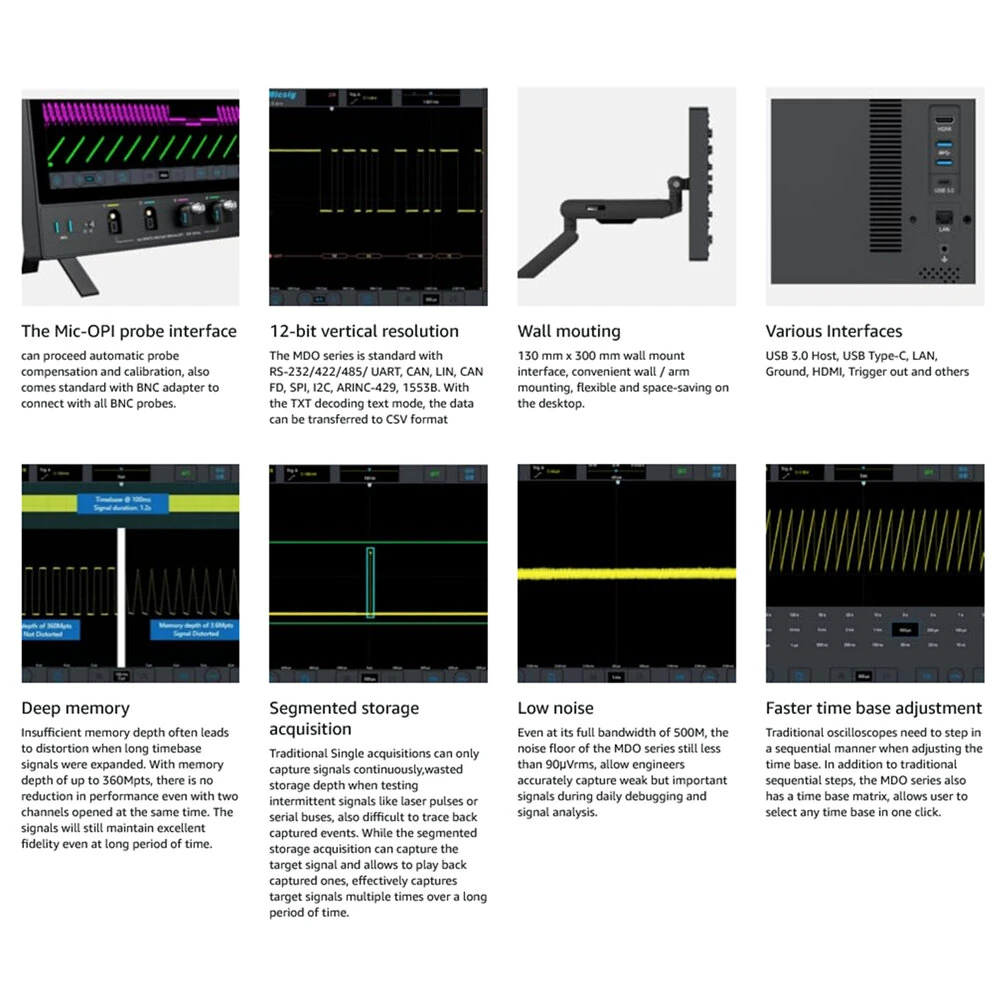

Features:

1. High Resolution Display: The full touch screen offers responsive control and visualization, allowing detailed waveform analysis with intuitive navigation at your fingertips.

2. Advanced Bus Decoding: Includes decoding for multiple industrial bus protocols such as CAN, SPI, and MIL-STD-1553B, supporting engineers working across industries.

3. Deep Memory Depth: The 360Mpts memory depth ensures comprehensive signal capture for accurate troubleshooting and in-depth analysis.

4. High Waveform Capture Rate: The 230,000 wfm/s capture rate identifies signal anomalies or glitches in real-time, ensuring precise diagnostics.

5. Expanded Connectivity Options: Features USB Type-C, HDM, and LAN interfaces for seamless integration into modern lab setups and easy data sharing.

Package Included:

1 x Digital Oscilloscope (Model: MDO2504/MDO3504/MDO5004)

4 x Passive Probes

1 x Power Cable(EU Plug)

1 x USB Cable

1 x User Manual

1 x Mounting Kit

4 x BNC Connector

1 x USB Network Link
