BSIDE O1X Digital Handheld Oscilloscope Multimeter - 10MHz Bandwidth | 48MSa/s | Color Display | Rechargeable

Product Description

Features:

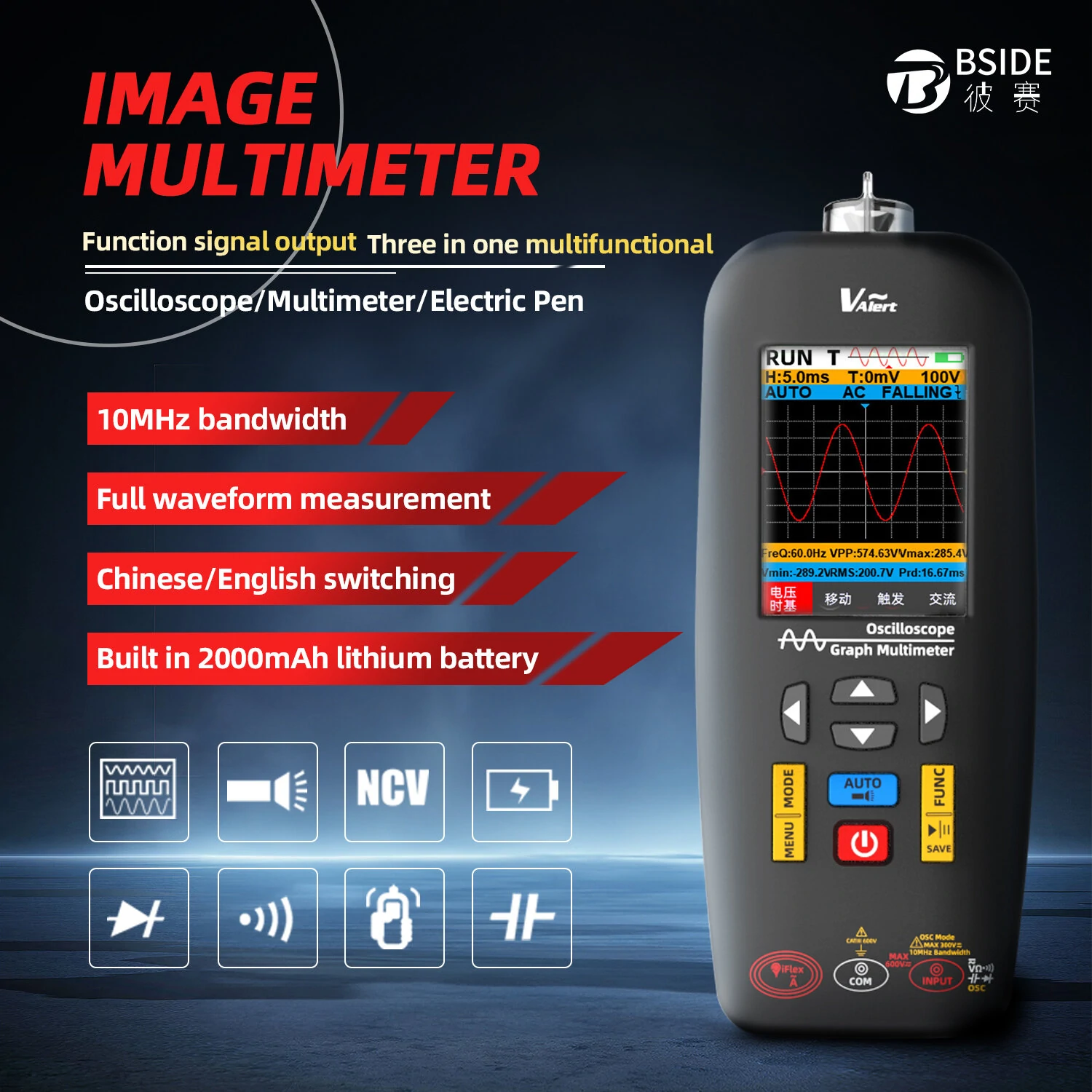

1. The BSIDE O1X Digital Handheld Oscilloscope Multimeter represents a three-in-one solution that incorporates an oscilloscope, multimeter and electric pen on a colorful display, providing a comprehensive tool for various electronic measurements.

2. This versatile oscilloscope multimeter features a frequency bandwidth of 10MHz and a sampling frequency of up to 48MSa/s, capable of accurately displaying waveform shape and detail to meet the needs of complex measurements.

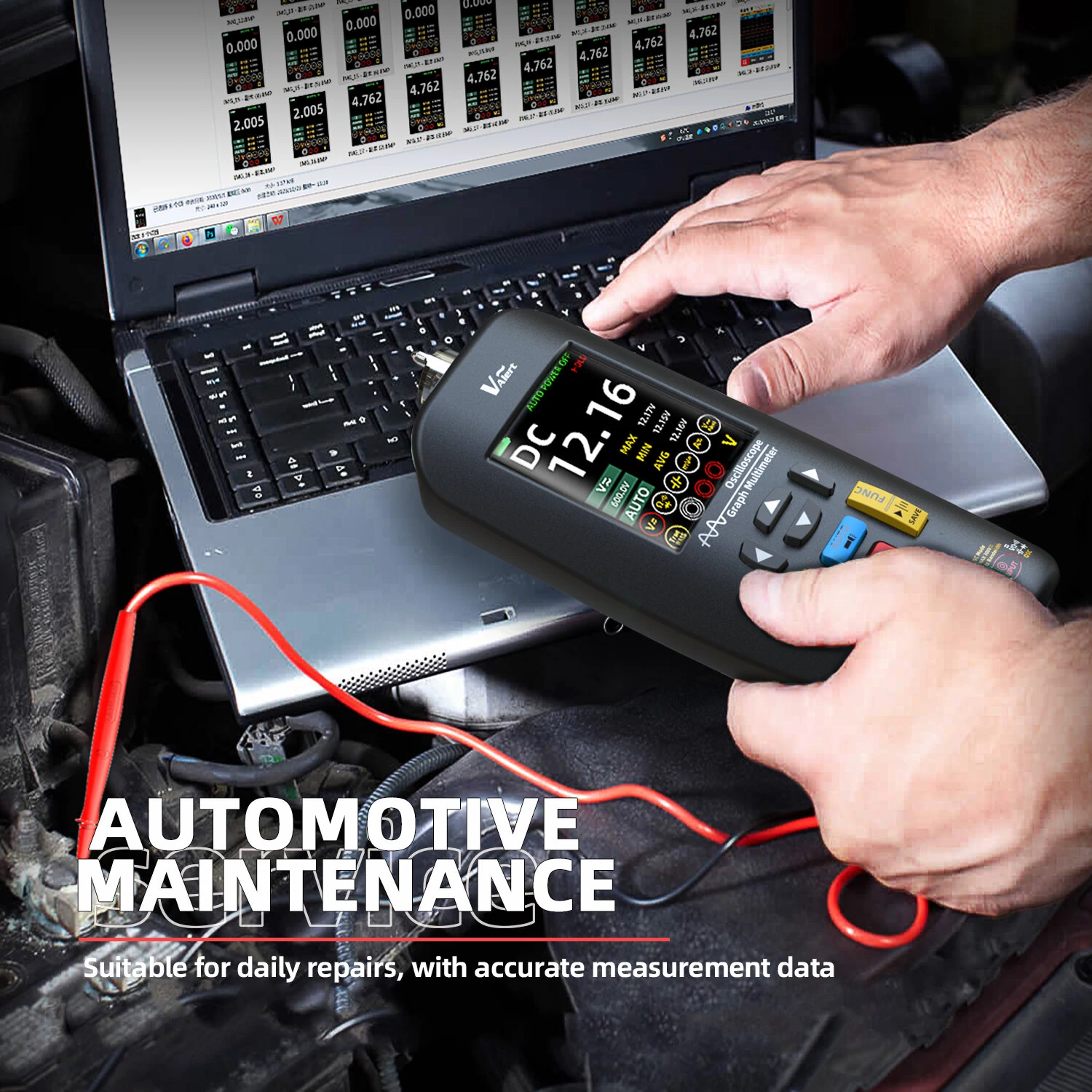

3. Its advanced automotive measurement capabilities make it an impeccable tool for any car diagnostic and repair work, aiding in identifying and troubleshooting a wide range of automotive electrical and electronic issues.

4. The convenient rechargeable built-in 2500mAh lithium battery ensures a long-lasting and uninterrupted operation, providing sustained power for long working hours.

5. Enhanced with a color screen, it delivers clear, accurate readings in lively, vibrant graphics, making data reading and analysis intuitive and effortless.

Specifications:

- Model: BSIDE O1X

- Bandwidth: 10MHz

- Sampling Frequency: 48MSa/s

- Coupling: DC, AC

- Input Impedance: 1M??

- Max Voltage: ??300V

- Sampling Rate: 1.5Sa/s - 48MSa/s

- Sensitivity: 200mV/div-100V/div

- Automatic measurement: frequency, period, peak to peak, maximum, minimum, RMS value

- Trigger Modes: Automatic, normal, single shot

- Multimeter Specifications: DC voltage, AC voltage, DC current, AC current, resistance, capacitance

- Battery: Built-in 2500mAh lithium battery

- Dimension: 187??74??40.5mm

- Weight: 209g

Package included:

1 x BSIDE O1X Digital Handheld Oscilloscope Multimeter

2 x Test Leads

1 x USB Charging Cable

1 x Protective Case

1 x User Manual
