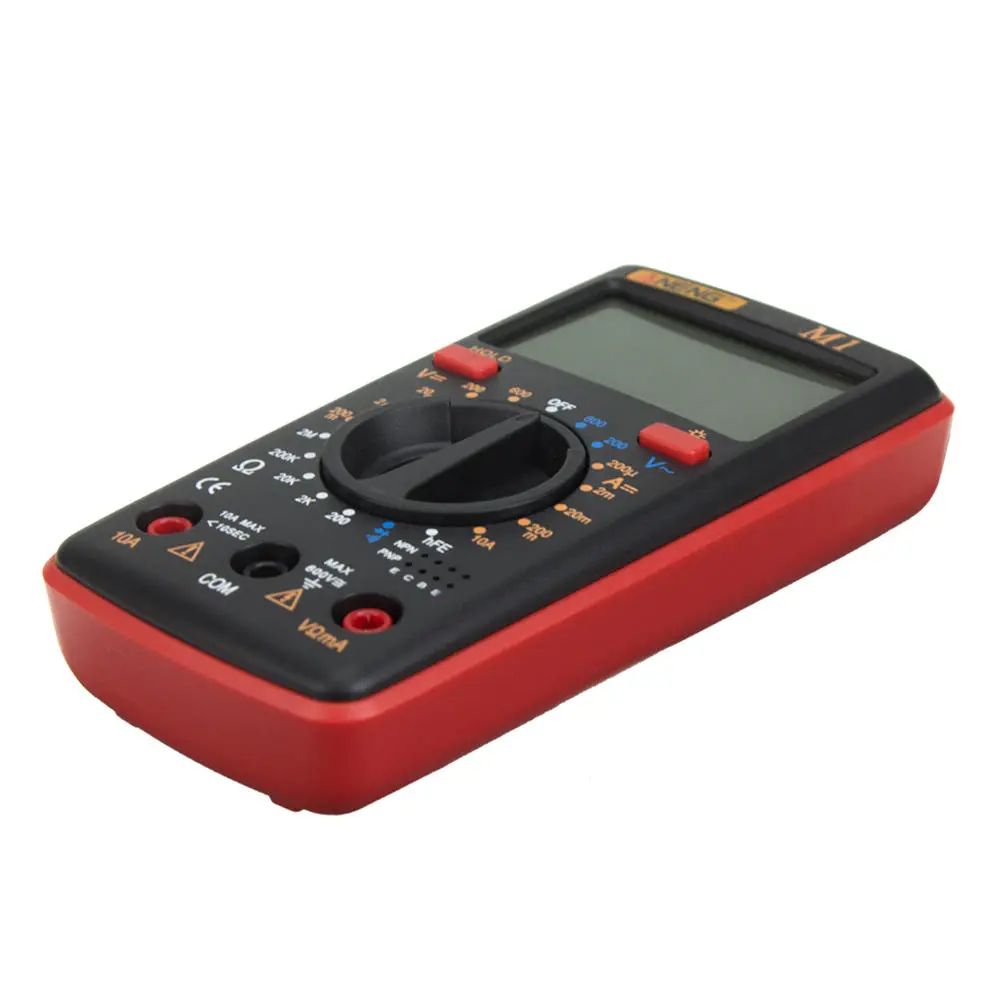

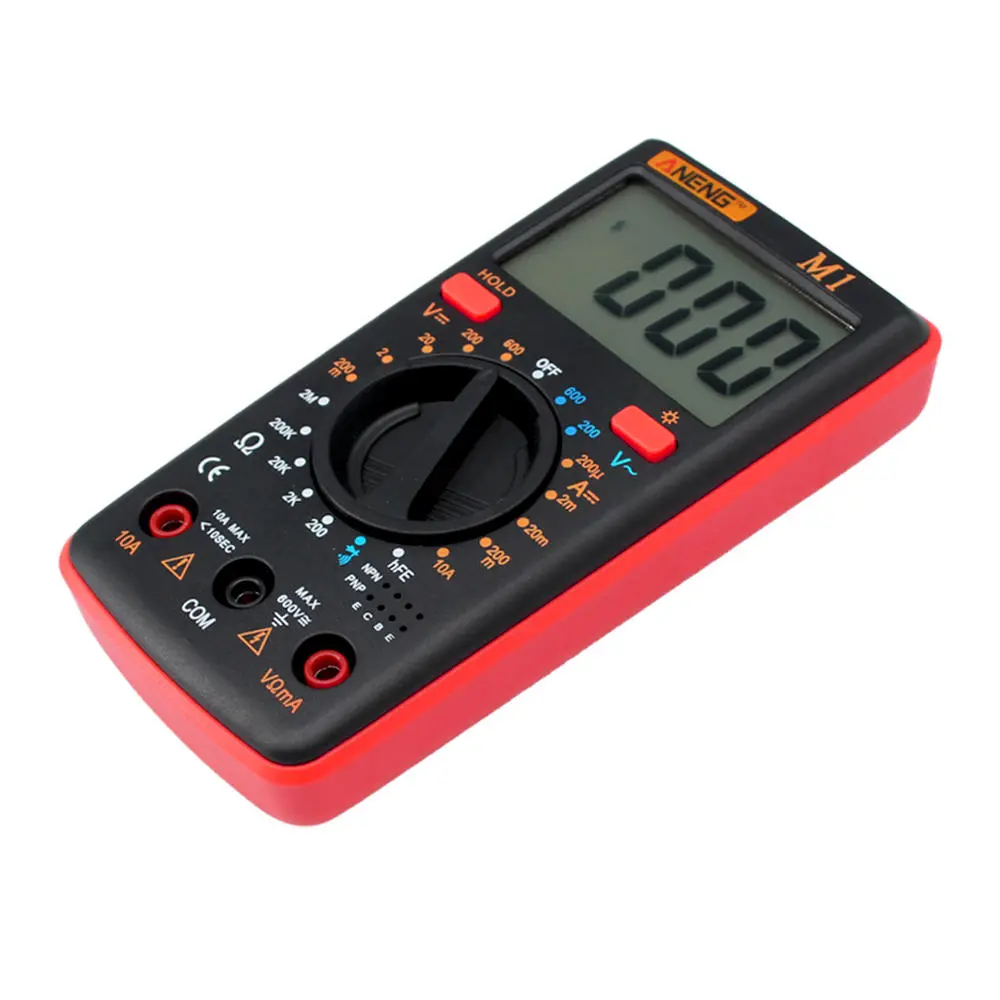

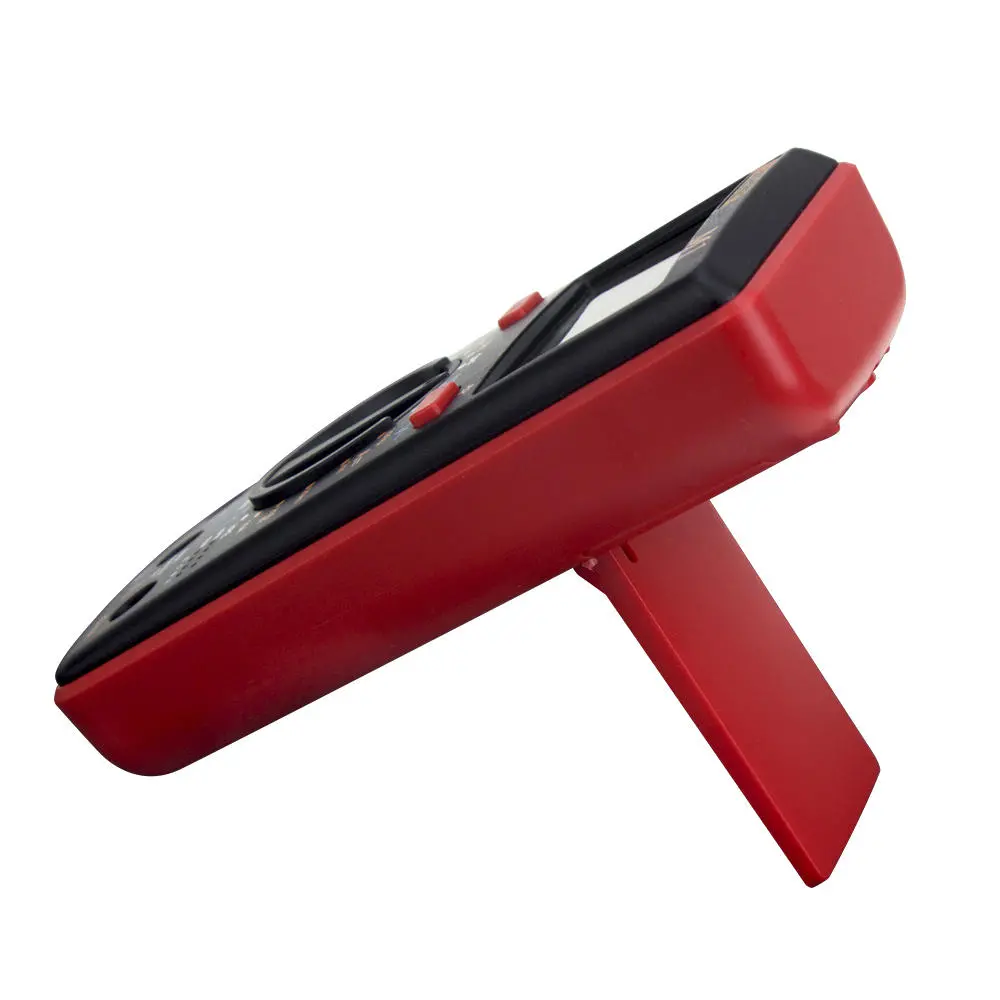

ANENG M1 Digital Multimeter - AC/DC Voltage Current Resistance & Continuity Test
$16.00
$19.18
-17% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:The meter is a hand held 3 1/2 digital multi-meter for measuring DC and AC voltage, DC and AC current, Resistance, Diode, Transistor and Continuity Test with battery operated. For special models also can be used for testing freguency, temperature, capacitance and NCV. Accuracy is specified for a period of one year after calibration and at 18?? to 28??(64?H to 82?H)with relative humidity to 80%. Specification:
Maximum voltage between terminals and earth ground: 600V DC or 600V AC Fuse protection: F 250Ma/250V Self-restoring fuse Power: 9V battery, NEDA 1604 or 6F22 Display: LCD, 1999 counts, updates 2-3 times per second Measuring method: Dual-slope integration A/D converter Over range Indication: Only figure ??1?? on the display Poladty indication: ??-??display for negative polarity Operating Environment: 0 to 40?? Storage temperature: -10 to 50?? Low battery indication: appears on the display DC VOLTAGE: Overload Protection: 250V rms for 200mV range, and 600V DC or rms AC for other ranges. AC VOLTAGE: Overload Protection: 600V DC or AC rms DC CURRENT: Overload Protection: 250V DC or AC rms for all ranges. Overload Protection: F250Ma/250V fuse. (10A range unfused) AC CURRENT: Overload Protection: 250V DC or AC rms for all ranges. Overload Protection: F250Ma/250V fuse. (10A range unfused) RESISTANCE: Maximum Open circuit Voltage: 3.2V Overload Protection: 250V DC or AC rms for all ranges. CAPACTITANCE: Overload Protection: 250V DC or AC rms for all ranges. Overload Protection: F250Ma/250V fuse. Dimensions: 32x63x130mm/1.26x2.48x5.12inch Color: Orange,Red,Blue Package includes:

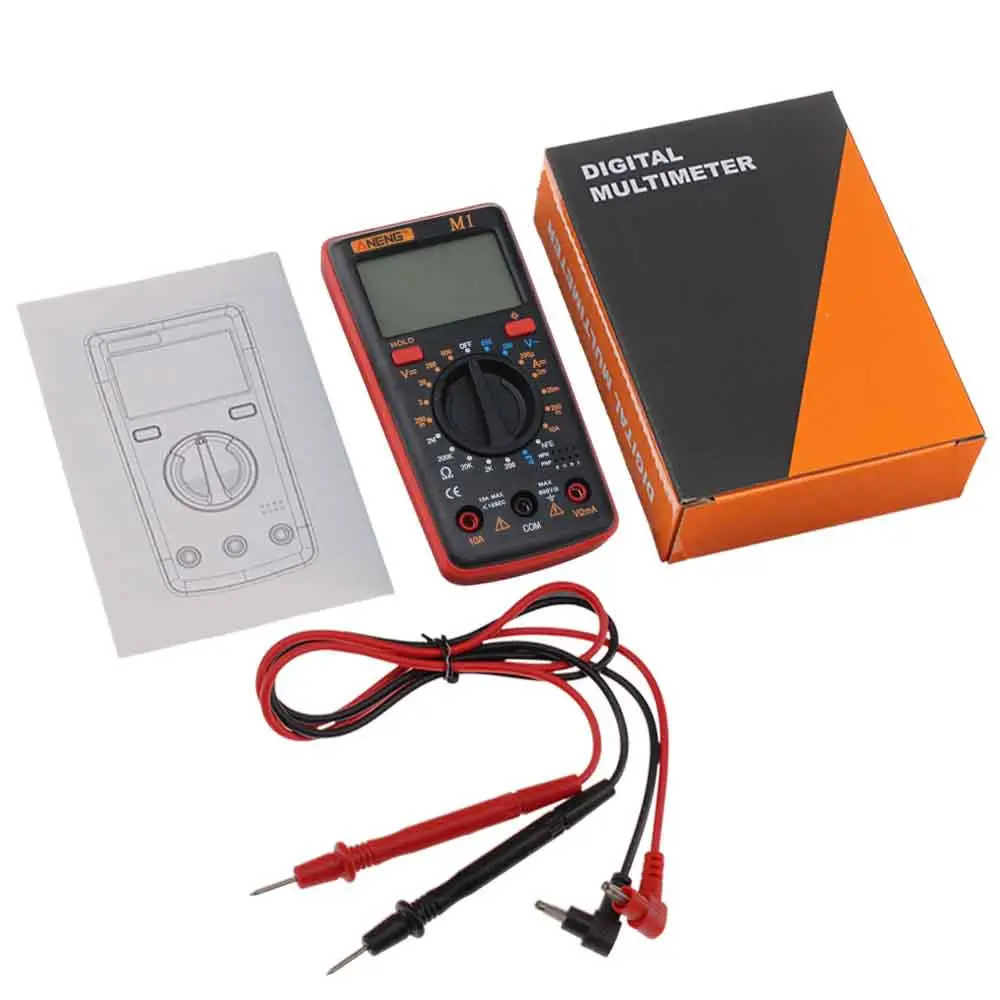

1 x Digital Multimeter 2 x Test Leads 1 x English User Manual
Details Pictures:
