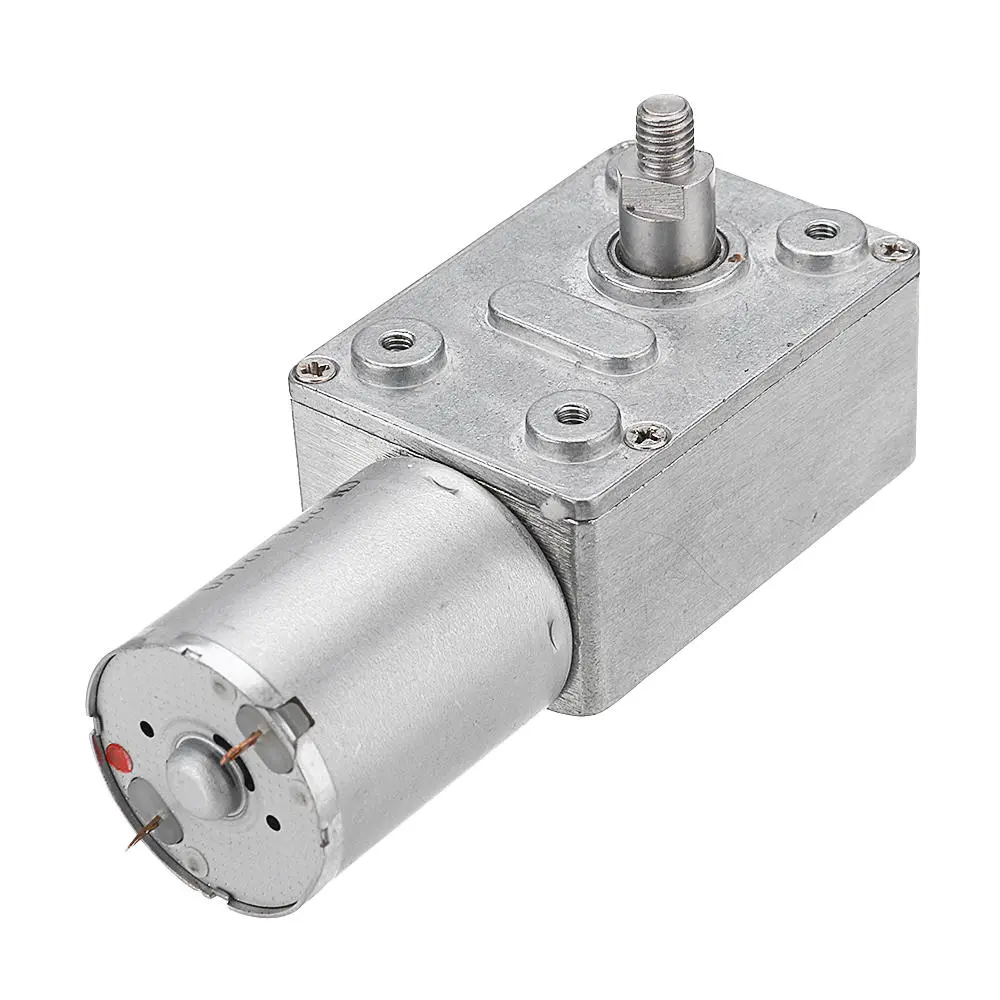

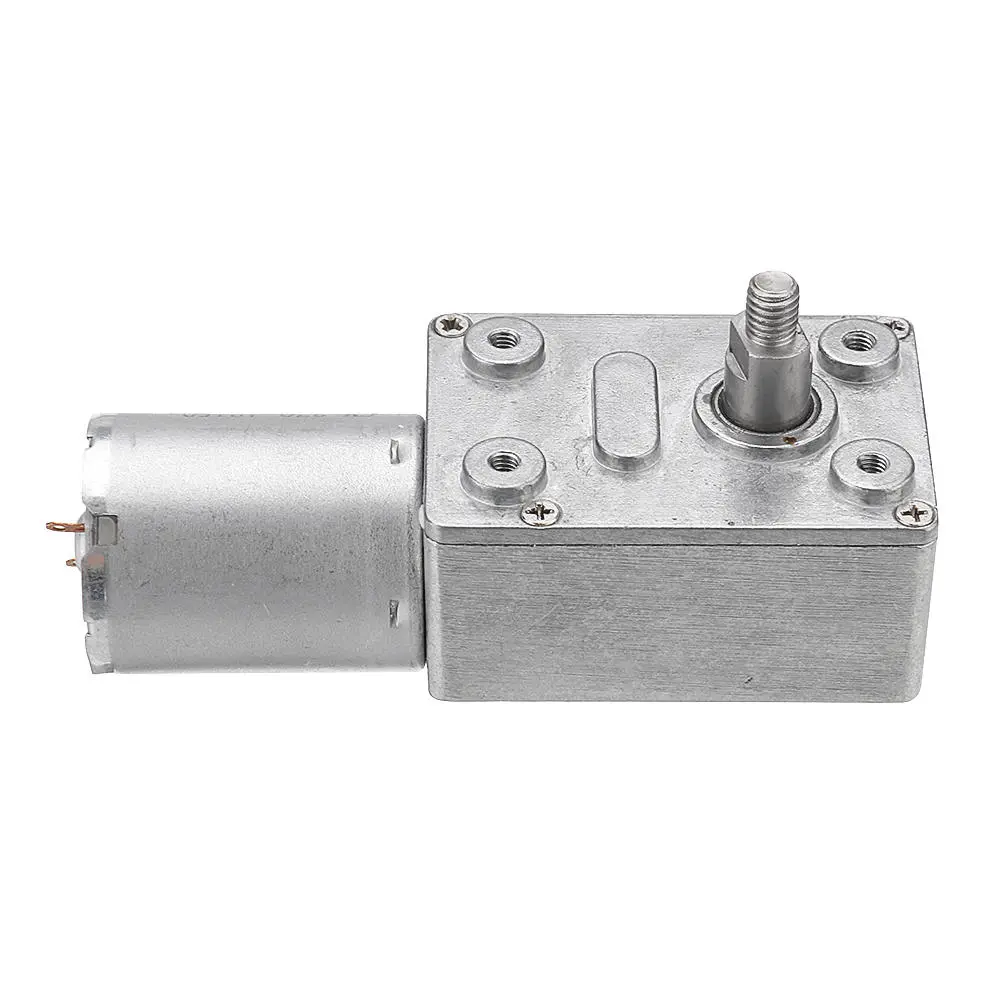

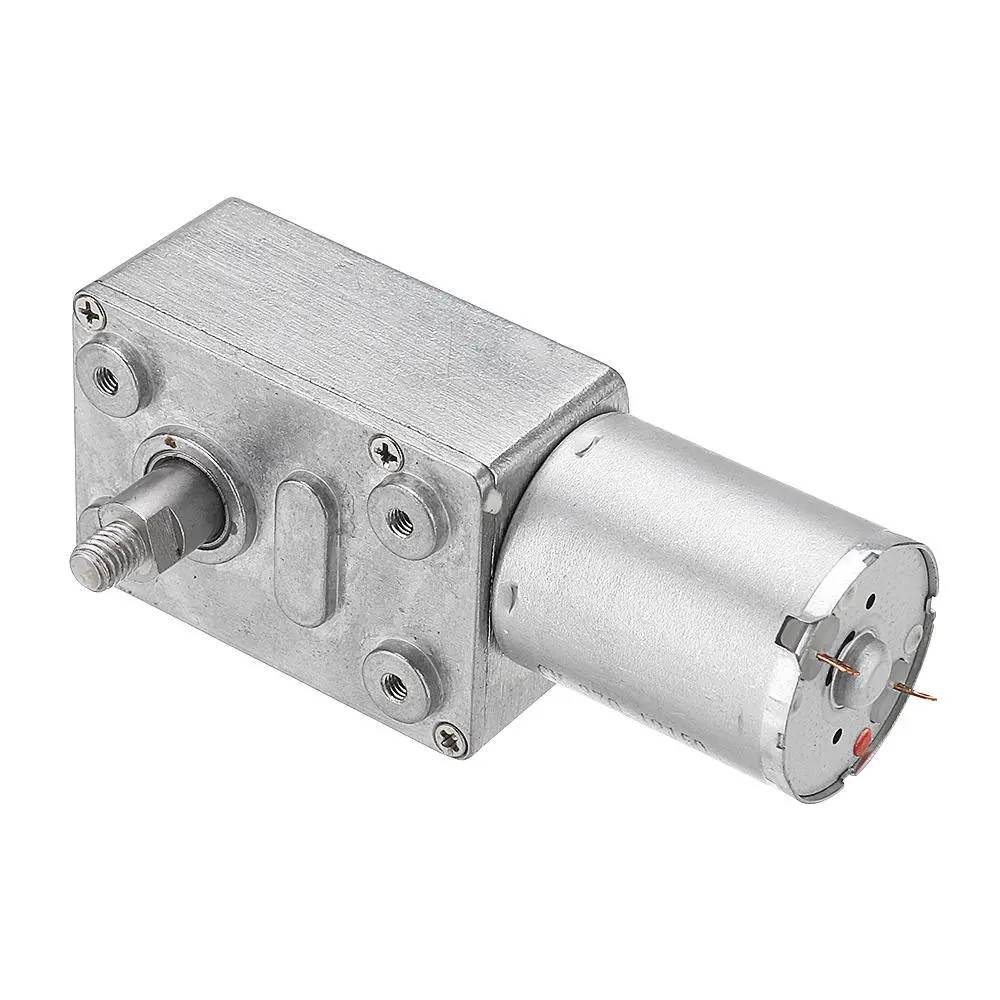

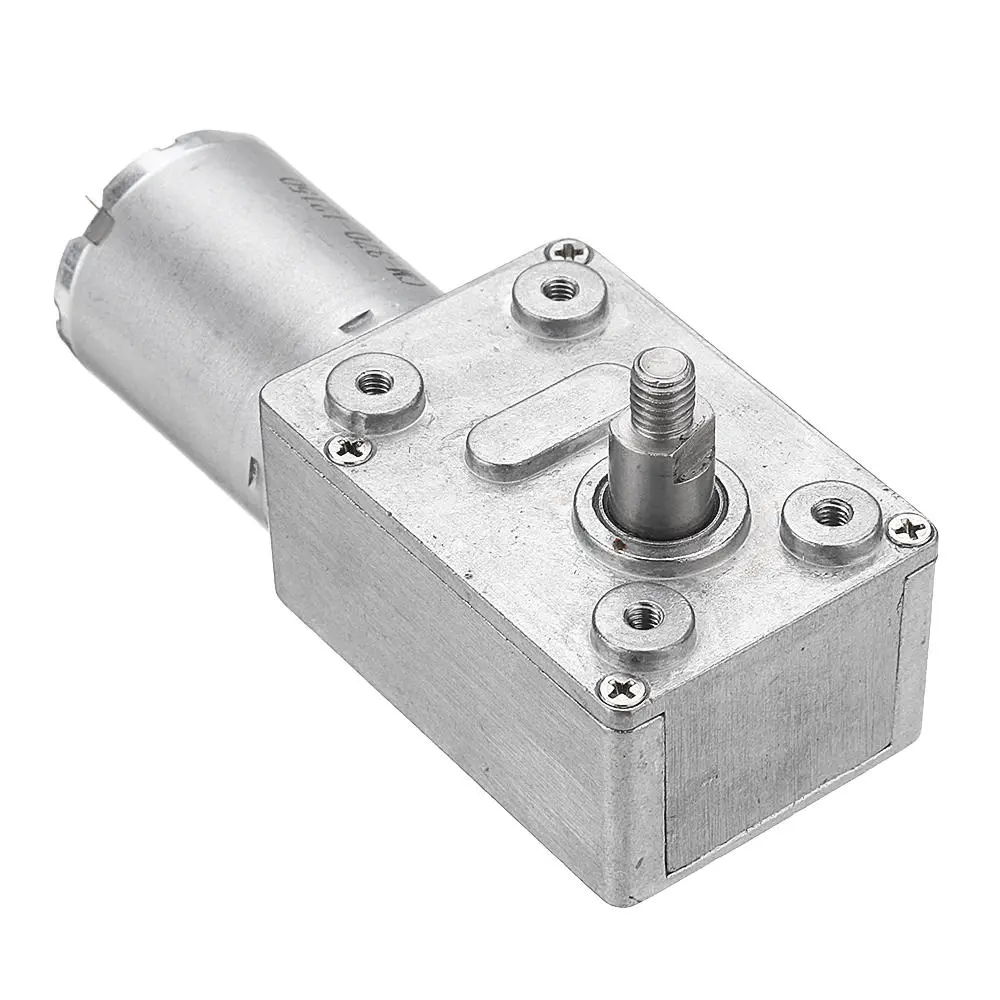

MACHIFIT JGY370 Worm Gear Motor - DC 6V 55RPM Reversible Self-Locking

Product Description

Description:
MACHIFIT JGY370 worm gear motor 6V 55rpm brush DC reduction motor with auto-Locking fits for lampblack machine
Specification:

Model	JGY370
Voltage	6V
Output shaft	8mm, M5 threaded rod, double flat
Deceleration ratio	90
No load current	??100MA
No Load Speed	55rpm
Rated torque	0.7Kg.cm
Rated speed	45rpm
Rated current	??0.6A
Maximum torque	2Kg.cm
Stop current	3.3A
Usage	Boat, Fan, Domestic Appliance, Car

Features:
- Can change shaft rotation direction while the wiring positive and negative be changed. - It is also have addition two characteristics: First, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle. - Large torque, durable and long service life.
- Specially used for range hood.
Package Included:
1 x JGY370 Worm gear motor
