Machifit 25GA370 12V DC Gear Motor with Encoder & Speed Dial | Micro Reduction

Product Description

Descriptions:

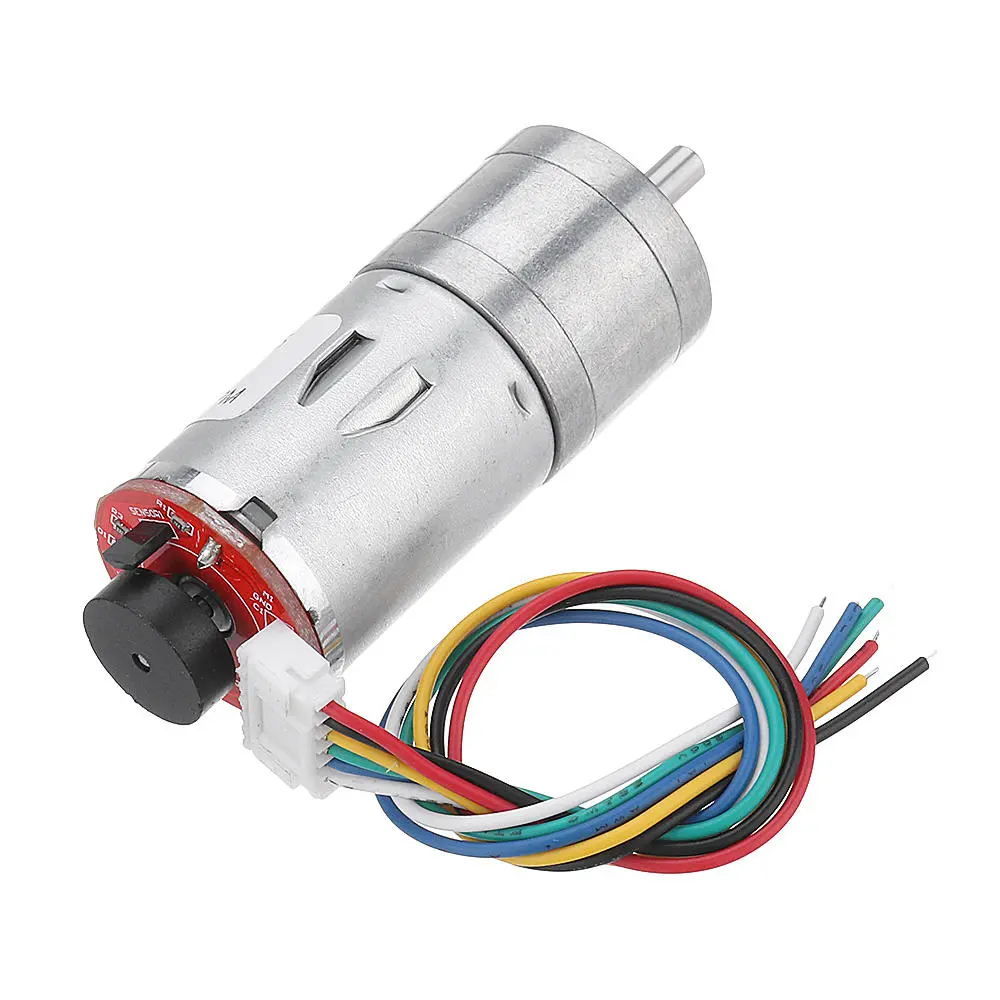

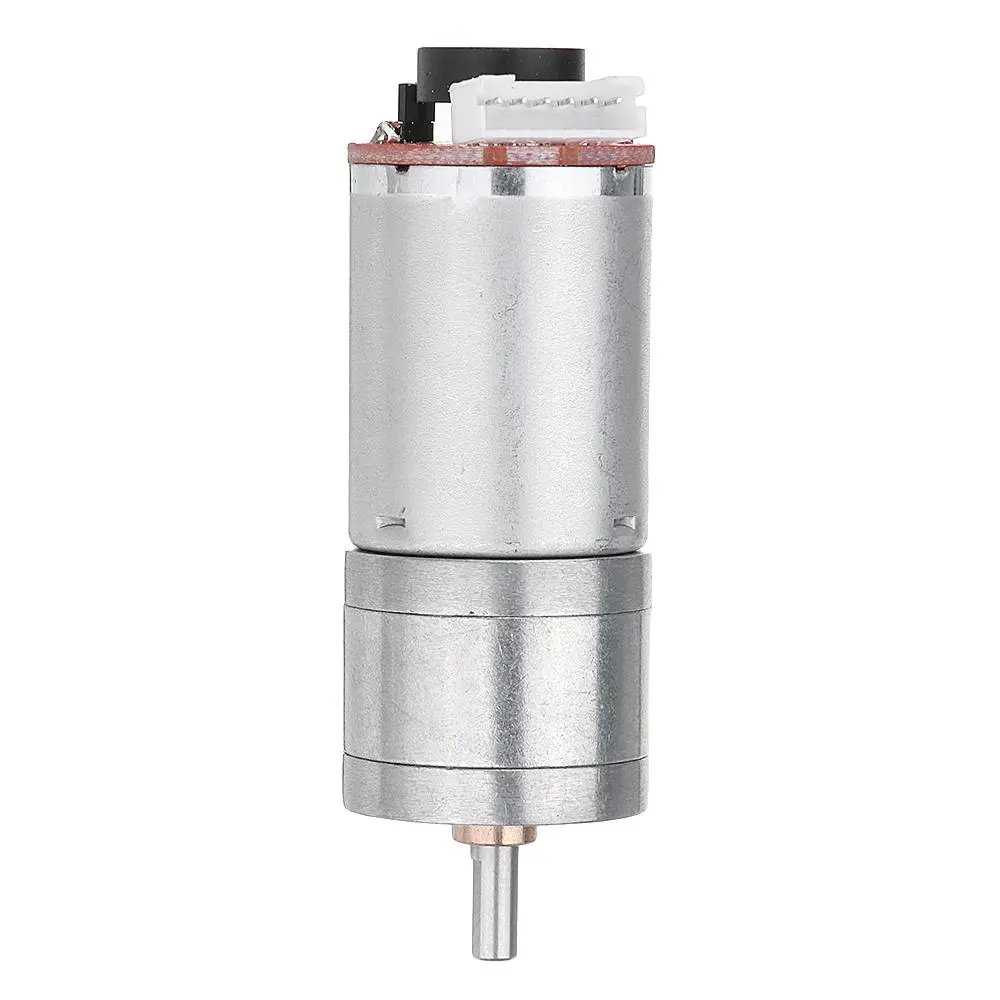

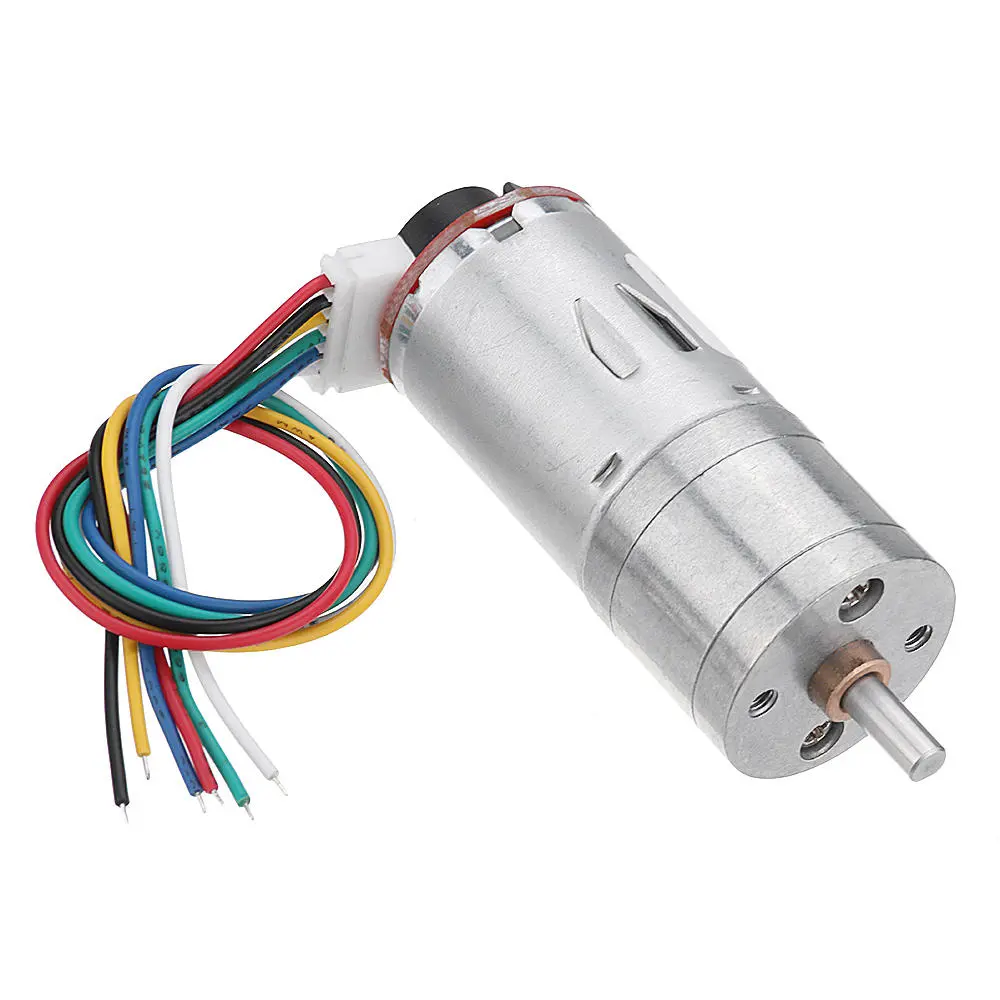

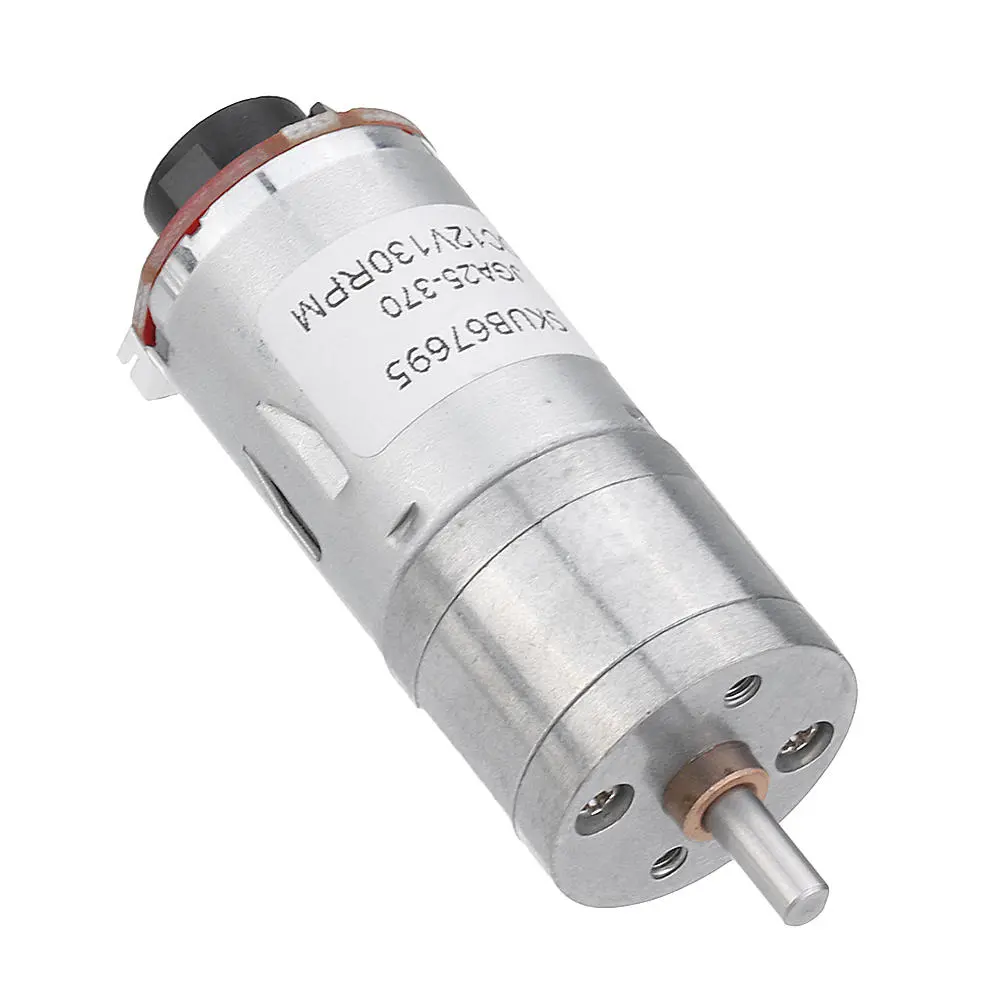

Machifit 25GA370 DC 12V micro gear reduction motor with encoder speed dial reducer
Specifications: Brand: Machifit Material: Metal Voltage: DC 12V
Power: 3W Speed Regulation: Yes
Rotate In Both Two Sides: Yes
Size(approach):
Output Shaft Dia.: 4mm
Line Length: 142mm
Axis Length: 12mm
Axle Shaft Length: 9.8mm
Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Wiring: Red: Motor power + positive (change can control motor forward and reverse) Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V) Yellow: Signal feedback (11 signals from the motor) Green: Signal feedback (11 signals from the motor) Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V) White: Motor power - negative (change can control motor forward and reverse)
Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) ??10%rpm	Torque (kg.cm)	Speed(rpm) ??10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size	Encoder Pulse Number
DC 12.0V	1:499	0.07	12	9.7	9	0.3	??	??	91	27	678
DC 12.0V	1:300	0.07	35	3.3	27	0.3	??	??	89	25	1890
DC 12.0V	1:170	0.07	60	2	46	0.3	7.3	1.8	90	23	1890
DC 12.0V	1:50	0.07	130	0.9	100	0.3	4.4	1.8	88	21	1026
DC 12.0V	1:20	0.07	620	0.2	477	0.3	0.9	1.8	83	17.5	1890

Features:
- All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 Pcs x 12V Micro Reduction Gear Motor
More Details:
