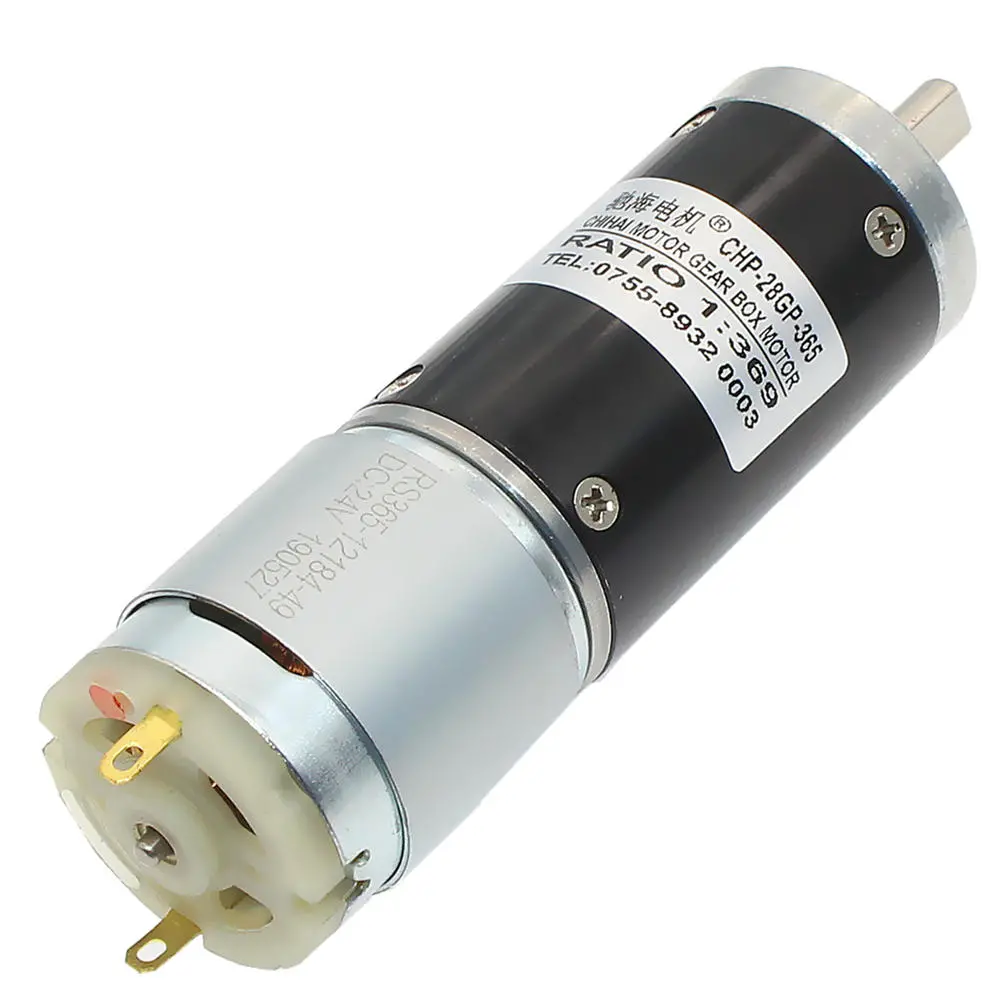

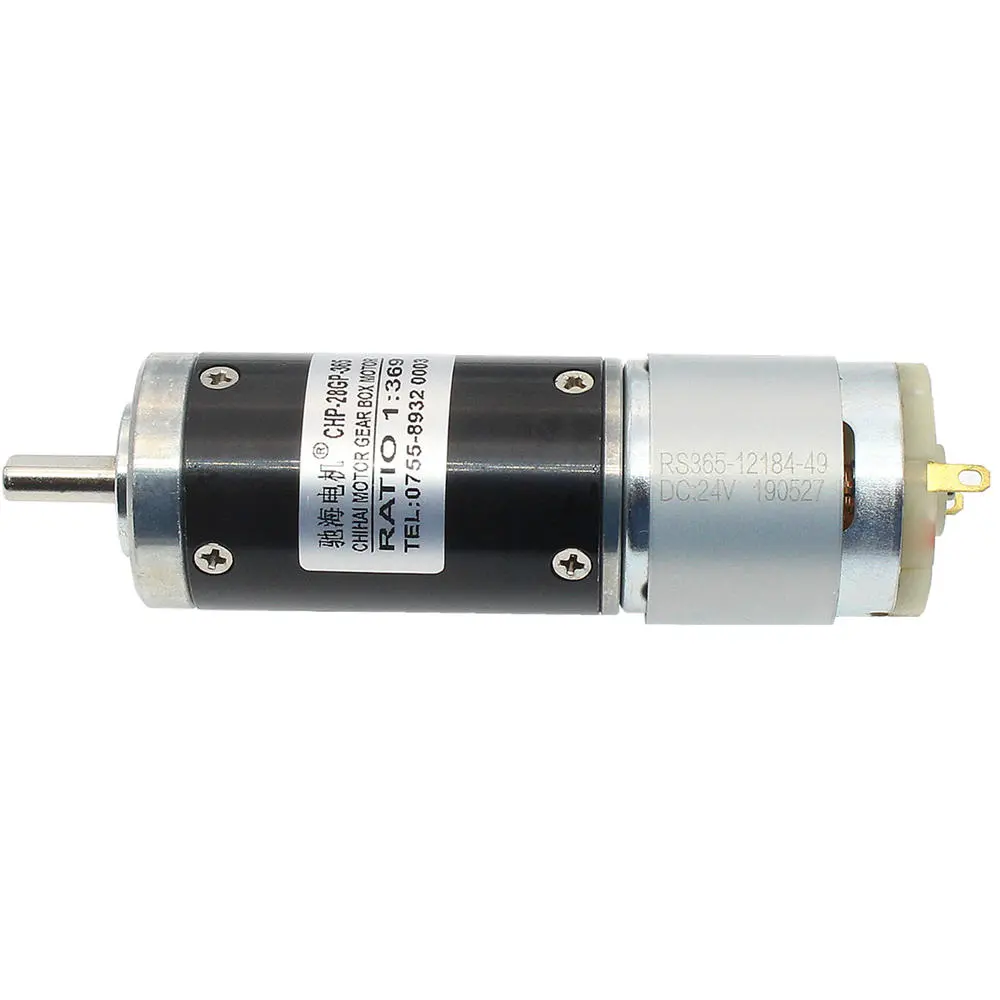

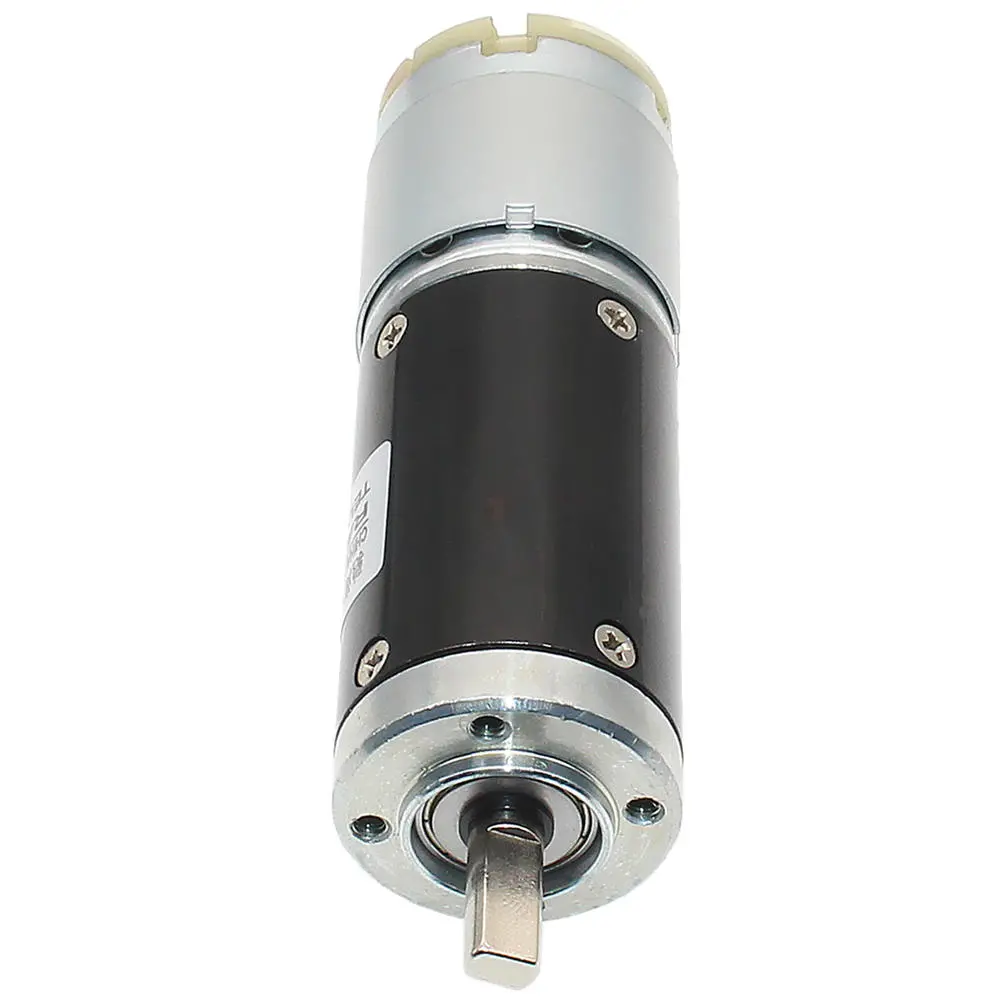

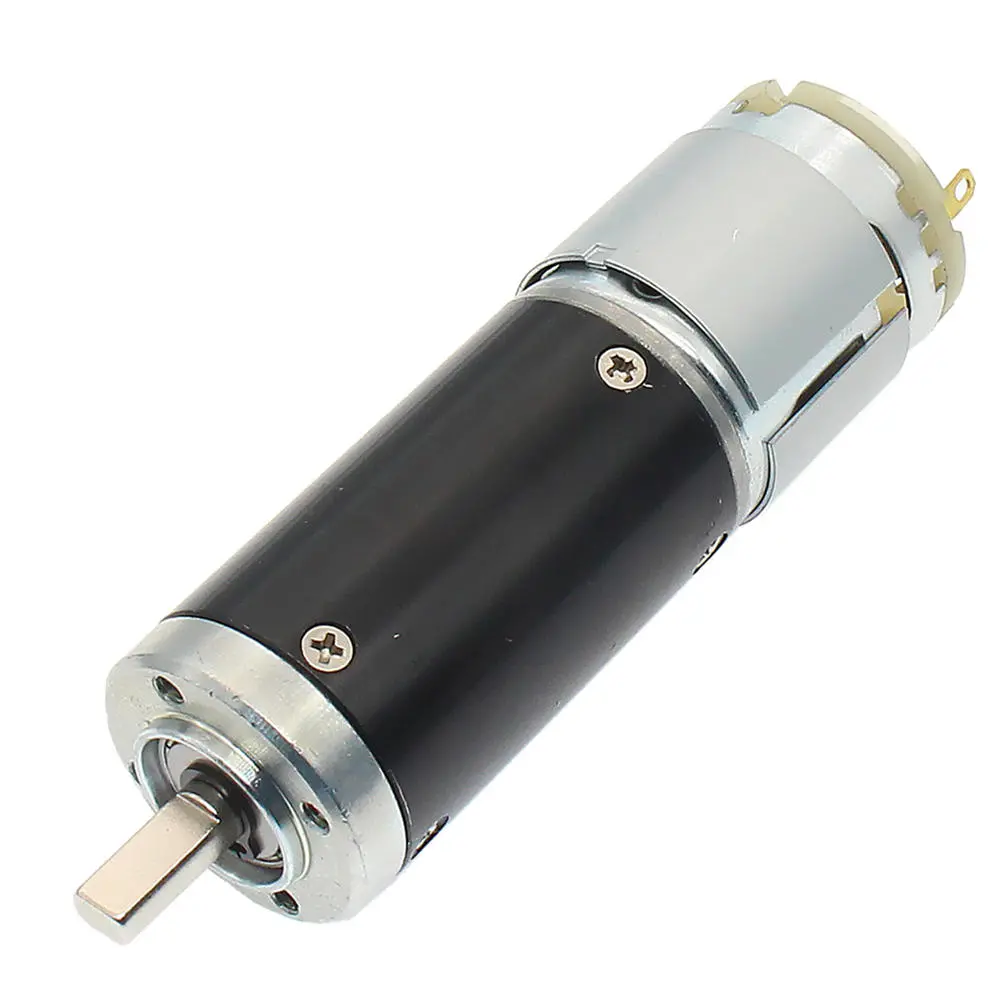

Chihai CHP-28GP-365S Planetary Gear Motor - 12/25 RPM - 1:369 Ratio

Product Description

Descriptions:
Chihai CHP-28GP-365S planetary gear reduction motor 12/25rpm ratio 1:369 Specifications: Brand: Chihai Motor
Model: CHP-28GP-365S planetary gear reduction motor
Material: Stainless S teel
Ratio: 1:369

DC Voltage (V)	12V	24V
No-road current (mA)	??150	??200
No-load speed (rpm)	12	25
Rated torque (Kg.cm)	7.0	15.0
Rated-load speed (rpm)	9	17
Rated-load current (A)	??0.2	??0.45
STALL torque (Kg.cm)	??28.0	??40.0
STALL current (A)	??0.7	??1.4
Torsion of motor is too large. Frequent start-up or blockage of motor is prohibited.

Features:
- Stainless s teel support shaft ensures stable linear drive; - Large torque, adjustable, positive and negative; - Low energy consumption and low noise; - Powerful, durable and long life; - Applied to Equipment, robot, camera, household and other fields. Package Included:
1 Pc x Chihai Reduction Motor More Details:
